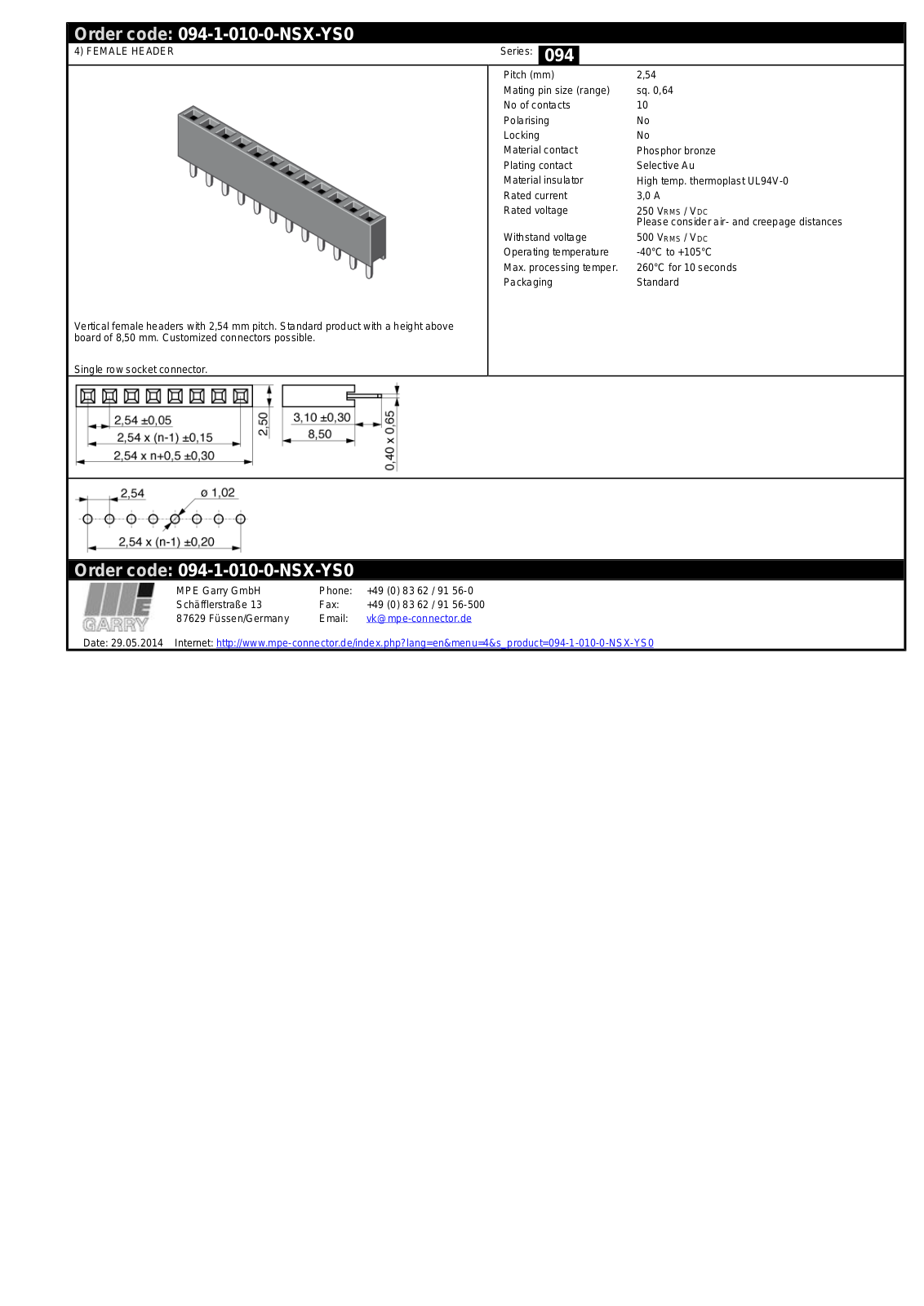

Order code: 094-1-010-0-NSX-YS0
4) FEMALE HEADER Series:
Pitch (mm)
Mating pin size (range)
No of contacts
Polarising
Locking
Material contact
Plating contact
Material insulator
Rated current
Rated voltage
Withstand voltage
Operating temperature
Max. processing temper.
Packaging
Vertical female headers with 2,54 mm pitch. Standard product with a height above
board of 8,50 mm. Customized connectors possible.
Single row socket connector.
094
2,54
sq. 0,64
10
No
No
Phosphor bronze
Selective Au
High temp. thermoplast UL94V-0
3,0 A
250 V
/ V
RMS
RMS
/ V
DC
DC
Please consider air- and creepage distances
500 V
-40°C to +105°C
260°C for 10 seconds
Standard
Order code: 094-1-010-0-NSX-YS0
MPE Garry GmbH
Schäfflerstraße 13
87629 Füssen/Germany
Date: 29.05.2014 Internet: http://www.mpe-connector.de/index.php?lang=en&menu=4&s_product=094-1-010-0-NSX-YS0
Phone: +49 (0) 83 62 / 91 56-0
Fax: +49 (0) 83 62 / 91 56-500
Email: vk@mpe-connector.de
