Page 1
66

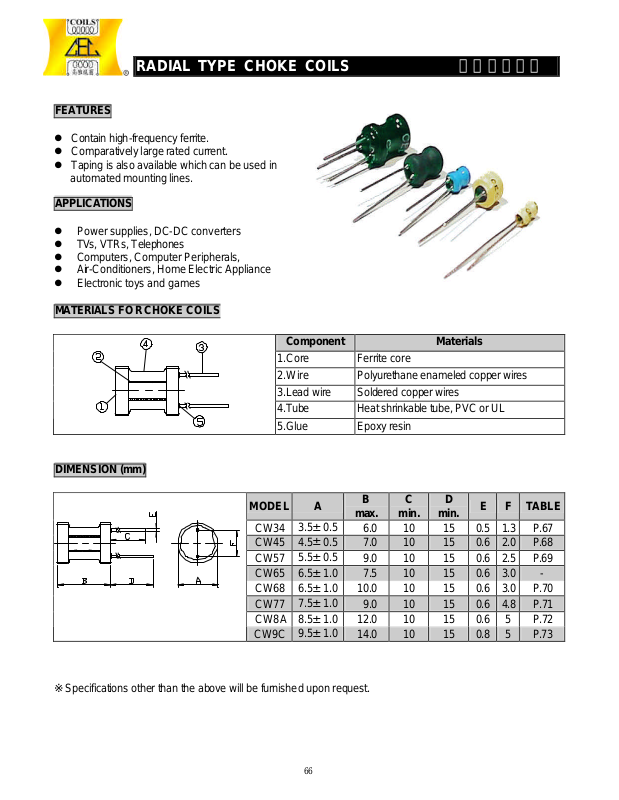

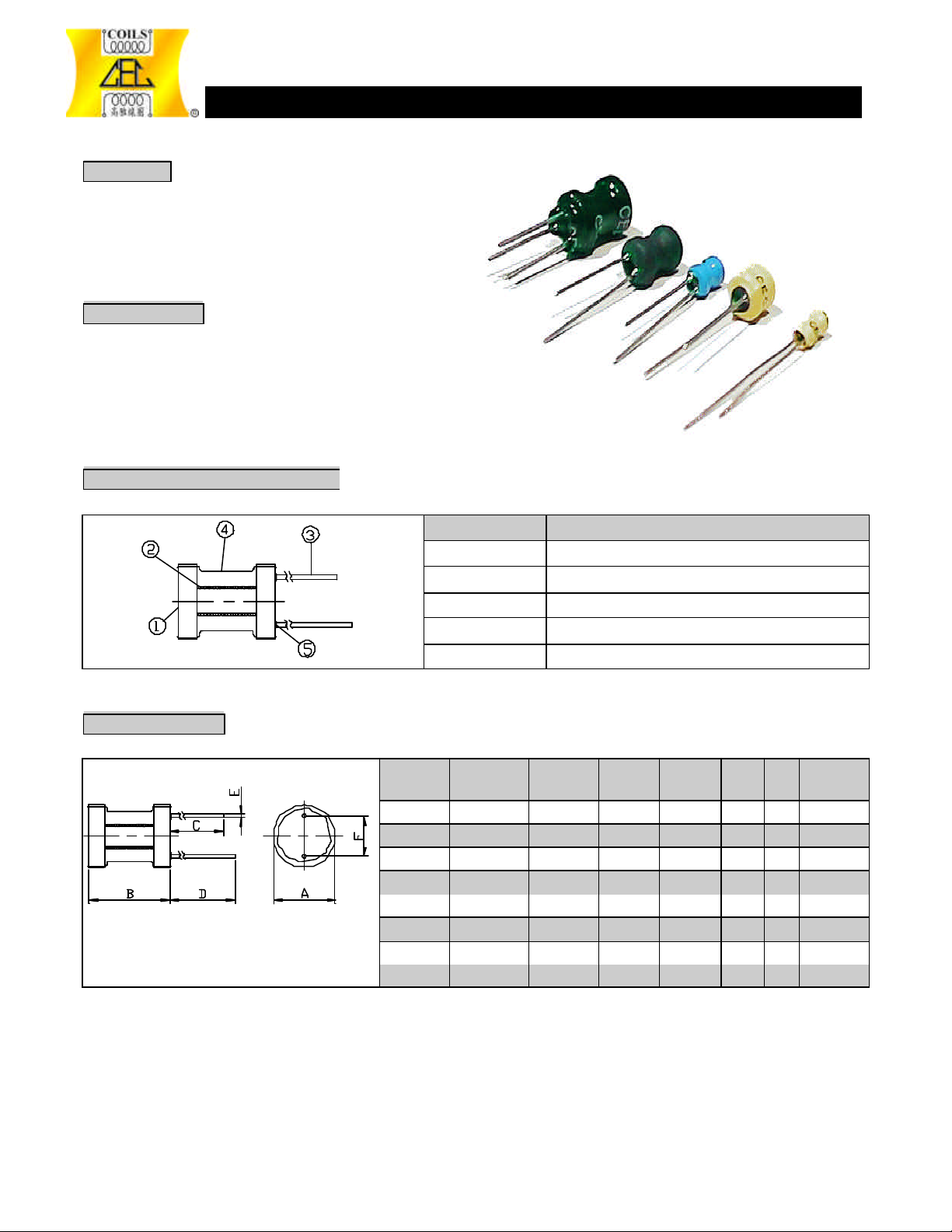

RADIAL TYPE CHOKE COILS

FEATURES
l Contain high-frequency ferrite. l Comparatively large rated current. l Taping is also available which can be used in
automated mounting lines.
APPLICATIONS
l Power supplies, DC -DC converters l TVs, VTRs, Telephones l Computers, Computer Peripherals, l Air-Conditioners, Home Electric Appliance l Electronic toys and games
MATERIALS FOR CHOKE COILS
立式扼流線圈
Component Materials
1.Core Ferrite core
2.Wire Polyurethane enameled copper wires
3.Lead wire Soldered copper wires
4.Tube Heat shrinkable tube, PVC or UL
5.Glue Epoxy resin
DIMENSION (mm)
※Specifications other than the above will be furnished upon request.
MODEL
CW34 CW45 4.5±0.5 7.0 10 15 0.6 2.0 P.68
CW57 CW65 CW68 CW77 CW8A
CW9C
A
3.5±0.5
5.5±0.5
6.5±1.0
6.5±1.0
7.5±1.0
8.5±1.0
9.5±1.0
B
max. C min. D min.
6.0 10 15 0.5 1.3 P.67
9.0 10 15 0. 6 2.5 P.69
7.5 10 15 0.6 3.0 -
10.0 10 15 0.6 3.0 P.70
9.0 10 15 0.6 4.8 P.71
12.0 10 15 0.6 5 P.72
14.0 10 15 0.8 5 P.73
E F TABLE
Page 2
67
RADIAL TYPE CHOKE COILS
立式扼流線圈
Specification table of Radial type Choke Coils CW34
Model
CW34-1R0M 1.0 80 0.1 1000 175 7.96MHz CW34-1R2M 1.2 80 0.1 1000 150 7.96MHz CW34-1R5M 1.5 87 0.1 900 120 7.96MHz CW34-1R8M 1.8 81 0.1 800 102 7.96MHz CW34-2R2M 2.2 77 0.1 700 83 7.96MHz CW34-2R7M 2.7 77 0.2 700 71 7.96MHz
CW34-3R3K 3.3 77 0.2 650 59 7.96MHz CW34-3R9K 3.9 71 0.2 650 44 7.96MHz CW34-4R7K 4.7 71 0.2 500 43 7.96MHz CW34-5R6K 5.6 70 0.3 450 28 7.96MHz CW34-6R8K 6.8 70 0.3 400 25 7.96MHz CW34-8R2K 8.2 67 0.3 350 22 7.96MHz
CW34-100K 10 60 0.4 350 21 2.52MHz CW34-120K 12 67 0.5 300 20 2.52MHz CW34-150K 15 65 0.6 300 18 2.52MHz
CW34-180K 18 60 0.6 300 16 2.52MHz CW34-220K 22 60 0.7 290 15 2.52MHz CW34-270K 27 58 0.8 270 12 2.52MHz CW34-330K 33 52 0.9 270 12 2.52MHz CW34-390K 39 52 2 260 10 2.52MHz CW34-470K 47 46 2 250 10 2.52MHz CW34-560K 56 65 3 180 8 2.52MHz CW34-680K 68 62 3 170 8 2.52MHz CW34-820K 82 60 3 170 8 2.52MHz CW34-101K 100 60 4 160 6 796kHz CW34-121K 120 60 4 150 5 796kHz CW34-151K 150 60 4 150 5 796kHz CW34-181K 180 60 5 130 4 796kHz CW34-221K 220 60 8 100 4 796kHz CW34-271K 270 60 9 90 4 796kHz CW34-331K 330 60 10 90 3.5 796kHz CW34-391K 390 60 10 80 3.5 796kHz CW34-471K 470 60 11 80 3 796kHz CW34-561K 560 60 15 70 2.5 796kHz CW34-681K 680 65 24 50 2 796kHz CW34-821K 820 65 26 50 2 796kHz
CW34-102K 1000 36 29 50 1.5 252kHz CW34-122K 1200 36 33 40 1.5 252kHz CW34-152K 1500 37 37 40 1.5 252kHz
CW34-182K 1800 44 41 40 1.4 252kHz CW34-222K 2200 44 46 30 1.2 252kHz CW34-272K 2700 47 51 30 1.2 252kHz
※
Specifications other than the above will be furnished upon request.
Inductance
(µH)
Q
(Min)
DCR Ω
(Max)
DCI mA
(Max)
SRF MHz
(Min)
Measuring
Frequency
Page 3
68
RADIAL TYPE CHOKE COILS
.
立式扼流線圈
Specification table of Radial type Choke Coils CW45
Model
CW45-1R0K 1.0 65 0.1 1100 110 7.96MHz CW45-1R2K 1.2 70 0.12 1100 100 7.96MHz CW45-1R5K 1.5 80 0.15 1000 95 7.96MHz CW45-1R8K 1.8 90 0.17 950 90 7.96MHz CW45-2R2K 2.2 98 0.2 900 80 7.96MHz CW45-2R7K 2.7 94 0.2 800 65 7.96MHz CW45-3R3K 3.3 93 0.22 750 55 7.96MHz CW45-3R9K 3.9 86 0.24 750 50 7.96MHz CW45-4R7K 4.7 84 0.26 700 35 7.96MHz CW45-5R6K 5.6 84 0.28 700 30 7.96MHz CW45-6R8K 6.8 82 0.3 650 22 7.96MHz CW45-8R2K 8.2 77 0.35 600 20 7.96MHz
CW45-100K 10 70 0.46 500 20 2.52MHz CW45-120K 12 80 0.48 450 15.0 2.52MHz CW45-150K 15 77 0.60 350 13.0 2.52MHz CW45-180K 18 87 0.65 350 13.0 2.52MHz CW45-220K 22 84 0.80 350 10.0 2.52MHz CW45-270K 27 77 0.90 300 10.0 2.52MHz CW45-330K 33 74 0.95 300 9.0 2.52MHz CW45-390K 39 70 1.00 250 8.0 2.52MHz CW45-470K 47 65 1.20 250 7.0 2.52MHz CW45-560K 56 58 1.5 250 6.5 2.52MHz CW45-680K 68 55 1.9 250 6.0 2.52MHz CW45-820K 82 53 2.5 200 5.5 2.52MHz CW45-101K 100 56 3 200 4.5 796kHz CW45-121K 120 70 3.8 160 4.0 796kHz CW45-151K 150 63 4.5 160 4.0 796kHz CW45-181K 180 62 5 150 3.5 796kHz CW45-221K 220 66 5.8 130 3.5 796kHz CW45-271K 270 66 6.5 130 3.0 796kHz CW45-331K 330 60 7 130 2.5 796kHz CW45-391K 390 56 7.7 120 2.5 796kHz CW45-471K 470 61 8 120 2.5 796kHz CW45-561K 560 59 8.5 110 2.0 796kHz CW45-681K 680 56 9.5 110 2.0 796kHz CW45-821K 820 61 15 80 1.6 796kHz CW45-102K 1000 77 17 70 1.5 252kHz CW45-122K 1200 71 20 70 1.4 252kHz CW45-152K 1500 76 22 60 1.3 252kHz CW45-182K 1800 77 25 60 1.2 252kHz CW45-222K 2200 81 26 60 1.1 252kHz CW45-272K 2700 57 46 40 0.8 252kHz CW45-332K 3300 60 50 30 0.8 252kHz CW45-392K 3900 56 54 30 0.7 252kHz CW45-472K 4700 65 60 30 0.7 252kHz CW45-562K 5600 66 65 30 0.6 252kHz CW45-682K 6800 66 72 30 0.6 252kHz
CW45-822K 8200 70 80 20 0.5 252kHz CW45-103K 10000 35 95 10 0.5 79.6kHz
Inductance
(µH )
※Specifications other than the above will be furnished upon request.
Q
(Min)
DCR Ω
(Max)
DCI mA
(Max)
SRF MHz
(Min)
Measuring Frequency
Page 4
69
RADIAL TYPE CHOKE COILS
立式扼流線圈
Specification table of Radial type Choke Coils CW57
Model
CW57-1R0M 1.0 85 0.014 3500 120 7.96MHz CW57-1R5M 1.5 85 0.02 3000 80 7.96MHz CW57-2R2M 2.2 85 0.02 2500 50 7.96MHz CW57-3R3M 3.3 85 0.03 2000 45 7.96MHz CW57-4R7M 4.7 80 0.04 1700 27 7.96MHz CW57-6R8M 6.8 75 0.06 1300 20 7.96MHz
CW57-100K 10 70 0.08 1000 17 2.52MHz CW57-120K 12 70 0.10 950 16 2.52MHz CW57-150K 15 65 0.11 900 14 2.52MHz CW57-180K 18 50 0.11 800 12 2.52MHz CW57-220K 22 50 0.12 700 11 2.52MHz CW57-270K 27 50 0.14 600 10 2.52MHz CW57-330K 33 50 0.16 550 9 2.52MHz CW57-390K 39 45 0.18 500 8 2.52MHz CW57-470K 47 45 0.20 500 7.5 2.52MHz CW57-560K 56 35 0.22 450 7 2.52MHz CW57-680K 68 35 0.30 450 6.5 2.52MHz CW57-820K 82 35 0.34 400 6 2.52MHz CW57-101K 100 20 0.45 400 4.5 796kHz CW57-121K 120 20 0.48 350 4.5 796kHz CW57-151K 150 20 0.52 300 4 796kHz CW57-181K 180 20 0.65 300 3.5 796kHz CW57-221K 220 20 0.75 250 3.5 796kHz CW57-271K 270 25 1.0 250 3 796kHz CW57-331K 330 25 1.3 200 2.5 796kHz CW57-391K 390 25 1.4 180 2.5 796kHz CW57-471K 470 25 1.6 160 2.5 796kHz CW57-561K 560 25 2.0 160 2 796kHz CW57-681K 680 25 2.3 140 1.8 796kHz CW57-821K 820 25 2.7 134 1.8 796kHz CW57-102K 1000 50 3.1 110 1.3 252kHz CW57-122K 1200 65 4.6 100 1.2 252kHz CW57-152K 1500 65 5.3 100 1.1 252kHz CW57-182K 1800 65 6.2 80 1.0 252kHz CW57-222K 2200 65 6.8 80 1.0 252kHz CW57-272K 2700 80 10 60 0.9 252kHz CW57-332K 3300 75 12 60 0.7 252kHz CW57-392K 3900 70 13 55 0.7 252kHz CW57-472K 4700 65 15 55 0.65 252kHz CW57-562K 5600 65 22 50 0.55 252kHz CW57-682K 6800 65 25 45 0.55 252kHz CW57-822K 8200 65 28 45 0.50 252kHz CW57-103K 10000 65 35 35 0.45 79.6kHz CW57-123K 12000 65 45 30 0.40 79.6kHz CW57-153K 15000 65 52 30 0.35 79.6kHz CW57-183K 18000 65 58 30 0.30 79.6kHz CW57-223K 22000 65 80 20 0.25 79.6kHz CW57-273K 27000 65 90 20 0.25 79.6kHz CW57-333K 33000 55 135 15 0.25 79.6kHz CW57-393K 39000 55 150 15 0.2 79.6kHz CW57-473K 47000 55 170 15 0.2 79.6kHz
Inductance
(µH )
Q (Min)
※
Specifications other than the above will be furnished upon request.
DCR Ω
(Max)
DCI mA
(Max)
SRF MHz
(Min)
Measuring Frequency
Page 5
70
RADIAL TYPE CHOKE COILS
Specification table of Radial type Choke Coils CW68
Model
CW68-100K 10 25 0.09 1300 16 2.52MHz CW68-120K 12 25 0.1 1100 15 2.52MHz CW68-150K 15 25 0.11 1050 13 2.52MHz CW68-180K 18 20 0.12 1000 12 2.52MHz CW68-220K 22 25 0.12 960 11 2.52MHz CW68-270K 27 25 0.17 920 10 2.52MHz CW68-330K 33 25 0.19 880 8.8 2.52MHz CW68-390K 39 20 0.22 860 8.4 2.52MHz CW68-470K 47 20 0.23 830 8.2 2.52MHz CW68-560K 56 20 0.29 810 7.9 2.52MHz CW68-680K 68 20 0.37 750 7 2.52MHz CW68-820K 82 20 0.39 740 6.5 2.52MHz CW68-101K 100 30 0.44 710 5.7 796kHz CW68-121K 120 30 0.64 680 5.2 796kHz CW68-151K 150 35 0.73 600 4.7 796kHz CW68-181K 180 35 0.82 540 4.2 796kHz CW68-221K 220 35 0.92 450 3.7 796kHz
CW68-271K 270 30 1.3 420 3.5 796kHz CW68-331K 330 40 1.5 400 3.2 796kHz CW68-391K 390 25 1.8 370 2.9 796kHz CW68-471K 470 35 2.3 340 2.4 796kHz CW68-561K 560 35 3 280 2.2 796kHz CW68-681K 680 45 3.25 250 2 796kHz CW68-821K 820 40 4.16 230 1.6 796kHz CW68-102K 1000 80 4.55 210 1.5 252kHz CW68-122K 1200 80 5.2 200 1.4 252kHz CW68-152K 1500 75 7.54 180 1.3 252kHz CW68-182K 1800 80 7.54 160 1.2 252kHz CW68-222K 2200 80 8.32 150 1.1 252kHz CW68-272K 2700 80 9.62 130 1 252kHz CW68-332K 3300 80 10.92 130 0.85 252kHz CW68-392K 3900 80 16.12 100 0.78 252kHz CW68-472K 4700 80 17.81 85 0.68 252kHz CW68-562K 5600 80 20 70 0.62 252kHz CW68-682K 6800 80 27.3 65 0.61 252kHz CW68-822K 8200 80 31.2 60 0.6 252kHz CW68-103K 10000 80 39 58 0.48 79.6kHz CW68-123K 12000 80 42.9 56 0.44 79.6kHz CW68-153K 15000 70 65 53 0.35 79.6kHz CW68-183K 18000 75 72.8 50 0.3 79.6kHz CW68-223K 22000 80 82.55 46 0.28 79.6kHz CW68-273K 27000 80 95.42 42 0.25 79.6kHz CW68-333K 33000 70 135.2 38 0.23 79.6kHz CW68-393K 39000 70 154.7 37 0.2 79.6kHz CW68-473K 47000 70 172.9 35 0.16 79.6kHz
Inductance
(µH)
Q (Min)
DCR Ω
(Max)
DCI mA
(Max)
SRF MHz
(Min)
立式扼流線圈
Measuring
Frequency
※Specifications other than the above will be furnished upon request.
Page 6
71
RADIAL TYPE CHOKE COILS
立式扼流線圈
Specification table of Radial type Choke Coils CW77
Model
CW77-1R0M 1.0 90 0.014 5980 100 7.96MHz CW77-1R5M 1.5 90 0.017 4850 80 7.96MHz CW77-2R2M 2.2 90 0.017 3560 40 7.96MHz CW77-3R3M 3.3 90 0.021 2970 40 7.96MHz CW77-4R7M 4.7 90 0.030 2340 36 7.96MHz CW77-6R8M 6.8 90 0.054 1980 30 7.96MHz CW77-100K 10 85 0.084 1980 15 2.52MHz CW77-120K 12 85 0.090 1880 15 2.52MHz CW77-150K 15 65 0.11 1650 15 2.52MHz CW77-180K 18 65 0.12 1550 15 2.52MHz CW77-220K 22 65 0.13 1413 11 2.52MHz CW77-270K 27 50 0.14 1278 11 2.52MHz CW77-330K 33 50 0.15 1161 11 2.52MHz CW77-390K 39 50 0.16 1062 11 2.52MHz CW77-470K 47 50 0.22 972 7.0 2.52MHz CW77-560K 56 50 0.25 891 7.0 2.52MHz CW77-680K 68 40 0.31 810 7.0 2.52MHz CW77-820K 82 40 0.34 729 7.0 2.52MHz CW77-101K 100 40 0.43 675 4.0 796kHz CW77-121K 120 40 0.56 630 4.0 796kHz CW77-151K 150 60 0.94 531 4.0 796kHz CW77-181K 180 60 1.02 504 4.0 796kHz CW77-221K 220 60 1.14 477 4.0 796kHz CW77-271K 270 60 1.29 432 3.0 796kHz CW77-331K 330 70 2.04 387 3.0 796kHz CW77-391K 390 70 2.24 360 2.0 796kHz CW77-471K 470 70 2.51 333 2.0 796kHz CW77-561K 560 55 2.83 306 2.0 796kHz CW77-681K 680 55 3.08 279 2.0 796kHz CW77-821K 820 55 3.41 261 2.0 796kHz CW77-102K 1000 75 3.90 189 1.5 252kHz CW77-122K 1200 75 4.42 180 1.5 252kHz CW77-152K 1500 75 5.11 162 1.5 252kHz CW77-182K 1800 75 5.81 144 1.0 252kHz CW77-222K 2200 75 8.38 135 1.0 252kHz CW77-272K 2700 75 9.59 126 1.0 252kHz CW77-332K 3300 75 11.04 117 1.0 252kHz CW77-392K 3900 75 12.5 108 0.8 252kHz CW77-472K 4700 75 14.3 99 0.8 252kHz CW77-562K 5600 70 16.0 90 0.8 252kHz CW77-682K 6800 70 20.9 81 0.5 252kHz CW77-822K 8200 70 29.2 72 0.5 252kHz CW77-103K 10000 70 33.4 63 0.5 79.6kHz CW77-123K 12000 70 43.1 54 0.5 79.6kHz CW77-153K 15000 70 50.5 54 0.5 79.6kHz CW77-183K 18000 70 69.1 45 0.3 79.6kHz CW77-223K 22000 70 80.6 36 0.3 79.6kHz CW77-273K 27000 70 94.2 27 0.3 79.6kHz CW77-333K 33000 70 139.0 18 0.3 79.6kHz CW77-393K 39000 70 155.6 18 0.3 79.6kHz CW77-473K 47000 70 176.6 18 0.3 79.6kHz
Inductance
at 1 kHz (µH)
Q (Min)
DCR Ω
(Max)
※Specifications other than the above will be furnished upon request.
DCI mA
(Max)
SRF MHz
(Min)
Measuring Frequency
Page 7
72
RADIAL TYPE CHOKE COILS
立式扼流線圈
Specification table of Radial type Choke Coils CW8A
Model
CW8A-1R0M 1.0 90 0.02 3400 100 7.96MHz CW8A-1R2M 1.2 90 0.02 3400 90 7.96MHz CW8A-1R5M 1.5 95 0.02 3400 80 7.96MHz CW8A-1R8M 1.8 95 0.03 3300 75 7.96MHz CW8A-2R2M 2.2 100 0.03 3000 70 7.96MHz CW8A-2R7M 2.7 110 0.04 3000 60 7.96MHz CW8A-3R3M 3.3 110 0.04 3000 56 7.96MHz CW8A-3R9M 3.9 110 0.05 2900 52 7.96MHz CW8A-4R7M 4.7 110 0.05 2900 30 7.96MHz CW8A-5R6M 5.6 110 0.06 2600 30 7.96MHz CW8A-6R8M 6.8 90 0.06 2500 20 7.96MHz CW8A-8R2M 8.2 80 0.06 2000 17 7.96MHz CW8A-100K 10 90 0.10 1600 12 2.52MHz CW8A-120K 12 90 0.10 1400 11 2.52MHz CW8A-150K 15 90 0.10 1300 10 2.52MHz CW8A-180K 18 80 0.11 1200 9.0 2.52MHz CW8A-220K 22 70 0.13 1100 8.0 2.52MHz CW8A-270K 27 70 0.14 1000 7.0 2.52MHz CW8A-330K 33 70 0.16 900 7.0 2.52MHz CW8A-390K 39 70 0.16 800 6.0 2.52MHz CW8A-470K 47 70 0.16 700 5.5 2.52MHz CW8A-560K 56 60 0.22 700 5.5 2.52MHz CW8A-680K 68 60 0.23 600 5.0 2.52MHz CW8A-820K 82 60 0.27 500 4.5 2.52MHz CW8A-101K 100 40 0.29 400 4.5 796kHz CW8A-121K 120 40 0.33 400 4.5 796kHz CW8A-151K 150 40 0.46 350 4.5 796kHz CW8A-181K 180 40 0.51 350 4.0 796kHz CW8A-221K 220 40 0.62 300 3.5 796kHz CW8A-271K 270 30 0.65 250 3.0 796kHz CW8A-331K 330 30 0.79 250 3.0 796kHz CW8A-391K 390 30 0.91 200 2.5 796kHz CW8A-471K 470 30 1.2 180 2.5 796kHz CW8A-561K 560 30 1.2 160 2.0 796kHz CW8A-681K 680 30 1.5 140 2.0 796kHz CW8A-821K 820 25 1.7 140 2.0 796kHz CW8A-102K 1000 50 2.0 120 2.0 252kHz CW8A-122K 1200 45 2.3 100 1.5 252kHz CW8A-152K 1500 45 2.9 80 1.5 252kHz
CW8A-182K 1800 45 3.5 80 1.5 252kHz CW8A-222K 2200 50 4.2 70 1.0 252kHz CW8A-272K 2700 50 5.1 60 1.0 252kHz CW8A-332K 3300 50 6.1 60 0.9 252kHz CW8A-392K 3900 50 7.8 50 0.8 252kHz CW8A-472K 4700 55 11 50 0.7 252kHz CW8A-562K 5600 55 11 45 0.6 252kHz CW8A-682K 6800 55 14 45 0.6 252kHz CW8A-822K 8200 60 15 40 0.6 252kHz CW8A-103K 10000 100 20 35 0.5 79.6kHz CW8A-123K 12000 100 24 35 0.4 79.6kHz CW8A-153K 15000 100 28 35 0.4 79.6kHz CW8A-183K 18000 100 42 30 0.4 79.6kHz CW8A-223K 22000 100 43 30 0.3 79.6kHz CW8A-273K 27000 100 55 25 0.3 79.6kHz CW8A-333K 33000 90 65 25 0.3 79.6kHz CW8A-393K 39000 90 87 25 0.2 79.6kHz CW8A-473K 47000 85 98 25 0.2 79.6kHz CW8A-563K 56000 80 128 20 0.2 79.6kHz CW8A-683K 68000 70 141 20 0.2 79.6kHz CW8A-823K 82000 70 161 20 0.2 79.6kHz
CW8A-104K 100000 55 180 20 0.2 79.6kHz
※
Specifications other than th e above will be furnished upon request.
Inductance
(µH )
Q
(Min)
DCR Ω
(Max)
DCI mA
(Max)
SRF MHz
(Min)
Measuring Frequency
Page 8
73
+
RADIAL TYPE CHOKE COILS
立式扼流線圈
Specification table of Radial type Choke Coils CW9C
Model
CW9C-100K 10 110 0.04 2800 24 2.52MHz CW9C-120K 12 110 0.04 2700 18 2.52MHz CW9C-150K 15 110 0.05 2300 11 2.52MHz CW9C-180K 18 90 0.06 2100 8.4 2.52MHz CW9C-220K 22 90 0.07 2000 9.2 2.52MHz CW9C-270K 27 90 0.10 1700 7.1 2.52MHz CW9C-330K 33 90 0.12 1500 7.1 2.52MHz CW9C-390K 39 80 0.12 1400 6.9 2.52MHz CW9C-470K 47 70 0.13 1300 6.0 2.52MHz CW9C-560K 56 70 0.14 1200 5.7 2.52MHz CW9C-680K 68 60 0.15 1000 5.4 2.52MHz CW9C-820K 82 50 0.16 900 4.6 2.52MHz CW9C-101K 100 60 0.25 700 4.0 796kHz CW9C-121K 120 60 0.28 700 3.6 796kHz CW9C-151K 150 55 0.32 700 3.1 796kHz CW9C-181K 180 55 0.47 600 2.8 796kHz CW9C-221K 220 55 0.53 500 2.5 796kHz CW9C-271K 270 50 0.60 450 2.4 796kHz CW9C-331K 330 50 0.85 400 2.0 796kHz CW9C-391K 390 50 0.95 350 2.1 796kHz CW9C-471K 470 40 1.1 350 1.9 796kHz CW9C-561K 560 30 1.2 300 1.8 796kHz CW9C-681K 680 30 1.3 250 1.7 796kHz CW9C-821K 820 30 1.4 200 1.5 796kHz CW9C-102K 1000 70 2.0 200 1.1 252kHz CW9C-122K 1200 70 2.3 180 1.0 252kHz CW9C-152K 1500 70 2.9 150 1.0 252kHz CW9C-182K 1800 70 3.3 120 0.9 252kHz CW9C-222K 2200 70 4.5 110 0.7 252kHz CW9C-272K 2700 70 5.5 90 0.7 252kHz CW9C-332K 3300 60 5.7 80 0.6 252kHz CW9C-392K 3900 60 6.5 80 0.6 252kHz CW9C-472K 4700 60 7.2 60 0.6 252kHz CW9C-562K 5600 60 9.5 50 0.5 252kHz CW9C-682K 6800 60 11 50 0.5 252kHz CW9C-822K 8200 50 13 50 0.4 252kHz CW9C-103K 10000 120 16 40 0.3 79.6kHz CW9C-123K 12000 120 18 40 0.3 79.6kHz CW9C-153K 15000 110 21 40 0.3 79.6kHz CW9C-183K 18000 110 23 40 0.3 79.6kHz CW9C-223K 22000 110 33 35 0.2 79.6kHz CW9C-273K 27000 100 37 35 0.2 79.6kHz CW9C-333K 33000 90 42 35 0.2 79.6kHz CW9C-393K 39000 90 45 30 0.2 79.6kHz CW9C-473K 47000 80 52 30 0.2 79.6kHz
Inductance
(µH )
Q (Min)
DCR Ω
(Max)
※Specifications other than the above will be furnished upon request.
DCI mA
(Max)
SRF MHz
(Min)
Measuring
Frequency
