Datasheet 05N431K Specification

Download

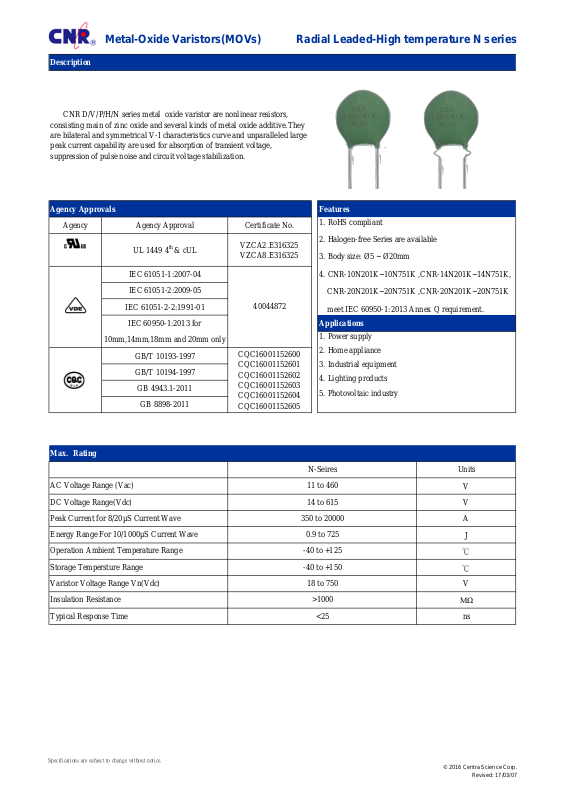

Page 1

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Description

Agency Approvals Features

Agency Agency Approval

Certificate No.

UL 1449 4

& cUL

VZCA2.E316325 VZCA8.E316325

IEC 61051-1:2007-04 IEC 61051-2:2009-05

IEC 61051-2-2:1991-01

IEC 60950-1:2013 for Applications

10mm,14mm,18mm and 20mm only

GB/T 10193-1997 GB/T 10194-1997

GB 4943.1-2011

GB 8898-2011

Max. Rating

Units

V V A

℃

MΩ

Insulation Resistance

Typical Response Time

>1000

<25

CNR D/V/P/H/N series metal oxide varistor are nonlinear resistors, consisting main of zinc oxide and several kinds of metal oxide additive.They are bilateral and symmetrical V-I characteristics curve and unparalleled large peak current capability are used for absorption of transient voltage, suppression of pulse noise and circuit voltage stabilization.

1. Power supply

2. Home appliance

3. Industrial equipment

4. Lighting products

5. Photovoltaic industry Storage Tempersture Range

Energy Range For 10/1000µS Current Wave

Operation Ambient Temperature Range

0.9 to 725

-40 to +125

DC Voltage Range(Vdc)

Peak Current for 8/20µS Current Wave

14 to 615

350 to 20000

AC Voltage Range (Vac)

CQC16001152600 CQC16001152601 CQC16001152602 CQC16001152603 CQC16001152604 CQC16001152605

40044872

Varistor Voltage Range Vn(Vdc)

-40 to +150

18 to 750

N-Seires

11 to 460

1. RoHS compliant

2. Halogen-free Series are available

3. Body size: Ø5 ~ Ø 20mm

4. CNR-10N201K~10N751K ,CNR-14N201K~14N751K,

　CNR-20N201K~20N751K ,CNR-20N201K~20N751K 　meet IEC 60950-1:2013 Annex Q requirement.

Specifications are subject to change without notice.

Revised: 17/03/07

Page 2

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-05N180K 05N180K 11 14

18 16 20

36 1 0.9 350 0.02

1480

◎

CNR-05N220K 05N220K 14 18

22 20 24

43 1 1.1 350 0.02

1320

◎

CNR-05N270K 05N270K 17 22

27 24 30

53 1 1.4 350 0.02

1030

◎

CNR-05N330K 05N330K 20 26

33 30 36

65 1 1.7 350 0.02

760

◎

CNR-05N390K 05N390K 25 31

39 35 43

77 1 2.1 350 0.02

720

◎

CNR-05N470K 05N470K 30 38

47 42 52

93 1 2.5 350 0.02

620

◎

CNR-05N560K 05N560K 35 45

56 50 62

110 1 3.1 350 0.02

515

◎

CNR-05N680K 05N680K 40 56

68 61 75

135 1 3.6 350 0.02

450

◎

CNR-05N201K 05N201K 130 170 200 180 220 340 10 13 1200 0.05

100

□

CNR-05N221K 05N221K 140 180 220 198 242 360 10 14 1200 0.25

100

□

CNR-05N241K 05N241K 150 200 240 216 264 395 10 15 1200 0.25

□

CNR-05N271K 05N271K 175 225 270 243 297 455 10 18 1200 0.25

□

CNR-05N301K 05N301K 195 250 300

270

330 500 10 19 1200 0.25

□

CNR-05N331K 05N331K 215 275 330

297

363 550 10 21 1200 0.25

□

CNR-05N361K 05N361K 230 300 360

324

396 595 10 23 1200 0.25

□

CNR-05N391K 05N391K 250 320 390

351

429 650 10 25 1200 0.25

□

CNR-05N431K 05N431K 275 350 430

387

473 710 10 28 1200 0.25

□

CNR-05N471K 05N471K 300 385 470

423

517 775 10 30 1200 0.25

□

CNR-05N511K 05N511K 320 420 510

459

561 845 10 30 1200 0.25

□

CNR-05N561K 05N561K 350 460 560

504

616 915 10 30 1200 0.25

□

CNR-05N621K 05N621K 395 510 620

558

682 1020 10 30 1200 0.25

□

CNR-05N681K 05N681K 420 560 680

612

748 1120 10 30 1200 0.25

□

CNR-05N751K 05N751K 465 615 750

675

825 1235 10 33 1200 0.25

□

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

0.25

Related Standards

□

0.15

◎

Rated

Power

Part No.

Device

Marking

Maximum

Varistor

Clamping Voltage

Allowable

Voltage

@ Test Current

Voltage

(@1mA)

(@8/20µs)

Specifications are subject to change without notice.

Revised: 17/03/07

Page 3

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-07N180K 07N180K 11 14

18 16 20

36 2.5 2.1 750 0.05 3600

◎

CNR-07N220K 07N220K 14 18

22 20 24

43 2.5 2.5 750 0.05 3200

◎

CNR-07N270K 07N270K 17 22

27 24 30

53 2.5 3 750 0.05 2500

◎

CNR-07N330K 07N330K 20 26

33 30 36

65 2.5 4 750 0.05 1850

◎

CNR-07N390K 07N390K 25 31

39 35 43

77 2.5 4.6 750 0.05 1750

◎

CNR-07N470K 07N470K 30 38

47 42 52

93 2.5 5.5 750 0.05 1500

◎

CNR-07N560K 07N560K 35 45

56 50 62

110 2.5 7 750 0.05 1250

◎

CNR-07N680K 07N680K 40 56

68 61 75

135 2.5 8.2 750 0.05 1100

◎

CNR-07N201K 07N201K 130 170 200 180 220 340 25 26 2500 0.3 220

□

CNR-07N221K 07N221K 140 180 220 198 242 360 25 30 2500 0.3 210

□

CNR-07N241K 07N241K 150 200 240 216 264 395 25 33 2500 0.3 190

□

CNR-07N271K 07N271K 175 225 270 243 297 455 25 39 2500 0.3 165

□

CNR-07N301K 07N301K 195 250 300

270

330 500 25 42 2500 0.3 155

□

CNR-07N331K 07N331K 215 275 330

297

363 550 25 44 2500 0.3 145

□

CNR-07N361K 07N361K 230 300 360

324

396 595 25 50 2500 0.3 145

□

CNR-07N391K 07N391K 250 320 390

351

429 650 25 53 2500 0.3 145

□

CNR-07N431K 07N431K 275 350 430

387

473 710 25 60 2500 0.3 130

□

CNR-07N471K 07N471K 300 385 470

423

517 775 25 65 2500 0.3 110

□

CNR-07N511K 07N511K 320 420 510

459

561 845 25 70 2500 0.3 100

□

CNR-07N561K 07N561K 350 460 560

504

616 915 25 75 2500 0.3 100

□

CNR-07N621K 07N621K 395 510 620

558

682 1020 25 80 2500 0.3 100

□

CNR-07N681K 07N681K 420 560 680

612

748 1120 25 85 2500 0.3 90

□

CNR-07N751K 07N751K 465 615 750

675

825 1235 25 92 2500 0.3 90

□

Related Standards

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

Part No.

Device

Marking

Varistor

Voltage

□

◎

(@8/20µs)

(@1mA)

0.5

Rated

Power

Maximum

Clamping Voltage

Allowable

@ Test Current

Specifications are subject to change without notice.

Revised: 17/03/07

Page 4

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-10N180K 10N180K 11 14

18 16 20

36 5 4 1500 0.08 8000

◎

CNR-10N220K 10N220K 14 18

22 20 24

43 5 5 1500 0.08 7000

◎

CNR-10N270K 10N270K 17 22

27 24 30

53 5 6 1500 0.08 5500

◎

CNR-10N330K 10N330K 20 26

33 30 36

65 5 7.5 1500 0.08 4100

◎

CNR-10N390K 10N390K 25 31

39 35 43

77 5 8.6 1500 0.08 3900

◎

CNR-10N470K 10N470K 30 38

47 42 52

93 5 10 1500 0.08 3300

◎

CNR-10N560K 10N560K 35 45

56 50 62

110 5 11 1500 0.08 2800

◎

CNR-10N680K 10N680K 40 56

68 61 75

135 5 14 1500 0.08 2300

◎

CNR-10N201K 10N201K 130 170 200 180 220 340 50 52 4500 0.5 420

□

CNR-10N221K 10N221K 140 180 220 198 242 360 50 58 4500 0.5 390

□

CNR-10N241K 10N241K 150 200 240 216 264 395 50 64 4500 0.5 360

□

CNR-10N271K 10N271K 175 225 270 243 297 455 50 67 4500 0.5 330

□

CNR-10N301K 10N301K 195 250 300

270

330 500 50 70 4500 0.5 300

□

CNR-10N331K 10N331K 215 275 330

297

363 550 50 78 4500 0.5 270

□

CNR-10N361K 10N361K 230 300 360

324

396 595 50 84 4500 0.5 250

□

CNR-10N391K 10N391K 250 320 390

351

429 650 50 91 4500 0.5 230

□

CNR-10N431K 10N431K 275 350 430

387

473 710 50 99 4500 0.5 220

□

CNR-10N471K 10N471K 300 385 470

423

517 775 50 107 4500 0.5 200

□

CNR-10N511K 10N511K 320 420 510

459

561 845 50 117 4500 0.5 190

□

CNR-10N561K 10N561K 350 460 560

504

616 915 50 125 4500 0.5 180

□

CNR-10N621K 10N621K 395 510 620

558

682 1020 50 128 4500 0.5 160

□

CNR-10N681K 10N681K 420 560 680

612

748 1120 50 134 4500 0.5 140

□

CNR-10N751K 10N751K 465 615 750

675

825 1235 50 146 4500 0.5 130

□

Related Standards

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

◎

Maximum

Clamping Voltage

Allowable

@ Test Current

□

Rated

Power

Part No.

Device

Marking

Voltage

(@8/20µs)

Varistor

Voltage

(@1mA)

Specifications are subject to change without notice.

Revised: 17/03/07

Page 5

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-14N180K 14N180K 11 14

18 16 20

36 10 11 3000 0.15

18500

◎

CNR-14N220K 14N220K 14 18

22 20 24

43 10 14 3000 0.15

16400

◎

CNR-14N270K 14N270K 17 22

27 24 30

53 10 18 3000 0.15

13000

◎

CNR-14N330K 14N330K 20 26

33 30 36

65 10 23 3000 0.15

9500

◎

CNR-14N390K 14N390K 25 31

39 35 43

77 10 26 3000 0.15

8800

◎

CNR-14N470K 14N470K 30 38

47 42 52

93 10 33 3000 0.15

7700

◎

CNR-14N560K 14N560K 35 45

56 50 62

110 10 41 3000 0.15

6400

◎

CNR-14N680K 14N680K 40 56

68 61 75

135 10 46 3000 0.15

5600

◎

CNR-14N201K 14N201K 130 170 200 180 220 340 100 140 10000 1 860

□

CNR-14N221K 14N221K 140 180 220 198 242 360 100 155 10000 1 810

□

CNR-14N241K 14N241K 150 200 240 216 264 395 100 168 10000 1 860

□

CNR-14N271K 14N271K 175 225 270 243 297 455 100 190 10000 1 700

□

CNR-14N301K 14N301K 195 250 300

270

330 500 100 209 10000 1 640

□

CNR-14N331K 14N331K 215 275 330

297

363 550 100 228 10000 1 580

□

CNR-14N361K 14N361K 230 300 360

324

396 595 100 255 10000 1 530

□

CNR-14N391K 14N391K 250 320 390

351

429 650 100 275 10000 1 480

□

CNR-14N431K 14N431K 275 350 430

387

473 710 100 303 10000 1 430

□

CNR-14N471K 14N471K 300 385 470

423

517 775 100 350 10000 1 380

□

CNR-14N511K 14N511K 320 410 510

459

561 845 100 382 10000 1 350

□

CNR-14N561K 14N561K 350 460 560

504

616 915 100 382 10000 1 320

□

CNR-14N621K 14N621K 395 510 620

558

682 1020 100 382 7500 1 300

□

CNR-14N681K 14N681K 420 560 680

612

748 1120 100 382 7500 1 270

□

CNR-14N751K 14N751K 465 615 750

675

825 1235 100 420 7500 1 250

□

Related Standards

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

◎

Part No.

Device

Marking

Maximum

Clamping Voltage

Allowable

@ Test Current

Voltage

(@8/20µs)

Varistor

Voltage

(@1mA)

□

Rated

Power

Specifications are subject to change without notice.

Revised: 17/03/07

Page 6

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-18N180K 18N180K

11 14 18 16 20

36 15 22 4500 0.2 18500

◎

CNR-18N220K 18N220K

14 18 22 20 24

43 15 28 4500 0.2 16400

◎

CNR-18N270K 18N270K

17 22 27 24 30

53 15 36 4500 0.2 13000

◎

CNR-18N330K 18N330K

20 26 33 30 36

65 15 46 4500 0.2 9500

◎

CNR-18N390K 18N390K

25 31 39 35 43

77 15 52 4500 0.2 8800

◎

CNR-18N470K 18N470K

30 38 47 42 52

93 15 66 4500 0.2 7700

◎

CNR-18N560K 18N560K

35 45 56 50 62

110 15 82 4500 0.2 6400

◎

CNR-18N680K 18N680K

40 56 68 61 75

135 15 92 4500 0.2 5600

◎

CNR-18N201K 18N201K 130 170 200 180 220 340 125 252 15000 1 860

□

CNR-18N221K 18N221K 140 180 220 198 242 360 125 279 15000 1 810

□

CNR-18N241K 18N241K 150 200 240 216 264 395 125 302 15000 1 860

□

CNR-18N271K 18N271K 175 225 270 243 297 455 125 342 15000 1 700

□

CNR-18N301K 18N301K 195 250 300

270

330 500 125 376 15000 1 640

□

CNR-18N331K 18N331K 210 275 330

297

363 550 125 410 15000 1 580

□

CNR-18N361K 18N361K 230 300 360

324

396 595 125 405 15000 1 530

□

CNR-18N391K 18N391K 250 320 390

351

429 650 125 495 15000 1 480

□

CNR-18N431K 18N431K 275 350 430

387

473 710 125 545 15000 1 430

□

CNR-18N471K 18N471K 300 385 470

423

517 775 125 630 15000 1 380

□

CNR-18N511K 18N511K 320 418 510

459

561 845 125 687 15000 1 350

□

CNR-18N561K 18N561K 350 460 560

504

616 915 125 687 15000 1 320

□

CNR-18N621K 18N621K 385 505 620

558

682 1020 125 687 12000 1 300

□

CNR-18N681K 18N681K 420 560 680

612

748 1120 125 687 12000 1 270

□

CNR-18N751K 18N751K 460 615 750

675

825 1235 125 756 12000 1 240

□

Related Standards

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

□

◎

Part No.

Device

Marking

Maximum

Varistor

Clamping Voltage

Allowable

Voltage

@ Test Current

Voltage

(@1mA)

(@8/20µs)

Rated

Power

Specifications are subject to change without notice.

Revised: 17/03/07

Page 7

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Device Ratings and Characteristics

Maximum Maximum Typical UL 1449 Related

Energy Peak Current Capacitance 4th ,In Standards

(@10/1000µs)

(@8/20µs) (@1KHz) @8/20us Symbol

ACrms(V)

DC(V)

Vn(Vdc) Min. Max.

Vc(V) Ip(A) (J) (A) (W) (pF) (KA)

CNR-20N180K 20N180K 11 14

18 16 20

36 20 28 6000 0.3 42000

◎

CNR-20N220K 20N220K 14 18

22 20 24

43 20 36 6000 0.3 37000

◎

CNR-20N270K 20N270K 17 22

27 24 30

53 20 46 6000 0.3 29200

◎

CNR-20N330K 20N330K 20 26

33 30 36

65 20 59 6000 0.3 21400

◎

CNR-20N390K 20N390K 25 31

39 35 43

77 20 67 6000 0.3 19800

◎

CNR-20N470K 20N470K 30 38

47 42 52

93 20 85 6000 0.3 17300

◎

CNR-20N560K 20N560K 35 45

56 50 62

110 20 106 6000 0.3 14400

◎

CNR-20N680K 20N680K 40 56

68 61 75

135 20 119 6000 0.3 12600

◎

CNR-20N201K 20N201K 130 170 200 180 220 340 200 200 20000 1 2125

□

CNR-20N221K 20N221K 140 180 220 198 242 360 200 215 20000 1 2000

□

CNR-20N241K 20N241K 150 200 240 216 264 395 200 235 20000 1 1875

□

CNR-20N271K 20N271K 175 225 270 243 297 455 200 275 20000 1 1625

□

CNR-20N301K 20N301K 195 250 300

270

330 500 200 295 20000 1 1500

□

CNR-20N331K 20N331K 215 275 330

297

363 550 200 320 20000 1 1375

□

CNR-20N361K 20N361K 230 300 360

324

396 595 200 350 20000 1 1375

□

CNR-20N391K 20N391K 250 320 390

351

429 650 200 385 20000 1 1375

□

CNR-20N431K 20N431K 275 350 430

387

473 710 200 425 20000 1 1250

□

CNR-20N471K 20N471K 300 385 470

423

517 775 200 450 20000 1 1125

□

CNR-20N511K 20N511K 320 410 510

459

561 845 200 500 20000 1 1000

□

CNR-20N561K 20N561K 350 460 560

504

616 915 200 520 20000 1 938

□

CNR-20N621K 20N621K 395 510 620

558

682 1020 200 590 15000 1 713

□

CNR-20N681K 20N681K 420 560 680

612

748 1120 200 650 15000 1 688

□

CNR-20N751K 20N751K 465 615 750

675

825 1235 200 725 15000 1 663

□

Related Standards

Symbols

Approval

Note : VDE & CQC Certification are under appovaling

◎

Part No.

Device

Marking

Maximum

Clamping Voltage

Allowable

@ Test Current

Voltage

(@8/20µs)

Varistor

Voltage

(@1mA)

□

Rated

Power

Specifications are subject to change without notice.

Revised: 17/03/07

Page 8

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Reliability

Characteristics Standard

Test Conditions

Specifications

Robustness of terminations

IEC 60068-2-21 Test Ua1

△V/V≦±10% No visible damage

Solderability

IEC 60068-2-20 Test Ta (Method 1)

Approximately≧95%

Resistance to soldering heat

IEC 60068-2-20 Test Tb (Method 1A)

△V/V≦±10% No visible damage

Shock

IEC 60068-2-27 Test Ea

△V/V≦±10% No visible damage

Vibration

IEC 60068-2-6 Test Fc Method B4

△V/V≦±10% No visible damage

Needle flame test IEC 60695-11-5

Duration of burning: 5 s max.

Voltage under pulse condition

IEC 61051-2

As specified in specification

Voltage proof IEC 61051-2

As specified in specification

Pulse current

- 8/20 μs

IEC 61051-2

△V/V≦±10% No visible damage

Pulse current

- 10/1000 μs

IEC 61051-2

△V/V≦±10% No visible damage

Combination pulse

IEC 60950-1:2013 Annex Q

△V/V≦±10% No visible damage U ≤ 1.1 Uinitial Voltage proof:No breakdown or flashover

Rapid change of temperature

IEC 60068-2-14 Test Na

△V/V≦±10% No visible damage

Climatic sequence

IEC 60068-2-2 Test Ba IEC 60068-2-30 Test Db IEC 60068-2-1 Test Aa IEC 60068-2-30 Test Db

△V/V≦±10% No visible damage RISO≧100MΩ Voltage proof:No breakdown or flashover

Endurance at upper category temperature

IEC 61051-1 (4.21)

△V/V≦±10% No visible damage R≧1000MΩ U ≤ 1,1 Uinitial

Severity: Vertical 10 s

F = 10 N (d ≤ 0.8 mm) ,F = 20 N ( d = 1 mm)

T = 235±5°C, d = 2±0.5s

T = 260±5°C, d = 10±1s

Pulse shape: half-sine. a = 490 m/s2 , d = 11ms. N = 6 x 3 shocks

Frequency range: 10 Hz to 55 Hz ,a = 0.75 mm or 98 m/s2 (whichever is the less), d = 3x2 h

N = 5 cycles, d = 30 min , θA = -40±3°C, θB = 85±2°C

Dry heat, Test Ba:16±2h, T = 85±2°C Damp heat, Test Db first cycle :24h, T = 55±2°C Cold, Test Aa :2h, T = -40±3°C Damp heat Test Ba remaining cycles:5 cycle

T:max temperature as specified , Duration: 1000 h, Voltage: max. a.c. voltage At class current

Metal balls method (4.8.1.2) 2500 V, 60 s 8/20 µs, 10 times, I peak=0.25*Imax

10/1000 µs, 10 times, Ipeak = 0.0075* Imax

Additional test: 10 pulses (combination pulse 6KV/3KA), in one direction, 1 per min

Specifications are subject to change without notice.

Revised: 17/03/07

Page 9

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Reliability

Characteristics Standard

Test Conditions

Specifications

Damp heat (Steady state）

IEC 60068-2-78 Test Ca

△V/V≦±10% RISO≧100MΩ

Maximum Peak Current

Specification Standard

-0.05≦TC≦

0.05(%/℃)

Nominal Discharge Current Test

UL1449 4th

△V/V≦±10% No visible damage

Varistor Voltage Temp. Coefficient

Specification Standard

△V/V≦±10% No visible damage

High Temperature Storage

IEC60068-2-2

△V/V≦±10% No visible damage

Max. Energy Specification Standard

△V/V≦±10% No visible damage

Operating duty cycle test ＊

UL 1449

△V/V≦±10% No visible damage

Surge Immunity Test＊

IEC 61000-4-5

△V/V≦±10% No visible damage

＊(According to customer requirements to meet the test items)

6 kV/3 kA combination wave surges, phase angle of 90 (+0, -15) degrees, npositive polarity 8 times, negative polarity 7 times, interval of 60s.

4kV/2kA combination wave surges, phase angle of 90 (+0, -15) degrees, npositive polarity 20times, negative polarity 20times, interval of 60s.

T = 40±2°C, RH = 93(+2/-3)%, 56d , 4 specimens:No voltage applied , Other 4 specimens:Applied voltage: 10% of the max. d.c. voltage

Imax, 8/20 μs, 1 time

Nominal Discharge Current (In), 8/20 μs, 15 times

V1mA at -40℃, 85℃, 25℃

1000h, T = 85±2°C

10/1000 μs, 1 tmes, Max. Energy

C) / 100(%

C25at V

C25at V-C85at V

1mA

1mA1mA







Specifications are subject to change without notice.

Revised: 17/03/07

Page 10

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Impulse Life Time Rating Curves

CNR-05N180K to CNR-05N680K CNR-05N201K to CNR-05N751K

CNR-07N180K to CNR-07N680K CNR-07N201K to CNR-07N751K

0.1

100

1000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 7mm TA = -40 oC To 85 oC

0.1

100

1000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 5mm

TA = -40 oC To 85 oC

0.1

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 7mm

TA = -40 oC To 125 oC

0.1

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 5mm

TA = -40 oC To 85 oC

Specifications are subject to change without notice.

Revised: 17/03/07

Page 11

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Impulse Life Time Rating Curves

CNR-10N180K to CNR-10N680K CNR-10N201K to CNR-10N112K

CNR-14N180K to CNR-14N680K CNR-14N201K to CNR-14N561K

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 14mm

TA = -40 oC To 85 oC

MODEL SIZE = 14mm

TA = -40 oC To 85 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 14mm TA = -40 oC To 125 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 10mm TA = -40 oC To 125 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 10mm

TA = -40 oC To 85 oC

Specifications are subject to change without notice.

Revised: 17/03/07

Page 12

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Impulse Life Time Rating Curves

CNR-14N621K to CNR-14N112K CNR-18N180K to CNR-18N680K

CNR-18N201K to CNR-18N112K CNR-20N180K to CNR-20N680K

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 14mm

TA = -40 oC To 125 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 18mm TA = -40 oC To 105 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 14mm

TA = -40 oC To 85 oC

100

1000

10000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 20mm

TA = -40 oC To 85 oC

Specifications are subject to change without notice.

Revised: 17/03/07

Page 13

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Impulse Life Time Rating Curves

CNR-20N201K to CNR-20N561K CNR-20N621K to CNR-20N112K

100

1000

10000

100000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 20mm TA = -40 oC To 125 oC

100

1000

10000

100000

10 100 1000 10000

RATED PEAK SURGE CURRENT (A)

SURGE IMPULSE DURATION (μs)

MODEL SIZE = 20mm TA = -40 oC To 125 oC

Specifications are subject to change without notice.

Revised: 17/03/07

Page 14

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

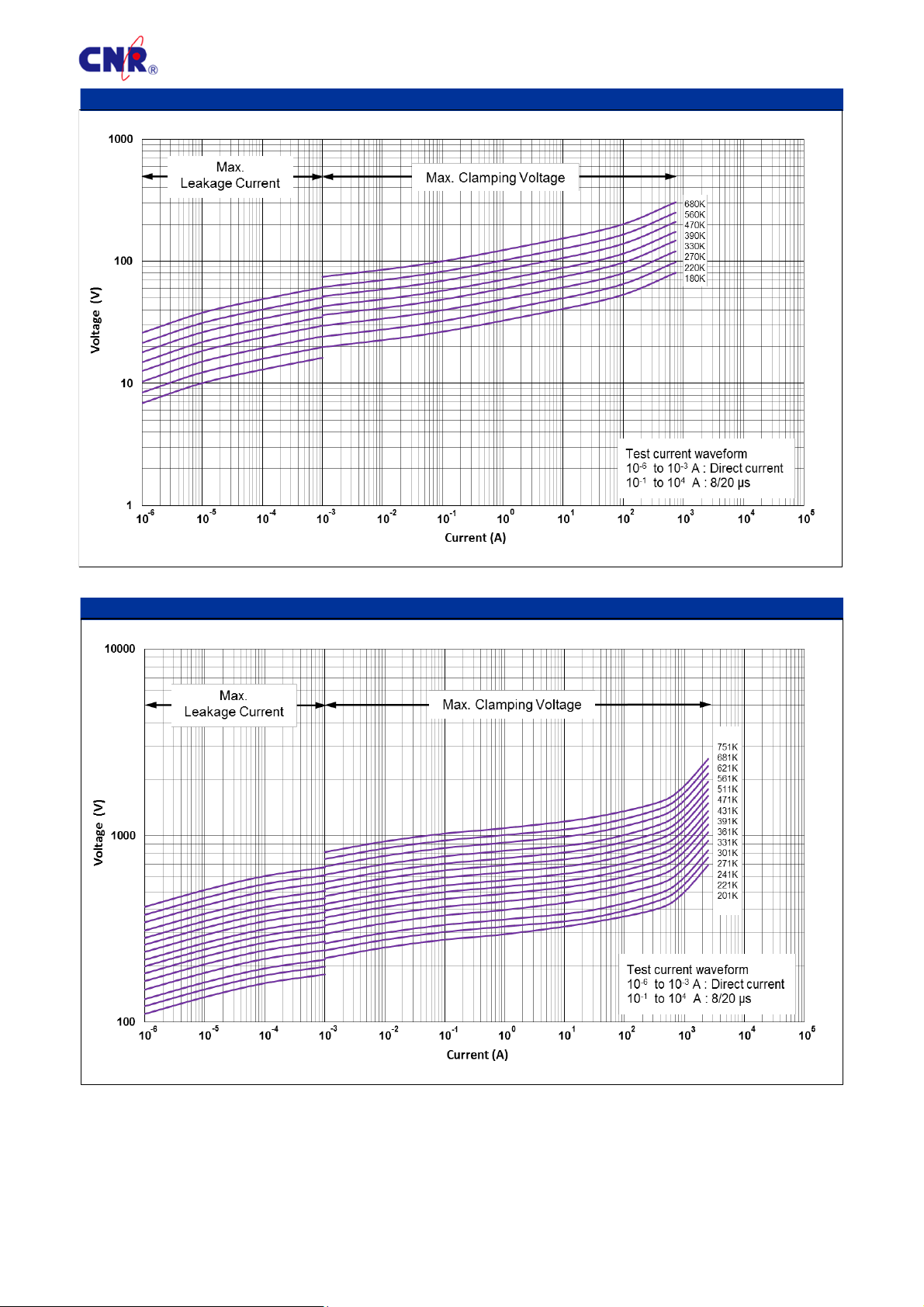

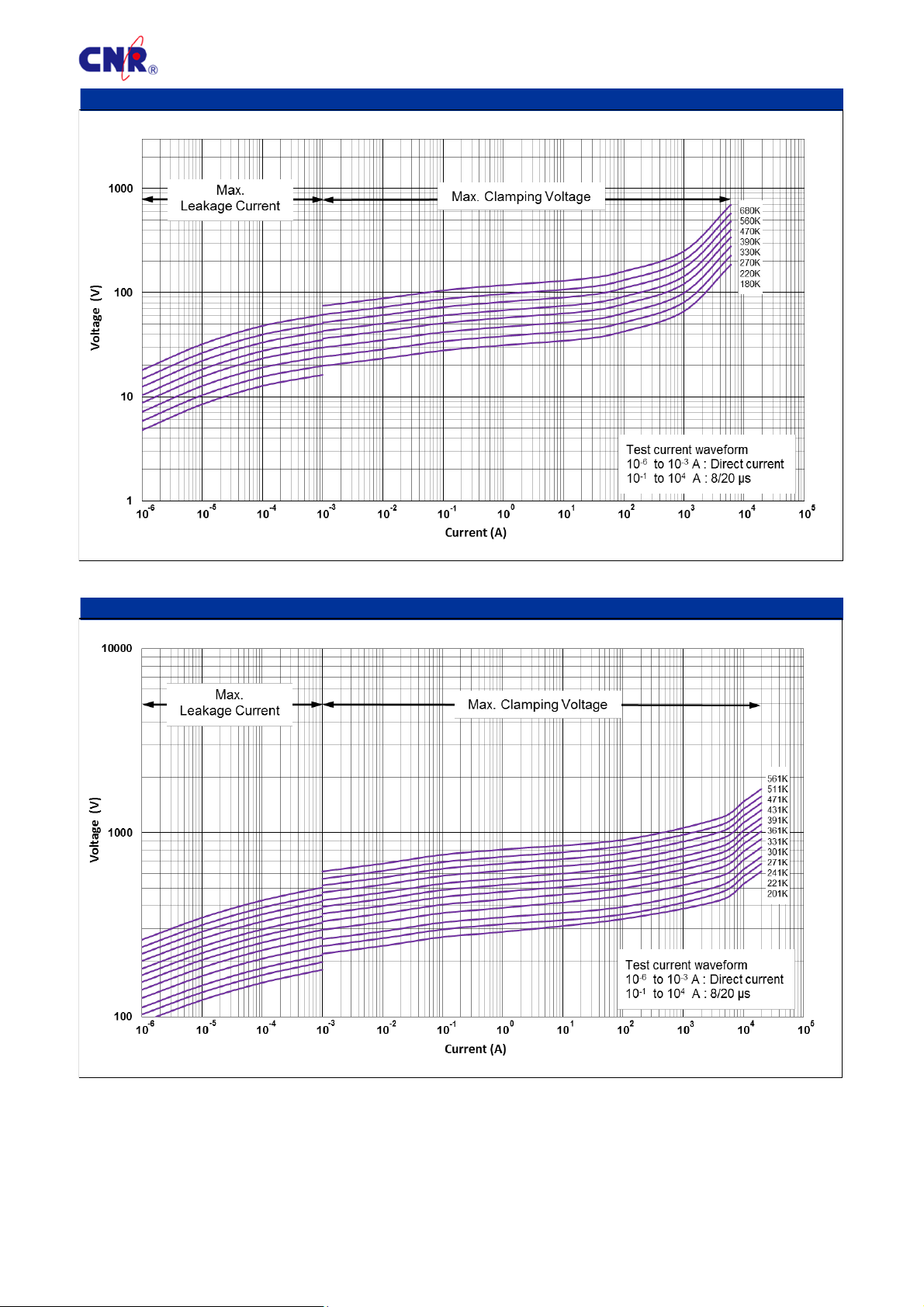

CNR-05N180K to CNR-05N680K V-I Curves

CNR-05N201K to CNR-05N751K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 15

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

CNR-07N180K to CNR-07N680K V-I Curves

CNR-07N201K to CNR-07N751K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 16

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

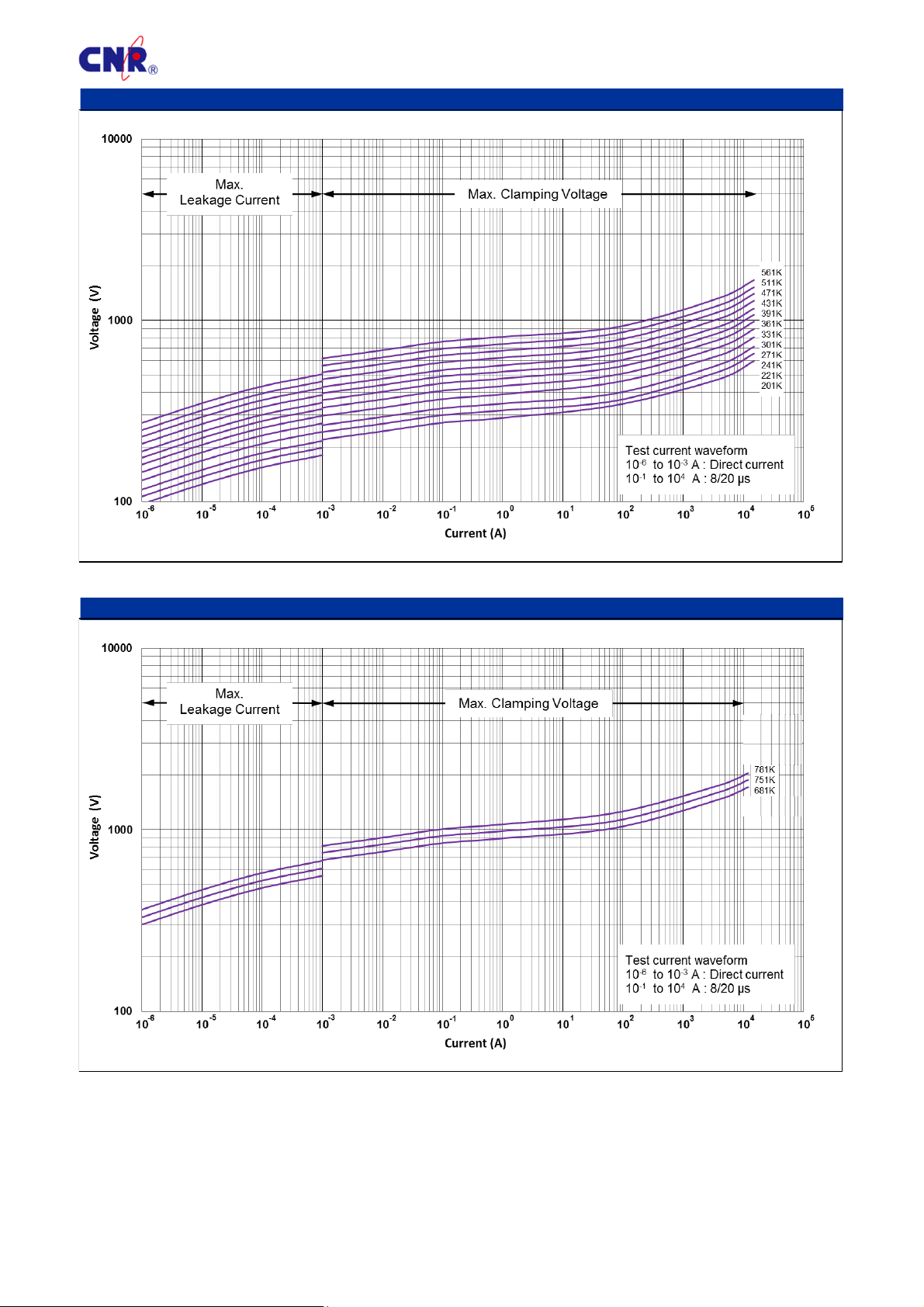

CNR-10N180K to CNR-10N680K V-I Curves

CNR-10N201K to CNR-10N751K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 17

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

CNR-14N180K to CNR-14N680K V-I Curves

CNR-14N201K to CNR-14N561K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 18

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

CNR-18N621K to CNR-18N751K V-I Curves

CNR-18N180K to CNR-18N680K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 19

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

CNR-18N201K to CNR-18N561K V-I Curves

CNR-18N621K to CNR-18N751K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 20

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

CNR-20N180K to CNR-20N680K V-I Curves

CNR-20N201K to CNR-20N561K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 21

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

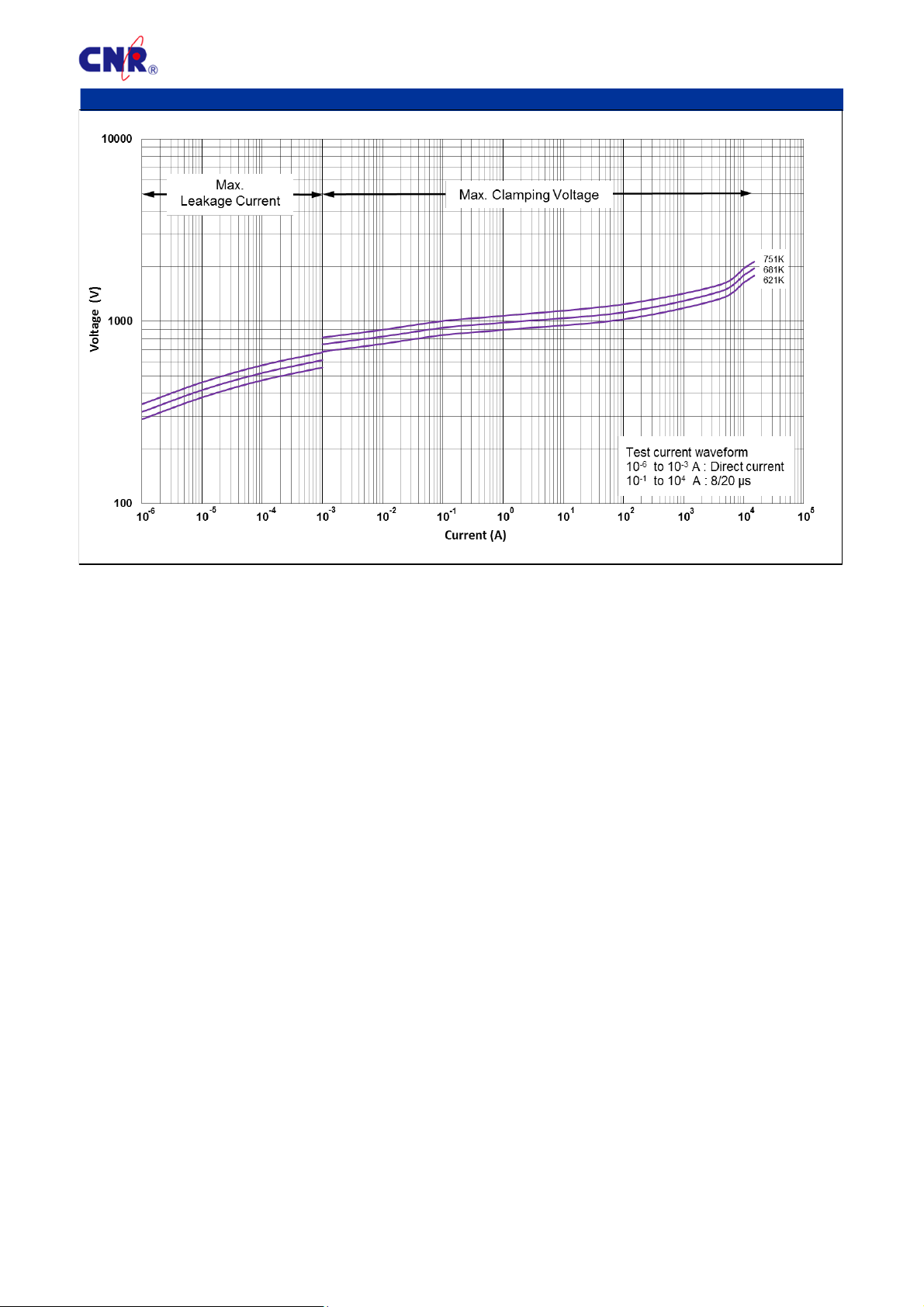

CNR-20N621K to CNR-20N751K V-I Curves

Specifications are subject to change without notice.

Revised: 17/03/07

Page 22

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

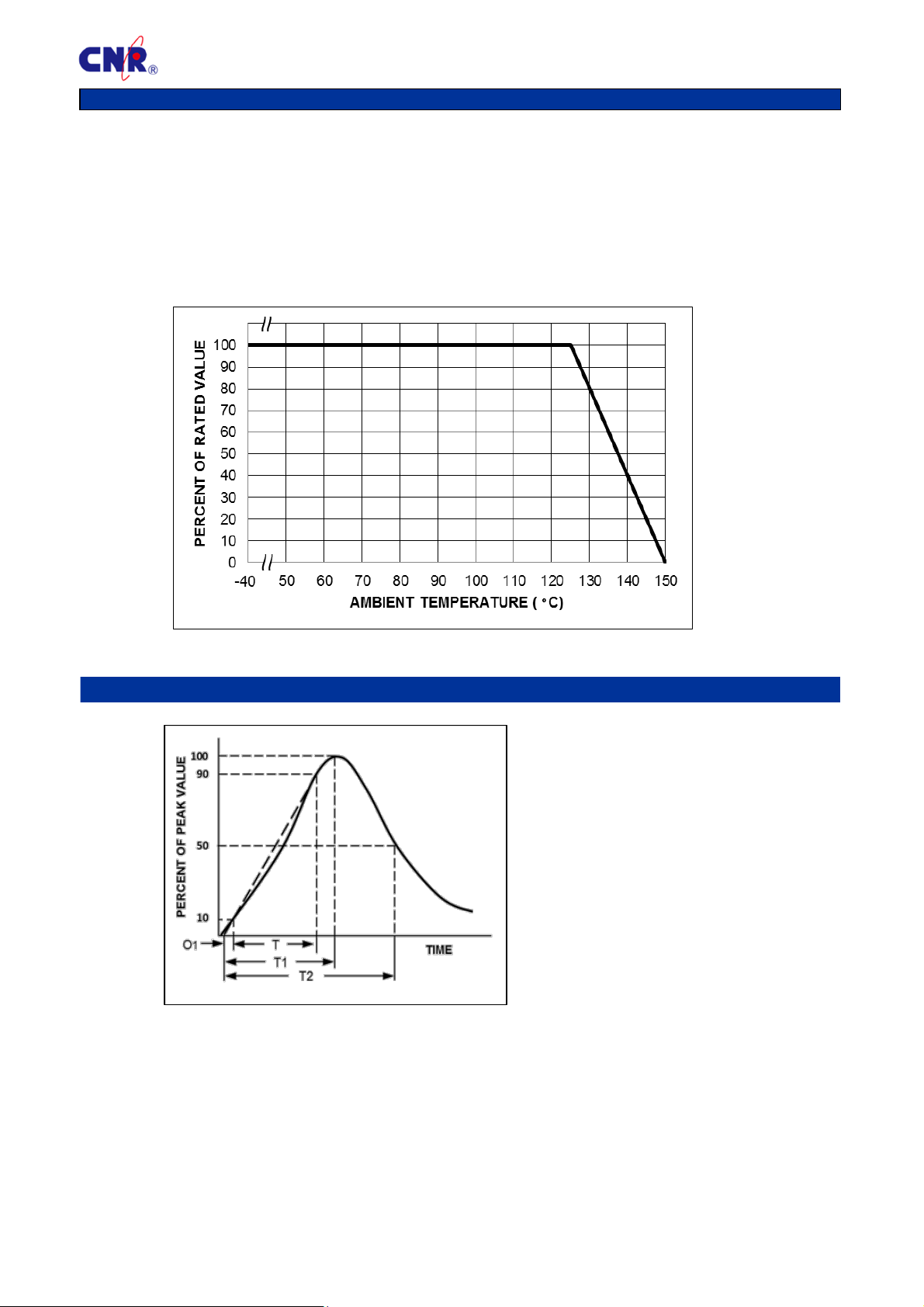

Power Derating Curve

Surge Current Standard Waveform

O1 = Virtual Origin of Wave T = Time from 10% to 90% of Peak T1 = Rise Time = 1.25 x T T2 = Decay Time

Example - For an 8/20 μs Current Waveform:

　　　 8μs = T1 = Rise Time 　　　 20μs = T2 = Decay Time

Should transients occur in rapid succession, the average power dissipation is the energy (watt-seconds) per pulse times the number of pulses per second. The power so developed must be with the specifications shown on the Device Ratings and Specifications Table for the specific device.The operating values of a MOV need to be derated at high temperatures as shown above. Because varistors only dissipate a relatively small amount of average power they are not suitable for repetitive applications that involve substantial amounts of average power dissipation. ．

Specifications are subject to change without notice.

Revised: 17/03/07

Page 23

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

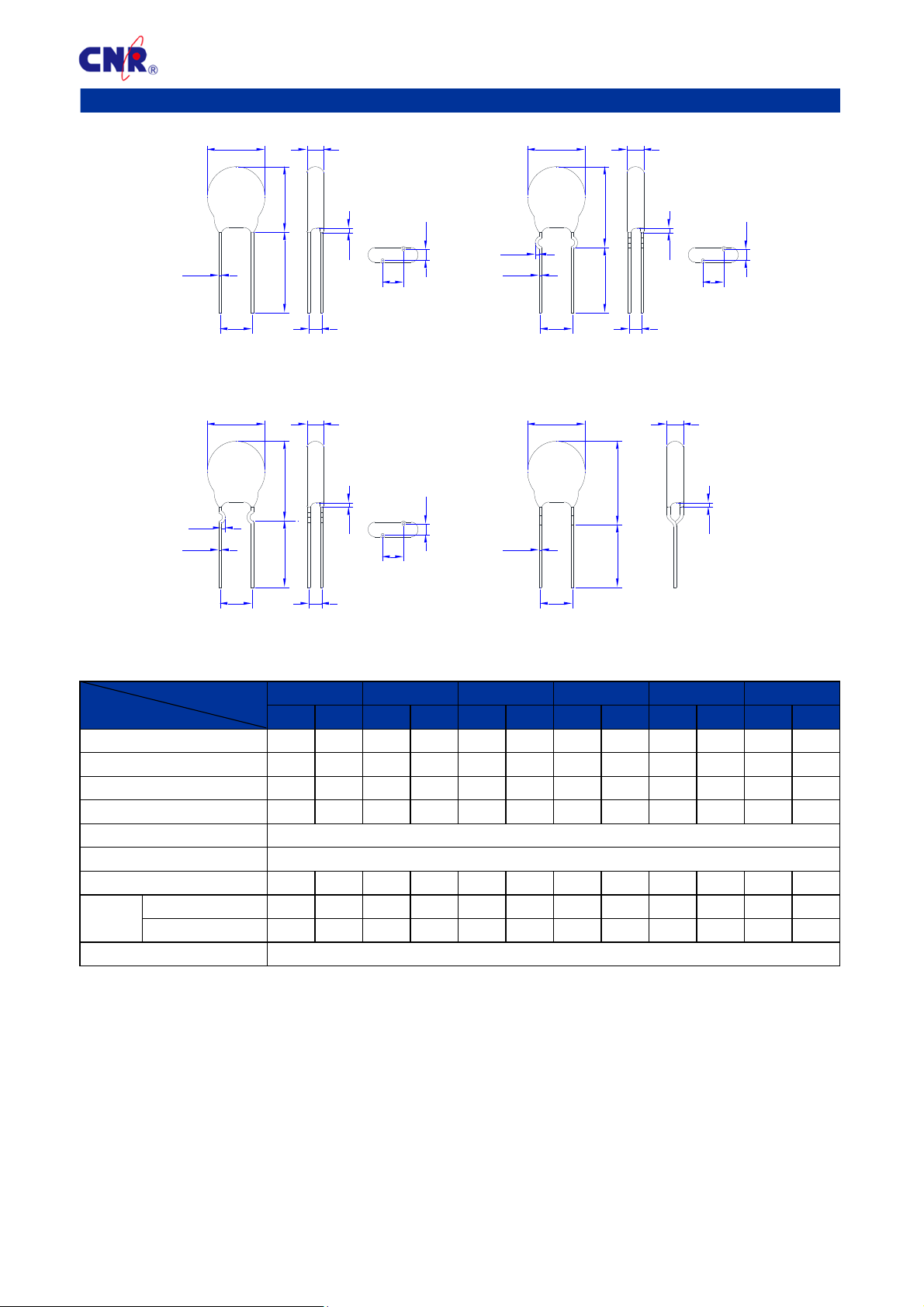

Product Dimensions

Dimension Table Unit:mm

Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.

5.5 7.5 7.5 9.0 10.5 14.0 13.5 17.5 18.5 23.0 19.5 25.0

- 10.0 - 12.0 - 17.0 - 20.5 - 26.0 - 28.0

4.0 6.0 4.0 6.0 6.5 8.5 6.5 8.5 6.5 8.5 9.0 11.0

0.55 0.65 0.55 0.65 0.75 0.85 0.75 0.85 0.75 0.85 0.95 1.05

0.8 1.6 0.8 1.6 1.0 1.8 1.0 1.8 1.0 1.8 1.0 1.8

- 13.0 - 15.0 - 19.5 - 22.5 - 26.5 - 30.0

- 13.0 - 15.0 - 20.5 - 23.5 - 27.0 - 31.0

＊＊a value see T max. table

Model

A(max.)

Symbol

3.0

25.0

20N

>271K

P(max.)

K(Kink Lead)

180K-271K

05N

Φd

＊Short Cut Lead type TTXX the lead length (L) can 3.0~15mm (expect 20N dia <10mm), see Ordering Note.

See Tmax table

07N

10N

14N

18N

L(min)

Φd Φd

Φd

Fig 1. Straight Lead

Fig 2. Outside Kink Lead

Fig 3. Inside Kink Lead

Fig 4. In Line Kink Lead

Bottom view

Specifications are subject to change without notice.

Revised: 17/03/07

Page 24

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

T max. Table

Unit:mm

Model 05N 07N 10N 14N 18N 20N a(±1.0) Model 05N 07N 10N 14N 18N 20N a(±1.0)

180K

4.7 4.7 5.3 5.3 5.3 5.3 1.5

271K

6.1 6.6 6.6 6.6 6.6 6.6 2.3

220K

5.1 5.1 5.6 5.6 5.6 5.6 1.7

301K

6.2 6.8 6.8 6.8 6.8 6.8 2.5

270K

5.3 5.3 5.9 5.9 5.9 5.9 1.8

331K

6.4 7 7 7 7 7 2.7

330K

4.7 4.7 5.3 5.3 5.3 5.3 1.9

361K

6.5 7.3 7.3 7.3 7.3 7.3 2.8

390K

4.9 4.9 5.5 5.5 5.5 5.5 1.9

391K

6.8 7.5 7.5 7.5 7.5 7.5 3

470K

5.2 5.2 5.8 5.8 5.8 5.8 2.1

431K

7.1 7.8 7.8 7.8 7.8 7.8 3.2

560K

5.6 5.6 6.1 6.1 6.1 6.1 2.3

471K

7.4 8.1 8.1 8.1 8.1 8.1 3.4

680K

6 6 6.5 6.5 6.5 6.5 2.6

511K

7.8 8.2 8.2 8.2 8.2 8.2 3.7

201K

5.1 6.2 6.2 6.2 6.2 6.2 2

561K

8.2 8.5 8.5 8.5 8.5 8.5 3.9

221K

5.3 6.3 6.3 6.3 6.3 6.3 2.1

621K

8.4 8.8 8.8 8.8 8.8 8.8 4.3

241K

5.4 6.5 6.5 6.5 6.5 6.5 2.2

681K

8.7 8.9 8.9 8.9 8.9 8.9 4.7

751K

9 9.2 9.2 9.2 9.2 9.2 5.1

Specifications are subject to change without notice.

Revised: 17/03/07

Page 25

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

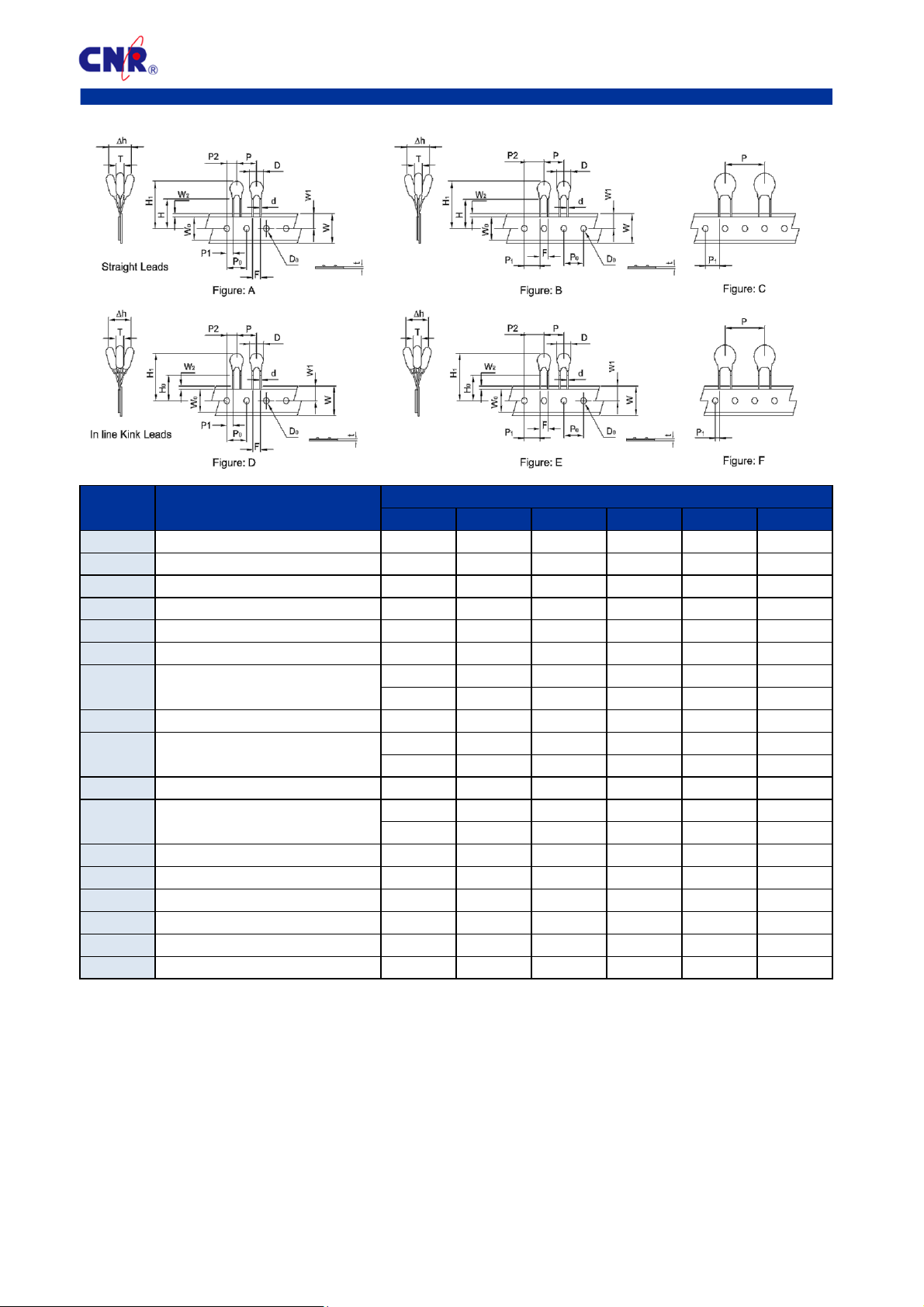

Tape and Reel Specificstions

● Radial devices on tape are supplied with kinked leads,straight leads or in -line leads

05N 07N 10N 10N 14N 14N

P 12.7±1.0 12.7±1.0 12.7±1.0 15.0±1.0 25.4±1.0 30.0±1.0

12.7±0.2 12.7±0.2 12.7±0.2 15.0±0.2 12.7±0.2 15.0±0.2

3.85±0.7 3.85±0.7 8.95±0.7 3.75±0.7 8.95±0.7 3.75±0.7

6.35±0.7 6.35±0.7 12.7±0.7 7.5±0.7 12.7±0.7 7.5±0.7

F 5.0±0.8 5.0±0.8 7.5±0.8 7.5±0.8 7.5±0.8 7.5±0.8

△h

2.0max 2.0max 2.0max 2.0max 2.0max 2.0max

18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0

18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5

5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min.

9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75

9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5

3.0 Max 3.0 Max 3.0 Max 3.0 Max 3.0 Max 3.0 Max

18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0

18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0

16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5

32.0 Max. 32.0 Max. 36.0 Max. 36.0 Max. 40.0 Max. 40.0 Max.

4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2

t 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2

L Leagth Clipped Lead 11.0 Max 11.0 Max 11.0 Max 11.0 Max 11.0 Max 11.0 Max

Figure A, D A, D B, E A, D C F

Component Height

Feed Hole Diameter

Total Tape Thickness

Height from Tape Center to Component Base

Tape Width

Hold Down Tape Width

Hold Down Tape Position

Seating Plane Height

Hole Position

Model Size

Component Alignment

Description

Symbol

Pitch of Component

Feed Hole Pitch

Feed Hole Center to Pitch

Hole Center to Component Center

Lead to Lead Distance

Specifications are subject to change without notice.

Revised: 17/03/07

Page 26

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Tape and Reel Specificstions

● Radial devices on tape are supplied with kinked leads,straight leads or in -line leads

05N 07N 10N 10N 14N 14N

P 12.7±1.0 12.7±1.0 12.7±1.0 15.0±1.0 25.4±1.0 30.0±1.0

12.7±0.2 12.7±0.2 12.7±0.2 15.0±0.2 12.7±0.2 15.0±0.2

3.85±0.7 3.85±0.7 8.95±0.7 3.75±0.7 8.95±0.7 3.75±0.7

6.35±0.7 6.35±0.7 12.7±0.7 7.5±0.7 12.7±0.7 7.5±0.7

F 5.0±0.8 5.0±0.8 7.5±0.8 7.5±0.8 7.5±0.8 7.5±0.8

△h

2.0max 2.0max 2.0max 2.0max 2.0max 2.0max

18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0 18.0+1.0

18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5 18.0-0.5

5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min. 5.0 Min.

9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75 9.0+0.75

9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5 9.0-0.5

3.0 Max 3.0 Max 3.0 Max 3.0 Max 3.0 Max 3.0 Max

18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0 18.0+2.0

18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0 18.0-0.0

16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5 16.0±0.5

29.0 Max. 32.0 Max. 36.0 Max. 36.0 Max. 40.0 Max. 40.0 Max.

4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2 4.0±0.2

t 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2 0.7±0.2

L Leagth Clipped Lead 11.0 Max 11.0 Max 11.0 Max 11.0 Max 11.0 Max 11.0 Max

Figure A, D A, D B, E A, D C F

Total Tape Thickness

Hole Position Hold Down Tape Position

Height from Tape Center to Component

Base

Tape Width Hold Down Tape Width

Component Height

Feed Hole Diameter

Feed Hole Center to Pitch

Seating Plane Height

Hole Center to Component Center

Lead to Lead Distance

Component Alignment

Symbol

Description

Pitch of Component

Feed Hole Pitch

Model Size

Specifications are subject to change without notice.

Revised: 17/03/07

Page 27

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

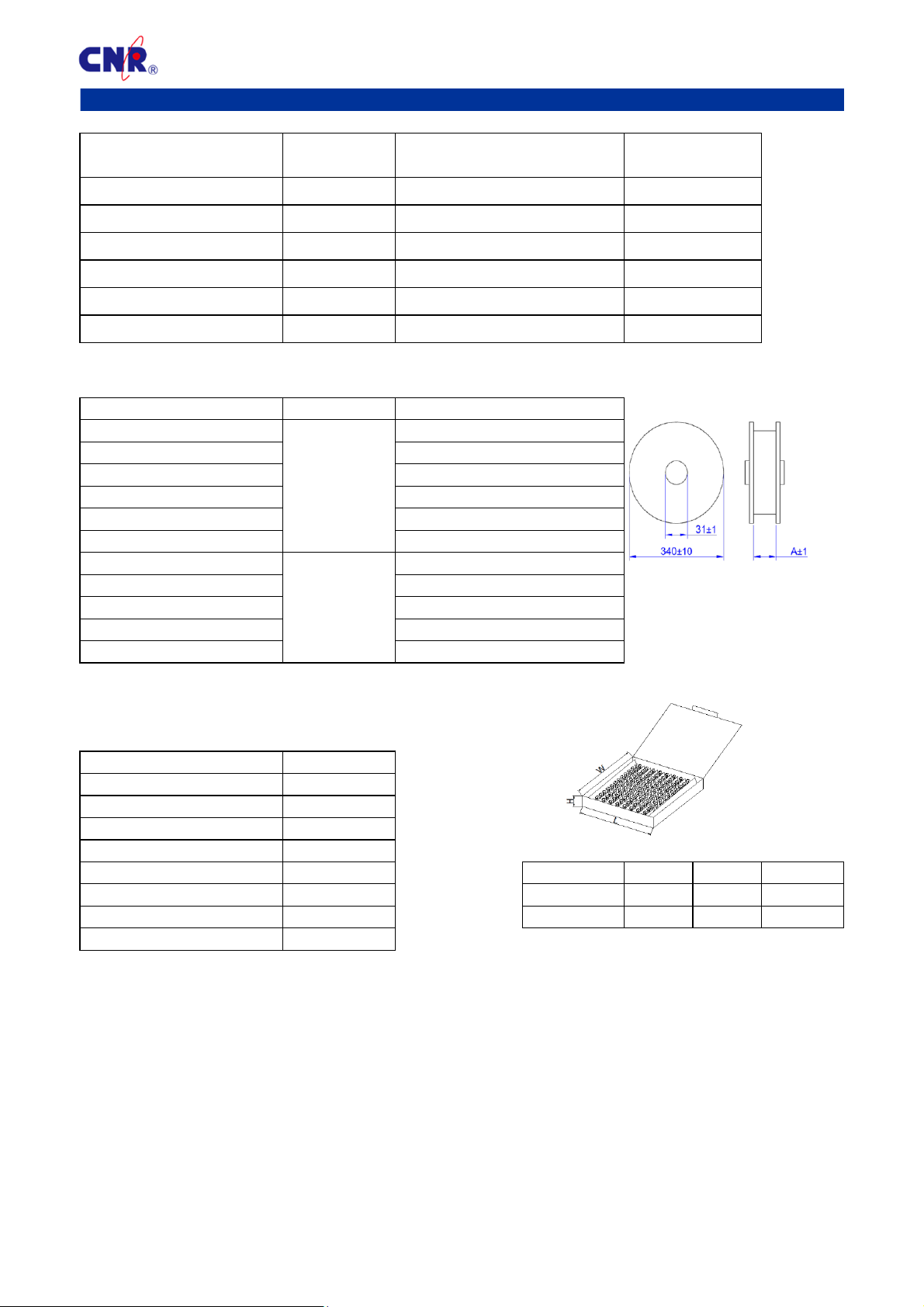

Packing information

Bulk packing

Tape & Reel product packing

Flat Box product

Serise L±5 W±5 N±5 CNR-05N~07N 340 245 45 CNR-10N~14N 340 245 50

CNR-14N(681K~112K)-BTXX

400

CNR-05N(681K~781K)-BTXX

800

CNR-10N(681K~112K)-BTXX

800

CNR-14N(201K~621K)-BTXX

500

CNR-07N(201K~621K)-BTXX

1000

CNR-07N(681K~781K)-BTXX

800

CNR-10N(201K~621K)-BTXX

1000

CNR-05N(201K~621K)-BTXX

1000

Quantity (pcs/box)

CNR-14N(431K~621K)-TRXX

600

CNR-14N(681K~112K)-TRXX

700

Series

1000

800

CNR-10N(201K~621K)-TRXX

CNR-10N(681K~112K)-TRXX

800

CNR-14N(201K~391K)-TRXX

Series

A (mm)

Quantity (pcs/reel)

CNR-07N(201K~391K)-TRXX

2000

CNR-07N(201K~391K)-TRXX

CNR-07N(431K~821K)-TRXX

2000

1500

CNR-05N(201K~621K)-TRXX

1500

CNR-05N(681K~781K)-TRXX

2000

CNR-07N(431K~821K)-TRXX

1500

CNR-20N

250

CNR-10N

500

CNR-14N

500

CNR-18N

250

Series

Straight Lead Type

Quantity(pcs/bag)

Cut Lead Type

Quantity(pcs/bag)

Kink Type

Quantity(pcs/bag)

CNR-07N

1000

CNR-05N

1000

Specifications are subject to change without notice.

Revised: 17/03/07

Page 28

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

Solder Recommendation

Recommendation Reworking Conditions with Soldering Iron

RoHS Compliant Declaration

We hereby declare that the components delivered to your company are compliant with RoHS Directive 2002/95/EC

Storage Conditions of Products

(Ι) Storage Conditions:

1.Storage Temperature: -10℃~+40℃

2.Relative Humidity:≦75%RH

3.Keep away from corrosive atmosphere and sunlight

4.Solvent Resistance: MIL–STD–202, Method 215F

5.Moisture Sensitivity: Level 1, J-STD-020

(ΙΙ) Period of Storage: 1 year

Distance from Varistor

2mm(Min)

Item

Conditions

Temperature of soldering Iron-tip

360℃(Max)

Soldering Time

3 sec(Max)

Specifications are subject to change without notice.

Revised: 17/03/07

Page 29

Metal-Oxide Varistors(MOVs)　　　Radial Leaded-High temperature N series

OPTION CODES

(See Ratings & Specifications tables and notes below)

(See notes below)

C N R - X X N X X X K

Device Family Code

CeNtRa Metal Oxide Varistors

Disc Element Dia.

05 - Ø 5.0mm 14 - Ø 14mm 07 - Ø 7.0mm 18 - Ø 18mm 10 - Ø 10mm 20 - Ø 20mm

Type Tolerance

C: Automobile series K=±10%

Varistor Voltage

180=18X100=18V

(with indictor)

181=18X101=180V

182=18X102=1800V

Ordering Notes:

MAIN PART CODES Series + /Packaging/ Lead Style / Designators: Option Code

Ordering examples: + XXX

CeNtRa N Series varistors are shipped standard in bulk pack with straight leads or Kink lead and lead spacing outlined in the Package Dimensions section of this data sheet. Contact your CeNtRa sales representative to discuss non-standard options.

D: Standard series

Explanation of Part Numbers

MAIN PART CODES

TTK

XXX

For standard parts, use the MAIN PART designator only. For parts with non-standard options (such as additional form, Packing and lead space options), use MAIN PART + OPTION CODE. OPTION CODE items are subject to availability and minimum order requirements. Please contact a Centra products representative for additional information or questions.

Short Cut Lead

Length 10mm±1.0mm

V: Medium surge series

S: Square Disc type

P: High surge series

F: Thermal Cut-off Series

H: Ultra high energy series

T: Thermal Cut-off Series

N: High temperature series

Straight Lead

Bulk Pack (Standard)

Straight Lead

(Short Cut) Bulk Pack

Straight Lead

Tape & Reel Pack

Straight Lead

Flat Box Pack

CNR-10N471KTRSB

CNR-10N471K

CNR-10N471KTTSXXX

CNR-10N471KTRSX

CNR-10N471KBTSX

CNR-10N471KTTS10

Outside Kink Lead

Bulk Pack

Outside Kink Lead

(Short Cut) Bulk Pack

Outside Kink Lead Tape & Reel Pack

Outside Kink Lead

Flat Box Pack

Tape & Reel Pack

Feed Hole Pitch

CNR-10N471SOK

CNR-10N471KTTKXXX

CNR-10N471KTRKX

CNR-10N471KBTKX

CNR-10N471KTRSA

Inside Kink Lead

Bulk Pack

Inside Kink Lead

(Short Cut) Bulk Pack

Inside Kink Lead

Tape & Reel Pack

Inside Kink Lead

Flat Box Pack

A: P0 → 12.7mm±0.2mm B: P0 → 15.0mm±0.2mm

CNR-10N471KSIK

CNR-10N471KTTIXXX

CNR-10N471KTRIX

CNR-10N471KBTIX

In Line Kink Lead

Bulk Pack

In Line Kink Lead

(Short Cut) Bulk Pack

In Line Kink Lead

Tape& Reel Pack

In Line Kink Lead

Flat Box Pack

CNR-10N471KSHK

CNR-10N471KTTHXXX

CNR-10N471KTRHX

CNR-10N471KBTHX

Specifications are subject to change without notice.

Revised: 17/03/07

Datasheet 05N431K Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
