Datasheen D902AW User Manual

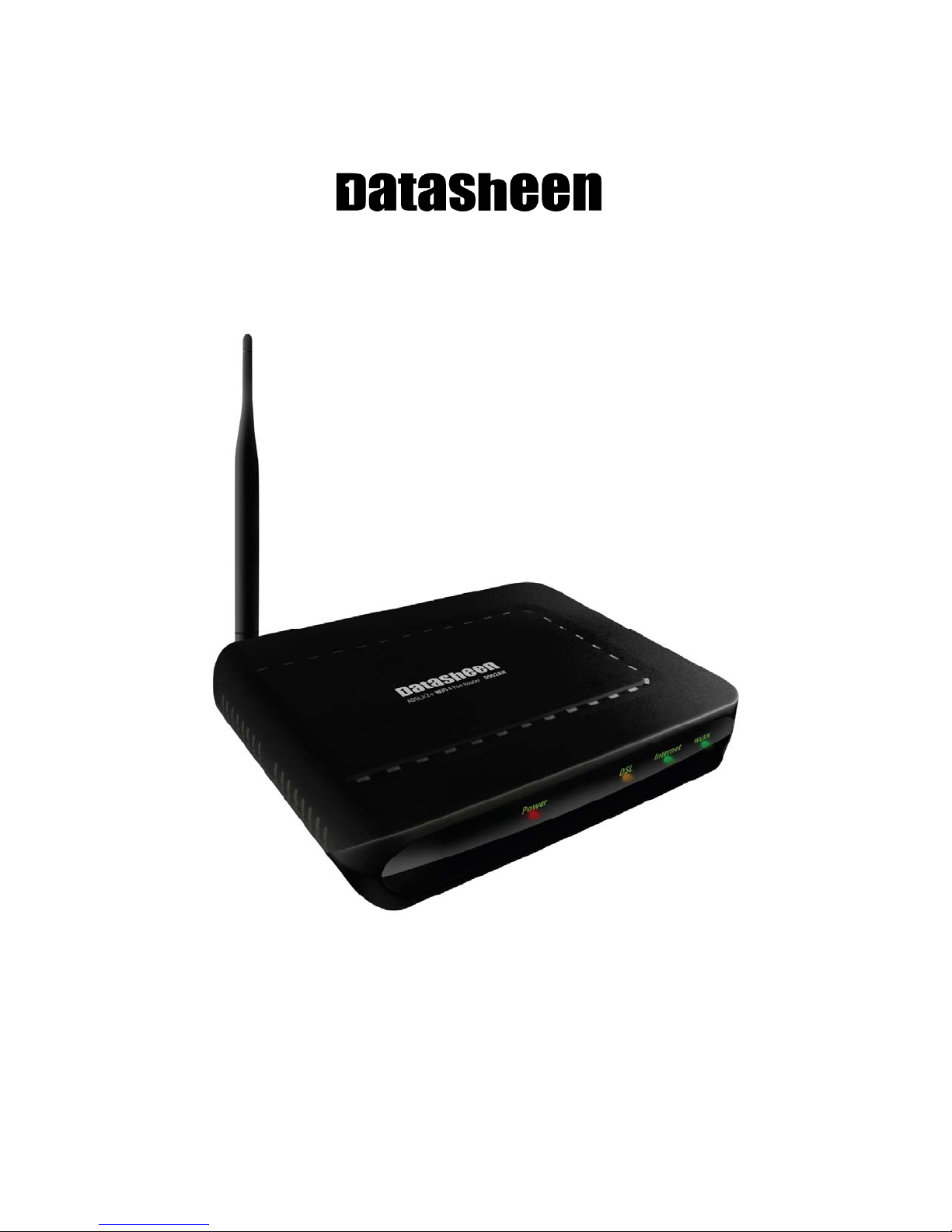

D902A W ADSL2/2+ WIFI Router

User Manual

V1.1

Datasheen D902AW User Manual

CONTENTS

1.OVERVIEW ....................................................................................................................................................... 3

ABOUT ADSL ...................................................................................................................................... 3

1.1

1.2

ABOUT ADSL2/2+ ............................................................................................................................... 3

FEATURES ........................................................................................................................................... 3

1.3

2 SPECIFICATION .............................................................................................................................................. 4

INTERFACE INTRODUCTION .......................................................................................................... 4

2.1

2.1.1 INDICATOR AND INTERFACE .................................................................................................. 4

2.1.2 SPLITTER SPEC ........................................................................................................................... 4

HARDWARE CONNECTION ............................................................................................................. 5

2.2

LED STATUS INDICA TION ................................................................................................................ 5

2.3

3. CONFIGURATION ..................................................... .. ... .. .............................................................................. 6

DEFAULT CONFIGURATION ............................................................................................................ 6

3.1

COMPUTER CONFIGURATION ........................................................................................................ 6

3.2

ADSL MODEM CONFIGURA TION ................................................................................................... 6

3.3

3.3.1 LOG IN .......................................................................................................................................... 6

3.3.2 SAVE SETTING ............................................................................................................................ 6

3.4

WAN CONFIGURATION .................................................................................................................... 7

3.4.1 CONFIGURATION GUIDE .......................................................................................................... 7

3.4.2 RFC1483 BRIDGE CONFIGURA TION ....................................................................................... 9

3.4.3 PPPOE CONFIGURATION ........................................................................................................ 11

3.4.4 STATIC ADDRESS ..................................................................................................................... 12

WIRELESS CONFIGURATION ................................................................................................................. 12

3.5

3.5.1 WIRELESS SETUP ..................................................................................................................... 13

3.5.2 WIRELESS SECURITY ............................................................................................................. 13

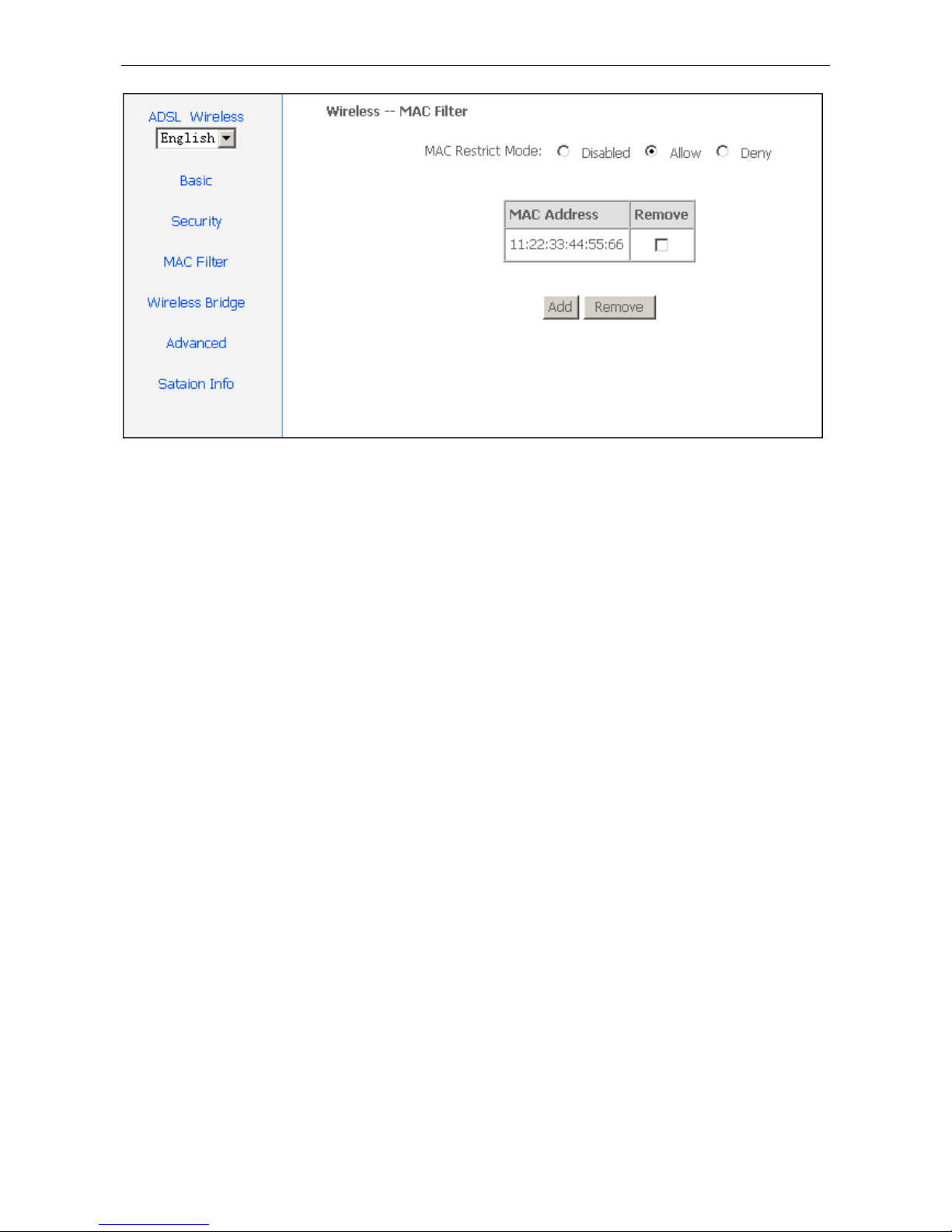

3.5.3 WIRELESS MAC Filter .............................................................................................................. 14

4 OTHER CONFIGURATION ......................................................................................................................... 16

4.1

LAN CONFIGURA TION ................................................................................................................... 16

4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS .................................................................... 16

4.1.2 DHCP CONFIGURATION ......................................................................................................... 16

4.2 PASSWORD CONFIGURATION .................................................................................................. 17

5. TROUBLESHOOTING ................................................................................................................................. 18

UNABLE TO ACCESS INTERNET .................................................................................................. 18

5.1

5.1.1 CHECK THE LINE AND THE DEVICE ................................................................................... 18

5.1.2 CHECK YOUR CONFIGURATION .......................................................................................... 18

ANNEX：SHIPPING LIST ............................... .................................................. ... .. ... ...................................... 19

Page 2 Total 19 Pages

Datasheen D902AW User Manual

1.OVERVIEW

1.1 ABOUT ADSL

An ADSL MODEM is a broadband Internet access device, which utilizes the high frequency segment of
the phone line to transmit high-speed data without affecting the voice transmission. Th e frequ ency of the ADSL
signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to
insulate each from the other. ADSL data transfer adapts the asymmetry model. It supports upload transmission
speed up to 1Mbps and download speed up to 8 Mbps (24Mbps for ADSL2+). ADSL is an ideal device for
broadband access.

1.2 ABOUT ADSL2/2+

Transmission performance of ADSL2 is improved comparing with the first generation of ADSL. These
improvements are mainly concerned with long distance, anti-line-loss, anti-noise, etc. By doubling the
transmission bandwidth, ADSL2+ has implemented a downlink rate as high as 24 Mbps. Therefore, Internet
applications such as synchronous transmission of multi video stream, online games and huge capacity of
downloading files are made possible.

1.3 FEATURES

1、 Support ANSI T1.413 ISSUE 2、 ITU G.992.1 (G.DMT)、ITU G.992.2 (G.LITE)、ITU G992.3、

ITU G992.5

2、 Web-based configuration and monitoring.

3、 Support multiple PVCs.

4、 Routing function.

5、 NAPT、DH CP function.

Page 3 Total 19 Pages

2 SPECIFICATION

2.1 INTERFACE INTRODUCTION

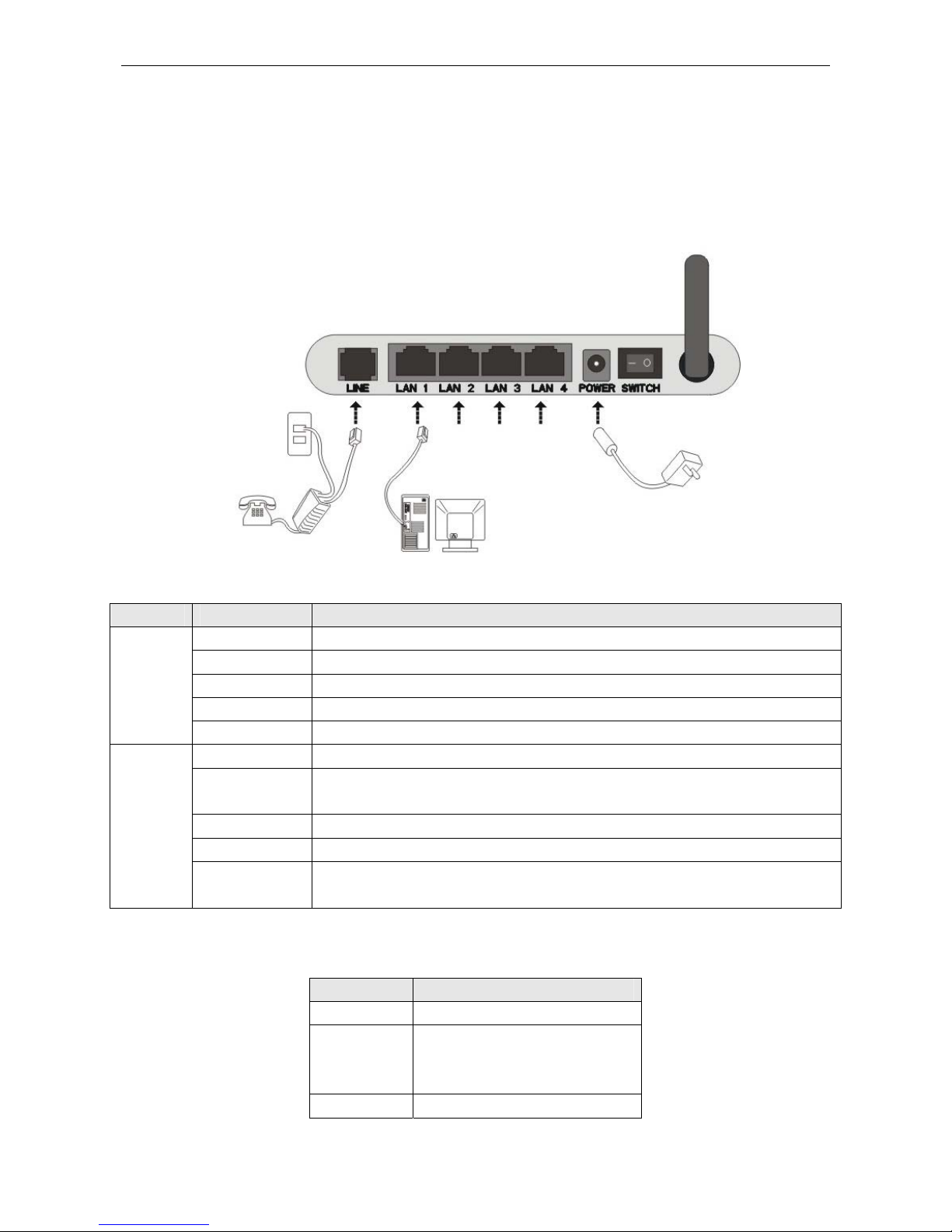

2.1.1 INDICATOR AND INTERFACE

Datasheen D902AW User Manual

Table 2.1

ITEM Name State introduction

POWER A steady red light means the power connection works properly
DSL Yellow, shows DSL line status.

Indicator

Interface

INTERNET Green, Flashing means the Modem is transmitting or receiving data
LAN Green, Indicates status of connection to the PC network card
WIRELESS Green, Indicates status of connection to the wireless device
LINE Connected with phone line or “ADSL” port of the splitter.

ETHERNET

SWITCH Power interface, Connect with power adapter.
POWER To turn on / off the power.

RST

To be connected to a PC network card by a straight-through network cable, also
can use a crossover cable to connect to Hub, Switch or Router.

Press the reset button and turn on the power, then keep pressing the reset button for
5 seconds. Then you can reset the modem with the default settings.

2.1.2 SPLITTER SPEC

Table 2.2
Interface Introduction
LINE Connected with telephone line

Connect with the LINE port of the

ADSL

PHONE Connect with telephone

ADSL Modem using telephone
line provided.

Page 4 Total 19 Pages

Datasheen D902AW User Manual

2.2 HARDWARE CONNECTION

Introduction：

1、 Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the phone jack) on

the wall.

2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port of the ADSL

Modem.

3、 Use another telephone cord to connect the telephone set with the PHONE port of the splitter.
4、 Connect Ethernet port of the ADSL MODEM with 10/100BASE-T port of the computer using the

network cable that comes with the modem.

5、 Pl ug in th e po wer cord, and turn on the power.

If you do not want Internet services and telephone voice services simultaneously, please just connect the
LINE port of the ADSL Modem with the RJ-11 port (the phone jack) on the wall using a telephone cord. In this
case, the splitter is not necessary.

2.3 LED STATUS INDICATION

Table 2.3
Status POWER (red) DSL (yellow) INTERNET (green) WIRELESS(green)
Steady light Power on The modem is in good

connection
Flashing / In handshaking status / /
Fast flashing / / Transmitting or receiving

Off Power off Connection not set up Not connected with PC

Connected with PC Wireless is

connected

Transforming data

data

Wireless is disabled

properly

Page 5 Total 19 Pages

Datasheen D902AW User Manual

3. CONFIGURATION

3.1 DEFAULT CONFIGURATION

ADSL MODEM has pre-configured with the VCI/VPI which is in common use. The default dial-up mode
is bridge encapsulation. For bridge mode, no need to configure any more parameter. However, the third party
dial-up software is needed for connection with the Internet.

3.2 COMPUTER CONFIGURATION

The default IP address for ADSL MODEM is: 192.168.1.1; The Subnet Mask is：255.255.255.0. Users can

configure ADSL MODEM through an Internet browser. ADSL MODEM can be used as gateway and DNS
server; users need to set the computer’s TCP/IP protocol as follow:

1、 Set the computer IP address at same segment of ADSL MODEM, such as set the IP address of the

network card to one of the “192.168.1.2”～ “192.168.1.254”.

2、 Set the computer’s gateway the same IP address as the ADSL Modem’s.
3、 Set computer’s DNS server the same as ADSL Modem’s IP address or tha t of an effective DNS server.

3.3 ADSL MODEM CONFIGURATION

3.3.1 LOG IN

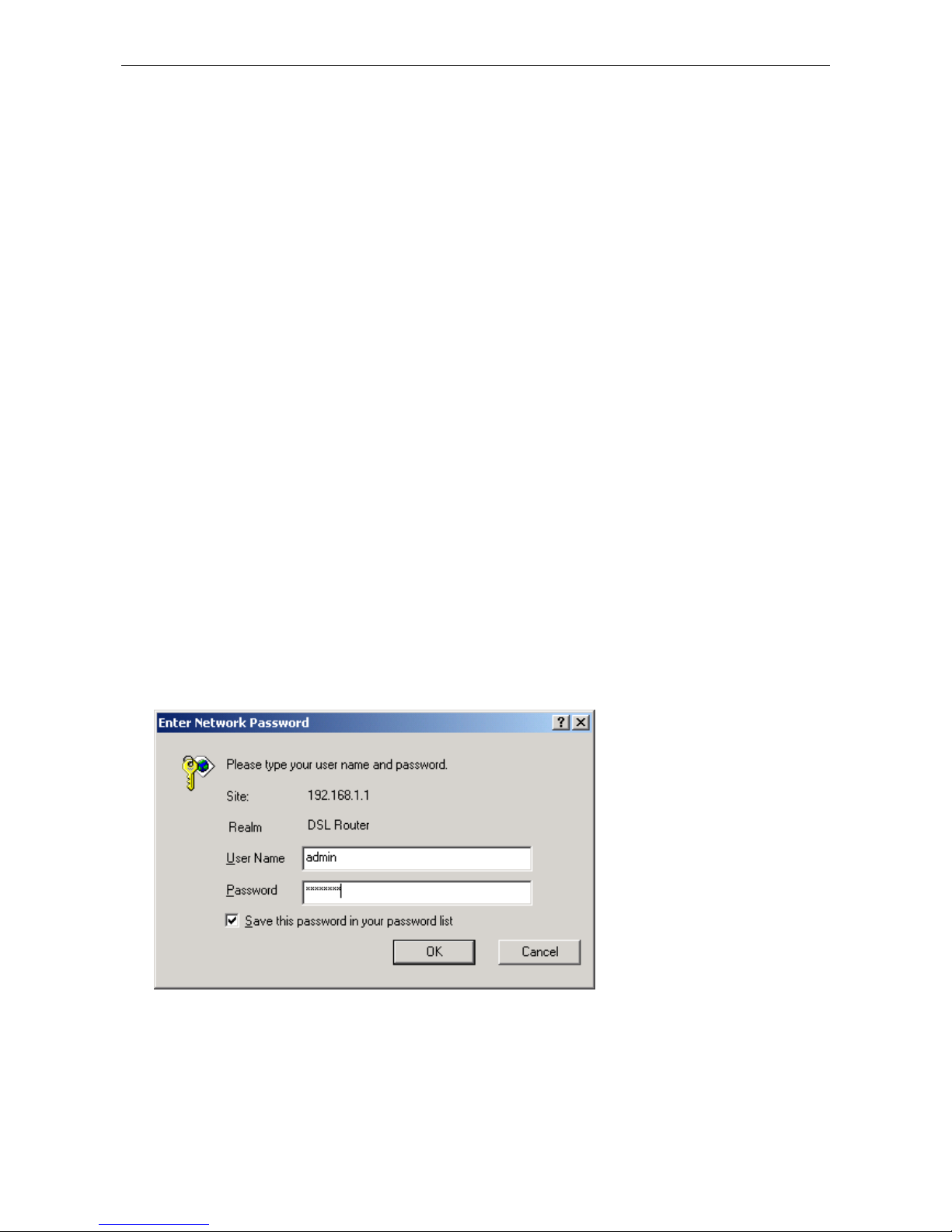

Open the browser; input http://192.168.1.1 at the address column. Press “Enter” key then the entry dialog
box will show up as Figure 3.1. Input Username: admin , Password: password (capital sensitive), then press
Enter.

Figure 3.1

3.3.2 SAVE SETTING

After getting through each page for parameters setting, click “Save” or “Save apply” to store the value in
ADSL MODEM. Briefly, we named “Save”.

Page 6 Total 19 Pages

Datasheen D902AW User Manual

Note

：

When you save the settings, the web page will be refreshed slowly, please wait it finished.

After you save the settings, it will take effect until next reboot.

Some settings only take effect after rebooting the router.

3.4 WAN CONFIGURATION

If the configuration is bridge encapsulation, there is no need to configure any more parameters. Only need
to use the third party dial-up software to connect the Internet.

Totally, this router supports：PPPoA、PPPoE、MER、IPoA、Bridging. For detail configuration information,
please check the following configuration guide.

3.4.1 CONFIGURATION GUIDE

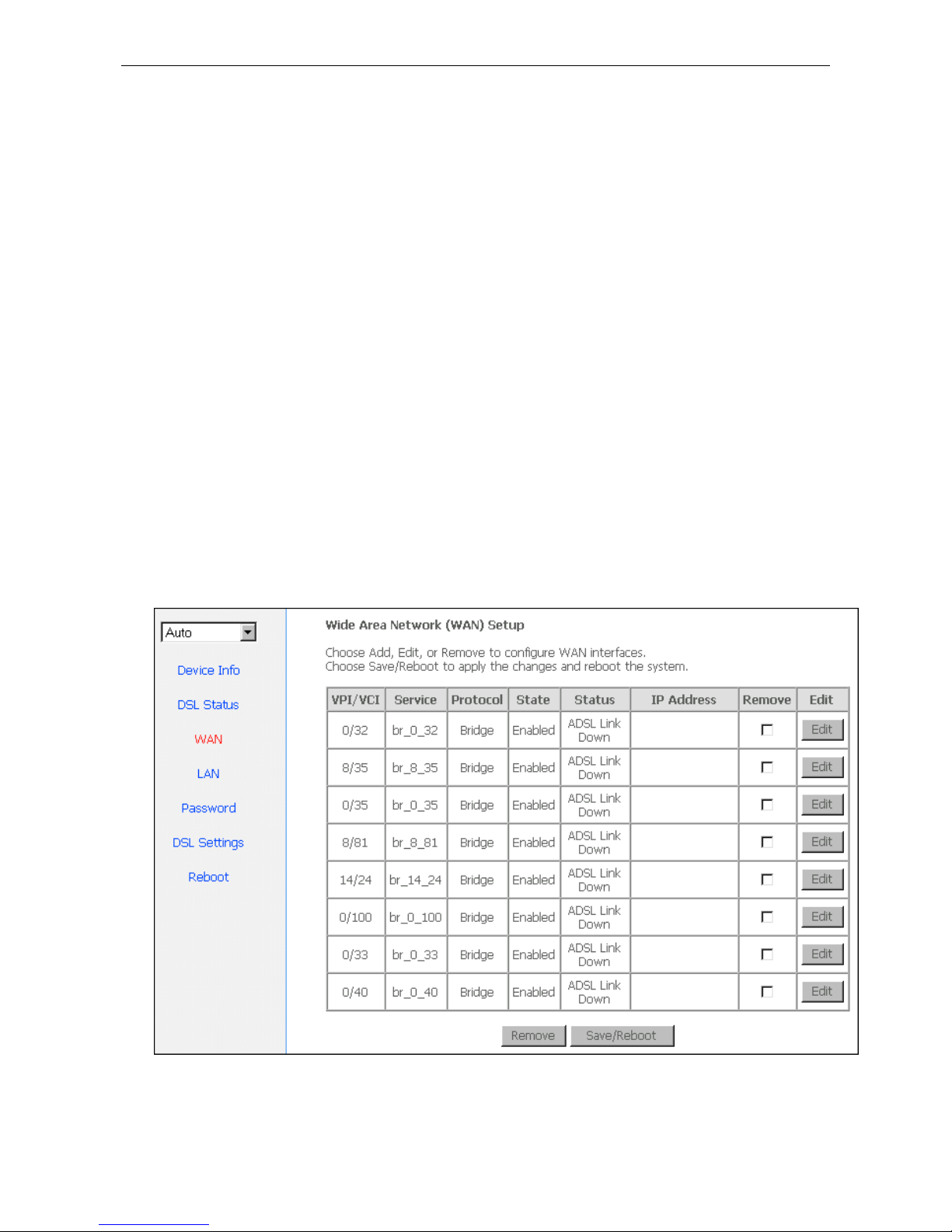

Click “WAN” on the left page, enter into “WAN” configuration page.
 Note: At most we can have eight connections. If you need to add a new connection, please delete or modify

an existing connection.

Click on the next connection which you want modify. Press “Edit” button, enter the configure gu i de, as

Figure 3.3

Figure 3.2

Page 7 Total 19 Pages

Datasheen D902AW User Manual

Figure 3.3

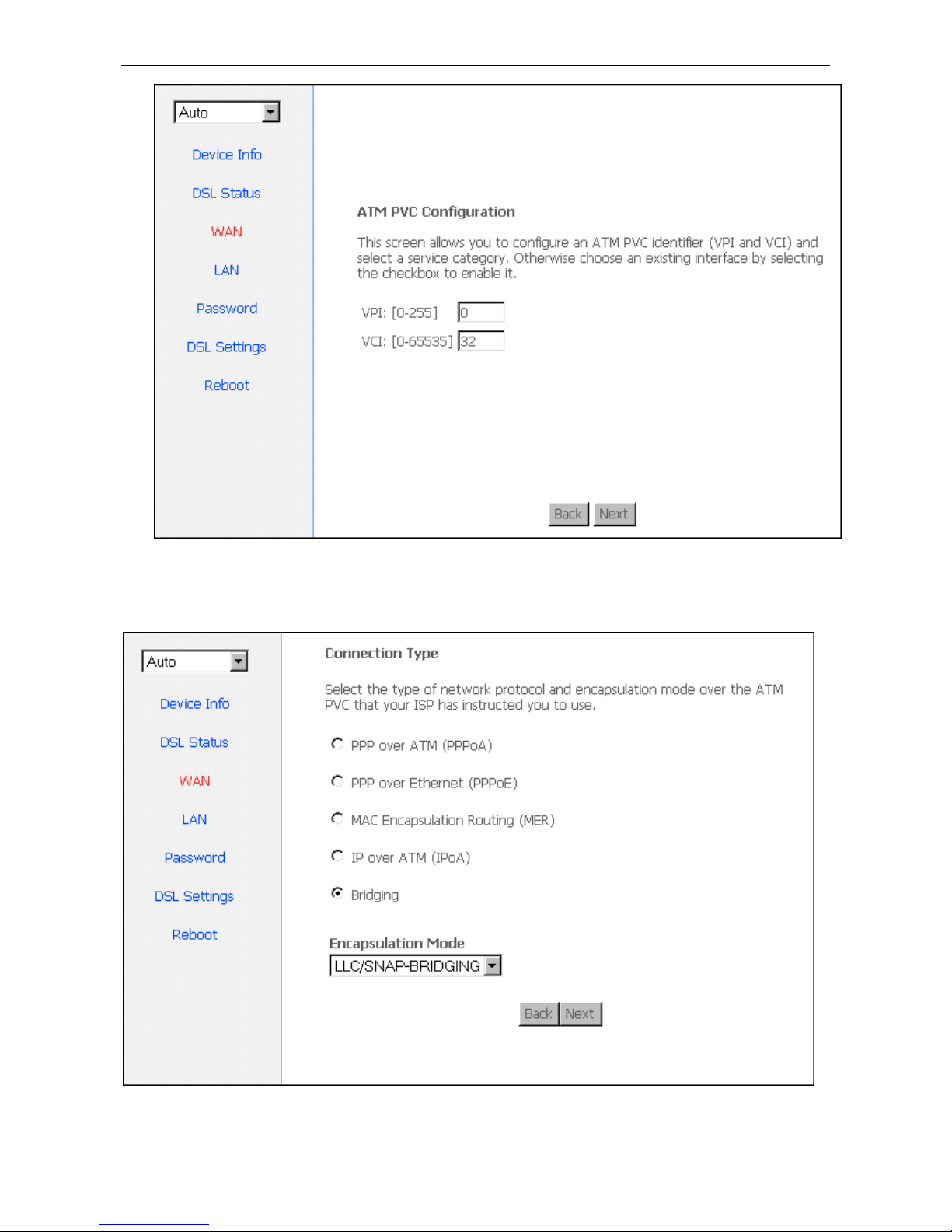

 The value for VPI/VCI is assigned by your ISP. After inputting the PVC value, press “Next” into

“connection type”. As Figure 3.4.

The Modem supports five ADSL protocol modes. Choose the protocol which is appointed by ISP and PVC

Figure 3.4

Page 8 Total 19 Pages

Datasheen D902AW User Manual

encapsulation, click “Next” enter to the protocol configure. Below, we introduce the configuraion of the
five protocol modes.

• PPP over ATM (PPPoA) • P PP over Ethernet (PPPoE)

• MAC Encapsulated Routing (MER) • IP over ATM (IPoA)

• Bridging

 Some connection lines need to confirm the LLC or VC, if you can’t confirm, please don’t modify the

default value or ask your ISP.

3.4.2 RFC1483 BRIDGE CONFIGURATION

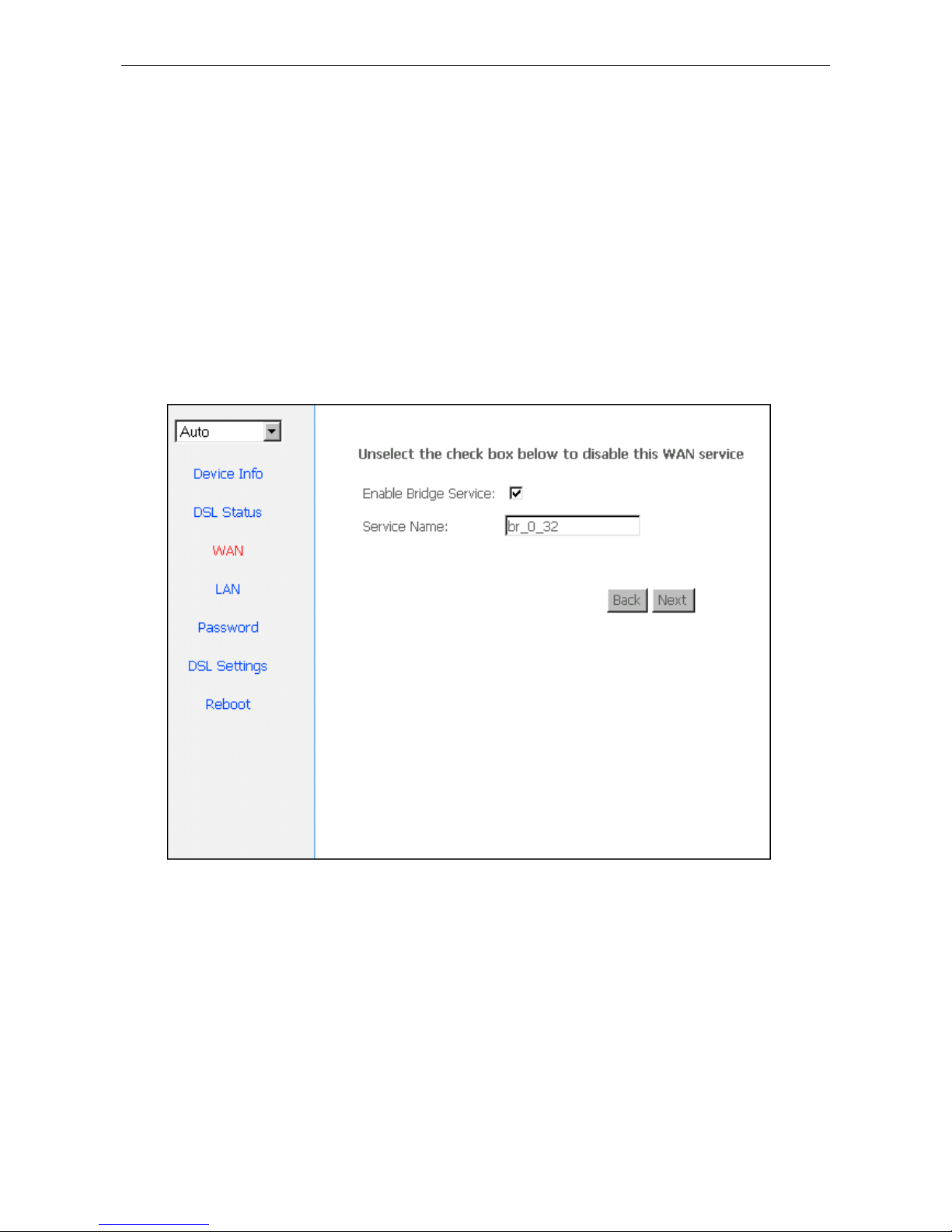

Select the Bridging mode. Then press “Next” to specify the Service Name, and select the “Enable Service” as
Figure 3.5.

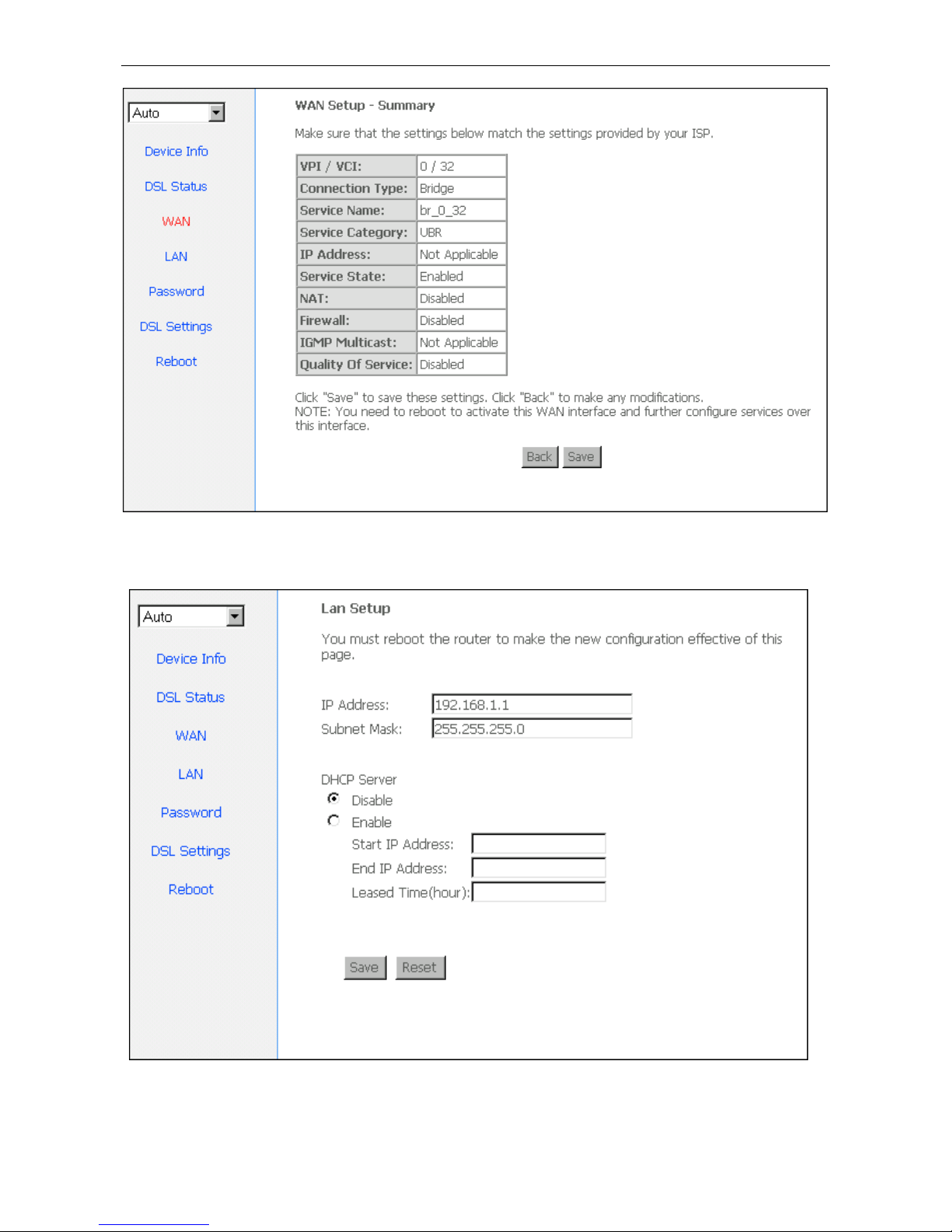

Press “Next” to enter into “WAN configuration”, click “save” to save configuration, if you need to modify
the parameter, click “back” as Figure 3.6.

Figure 3.5

Page 9 Total 19 Pages

Datasheen D902AW User Manual

Figure 3.6

：

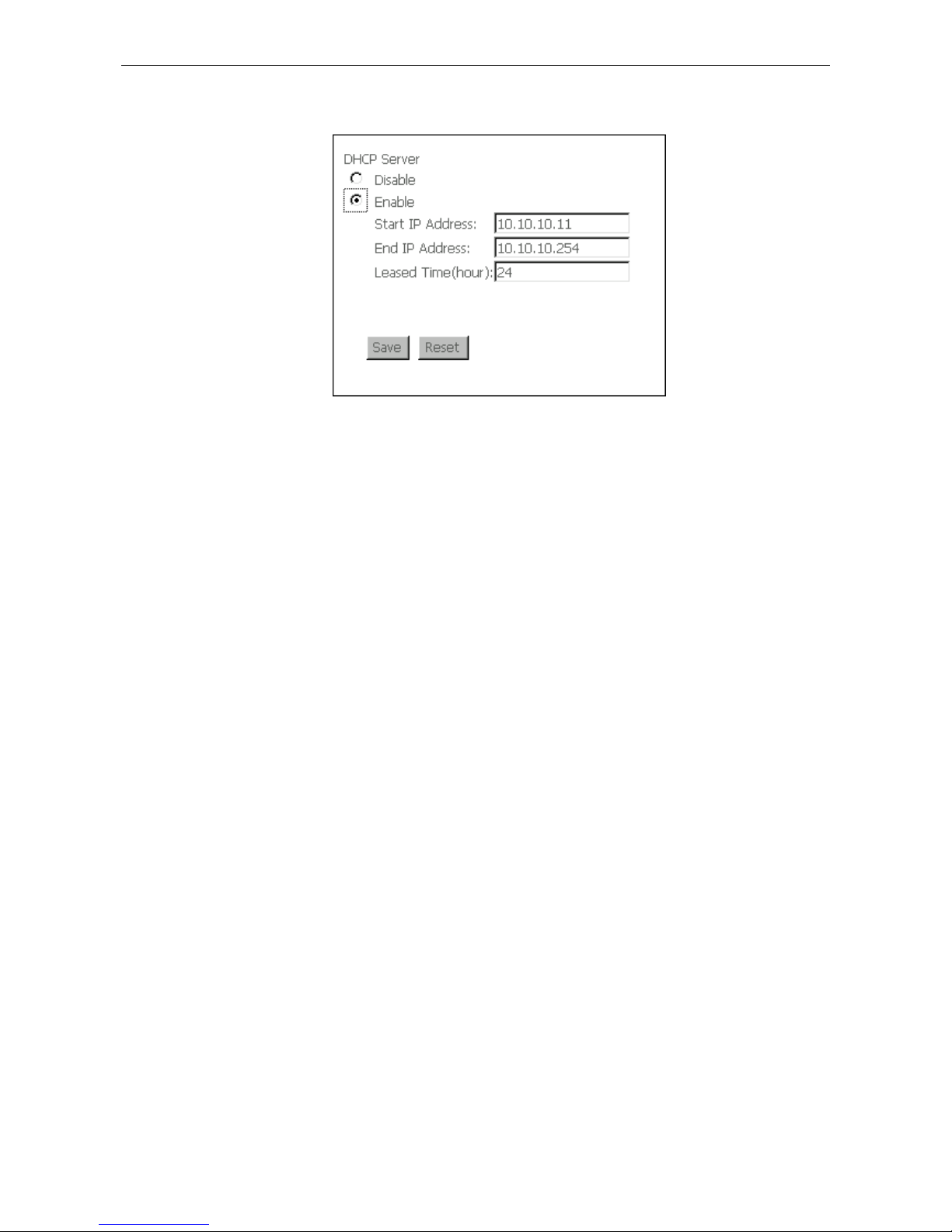

When you use bridge mode, please close “DHCP SERVER”, the result as Figure 3.7

Note

Figure 3.7

Page 10 Total 19 Pages

Datasheen D902AW User Manual

3.4.3 PPPOE CONFIGURATION

PPPoE is also known as RFC 2516. It is a m ethod of encapsulating PPP packets over Ethernet.

PPPoA is also known as RFC2364 and named as Peer to Peer Protocol over ATM. As PPPoE, it also has all
the features of PPP. Although it’s based on ATM protocol, the setting of all the other parameters is similar with
PPPoE. So we only introduce PPPoE in detail here.

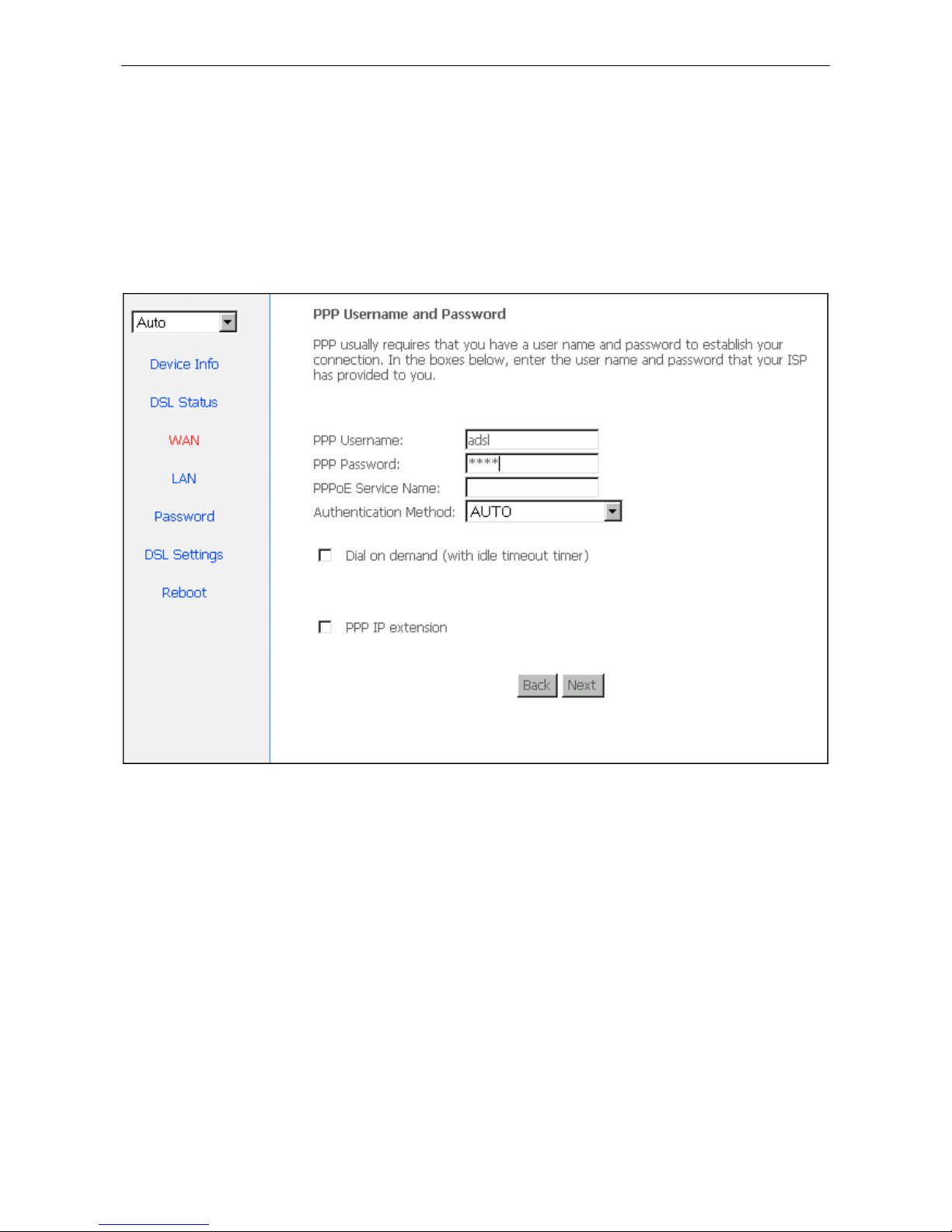

In Figure 3.4, select PPP over Ethernet (PPPoE), press “Next step” entering the configuring interface, as Figure

3.8.

Figure 3.8

 PPP Account: Your account from ISP to access Internet.
 Password: Input the password assigned by your ISP.
 PPPoE server name: Server name of network ISP. No need to set.
 Authentication Mode: Authentication mode of network ISP. Default is AUTO.
 Connection on demand: When this mode is selected, the connection that has no traffic within assigned

disconnect timeout (e.g. 1 minute) will be automatically disconnected. The connection will be activated

again when traffic arrives. This function is advantageous for users who are charged with online time. It

should be noticed that some programs automatically link to Internet. Computer will send data to network

when infected by virus. Connection will not be disconnected under these data streams.
 Disconnect timeout: When “Connection on demand” is selected, this input box indicates that after how

long the connection will be disconnected in the absence of traffic. If the value is 0, connection will not be

disconnected.

Page 11 Total 19 Pages

Datasheen D902AW User Manual

Press “Next step” when configuration is finished. The following operation is same with Figure 3.5. Notice that
PPPoE mode does not work until the modem is reset.

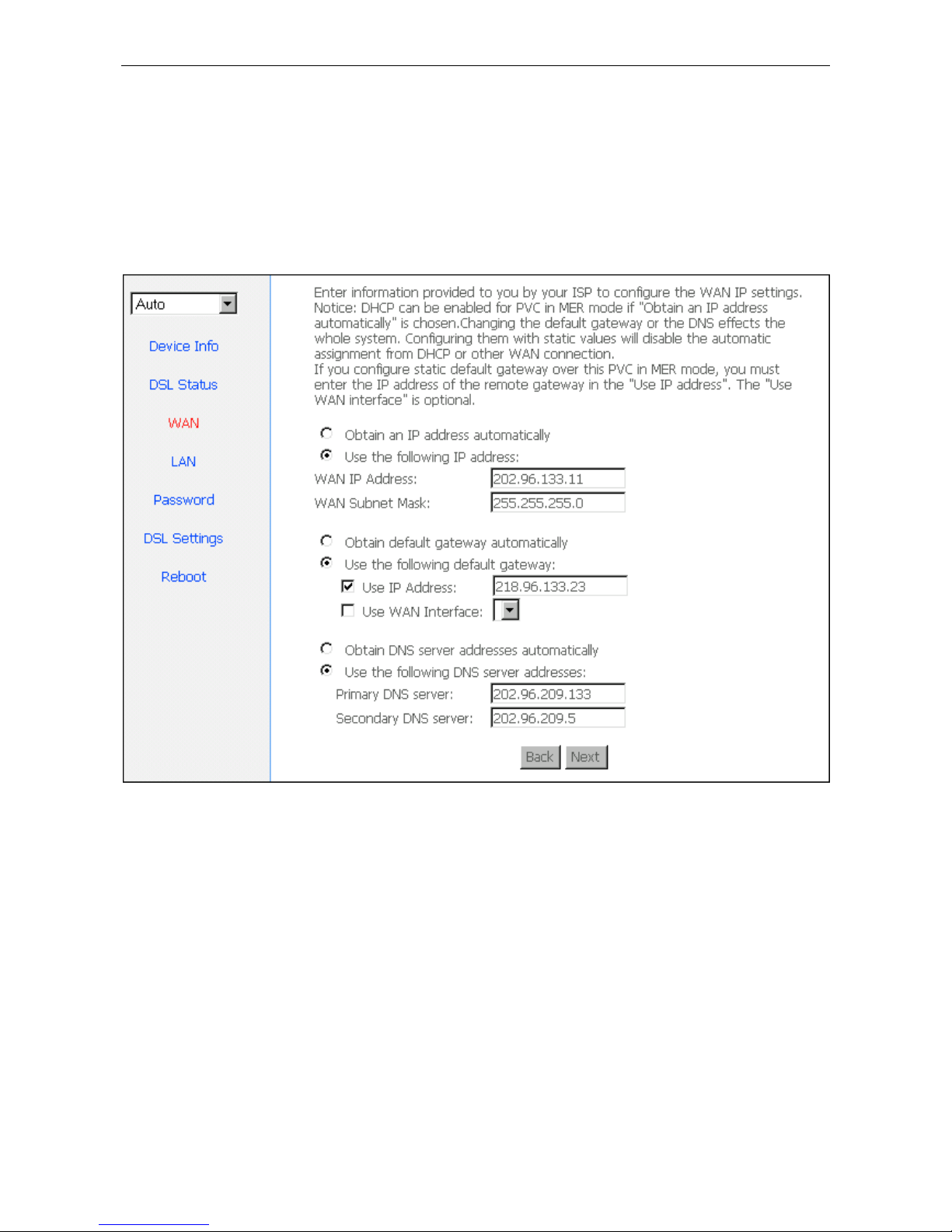

3.4.4 STATIC ADDRESS

In Figure3.4, select MAC Encapsulation Routing (MER), press “Next”, and the configuration can be
queried from your ISP, the result as Figure3.9.

3.5 WIRELESS CONFIGURATION

Press “Wireless” on the top of web pages to enter wireless section. You can select to configure wireless

setup, security and management.

Figure 3.9

Page 12 Total 19 Pages

Datasheen D902AW User Manual

3.5.1 WIRELESS SETUP

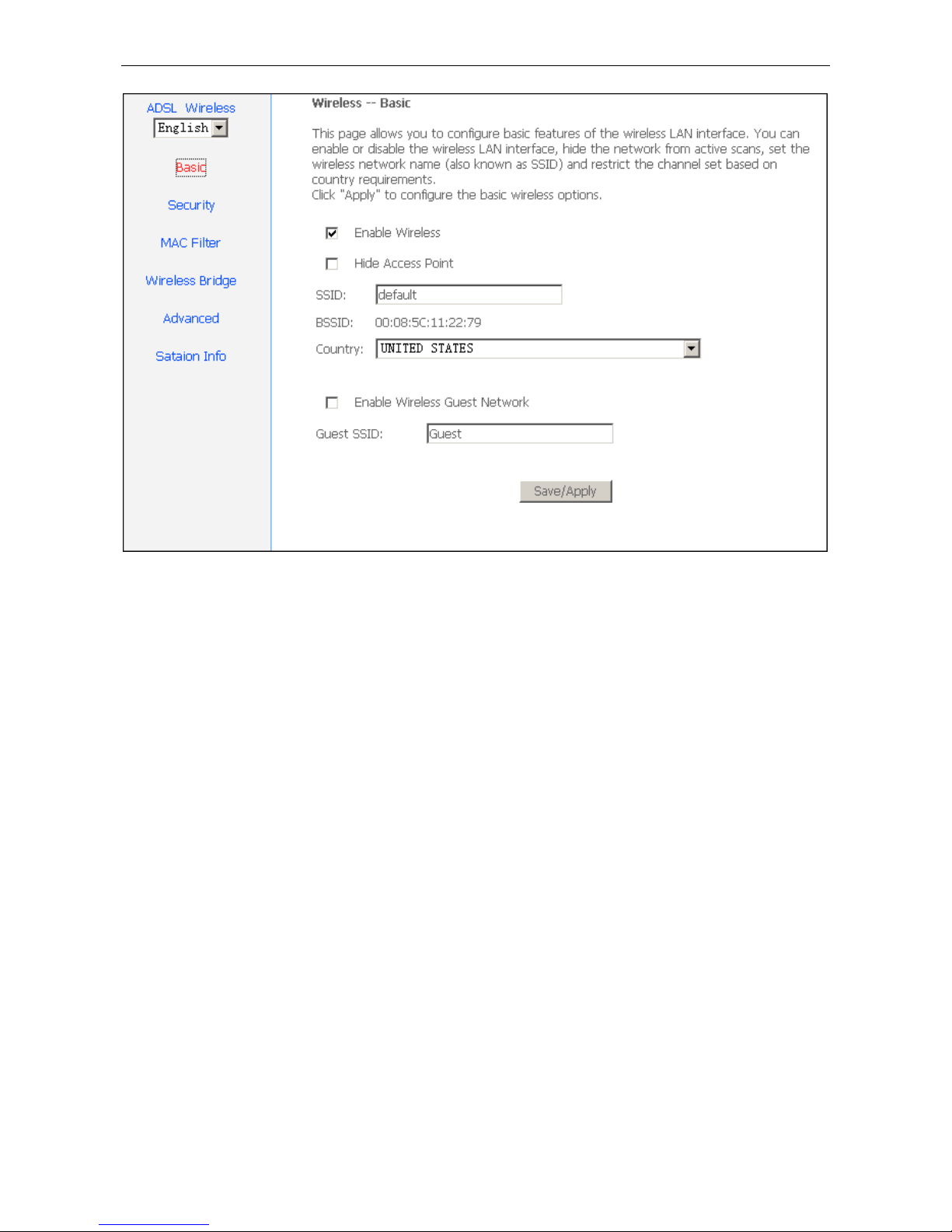

Click “Setup” on the left menu to setup basic wireless parameters. In default, check “Enable Ｗireless”

box to launch wireless AP.

 SSID (Service Set Identifier): The mobile users cannot access WLAN until setting their SSID as the same

value of the wireless ADSL. The SSI D value of the ADSL is “default”

 Hidden Access Point: If checked, wireless station will no see SSID of the ADSL.

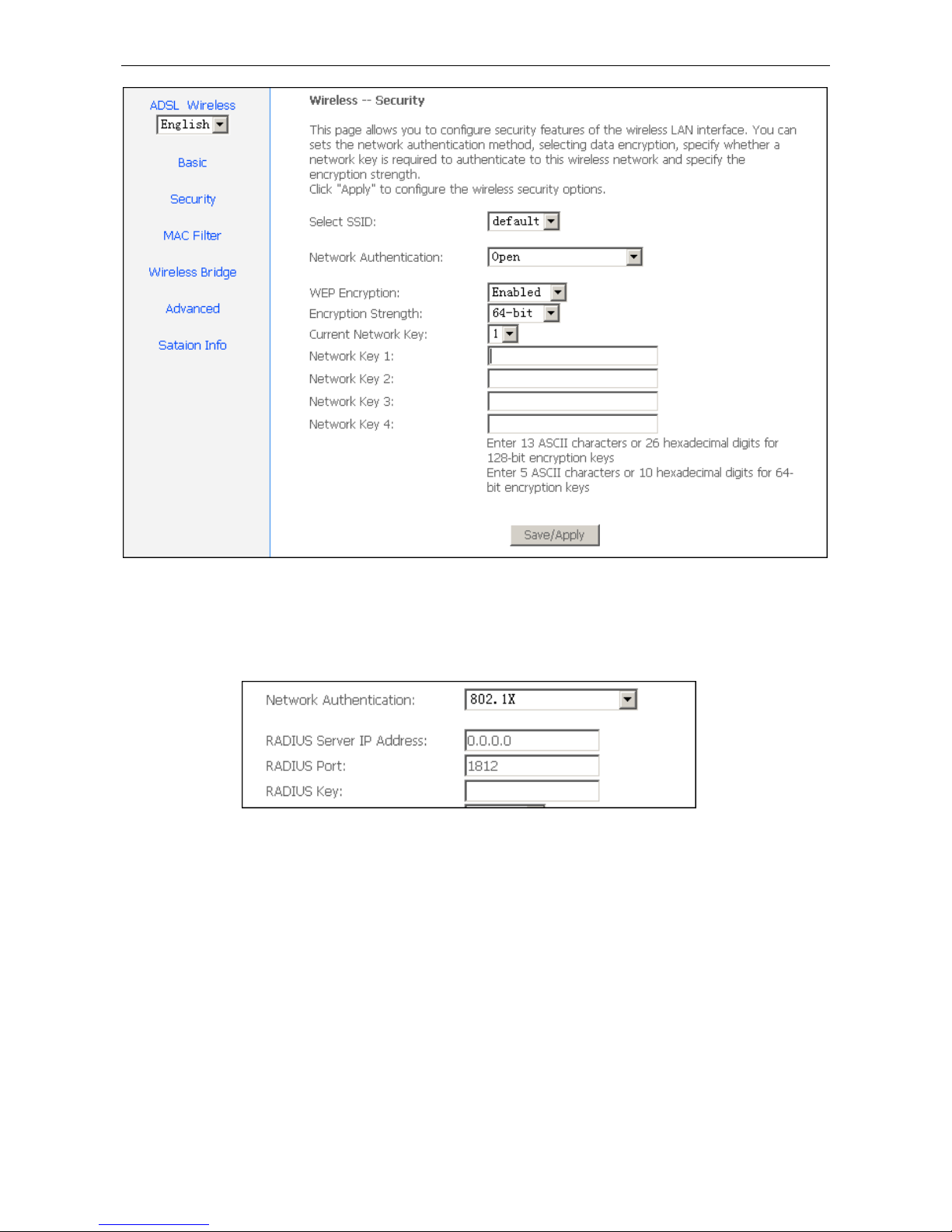

3.5.2 WIRELESS SECURITY

Press “Security” on the left menu to construct wireless security. You can select to configure WEP

encryption, Shared, 802.1x, WPA, and WPA2 authentication.

 WEP Encryption

Select “Enabled” of the WEP encryption list. You can enter WEP encryption page.

Encryption Stre ngt h: Key length: 128bits or 64bits.
Network Key 1-4: Up to four keys that are in form of hex digitals could be set. Mobile users can’t

access the AP if they haven’t set the same key as AP. For 64bits and 128bits keys, you should input 10
and 26 hexadecimal digitals or 5 and 13 ASCII characters respectively. Every two digitals should be
comparted with others by a space character. For example: “7890ABCDEF” (hexadecimal digitals) or
“QWERT” (ASCII characters) for a key length of 64bits.

Page 13 Total 19 Pages

Datasheen D902AW User Manual

 802.1x Authentication

Select “802.1x” to enter 802.1x authentication page.
The 802.1x authentication needs a Radius server in LAN. In this p age, you can inpu t Radius server IP
address, port number and secret key.

3.5.3 WIRELESS MAC FILTER

In fact, the Access List function is just like MAC address filtering and selected to permit or forbid access

of wireless station with specified MAC address.

Method: select “Allow” or “Deny” mode, and click “Add” button, and input MAC address which you

want to allow or deny.

Page 14 Total 19 Pages

Notice: You only can select one of allow mode or deny mode.

Datasheen D902AW User Manual

Page 15 Total 19 Pages

Datasheen D902AW User Manual

4 OTHER CONFIGURATION

4.1 LAN CONFIGURATION

Configuration of Modem’s IP address and password

4.1.1 CONFIGURATION OF MODEM’S IP ADDRESS

As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the
MODEM, at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. Th e user can configure
these addresses through the “LAN” on “Configuration” like this:

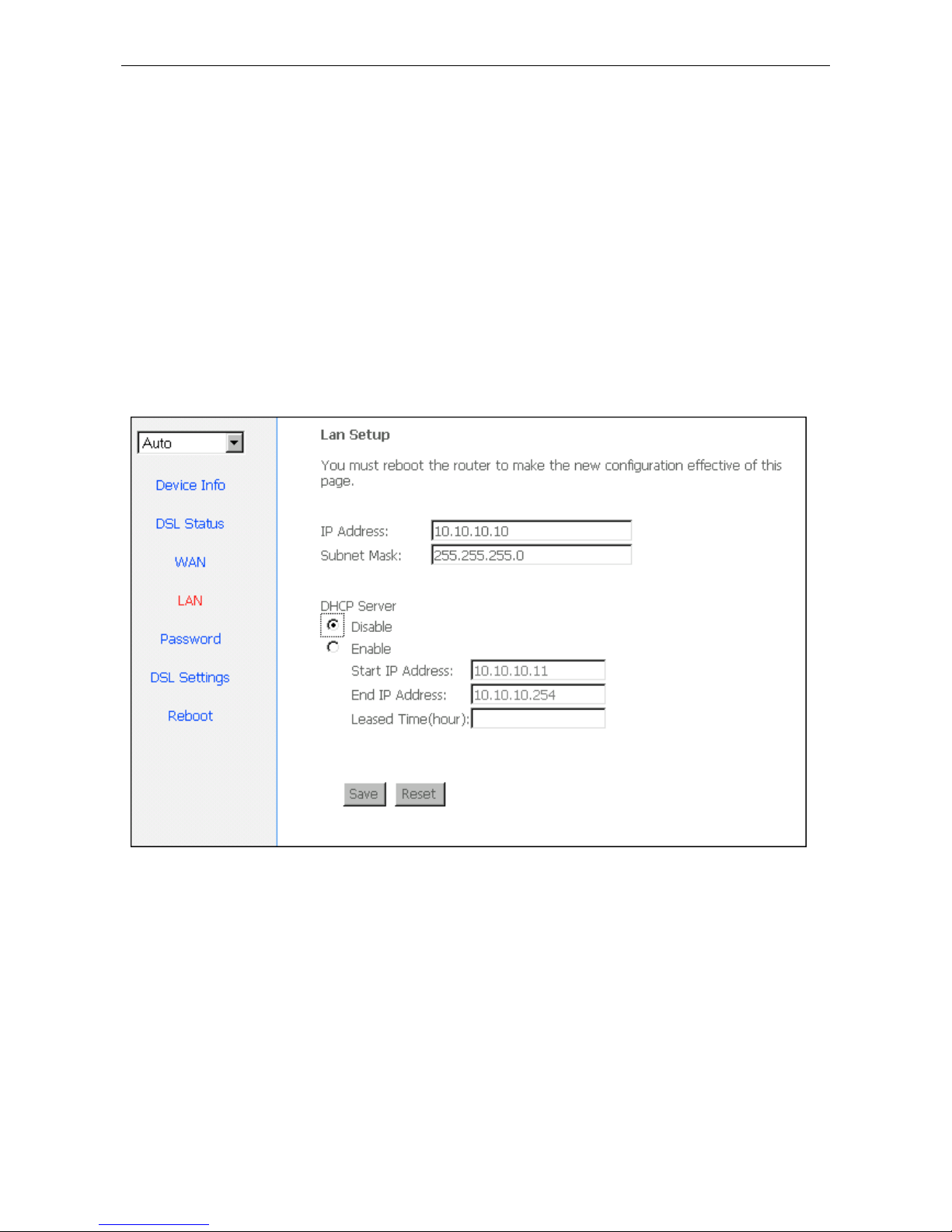

For example, change IP address to “10.10.10.10”. Click ”LAN”, input “IP address”: 10.10.10.10, then
“subnet mask”: 255.0.0.0, the result is as Figure4.1, press “save”.

Note

：

If you change IP address, it will take effect after you reboot the modem. You must use the new IP

address to login.

4.1.2 DHCP CONFIGURATION

• click“LAN ”

• click“DHCP server”；

• Define the “Start IP address” and the “End IP address” of DHCP server (for example, from

10.10.10.11 to 10.10.10.254).

• Input the value of lease (Measured by the second, 0 indicates permanently valid).

Figure 4.1

Page 16 Total 19 Pages

Datasheen D902AW User Manual

As Figure 4.2, open DHCP server, computer will set the IP Address of network card with one of the address

10.10.10.11 ～ 10.10.10.254.

Figure 4.2

：

When you use the DHCP Server, please pay attention to having multi-DHCP Server in one LAN.

Note

4.2 PASSWORD CONFIGURATION

When you configure ADSL MODEM through an Internet browser, the system requires user name and
password to validate access permission. The factory sets the modem at a default username of “admin” and the
password of “password”. The username is unchanged. You can enter the “password configuration” on
Configuration column to ch ange the password.

Attention: please remember the password after change, otherwise you will not be able to

change configuration after saving setting

Page 17 Total 19 Pages

Datasheen D902AW User Manual

5. TROUBLESHOOTING

5.1 UNABLE TO ACCESS INTERNET

5.1.1 CHECK THE LINE AND THE DEVICE

1、 Check the indicator of power supply is on, if not, Make sure the connection of power supply is correct;

Make sure the output of power supply is correct; Make sure the switch of power supply is turne d on；

2、 Check the indicator of PC is on, if not, Make sure the connection of cable and network adapter; Make

sure that the correct cable is used;

3、 Check the LINK LED to see if it is twinkling. If no fast twinkling is observed within 3 minutes, please

check whether phone line has been correctly placed; whether ADSL separator is correctly used. If
multiple extensions have been installed, make sure that the separator is installed prior to the junction
box of phone line. If the above items are confirmed and still no fast twinkling of WAN LED is
observed, call the ISP to query whether ADSL service has been provided on your line;

4、 Check the LINK LED to see whether it is unable to change status from fast twinkling to always light,

or whether it chang e s s tat us to fa st twi nkl in g af ter sometime of always light. If these phenomena occur
constantly, please contact your ISP with a demand to check lines and signal quality;

If there is no pro blem in the above items, th e line and the device shall be working. Problems may come
from your computer configuration or device co nfiguration.

5.1.2 CHECK YOUR CONFIGURATION

We explain here the configuration of PPPOE using Windows 2000 operation system as an example. For
other operation systems the process is similar.

1、 Enter the device manager to check if Ethernet adapter is correctly installed. If any problem exists,

please re-installed it;

2、 Check the configuration of Ethernet adapter in PC. Try to manually set IP address that is in band

192.168.1.x

3、 Try to run command “ping 192.168.1.1” on command line mode. If the response returns “time out”,

please check Ethernet connection and IP settings;

4、 If this modem is reachable, try to run ping with a known outer IP, e.g. the DNS server IP of ShangHai

Online: “ping 202.96.209.133”.

 If ping is reachable, there shall be no problems in the modem. Please see step 5;
 If ping is not reachable, see step 6 and check if the configuration is correct.

5、 Please try to ping a certain outer URL, e.g. “ping www.google.com”.

 If ping is reachable, there shall be no problems in the network settings. Please check the settings

 If ping is not reachable, check the DNS setting of Ethernet adapter. See 3.2.

Note 1：The precondition is that LAN settings in the modem has not been modified.
Note 2：We usually start command line mode in Windows 2000 as follows: click on the “RUN” item of

Windows Start Menu, input characters “cmd” in the input box popped up with an “Enter”. The window

without conflict. See 3.2;

of the PC terminal, e.g. whether the security level is too high, or whether anti-virus firewall is
installed;

Page 18 Total 19 Pages

Datasheen D902AW User Manual

subsequently popped up is the command line window.

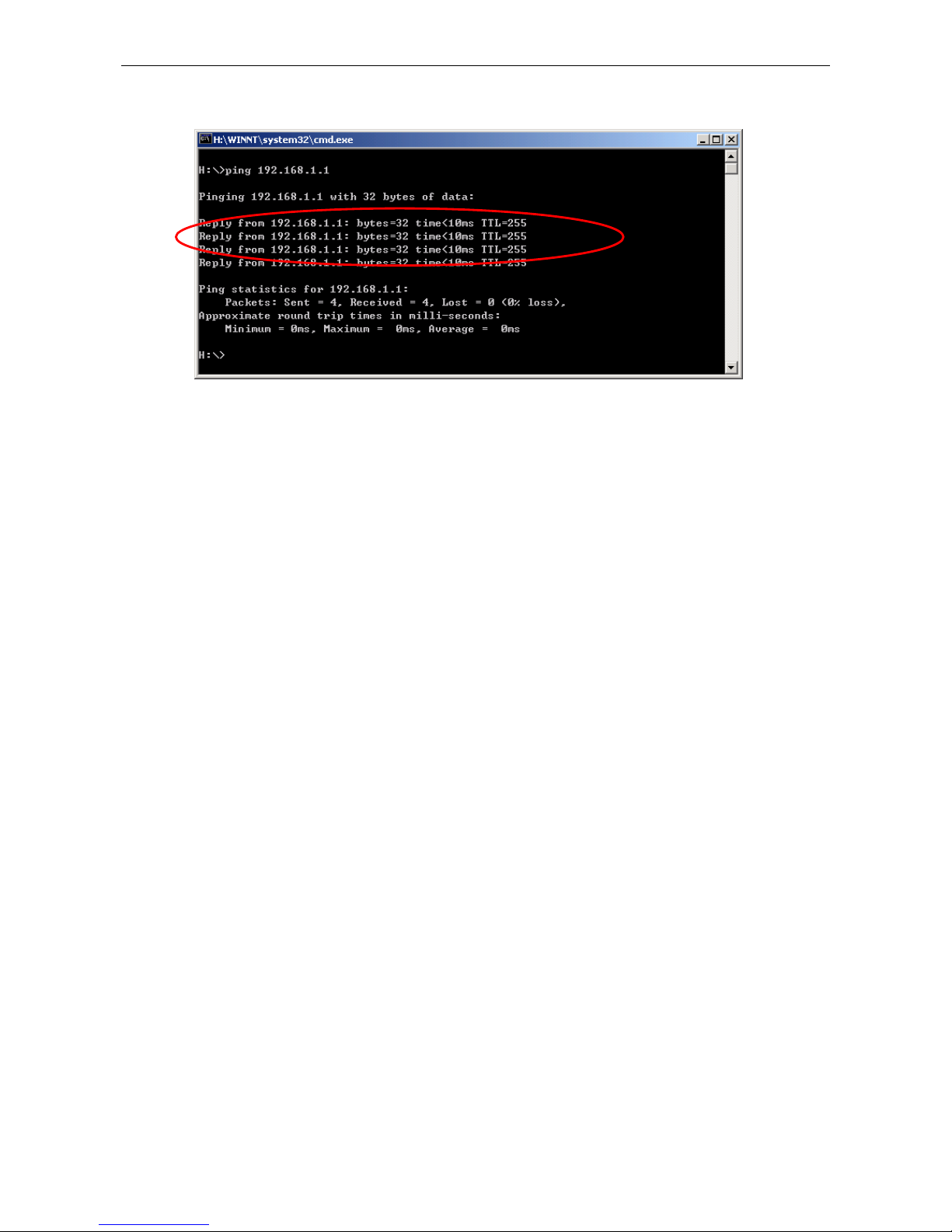

Note 3：The returned values of ping command in the following format show the standard of “reachable”

Figure 5.1

6、 If ping of the modem is reachable but ping of the outer fixed IP is unreachable, attention should be

concentrated upon device settings. Please enter the configuring interface following the instructions in
this manual.

（1） Check first the number of connections. If more than one connection ex ists, for troubleshooting ,

delete unused connections and rema in the one connection you are using.

（2） Check the connection to see whether correct “ type” is selected. It’s normal to choose login type of

PPPoE. When you use PPPoE to login, the following information should be provided: VPI and
VCI, which can be queried from your ISP, user name and password.

（3） Then make sure that “using NAT” and “default gateway” have been selected with a tick. Check

whether “connect on demand” has been selected with a tick. If it is selected, the connection is
activated only when traffic to outer networks arrives. If not selected, check “keep connection”,
which should be set to 0 if you demand to keep connection

Make sure that the above parameters are saved after configuration. Internet is now available since the
configuration is properly done.

ANNEX：SHIPPING LIST

ADSL MODEM
Splitter
User Manual
Power Supply
Cable Cat5 RJ45
Telephone Line
Warranty Certificate

×1
×1
×1
×1
×1
×2
×1

© Datasheen Corporation. 2009. Taiwan

Page 19 Total 19 Pages
