DRST2000 INSTALLATION INSTRUCTIONS
FOR SUN FIRE T1000 AND T2000 SERVERS
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
• The Sun Fire T1000 server has 8 DIMM slots arranged in 2 banks of
4. Memory must be installed in groups of 4 identical DIMMs. Valid
configurations are 4 identical DIMMs or 8 identical DIMMs.
• The Sun Fire T2000 server has 16 DIMM slots arranged in 2 banks
of 8. Memory must be installed in groups of 8 identical DIMMs. Valid
configurations are 8 identical DIMMs or 16 identical DIMMs.
• Each Sun original and Dataram memory upgrade will contain two
identical DIMMs.
P/N 06698 A
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists since 1967, we want
to provide the most comprehensive level of service and support in the
industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06698 A
DRST2000 INSTALLATION INSTRUCTIONS
FOR SUN FIRE T1000 AND T2000 SERVERS
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
• The Sun Fire T1000 server has 8 DIMM slots arranged in 2 banks of
4. Memory must be installed in groups of 4 identical DIMMs. Valid
configurations are 4 identical DIMMs or 8 identical DIMMs.
• The Sun Fire T2000 server has 16 DIMM slots arranged in 2 banks
of 8. Memory must be installed in groups of 8 identical DIMMs. Valid
configurations are 8 identical DIMMs or 16 identical DIMMs.
• Each Sun original and Dataram memory upgrade will contain two
identical DIMMs.
P/N 06698 A
MEMORY INSTALLATION MEMORY INSTALLATION
g
g
Note: Refer to your system owner’s manual for detailed instructions.
Caution: System parts are sensitive to electrostatic discharge and can be
1. Power off the server and remove the main cover.
2. Locate the DIMM slot(s) on the motherboard to which you want to install
or replace a memory module.
3. If replacing a DIMM, push down on the ejector levers on each side of the
DIMM until the DIMM is released.
4. Grasp the top corners of the faulty DIMM and remove it from the system.
5. To install a DIMM, open both ejector levers on each slot.
6. Position the DIMM over the slot so that the alignment notches on the
DIMM match the notches on the connector.
7. Press firmly with your thumbs on both top ends of the module, applying
equal pressure until the module snaps into place. Lock the module in the
socket by pushing up on the ejector levers until they are in their upright
position.
8. Continue to install the remaining memory modules until you have filled
the bank with two identical modules. Repeat the above steps for each
bank of memory you wish to install.
9. Reconnect the power cords and external cables, replace the cover and
turn on the system.
10. After you reboot, ensure the system recognizes the new memory
configuration.
damaged by the static charge you may carry. You should wear a
rounded wrist strap.

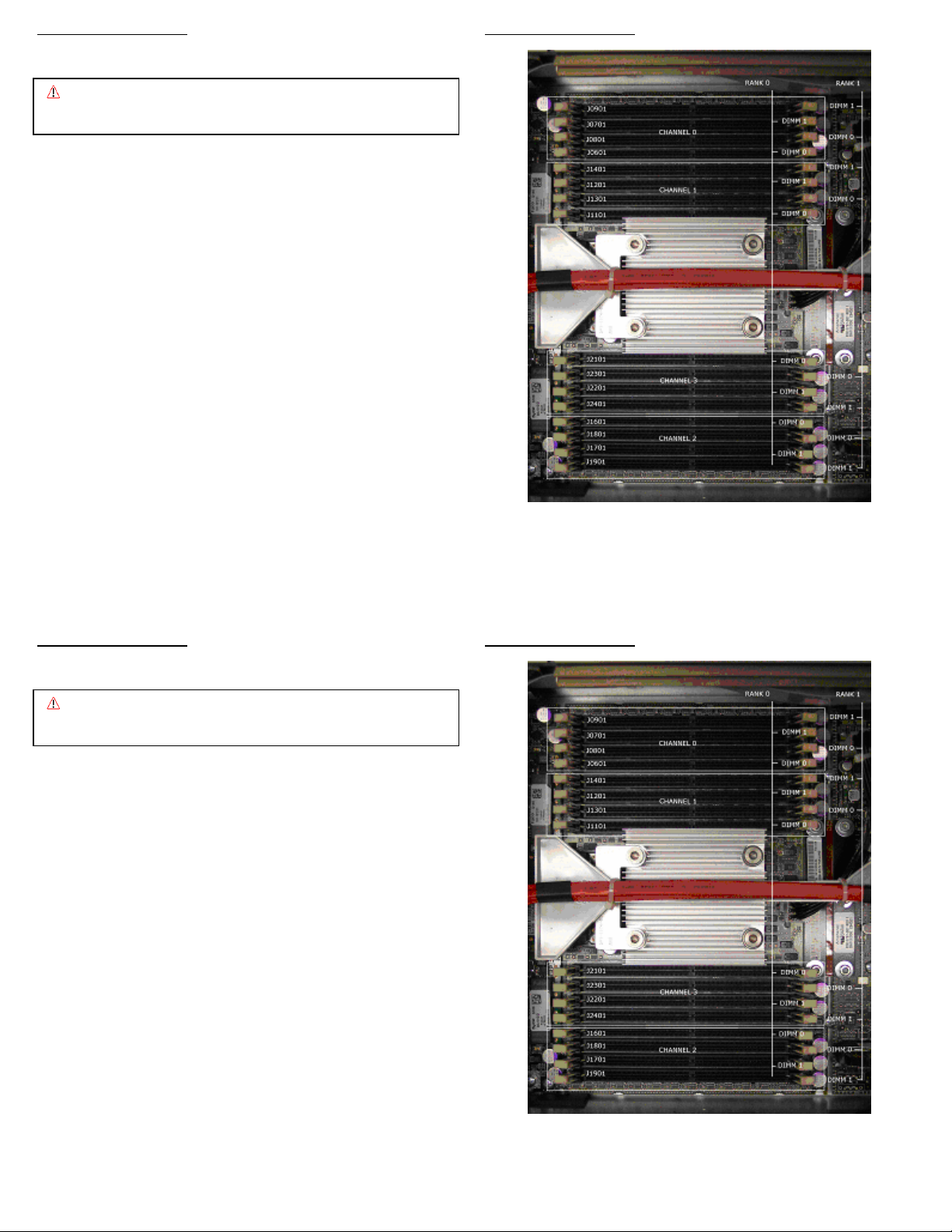

Sun Fire T2000 DIMM Locations
