Dataram DRSM5000 User Manual

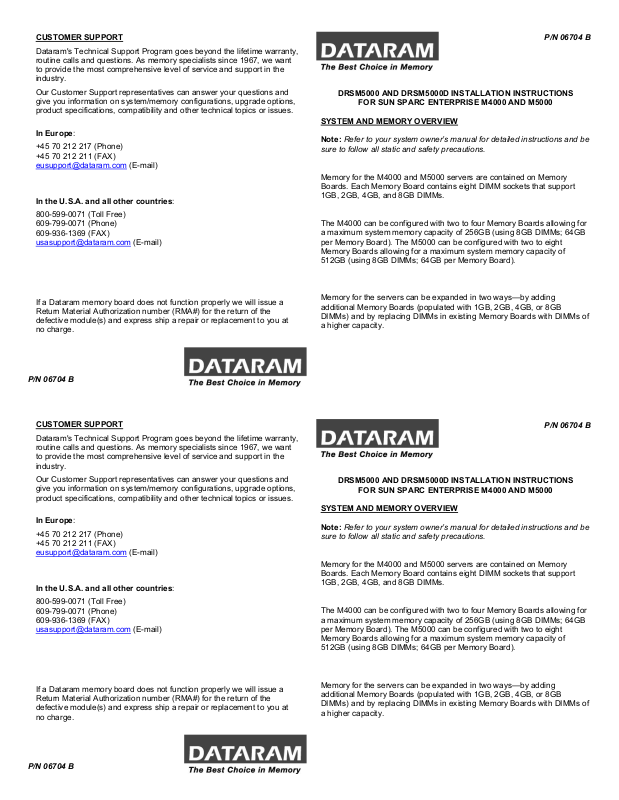

CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists since 1967, we want
to provide the most comprehensive level of service and support in the
industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06704 B
DRSM5000 AND DRSM5000D INSTALLATION INSTRUCTIONS
FOR SUN SPARC ENTERPRISE M4000 AND M5000
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
Memory for the M4000 and M5000 servers are contained on Memory
Boards. Each Memory Board contains eight DIMM sockets that support
1GB, 2GB, 4GB, and 8GB DIMMs.
The M4000 can be configured with two to four Memory Boards allowing for
a maximum system memory capacity of 256GB (using 8GB DIMMs; 64GB
per Memory Board). The M5000 can be configured with two to eight
Memory Boards allowing for a maximum system memory capacity of
512GB (using 8GB DIMMs; 64GB per Memory Board).
Memory for the servers can be expanded in two ways—by adding
additional Memory Boards (populated with 1GB, 2GB, 4GB, or 8GB
DIMMs) and by replacing DIMMs in existing Memory Boards with DIMMs of
a higher capacity.
P/N 06704 B
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists since 1967, we want
to provide the most comprehensive level of service and support in the
industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06704 B
DRSM5000 AND DRSM5000D INSTALLATION INSTRUCTIONS
FOR SUN SPARC ENTERPRISE M4000 AND M5000
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
Memory for the M4000 and M5000 servers are contained on Memory
Boards. Each Memory Board contains eight DIMM sockets that support
1GB, 2GB, 4GB, and 8GB DIMMs.
The M4000 can be configured with two to four Memory Boards allowing for
a maximum system memory capacity of 256GB (using 8GB DIMMs; 64GB
per Memory Board). The M5000 can be configured with two to eight
Memory Boards allowing for a maximum system memory capacity of
512GB (using 8GB DIMMs; 64GB per Memory Board).
Memory for the servers can be expanded in two ways—by adding
additional Memory Boards (populated with 1GB, 2GB, 4GB, or 8GB
DIMMs) and by replacing DIMMs in existing Memory Boards with DIMMs of
a higher capacity.
P/N 06704 B
MEMORY INSTALLATION MEMORY INSTALLATION
g
g
Note: Refer to your system owner’s manual for detailed instructions. DIMMs on the Memory Boards are divided into two groups: A and B.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should wear a
rounded wrist strap.
DIMM Upgrades
Dataram offers three DIMM-only upgrades. The DRSM5000D/16GB is a
16GB product consisting of eight 2GB DDR2 DIMMs. The
DRSM5000D/32GB is a 32GB product consisting of eight 4GB DDR2 DIMMs,
and the DRSM5000D/64GB is a 64GB product consisting of eight 8GB DDR2
DIMMs. All products can be used to increase the memory capacity of existing
Sun Memory Boards in M4000 and M5000 servers.
Memory Board Upgrades
Dataram offers three Memory Board upgrades. The DRSM5000/16GB is a
16GB product consisting of a Memory Board populated with eight 2GB DDR2
DIMMs in Group A must be the same or larger capacity than the DIMMs in
Group B.
Group B can have the same number of DIMMs as Group A or it can have zero
DIMMs.
In an M4000 server, valid configurations are two or four Memory Boards and
the DIMMs in each Group should be the identical capacity across ALL of the
Memory Boards.
In an M5000 server, valid configurations are two, four or eight Memory
Boards. The Memory Boards are broken into two Units. The first Unit consists
of the first two to four Memory Boards and the second Unit consists of the last
five to eight Memory Boards. The DIMMs in each Group should be the
identical capacity across all the Memory Boards in a Unit.
DIMMs. The DRSM5000/32GB is a 32GB product consisting of a Memory
Board populated with eight 4GB DDR2 DIMMs. The DRSM5000/64GB is a
64GB product consisting of a memory board populated with eight 8GB DDR2
DIMMs. All products can be used to add additional memory capacity to the
M4000 and M5000 servers.
MEMORY INSTALLATION
MEMORY INSTALLATION
Note: Refer to your system owner’s manual for detailed instructions. DIMMs on the Memory Boards are divided into two groups: A and B.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should wear a
rounded wrist strap.
DIMM Upgrades
Dataram offers three DIMM-only upgrades. The DRSM5000D/16GB is a
16GB product consisting of eight 2GB DDR2 DIMMs. The
DRSM5000D/32GB is a 32GB product consisting of eight 4GB DDR2 DIMMs,
and the DRSM5000D/64GB is a 64GB product consisting of eight 8GB DDR2
DIMMs. All products can be used to increase the memory capacity of existing
Sun Memory Boards in M4000 and M5000 servers.
Memory Board Upgrades
Dataram offers three Memory Board upgrades. The DRSM5000/16GB is a
16GB product consisting of a Memory Board populated with eight 2GB DDR2
DIMMs in Group A must be the same or larger capacity than the DIMMs in
Group B.
Group B can have the same number of DIMMs as Group A or it can have zero
DIMMs.
In an M4000 server, valid configurations are two or four Memory Boards and
the DIMMs in each Group should be the identical capacity across ALL of the
Memory Boards.
In an M5000 server, valid configurations are two, four or eight Memory
Boards. The Memory Boards are broken into two Units. The first Unit consists
of the first two to four Memory Boards and the second Unit consists of the last
five to eight Memory Boards. The DIMMs in each Group should be the
identical capacity across all the Memory Boards in a Unit.
DIMMs. The DRSM5000/32GB is a 32GB product consisting of a Memory
Board populated with eight 4GB DDR2 DIMMs. The DRSM5000/64GB is a
64GB product consisting of a memory board populated with eight 8GB DDR2
DIMMs. All products can be used to add additional memory capacity to the
M4000 and M5000 servers.
