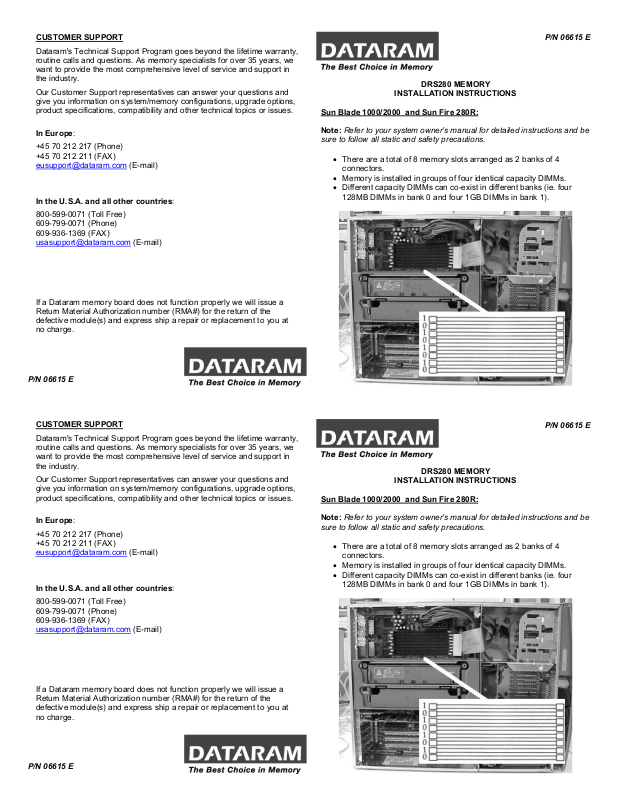

Dataram DRS280 User Manual
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists for over 35 years, we
want to provide the most comprehensive level of service and support in
the industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06615 E
DRS280 MEMORY
INSTALLATION INSTRUCTIONS
Sun Blade 1000/2000 and Sun Fire 280R:
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
• There are a total of 8 memory slots arranged as 2 banks of 4
connectors.
• Memory is installed in groups of four identical capacity DIMMs.
• Different capacity DIMMs can co-exist in different banks (ie. four
128MB DIMMs in bank 0 and four 1GB DIMMs in bank 1).
P/N 06615 E
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists for over 35 years, we
want to provide the most comprehensive level of service and support in
the industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06615 E
DRS280 MEMORY
INSTALLATION INSTRUCTIONS
Sun Blade 1000/2000 and Sun Fire 280R:
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
• There are a total of 8 memory slots arranged as 2 banks of 4
connectors.
• Memory is installed in groups of four identical capacity DIMMs.
• Different capacity DIMMs can co-exist in different banks (ie. four
128MB DIMMs in bank 0 and four 1GB DIMMs in bank 1).
P/N 06615 E
MEMORY REMOVAL
g
y
g
y
Note: Refer to your system owner’s manual for detailed instructions.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should also
wear a
rounded wrist strap, if you have one.
1. Power off the system and remove the access panel to expose the
memory slots.
2. If you need to remove existing memory (to replace with higher density
modules for example), do that now by pressing down on the ejection
levers on both sides of module slots. Carefully pull the modules straight
out of the slots and set them down on an antistatic mat.
MEMORY INSTALLATION
4. Open both ejector levers on each slot.
5. Position a module over the slot so that the alignment notches on the
DIMM match the notches on the connector.
6. Press firmly on both top ends of the module, applying equal pressure
until the module snaps into place. Lock the module in the socket by
pushing up on the ejector levers until they are in their upright position.
Caution: Confirm the modules are fully and evenly seated in the slots.
Improper seating can cause electrical shorts that can damage
the memor
and/or the system.
3. Locate the four DIMM slots in the bank you wish to populate. The system
requires bank 0 to be populated at a minimum.
7. Continue to install the remaining memory modules until you have filled
the bank with four identical modules. Repeat the above steps for each
bank of memory you wish to install.
8. Reinstall the access panel and power up the system.
9. After you reboot, ensure the system recognizes the new memory
configuration.
MEMORY REMOVAL MEMORY INSTALLATION
Note: Refer to your system owner’s manual for detailed instructions. 4. Open both ejector levers on each slot.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should also
wear a
rounded wrist strap, if you have one.
1. Power off the system and remove the access panel to expose the
memory slots.
5. Position a module over the slot so that the alignment notches on the
DIMM match the notches on the connector.
6. Press firmly on both top ends of the module, applying equal pressure
until the module snaps into place. Lock the module in the socket by
pushing up on the ejector levers until they are in their upright position.
2. If you need to remove existing memory (to replace with higher density
modules for example), do that now by pressing down on the ejection
levers on both sides of module slots. Carefully pull the modules straight
out of the slots and set them down on an antistatic mat.
3. Locate the four DIMM slots in the bank you wish to populate. The system
requires bank 0 to be populated at a minimum.
Caution: Confirm the modules are fully and evenly seated in the slots.
Improper seating can cause electrical shorts that can damage
the memor
and/or the system.
7. Continue to install the remaining memory modules until you have filled
the bank with four identical modules. Repeat the above steps for each
bank of memory you wish to install.
8. Reinstall the access panel and power up the system.
9. After you reboot, ensure the system recognizes the new memory
configuration.
