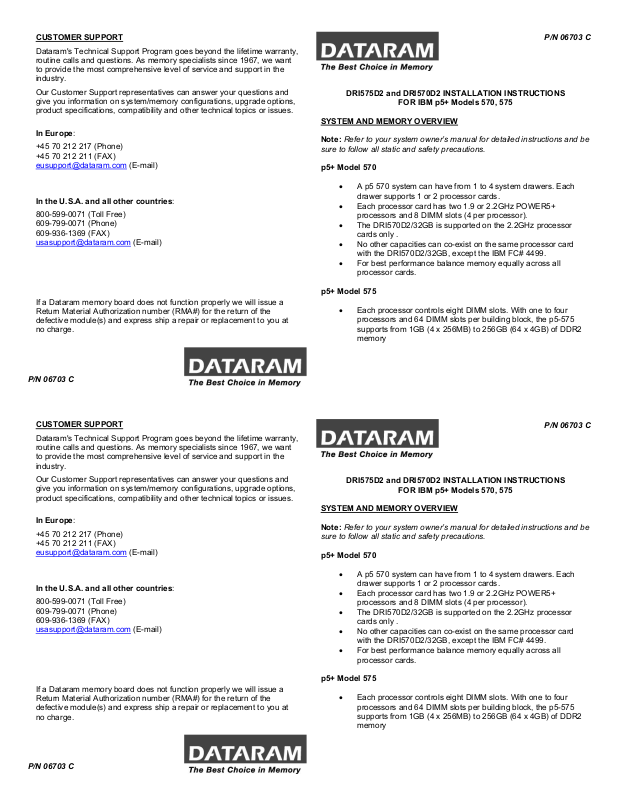

Dataram DRI575D2 User Manual
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists since 1967, we want
to provide the most comprehensive level of service and support in the
industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06703 C
DRI575D2 and DRI570D2 INSTALLATION INSTRUCTIONS
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
p5+ Model 570
• A p5 570 system can have from 1 to 4 system drawers. Each
drawer supports 1 or 2 processor cards.
• Each processor card has two 1.9 or 2.2GHz POWER5+
processors and 8 DIMM slots (4 per processor).
• The DRI570D2/32GB is supported on the 2.2GHz processor
cards only .
• No other capacities can co-exist on the same processor card
with the DRI570D2/32GB, except the IBM FC# 4499.
• For best performance balance memory equally across all
processor cards.
p5+ Model 575
• Each processor controls eight DIMM slots. With one to four
processors and 64 DIMM slots per building block, the p5-575
supports from 1GB (4 x 256MB) to 256GB (64 x 4GB) of DDR2
memory
FOR IBM p5+ Models 570, 575
P/N 06703 C
CUSTOMER SUPPORT
Dataram's Technical Support Program goes beyond the lifetime warranty,
routine calls and questions. As memory specialists since 1967, we want
to provide the most comprehensive level of service and support in the
industry.
Our Customer Support representatives can answer your questions and
give you information on system/memory configurations, upgrade options,
product specifications, compatibility and other technical topics or issues.
In Europe:
+45 70 212 217 (Phone)
+45 70 212 211 (FAX)
eusupport@dataram.com (E-mail)
In the U.S.A. and all other countries:
800-599-0071 (Toll Free)
609-799-0071 (Phone)
609-936-1369 (FAX)
usasupport@dataram.com (E-mail)
If a Dataram memory board does not function properly we will issue a
Return Material Authorization number (RMA#) for the return of the
defective module(s) and express ship a repair or replacement to you at
no charge.
P/N 06703 C
DRI575D2 and DRI570D2 INSTALLATION INSTRUCTIONS
SYSTEM AND MEMORY OVERVIEW
Note: Refer to your system owner’s manual for detailed instructions and be
sure to follow all static and safety precautions.
p5+ Model 570
• A p5 570 system can have from 1 to 4 system drawers. Each
drawer supports 1 or 2 processor cards.
• Each processor card has two 1.9 or 2.2GHz POWER5+
processors and 8 DIMM slots (4 per processor).
• The DRI570D2/32GB is supported on the 2.2GHz processor
cards only .
• No other capacities can co-exist on the same processor card
with the DRI570D2/32GB, except the IBM FC# 4499.
• For best performance balance memory equally across all
processor cards.
p5+ Model 575
• Each processor controls eight DIMM slots. With one to four
processors and 64 DIMM slots per building block, the p5-575
supports from 1GB (4 x 256MB) to 256GB (64 x 4GB) of DDR2
memory
FOR IBM p5+ Models 570, 575
P/N 06703 C
MEMORY INSTALLATION MEMORY INSTALLATION
g
g
Note: Refer to your system owner’s manual for detailed instructions.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should wear a
rounded wrist strap.
1. Shut down the system. Remove panels, doors, cables, etc. per your
owner’s manual to gain access to the memory slots.
2. Locate the four DIMM slots in the bank you wish to populate.
3. Open both ejector levers on each slot.
4. Position a module over the slot so that the alignment notches on the
DIMM match the notches on the connector.
5. Press firmly on both top ends of the module, applying equal pressure
until the module snaps into place. Lock the module in the socket by
pushing up on the ejector levers until they are in their upright position.
6. Continue to install the remaining memory modules until you have filled
the bank with four identical modules. Repeat the above steps for each
bank of memory you wish to install.
7. Reinstall the cables, panels, etc., power up the system and reboot.
8. Ensure the system recognizes the new memory configuration.
MEMORY INSTALLATION MEMORY INSTALLATION
Note: Refer to your system owner’s manual for detailed instructions.
Caution: System parts are sensitive to electrostatic discharge and can be
damaged by the static charge you may carry. You should wear a
rounded wrist strap.
1. Shut down the system. Remove panels, doors, cables, etc. per your
owner’s manual to gain access to the memory slots.
2. Locate the four DIMM slots in the bank you wish to populate.
3. Open both ejector levers on each slot.
4. Position a module over the slot so that the alignment notches on the
DIMM match the notches on the connector.
5. Press firmly on both top ends of the module, applying equal pressure
until the module snaps into place. Lock the module in the socket by
pushing up on the ejector levers until they are in their upright position.
6. Continue to install the remaining memory modules until you have filled
the bank with four identical modules. Repeat the above steps for each
bank of memory you wish to install.
7. Reinstall the cables, panels, etc., power up the system and reboot.
8. Ensure the system recognizes the new memory configuration.
