Datamars TRACKING1 User Manual

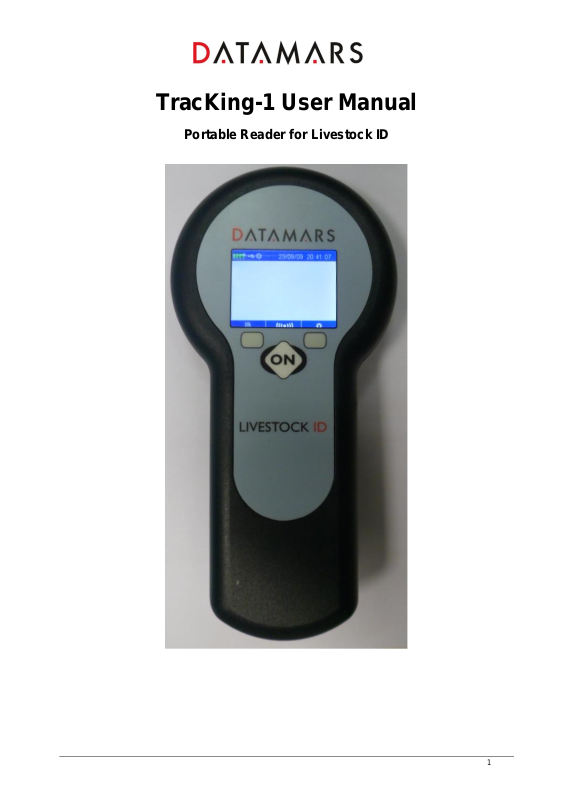

TracKing-1 User Manual

Portable Reader for Livestock ID

1

Contents :

1 DESCRIPTION ................................................................................................................................. 3

2 SCREEN NAVIGATION .................................................................................................................... 4

2.1 DESCRIPTION .......................................................................................................................................4

2.2 ICON DESCRIPTION ...............................................................................................................................5

3 MAIN FEATURES ............................................................................................................................. 6

3.1 READ AND STORE UID ..........................................................................................................................6

3.2 USB CONNECTION ...............................................................................................................................6

3.3 DISPLAY VIEW ......................................................................................................................................7

4 CONNECT YOUR TRACKING-1 TO A PC ...................................................................................... 8

4.1 INTRODUCTION ....................................................................................................................................8

4.2 USB MASS STORAGE ..........................................................................................................................8

4.3 USB VIRTUAL COM PORT ....................................................................................................................8

4.4 USB KEYBOARD WEDGE ......................................................................................................................8

5 TAKE CARE OF YOUR READER .................................................................................................... 9

6 SPECIFICATIONS .......................................................................................................................... 10

7 DO YOU HAVE A PROBLEM IDENTIFYING AN ANIMAL? .......................................................... 11

7.1 THE READING DISTANCE IS TOO SHORT ............................................................................................... 11

7.2 THE SCANNER DOES NOT READ THE TRANSPONDER ............................................................................ 11

7.3 THE SCANNER DOES NOT WORK ......................................................................................................... 11

8 INFORMATION TO USER .............................................................................................................. 12

8.1 FCC PART 15 ................................................................................................................................... 12

8.2 IC RSS 210 ..................................................................................................................................... 12

9 CERTIFICATIONS .......................................................................................................................... 13

9.1 EUROPEAN DIRECTIVES ..................................................................................................................... 13

9.2 AMERICAN DIRECTIVES ...................................................................................................................... 13

10 END OF LIFE .................................................................................................................................. 14

10.1 DISASSEMBLY INSTRUCTIONS FOR TRACKING-1 READER ................................................................. 14

10.2 TOOLS REQUIRED ......................................................................................................................... 14

10.3 PRODUCT DISASSEMBLY PROCESS ................................................................................................ 14

TracKing-1 Manual – v. 1.0 December 2013 2

Antenna

Contextual keys

Display

Power ON & Start
reading button

Mini USB
communication port

1 Description

TracKing-1 Manual – v. 1.0 December 2013 3

Setting status bar
Current example:

USB in VCP mode
Continuous reading mode
Data recording turned ON

2 Screen navigation

2.1 Description

HOME

Active screen after power up.

EID Memory File Read Settings

Shows codes stored in memory Display when a tag is read Gives access to reader settings

Delete

To delete one code, duplicate codes or the whole memory

TracKing-1 Manual – v. 1.0 December 2013 4

2.2 Icon description

 Single reading mode

 Continuous reading mode

 Code recording OFF Warning: if Rec is OFF, codes are not stored

 Code recording ON

 USB connection in Virtual Com Port mode

 USB connection in Keyboard Wedge mode

 Format of the electronic code

 Audio OFF

 Audio ON

 Display brightness

 Time and Date settings

 Firmware version

TracKing-1 Manual – v. 1.0 December 2013 5
