Datamars CMAXRW Users Manual

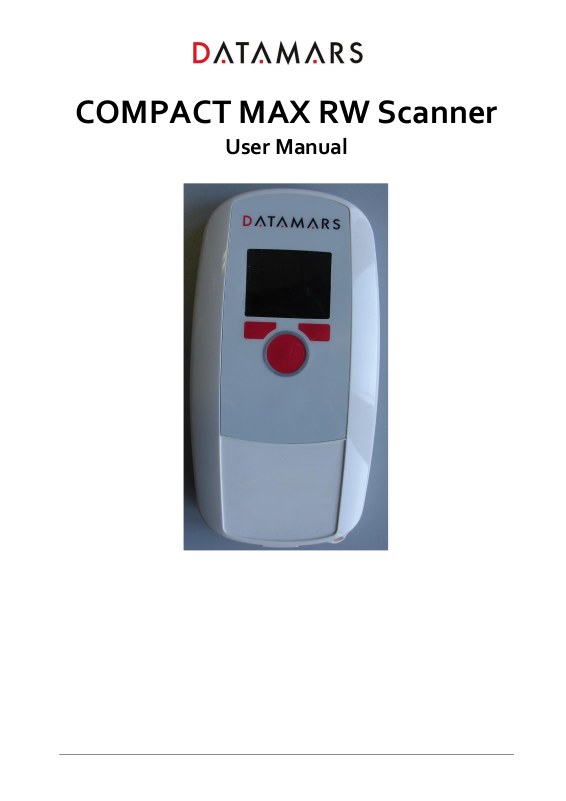

COMPACT MAX RW Scanner

User Manual

Contents:

1 DESCRIPTION ................................................................................................................................. 3

1.1 “ON/READ” BUTTON .............................................................................................................................3

1.2 LEFT NAVIGATION BUTTON ...................................................................................................................3

1.3 RIGHT NAVIGATION BUTTON .................................................................................................................3

2 SCREEN NAVIGATION .................................................................................................................... 4

2.1 CONTROL MENU ..............................................................................................................................4

2.1.1 ID Code Dislay Settings .............................................................................................................4

2.1.2 USB Setting ................................................................................................................................4

2.1.3 Stored UID ..................................................................................................................................5

2.1.4 Bluetooth settings .......................................................................................................................5

2.1.5 Information Menu .......................................................................................................................6

2.1.6 Time and Date ............................................................................................................................6

2.1.7 Record Setting ............................................................................................................................6

3 CONNECT THE COMPACT MAX RW TO A PC ............................................................................. 6

4 COMMAND INTERFACE ................................................................................................................. 7

4.1 COMMANDS OVERVIEW ........................................................................................................................7

5 TROUBLESHOOTING ...................................................................................................................... 8

6 SPECIFICATIONS ............................................................................................................................ 8

7 CERTIFICATIONS ............................................................................................................................ 9

7.1 EUROPEAN DIRECTIVES ........................................................................................................................9

7.2 AMERICAN DIRECTIVES .........................................................................................................................9

7.3 CANADIAN DIRECTIVES ...................................................................................................................... 10

8 CARING FOR YOUR COMPACT MAX RW READER ................................................................... 10

9 END OF LIFE .................................................................................................................................. 11

9.1 DISASSEMBLY INSTRUCTIONS FOR COMPACT MAX RW READER ...................................................... 11

9.2 TOOLS REQUIRED ............................................................................................................................. 11

9.3 PRODUCT DISASSEMBLY PROCESS .................................................................................................... 11

COMPACT MAX RW Reader User Manual 2 16.11.2015

1 Description

1.1 “ON/Read” button

The “ON/Read” button is used to switch on the COMPACT MAX RW reader, to start and stop a reading
session or to select and confirm the various available settings, the settings are described in later chapters
of this manual.

1.2 Left Navigation Button

The Left Navigation Button is used to shut down the reader or to scroll between the various settings.

1.3 Right Navigation Button

The Right Navigation Button is used to access to the Control menu or to return to the previous menu.

COMPACT MAX RW Reader User Manual 3 16.11.2015

2 Screen navigation

2.1 CONTROL MENU

2.1.1 ID Code Dislay Settings

AID format Icon

A full unique microchip ID code actually contains 23 characters. It’s common in many countries to only
reference the last 15 digits. You can select whether you would prefer to see the full 23 or only 15
characters of the unique ID code.

 "981000000123456" (15 char)
 "A0000000981000000123456" (23 char)

2.1.2 USB Setting

USB mode Icons

USB/Keyboard Wedge:

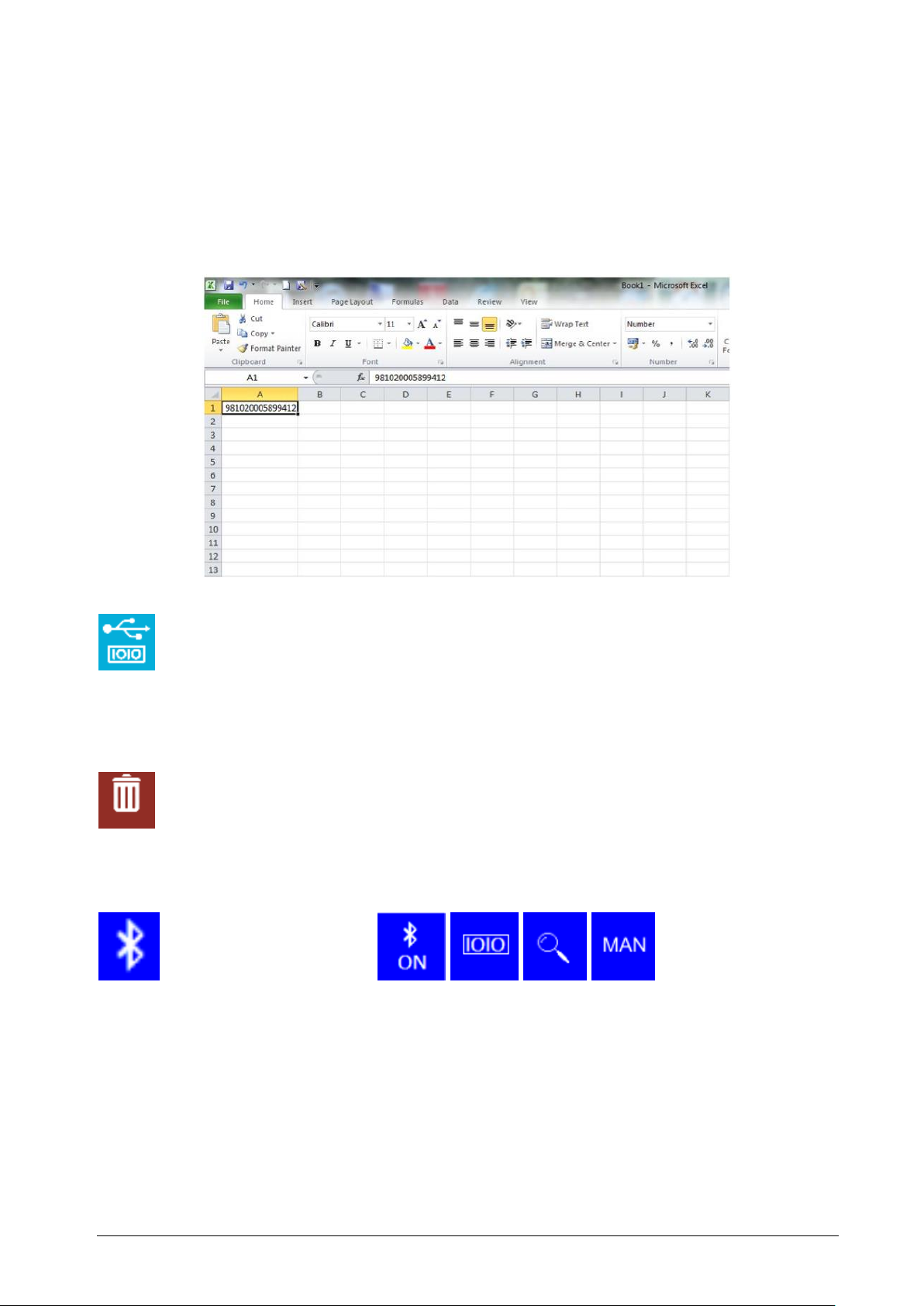

The Keyboard Wedge feature allows the reader to enter data on a computer, tablet or smartphone
application by simulating the action of a keyboard.

The applications most commonly used with a keyboard wedge are Microsoft Excel, Microsoft Access, and
other custom database and applications like microchip search databases or animal welfare management

COMPACT MAX RW Reader User Manual 4 16.11.2015
