Before You Start
Before You Start
Congratulations on your purchase of this tablet PC.
This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.

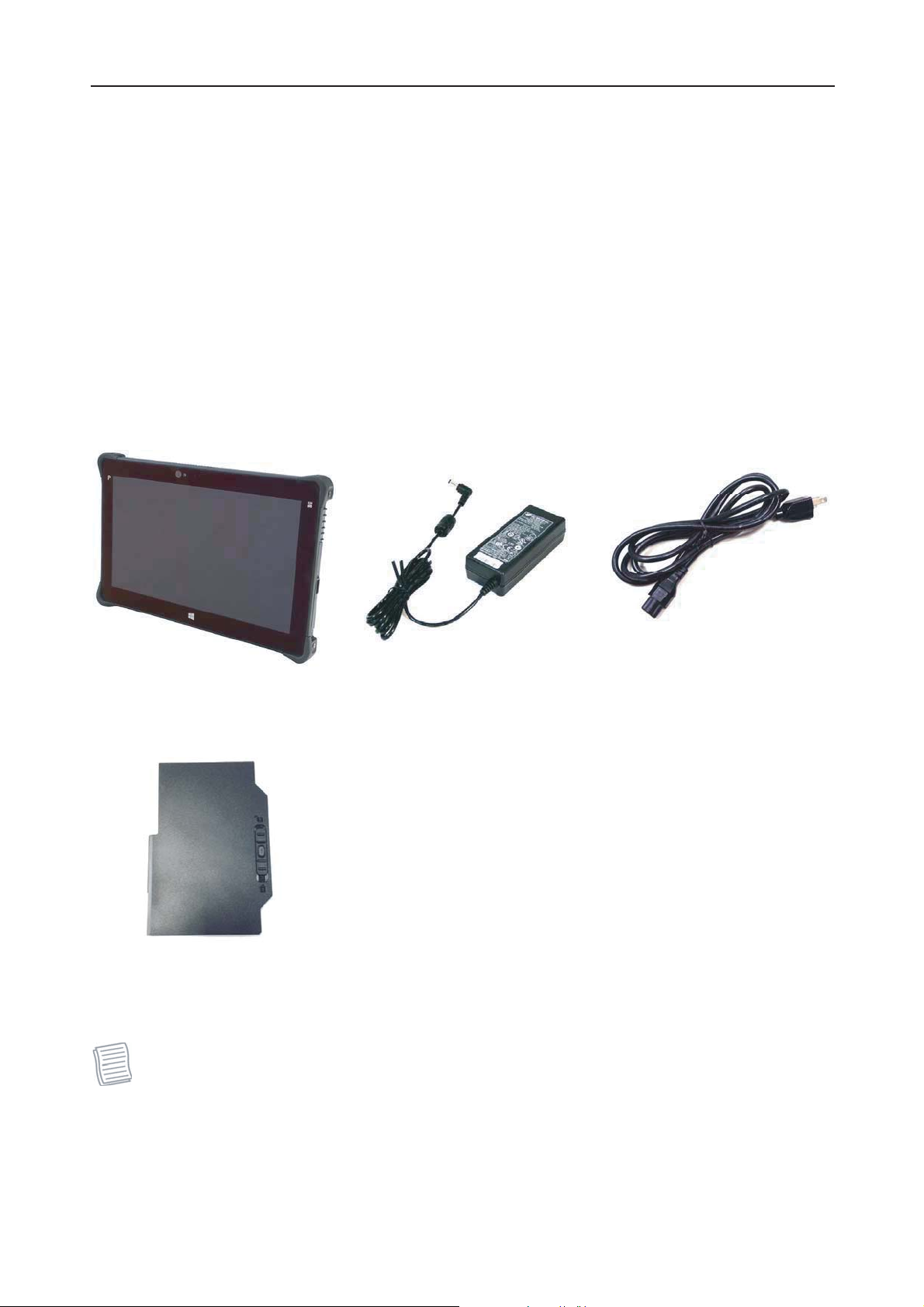

Tablet PC AC adapter Power cord
Battery
NOTE
• The pictures are for reference only, actual items may slightly differ.
Page 4
Product Overview
Front View
Before You Start
No. Item Description
1 Program button Tap to enter the chosen program. (user definition)
2 Front camera Use for video conference.
3 Ambient light sensor Use to detect the current level of visible light in the
surrounding environment.
4 Microphone Record the surrounding sound.
5 Function button The button functionality can be assigned via Quick
Menu.
• Scanner button: Press to trigger the Barcode
scan function if the barcode scanner is enabled.
• Camera button: Press to take a picture.
6 Home key Tap to return to the Start screen (Windows 8 only).
Page 5
Before You Start
Back View
No. Item Description
1 Barcode scanner Scan barcodes. (OPTIONAL)
2 Camera LED flash Provide additional lighting when taking pictures
under low light environment.
3 Rear camera Use to take pictures.
4 Battery compartment Contain the battery.
5 Battery latch release
button
6 Speaker Emit sound.
Press and hold the button to slide the battery
latch to the unlock position.
Page 6
Before You Start
Right View
No. Item Description
1
Audio Combo jack Connect a headphone or an external speakers or
microphone.
2 USB 3.0 ports (x2) Connect USB 3.0 peripheral devices.
3 Memory card slot Use to insert memory cards to transfer pictures,
music, and data between your Tablet PC and flash
compatible devices. The card reader supports SD
(Secure Digital), SDXC, SDHC, Mini-SD (with
adapter), Micro-SD (with adapter).
4 SIM card slot Use to insert a SIM card for WWAN, Gobi 3000, or
LTE module connection.
Left View
No. Item Description
1
Power button Press to turn your tablet PC on or off.
2
Brightness buttons Press "+" or "
-" to adjust the LCD backlight.
3 Kensington lock slot Connect a Kensington-compatible tablet PC
security lock.
Page 7
Before You Start
Bottom View
No. Item Description
1
Docking connector Connect the tablet PC to a docking station.
2 DC-in jack Connect the power adapter.
Status Indicators
The status indicators in the upper side of the tablet PC light up when a particular
function of the tablet PC is active.
Icon Item Description
Power The LED always lights on (green) when the system is
running. When the system is in sleep mode, the LED
blinks.
RF
Battery Indicate the battery status:
Indicate the status of RF (WLAN, WWAN, GPS, or
Bluetooth) communication. The LED always lights on
(blue) when the function is enabled.
• Green: when battery is fully charged (95% or above)
• Orange: when battery is charging
• Flashing orange: charging error
• Red: when battery capacity is lower than 10%
• Off: when discharged
NOTE
• On Windows 8.1 OS, you need to install the Quick Menu application in order to
verify the RF signal status.
Page 8
Getting Started
This chapter will help you get started using the device.
Installing the Battery
To install the battery, follow the steps below:
1. Align and insert the battery to the
battery compartment.
2. Push completely until the battery locks
into place.
Getting Started
3. Slide the battery latch to the lock
position to secure the battery.
Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase.
To charge the battery, follow the steps below:
1. Install the battery to your tablet PC. See procedures above.
2. Connect the AC adapter to the DC-in jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
Page 9
Getting Started
When to replace the Battery Pack
The battery performance gradually decreases over time and usage. We recommend
you to replace your battery pack after 18 to 24 months of usage.
Removing the Battery
To remove the battery, follow the steps below:
1. Press and hold the battery latch release
button to slide the battery latch to the
unlock position.
2. Remove the battery out of the battery
compartment.
Page 10
Getting Started
Connecting the Power
Your tablet PC can be powered up using the AC adapter or the Lithium-ion battery.
Connecting the AC Adapter
The AC adapter powers up your tablet PC and charges the battery.
1. Connect the AC adapter to the DC-in jack of your tablet PC.
2. Connect the AC adapter to the power cord.
3. Plug the power cord to an electrical outlet.
Using Battery Power
1. Install a charged battery in the battery compartment.
2. Remove the AC adapter (if plugged). Your tablet PC will automatically use the
battery power.
NOTE
• If your tablet PC is connected to an electrical outlet and the battery is installed,
your tablet PC uses power from the electrical outlet.
Page 11
Getting Started
Starting Your Tablet PC
Turning On Your Device
Press the button until the Power LED lights up.
Turning Off Your Device
It is important to properly shut down your tablet PC to avoid the loss of unsaved
data. To shut down your tablet PC, do the following:
On Windows 8
1. On the Start screen, swipe in from the
right edge of the screen, then tap
Settings.
2. Tap Power > Shut down.
On Windows 7
Click Start ( ) > Shut down.
Wait for yo ur tablet PC to turn off power
completely before removing the power source (if
necessary).
Page 12
Operating Your Tablet PC
Operating Your Tablet PC
This chapter will guide you on how to use your Tablet PC.
Using the Quick Menu
To enter the Quick menu:
• On Windows 8: In Apps view, tap Quick Menu ( ). You can also access the
Quick menu on the task bar.
• On Windows 7: Tap the arrow on the task bar to display
hidden icons. Then tap the Quick Menu icon ( ).
Quick Menu Overview
Windows 8 Windows 7

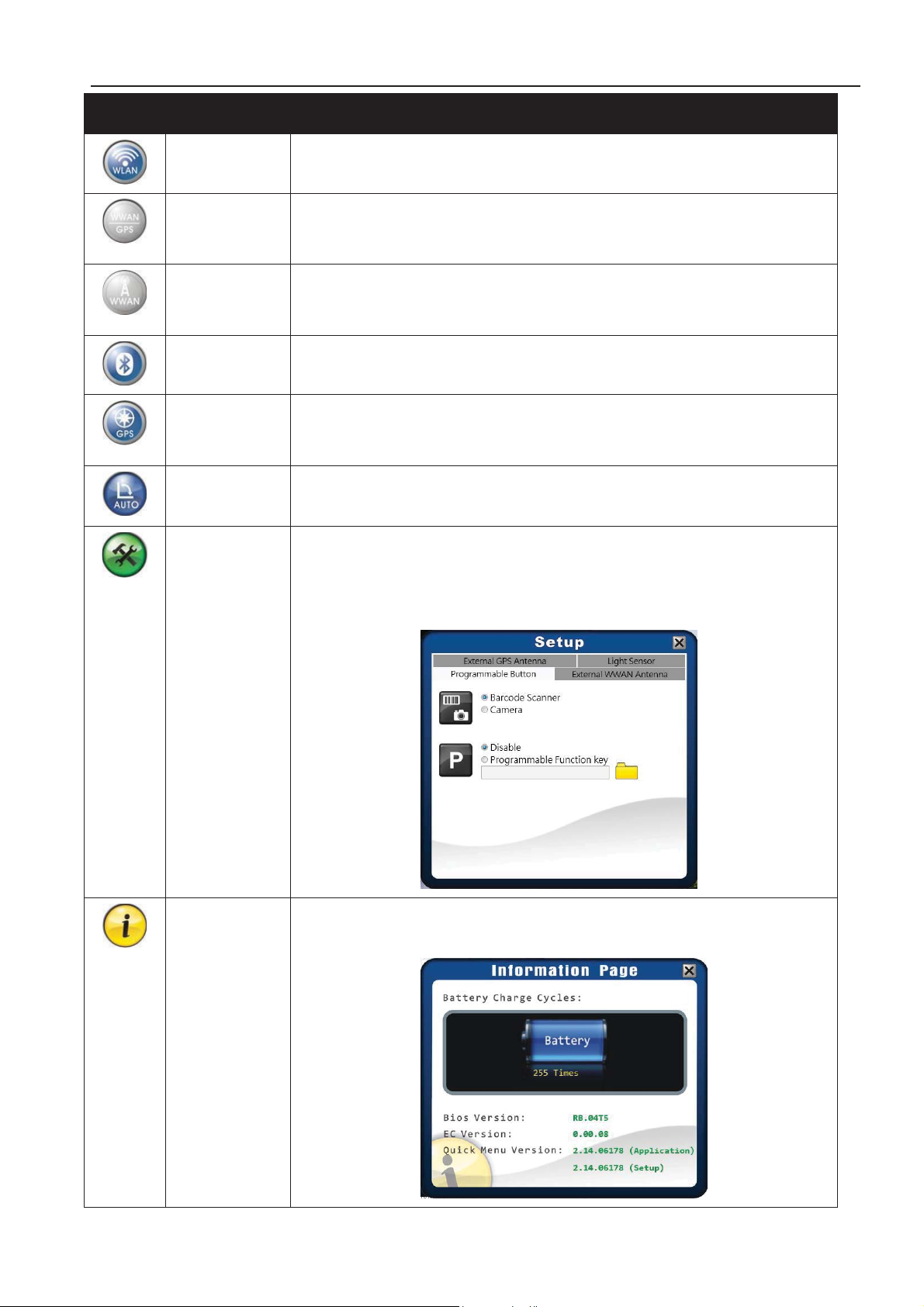

Icon Item Description
Airplane
mode
Tap the icon to enable/disable airplane mode.
NOTE
• When the Airplane mode is enabled, the wireless
network (WLAN and WWAN), Bluetooth, and GPS will
be automatically disabled.
Page 13
Operating Your Tablet PC
Icon Item Description
WLAN Tap the icon to enable/disable the Wi-Fi (WLAN) function.
WWAN/GPS
Tap the icon to enable/disable the WWAN/GPS function.
(Windows 7 only)
Tap the icon to enable/disable the WWAN function.
WWAN
(Windows 8 only)
Bluetooth Tap the icon to enable/disable the Bluetooth function.
Tap the icon to enable/disable the GPS function.
GPS
(Windows 8 only)
Auto-rotate
Tap the icon to enable/disable the Auto-Rotate screen
function.
Setup Tap the respective tab to set hotkey, light sensor, external
GPS antenna, and external WWAN antenna settings.
For details, refer to “Configuring the SETUP Menu
Settings”.
Information Tap the icon to view the battery charge cycle, Bios
version, EC version, and Quick Menu version.
Page 14
Icon Item Description
Operating Your Tablet PC
Keyboard
Tap the icon to display/hide the on-screen keyboard
(OSK.exe). (Windows 7 only)
Mobility
center
Tap the icon to adjust brightness, screen orientation,
volume, external display, battery status, sync, wireless
network, and presentation settings.
Barcode Tap the icon to enable/disable the Barcode function.
External
Tap the icon to enable/disable the External Device
Devices
function.
NOTE
• If the icon is gray (i.e. ), this indicates the current function is disabled.
Page 15
Operating Your Tablet PC
Configuring the SETUP Menu Settings
In Quick Menu, you can set the following settings via Setup menu:
b
a
a. Programmable Button
b. External GPS Antenna
c. Light Sensor
d. External WWAN Antenna
c
d
Page 16
Operating Your Tablet PC
Configuring Hotkey
Tap the Programmable Button tab to configure the Function or Program
button.
• If the device is not installed with a barcode scanner, the Function button can
be set as the shutter button when using the Camera.
• To assign an application to the Program button, do the following:
I. Tap the folder icon ( ) to set up an application for the Program button.
II. Select the desired application and tap Open.
Page 17
Operating Your Tablet PC
Configuring External WWAN Antenna Switching Mode
Tap the External WWAN Antenna tab to enable/disable the device to
automatically switch to the external WWAN antenna when it is affixed on a
docking station.
• Dock with external WWAN antenna: The device will be automatically
switched to the external WWAN antenna when docking.
• Dock without external WWAN antenna: The device will NOT be
automatically switched to the external WWAN antenna when docking.
Page 18
Operating Your Tablet PC
Configuring Light Sensor Settings
The TM110 Tablet is normally configured for manual adjustment of the
brightness using the but
automatic brightness control, the light sensor function must be enabled.
Tap the Light Sensor tab to enable/disable the automatic light sensor function,
specify and adjust the brightness level.
tons on the left side of the unit. In order to use the
Current ambient
brightness reading
Current preset
brightness level
Tap to restore the
default settings.
Set the range of illumination settings.
To setup the light sensor settings, do the following:
• To customize the illumination range according to the ambient lighting, enter the
desired value in the first and second data box.
As an example in the above illustration:
- Outdoor (5000 ~ 500 lux)
- Indoor (500 ~ 50 lux)
- Low Light (50 ~ 0 lux).
• To adjust the brightness level according to the ambient light, tap or to
adjust the setting (0~10).
• To save all preset settings, tap Apply.
• To enable the automatic light sensor function, tap the Enable Auto Light
Sensor checkbox.
The system will automatically adjust the LCD brightness according to the
preset settings.
Page 19
Operating Your Tablet PC
Configuring External GPS Antenna Switching Mode
Tap the External GPS Antenna tab to enable/disable the device to automatically
switch to the external GPS antenna when it is affixed on a docking station.
• Dock with external GPS antenna: The device will be automatically switched
to the external GPS antenna when docking.
• Dock without external GPS antenna: The device will NOT be automatically
switched to the external GPS antenna when docking.
Page 20
Making Connections
Making Connections
This chapter will guide you on installing peripheral devices to maximize the use
of your tablet PC.
Installing the Memory Card
Your Tablet PC supports different types of memory cards to provide faster data
transfer.
Supported types: SDHC, SDXC
To insert a memory card:
1. Push down and pull to open the I/O port cover.
2. Push the memory card into the memory card slot until it clicks into place.
Page 21
Making Connections
Installing the SIM Card
Y ou can use a SIM card for wireless internet access.
NOTE
• Check the availability of service and plan rates of data connection with y our
network service provider.
To insert a SIM card:
1. Push down and pull to open the I/O port cover.
2. Push a valid SIM card into the SIM card slot until it clicks into place.
Connecting the Microphone/Headset
Y our tablet PC is equipped with audio combo jack that enables y ou to use the
headset or microphone.
To connect to a headset, open the I/O port cover and plug the stereo
headphone cable into the audio combo jack of your device.
To connect to a microphone, open the I/O port cover and plug the
microphone cable into the audio combo of your device.
NOTE
• The headset and microphone are not included in the package. They are sold
separately.
Page 22
Making Connections
Connecting USB Devices
Y ou can connect y our tablet PC to other USB devices, such as a mouse,
keyboard, digital camera, printer, or an external hard disk drive.
1. Push down and pull to open the I/O port cover.
2. Connect one end of the USB cable to the USB port of your device.
3. Connect the other end of the cable to the USB device (if necessary).
NOTE
• The USB cable is not included in the package. It is sold separately or it may
come with your USB device.
Page 23
Making Connections
Connecting to Wireless Connections
Your tablet PC can connect and communicate with other Bluetooth-enabled
devices.
Connecting to a Bluetooth Device
Your tablet PC can connect and communicate with other Bluetooth-enabled
devices.
To add a device, follow the steps below:
1. Open the Quick menu.
2. Tap the Bluetooth icon ( ) to turn on the
Bluetooth function.
3. Tap the arrow on the task bar to display hidden
icons.
4. Tap the Bluetooth icon ( ).
5. Tap Add a Device. The system starts scanning for
Bluetooth devices and displays the available devices.
NOTE
• If the device that you want to add does not appear on the screen, please
check if the device is turned on and discoverable.
Page 24
6. Tap on a device, then tap Next to continue.
7. Tap Close to complete the pairing connection.
Making Connections
NOTE
• Most Bluetooth-enabled devices need to be paired with your tablet PC. The
PIN you enter on the tablet PC must be the same PIN to be entered on the
other Bluetooth device.
• Once a partnership has been created, connecting to that device again will no
longer require entering the PIN.
Page 25
Making Connections
Connecting to a Wireless Local Area Network
Y our tablet PC comes with a WLAN module. A wireless network can be added
either when the network is detected or by manually entering the settings
information.
To connect, follow the steps below:

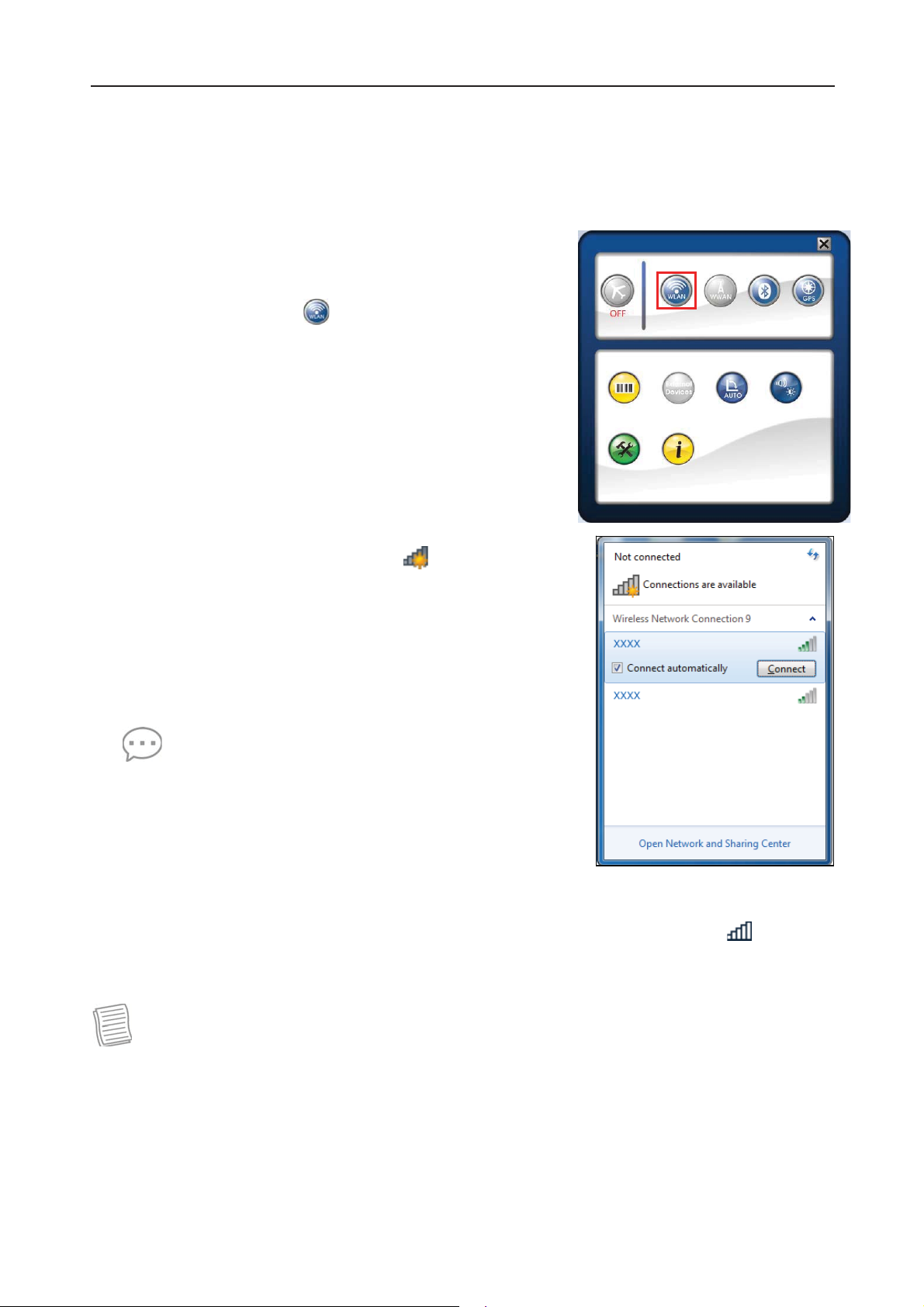

1. Open the Quick menu.
2. Tap the WLAN icon ( ) to turn on the wireless
network function.
3. Tap the wireless network icon ( ) on the task
bar.
4. Available wireless network connections are
displayed. Tap the desired wireless network.
5. Tap Connect.
Some networks require a network security key or
a password.
TIP
Check Connect automatically box to
automatically connect to this network when it is
available.
6. Enter the network security key.
7. Tap OK.
8. After the connection is established, you can see the wireless icon ( ) in the
Notification area.
NOTE
• Wi-Fi access requires service from a wireless service provider. Contact your
service provider for more information.
• Actual wireless connectivity will depend on system configuration. Please
contact your dealer for more information.
Page 26
Making Connections
Connecting to a Wireless Wide Area Network (WWAN)
With WWAN function, it allows your tablet PC to connect to the Internet using
mobile or cellular data networks.
To enable the function, follow the steps below:
1. Insert a valid SIM card into the SIM card slot.
2. Open the Quick menu.
3. Tap the WWAN icon ( ) to turn on the
WWAN function.
4. Launch AirCard Watcher application.
5. Tap Connect to enable the Internet
connection via mobile data network.
6. To disconnect the connection, tap
Disconnect.
Page 27
Using the BIOS Setup Utility
Using the BIOS Setup
Utility
Your tablet PC has a BIOS setup utility which allows you to configure important
system settings, including settings for various optional functions of the tablet PC.
This chapter explains how to use the BIOS setup utility.
BIOS Setup Menu
The BIOS Setup Utility allows you to configure your Tablet PC basic settings.
When you turn your tablet PC on, the system reads this information to initialize
the hardware so that it can operate correctly. Use the BIOS setup utility to
change your tablet start-up configuration. For example, you can change the
security and power management routines of your system.
Starting the BIOS Setup Utility
You can only enter the BIOS setup utility as the tablet PC is booting, that is
between the time you turn on the tablet PC and before the Windows interface
appears.
If your tablet PC is already on, shut down your tablet PC completely (power off)
and restart it and then press the Delete button to enter the setup utility.
NOTE
• Y ou ha ve to connect yo ur device with an external keyboard first before
starting the BIOS Setup Utility.
Page 28
Using the BIOS Setup Utility
Å Æ
Navigating and Entering Information in BIOS
Use the following keys to move between fields and to enter information:
Keyboard Description
Selects screen.
Moves up/down to select items.
Enter Confirms the selection and enters the selected menu screen.
+ / - Changes an option for the selected items.
F1 Displays the Help screen.
F2 Invokes the previous values.
F3 Loads optimized default values.
F4 Saves the changes and exits Setup.
Exits any section. If you wish to exit the BIOS utility without
Esc
saving changes or go to the main menu, then press this key.
Users are allowed to enter new values to replace the default settings in certain
fields, and the rest of the fields are specified by system default parameters and
cannot be modified by users. Reverse the attribute of the main options and
press the Enter button to enter into the submenu. Press the Esc button to
return to the previous configuration page.
Page 29
Using the BIOS Setup Utility
Main Menu
The Main menu displays the system overview information about the device,
including the system date and time.
Item Description
BIOS Information Display the BIOS version detected during boot up.
Display the CPU type and speed, total memory, mainboard
System Information
System Date Set the system date.
System Time Set the system time.
Access Level Display the access level user.
version, Intel PCH SKU name, ME FW version, and ME
Firmware SKU.
Page 30
Using the BIOS Setup Utility
Advanced Menu
The Advanced menu allows you to configure specific system settings.
Item Description
Wake on LAN from
S4/S5 mode
BARCODE Display the barcode function status.
Switch to external
WWAN antenna
Switch to external
GPS antenna
Radio Devices
Configuration
FAN Calibration Enable you to do fan calibration.
Battery Calibration Enable you to do battery calibration.
Trusted Computing Configure Trusted Computing settings.
Enable/disable the system to wake on the unit from Sleep
status when the AC power is connected.
Display the status of auto switch function to external
WWAN antenna when docking.
Display the status of auto switch function to external GPS
antenna when docking.
Enable/disable radio devices.
Page 31
Using the BIOS Setup Utility
Boot Menu
The Boot menu allows you to configure the boot settings and boot sequence.
Item Description
Bootup NumLock
State
Fast Boot
CSM Support Enable/disable the system to launch an older OS.
Video Control the execution of the selected Video OpROM type.
Boot Option Priorities Set the system boot order.
Select the keyboard NumLock state.
Enable/disable boot with initialization of a minimal set of
devices required to launch active boot option. It has no
effect for BBS boot options.
Page 32
Using the BIOS Setup Utility
Security Menu
The Security menu allows you to set or change the Administrator and User
passwords.
Item Description
Administrator
Password
User Password Create or change the User password.
Create or change the Administrator password.
Page 33
Using the BIOS Setup Utility
Save & Exit Menu
The Save & Exit menu allows you to save/discard the changes and restore the
default values for all setup options before leaving the BIOS Setup Menu.
Item Description
Save Changes and
Reset
Discard Changes and
Reset
Restore Defaults Restore the default v alues for all the setup options.
Reset the system after saving the changes.
Reset the system setup without saving any changes.
Page 34
Appendix
Appendix
Copyright
Copyright© 2014. All rights reserved.
No part of this user manual may be transmitted, stored in a retriev al system, or
translated into any language or computer language, in any form or by any
means, without the prior written permission of the manufacturer. Information is
subject to change without prior notice.
Regulatory Statement
Federal Communications Commission
Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate r adio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed
with this equipment to insure compliance with the pertinent RF emission limits
governing this device. Changes or modifications not expressly approved by the
system's manufacturer could void the user's authority to operate the equipment .
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
Page 35
Appendix
This device may not cause harmful interference
This device must accept any interference received, including interference
that may cause undesired operation.
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
SAR Value: 0.317W/kg
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada
(IC) radio frequency exposure limits. The Wireless Device should be used in such
a manner such that the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with the IC Specific
Absorption Rate (“SAR”) limits when installed in specific host products operated
in portable exposure conditions.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil
ne doit pas causer d'interférence et (2) cet appareil doit accepter toute
interférence, notamment les interférences qui peuvent affecter son
fonctionnement.
Page 36
Appendix
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de
sans fil de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specific
Absorption Rate – Taux d'absorption spécifique) d'IC lorsqu'il est installé dans
des produits hôtes particuliers qui fonctionnent dans des conditions d'exposition
à des appareils portables.
Battery Disposal
THIS PRODUCT CONT AINS A LITHIUM- ION OR NICKEL-METAL HYDRIDE
BA TTERY. IT MUST BE DISPOSED OF PROPERLY. CONTACT LOCAL
ENVIRONMENT AL AGENCIES FOR INFORMATION ON RECYCLING AND
DISPOSAL PLANS IN YOUR AREA.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT TO EN60825
CAUTION
(ATTENTION):
ġ
Symbol for the marking of electrical and electronic equipment
The symbol indicating separate collection for electrical and electronic equipment
consists of the crossed-out wheeled bin, as shown below. The symbol must be
printed visibly, legibly and indelibly.
THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS
CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS
MODEL PROPERLY, READ THE INSTRUCTION MANUAL
CAREFULLY AND KEEP THIS MANUAL FOR FUTURE
REFERENCE. IN CASE OF ANY TROUBLE WITH THIS MODEL,
PLEASE CONTACT YOUR NEAREST "AUTHORIZED SERVICE
STATION.” TO PREVENT DIRECT EXPOSURE TO THE LASER
BEAM, DO NOT TRY TO OPEN THIS ENCLOSURE.
ANNEX IV
ġ
Page 37
Appendix
CAUTION FOR ADAPTER
THE TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER.
BATTERY SAFETY
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE
MANUFACTURER'S INSTRUCTIONS.
CAUTION FOR RJ-45
The RJ-45 jack is not used for telephone line connection.
Page 38
Appendix
Safety Instructions
These safety instructions should always be observed to ensure safe operation
when handling the device.
• Do not place this device on an unstable table or surface. The device may fall,
causing serious damage to its housing and components.
• Do not cover the device, or block the air ventilation holes of the device with
any other objects.
• Do not use any sharp object to tap on the display screen.
• Do not expose the device to direct sunlight and dusty environments.
• Keep the device away from excessive heat and humidity.
• Keep liquids away from the device.
• Keep the device away from any magnetic emitting devices as this may affect
the quality of the wireless signal reception.
• When using an AC adapter:
9 Place this device in a location that is close enough to an electrical
outlet to accommodate the length of the power cord.
9 Operate this device only with the type of power source indicated on the
device marking label.
9 Disconnect the AC adapter from the electrical outlet if the device is not
being used for an extended period of time.
• When cleaning the device,
9 Be sure to turn off the device properly and unplug the AC adapter
before cleaning.
9 Wipe the device with a clean, dry cloth.
9 Do not use abrasive cleaners to clean the device.
• Do not attempt to disassemble or repair this device. Doing so will void the
warrant
Page 39
382-202
2015.10.5
Loading...
