Single Slot Dock Ethernet Module
Read this manual carefully before performing any type of connection from the terminal to a host PC using the Single Slot Dock Ethernet Module. The user is responsible for any damages caused by incorrect use of the
NOTE
NOTE
The Single Slot Dock Ethernet Module is a snap-on module for Single Slot Docks which, paired with a Datalogic mobile computer, builds a reading system for the collection, decoding and transmission of barcoded data.
The Single Slot Dock Ethernet Module is an Ethernet communication adapter between the host computer and an Ethernet network.
equipment or by inobservance of the indication supplied in this manual.
Do not attempt to disassemble the Single Slot Dock Ethernet Module, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty.
B
C
INSTALLATION
Installation of the Ethernet Module should always be made with power OFF!
CAUTION
To install the Ethernet Module:
1. remove the label covering the communication module connector on the bottom of the Single Slot Dock, as shown in the figure below:
2. plug the Ethernet Module into the Single Slot Dock until the snaps clicks, as shown in the figure below:
A

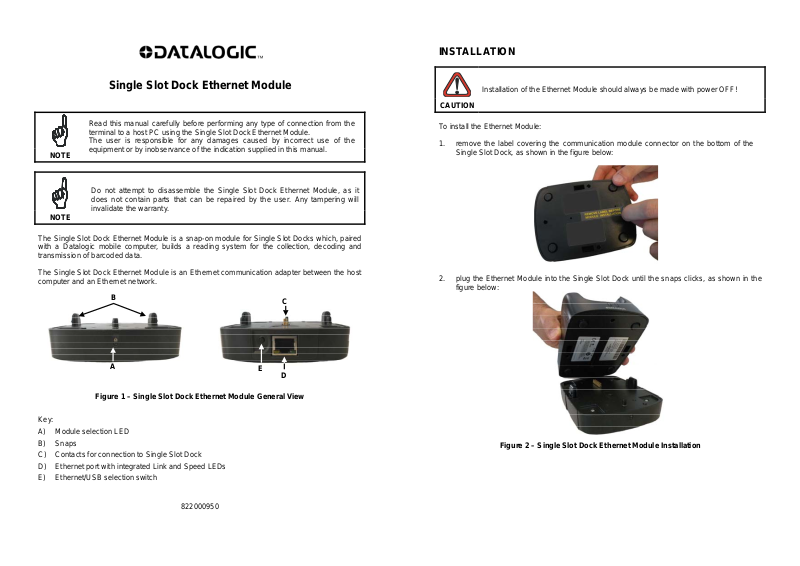

Figure 1 – Single Slot Dock Ethernet Module General View
Key: A) Module selection LED B) Snaps C) Contacts for connection to Single Slot Dock D) Ethernet port with integrated Link and Speed LEDs E) Ethernet/USB selection switch
822000950
E
D
Figure 2 – Single Slot Dock Ethernet Module Installation
Page 2
ETHERNET CONNECTION
Connect the Ethernet port on the Module to an Ethernet hub or a port on the host device. Press the selection switch until the module selection LED is on. Insert the Datalogic mobile computer into the dock.
D
B
Figure 3 – Ethernet Connection
Key: A) Single Slot Dock with Ethernet Module B) UTP CAT 5E cable (recommended use) C) 94ACC1381 Power Adapter D) Ethernet hub
A
C
LED INDICATOR
Color Status
Off USB mode selected Yellow Ethernet mode selected Yellow Blinking Ethernet activity
TECHNICAL FEATURES
Communication Features
Interface Ethernet 10/100 Base T
Physical Features
Dimensions 110 x 140 x 36 mm Weight (without connection
cables) Indicators Module selection LED
Environmental Features
Working temperature -10° to +50°C / 32° to 122°F Storage temperature -20° to +70°C / -4° to 158°F Humidity 95% without condensation Electrostatic discharge EN 61000-4-2
4,3 x 5,5 x 1,4 in 185 g / 6,5 oz
Ethernet Link LED (yellow) Ethernet Speed LED (green)
4 KV contact / 8 KV air
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
