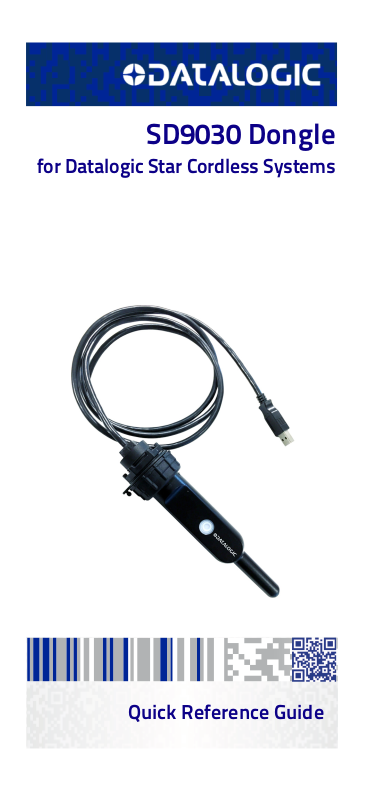

SD9030 Dongle
Quick Reference Guide
for Datalogic Star Cordless Systems
Datalogic S.r.l.
See the Regulatory Addendum included with your product for additional regulatory, safety and legal information.
Via S. Vitalino, 13
40012 - Lippo di Calderara di Reno (BO)
Italy
Telefono: +39 0513147011
Fax: +39 0513147288
©2016-2017 Datalogic S.p.A. and/or its affiliates
An Unpublished Work - All rights reserved. No part of the contents
of this documentation or the procedures described therein may be
reproduced or transmitted in any form or by any means without
prior written permission of Datalogic USA Inc. or its subsidiaries or
affiliates (“Datalogic” or “Datalogic USA”).
Owners of Datalogic products are hereby granted a non-exclusive,
revocable license to reproduce and transmit this documentation
for the purchaser's own internal business purposes. Purchaser
shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure
that all notices appear on any reproductions of the documentation.
Should future revisions of this manual be published, you can
acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the
Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications,
please let us know via the "Contact Datalogic" page.
Datalogic has taken reasonable measures to provide information
Disclaimer
in this manual that is complete and accurate, however, Datalogic
reserves the right to change any specification at any time without
prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S. and the E.U.
SD9030 Dongle is a trademark of Datalogic S.p.A. and/or its affiliates.
All other trademarks and brands are property of their respective
owners.
Patents
See www.patents.datalogic.com
for patent list.
Table of Contents
Installation ....................................................................................... 2
Mounting the SD9030 Dongle ........................................................ 2
Mounting the SD9030 Dongle on a forklift ................................... 3
Connecting to a Host ......................................................................4
Connecting a Datalogic PowerScan™ PM9X00 to the SD9030
Dongle .............................................................................................. 4
SD9030 Dongle Configuration ........................................................ 5
Datalogic Aladdin™ ................................................................. 5
Serial Configuration ...............................................................5
Configuration Bar Codes ....................................................... 5
Resetting Standard Product Defaults ................................. 5
Selecting the Interface Type .......................................................... 6
Configuring the Interface ............................................................... 6
Country Mode ..................................................................................8
Technical Features ........................................................................12
Datalogic Limited Factory Warranty ...........................................12
Ergonomic Recommendations ....................................................15
Support Through the Website .....................................................15
Quick Reference Guide i
ii SD9030 Dongle
Using the SD9030 Dongle
The SD9030 Dongle, when paired with one or more PowerScan™ PM9X00 readers, builds a Cordless Reading System
for the collection, decoding and transmission of bar code
data. It can be connected to a Host PC via USB and is
suited for single-cradle layouts.
When the button is pressed, the SD9030 Dongle will
transmit a "broadcast" message. When the broadcast is
sent, and the Radio RX Timeout is set to keep the radio
awake, all properly configured scanners that are linked to
that base and within radio range coverage will emit a beep
and blink for 5 seconds. This functionality is useful to:
• verify which scanner is linked to a certain base station
• detect a scanner forgotten somewhere
The backlight of the button shows the status of the
SD9030 Dongle as described by the table below.
EVENT LED
Power ON Yellow steady on
Label Programming /
Service Mode
Data or label transmitted to the host
Broadcast Green rapidly blinking
Disabled by host
Firmware upgrade Green Blinking
Quick Reference Guide 1
Yellow rapidly blinking
Yellow blinks one time
Yellow Blinking once per second
Installation
Installation
To set up your SD9030 Dongle you must:
1. Physically install the SD9030 Dongle.
2. Make all system connections.
3. Configure the SD9030 Dongle.
Mounting the SD9030 Dongle
The package contains the following items:
• SD9030 Dongle • 2 Adhesive linking labels
• 1 Forklift mount • SD9030 Quick Reference Guide
The forklift mount is designed to ease the installation of
the dongle on a lateral guard or on the overhead guard of
a forklift.
The forklift mount can be easily fastened to the dongle by
following few steps:
1. Unscrew the highlighted nut at the bottom and free it
completely from the cable of the dongle. Place the nut
in a safe place.
2. Pass the cable of the dongle through the biggest hole
of the mount and hold the dongle as shown in figure.
Remember that the best radio range is achieved by
placing the antenna as far as possible from metal
parts.
Best radio range Space Saving Position
2 SD9030 Dongle
Mounting the SD9030 Dongle on a forklift
3. Take the nut removed at step 1, pass the cable
through it and screw it tight to the dongle again.
Mounting the SD9030 Dongle on a
forklift
By using the steel mount and a couple of plastic zip ties,
the SD9030 Dongle can be easily mounted on a guard of
the forklift as shown in the picture below.
Quick Reference Guide 3
Connecting to a Host
Connecting to a Host
The SD9030 Dongle can be connected to a Host with its
USB cable. In the picture below it is connected to a Datalogic Vehicle Mount Computer, but it can be connected to
any PC or Industrial PC with a USB port.
Simply connect the SD9030 Dongle to a free USB port of
the Host.
Connecting a Datalogic PowerScan™ PM9X00 to the SD9030 Dongle
Simply take your Datalogic PowerScan™ PM9X00 scanner
and scan the link label on the backside of the SD9030
Dongle or scan one of the adhesive labels provided in the
package.
By factory defaults, the SD9030 Dongle is preset to
use the STAR 2.0 High Speed protocol. To enable the
communication between a Datalogic PowerScan
STAR 2.0 Scanner and a SD9030 Dongle, please be
sure about which protocol is currently in use on
both devices. Use the barcode below in case you
need to restore the scanner with the same default
protocol used by the SD9030 Dongle.
Restore Default Radio Protocol
4 SD9030 Dongle
SD9030 Dongle Configuration
SD9030 Dongle Configuration
The SD9030 configuration can be performed in three ways: by
using the Datalogic Aladdin
by sending configuration strings from the Host PC via USBCOM interface or by reading configuration bar codes with the
PowerScan
™
PM9X00 reader.
Datalogic Aladdin™
Datalogic Aladdin™ is a multi-platform utility program that
provides a quick and user-friendly configuration method via
the USB-COM interface. It also allows upgrading the software
of the connected device (see the Datalogic Aladdin
Line for more details).
Serial Configuration
By connecting the SD9030 Dongle to a PC through a USBCOM interface, it is possible to send configuration strings
from the PC to the dongle.
Configuration Bar Codes
Link the SD9030 Dongle and the reader by scanning the linking label attached to the dongle. Once the pairing is complete,
you can configure the SD9030 Dongle by reading configuration bar codes in this manual.
To configure the SD9030 Dongle using the PowerScan
PM9X00 reader (paired to the dongle), follow the procedure
according to the interface selected.
Resetting Standard Product Defaults
Reference the PRG for a listing of standard factory settings. If
you aren’t sure what programming options are in your reader,
or you’ve changed some options and want the factory settings restored, scan the
bar code below to copy the factory configuration for the currently active interface to the current configuration
™
software configuration program,
™
Help On-
™
Standard Product Default Settings
.
Factory defaults are based on the interface type. Configure the reader for the correct interface before scanning this label.
Standard Product Default Settings
Quick Reference Guide 5
Selecting the Interface Type
Scanning this bar code will RESET all settings for the
PowerScan
may have been applied to the reader will be lost.
CAUTION
To change the defaults refer to the PowerScan™ 9X00 PRG,
or to the Datalogic Aladdin
™
PM9X00. Any customized settings that
™
Configuration program, both
downloadable from the Datalogic website.
Selecting the Interface Type
Upon completing the physical connection between the
reader and its host, scan the appropriate bar code for your
system’s correct interface type.
Configuring the Interface
Scan the programming bar code which selects the appropriate interface type for the system the reader will be connected to.
Unlike some other programming features and options,
interface selections require that you scan only one programming bar code label. DO NOT scan an ENTER/EXIT
bar code prior to scanning an interface selection bar
code.
Some interfaces require the scanner to start in the disabled state when powered up. If additional scanner
configuration is desired while in this state, pull the
trigger and hold for 5 seconds. The scanner will change
to a state that allows programming with bar codes.
6 SD9030 Dongle
USB
USB COM to simulate RS232 standard interface
Configuring the Interface
USB-COM-STD
a
USB-OEM
(can be used for OPOS/UPOS/JavaPOS)
USB-OEM
USB Keyboard with standard key encoding
Select USB Keyboard
USB Keyboard with alternate key encoding
USB Alternate Keyboard
a. Download the correct USB COM driver from www.datalogic.com
Quick Reference Guide 7
Country Mode
Country Mode
This feature specifies the country/language supported by
the keyboard.
COUNTRY MODE
ENTER/EXIT PROGRAMMING MODE
Country Mode = U.S.
Country Mode = Belgium
Country Mode = Britain
Country Mode = Croatia
Country Mode = Czech Republic
8 SD9030 Dongle
COUNTRY MODE (continued)
Country Mode = Denmark
Country Mode = France
Country Mode = French Canadian
Country Mode
Country Mode = Germany
Country Mode = Hungary
Country Mode = Italy
Quick Reference Guide 9
Country Mode
COUNTRY MODE (continued)
Country Mode = Japanese 106-key
Country Mode = Lithuanian
Country Mode = Norway
Country Mode = Poland
Country Mode = Portugal
10 SD9030 Dongle
COUNTRY MODE (continued)
Country Mode = Romania
Country Mode = Spain
Country Mode = Sweden
Country Mode
Country Mode = Slovakia
Country Mode = Switzerland
Quick Reference Guide 11
Technical Features
Technical Features
Electrical Features
Supply Voltage
Host Power 5 VDC ±10%
Power Consumption
Host Power max. 210 mA
Indicators
Environmental Features
Working Temperature - 20° to + 60 C / - 4 to + 140 °F
Storage Temperature - 40° to + 70
Humidity 90% non condensing
Protection Class IP65
Mechanical Features
Weight without metal plate about 145 g / 5.11 oz
Dimensions (without cable) 167 x 43 x 27.5 mm
Regulatory
Radio Features
Host Power/Data yellow LED
(see table at page 1)
C / - 40 to + 158 °F
See the regulatory addendum for
Frequency working center
Programmable Speed
Typical Range (in open air) see reader’s manual
Max number of devices per
dongle
910MHz 433MHz
19.2 kb/s
115.2 kb/s
500 kb/s
(default)
36.8 kb/s
500 kb/s
(default)
16
Datalogic Limited Factory Warranty
Warranty Coverage
Datalogic warranties this product against defects in workmanship
and materials, for a period of 3 years from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic hardware products are warranted against defects in
material and workmanship under normal and proper use. The liability
of Datalogic under this warranty is limited to furnishing the labor and
parts necessary to remedy any defect covered by this warranty and
restore the product to its normal operating condition. Repair or replacement of product during the warranty does not extend the origi-
12 SD9030 Dongle
Datalogic Limited Factory Warranty
nal warranty term. Products are sold on the basis of specifications
applicable at the time of manufacture and Datalogic has no obligation
to modify or update products once sold.
If Datalogic determines that a product has defects in material or
workmanship, Datalogic shall, at its sole option repair or replace the
product without additional charge for parts and labor, or credit or refund the defective products duly returned to Datalogic. To perform repairs, Datalogic may use new or reconditioned parts, components,
subassemblies or products that have been tested as meeting applicable specifications for equivalent new material and products. Customer will allow Datalogic to scrap all parts removed from the
repaired product. The warranty period shall extend from the date of
shipment from Datalogic for the duration published by Datalogic for
the product at the time of purchase (Warranty period). Datalogic warrants repaired hardware devices against defects in workmanship and
materials on the repaired assembly for a 90 day period starting from
the date of shipment of the repaired product from Datalogic or until
the expiration of the original warranty period, whichever is longer. Datalogic does not guarantee, and it is not responsible for, the maintenance of, damage to, or loss of configurations, data, and applications
on the repaired units and at its sole discretion can return the units in
the “factory default” configuration or with any software or firmware
update available at the time of the repair (other than the firmware or
software installed during the manufacture of the product). Customer
accepts responsibility to maintain a back up copy of its software and
data.
Warranty Claims Process
In order to obtain service under the Factory Warranty, Customer must
notify Datalogic of the claimed defect before the expiration of the applicable Warranty period and obtain from Datalogic a return authorization number (RMA) for return of the product to a designated
Datalogic service center. If Datalogic determines Customer’s claim is
valid, Datalogic will repair or replace product without additional
charge for parts and labor. Customer shall be responsible for packaging and shipping the product to the designated Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return
of the product to Customer if the shipment is to a location within the
country in which the Datalogic service center is located. Customer
shall be responsible for paying all shipping charges, duties, taxes, and
any other charges for products returned to any other locations. Failure to follow the applicable RMA policy, may result in a processing fee.
Customer shall be responsible for return shipment expenses for
products which Datalogic, at its sole discretion, determines are not
defective or eligible for warranty repair.
Warranty Exclusions
The Datalogic Factory Warranty shall not apply to:
(i) any product which has been damaged, modified, altered,
repaired or upgraded by other than Datalogic service personnel or its authorized representatives;
(ii) any claimed defect, failure or damage which Datalogic deter-
mines was caused by faulty operations, improper use, abuse,
misuse, wear and tear, negligence, improper storage or use of
parts or accessories not approved or supplied by Datalogic;
(iii) any claimed defect or damage caused by the use of product
with any other instrument, equipment or apparatus;
Quick Reference Guide 13
Datalogic Limited Factory Warranty
(iv) any claimed defect or damage caused by the failure to provide
proper maintenance, including but not limited to cleaning the
upper window in accordance with product manual;
(v) any defect or damage caused by natural or man-made disas-
ter such as but not limited to fire, water damage, floods, other
natural disasters, vandalism or abusive events that would
cause internal and external component damage or destruction of the whole unit, consumable items;
(vi) any damage or malfunctioning caused by non-restoring
action as for example firmware or software upgrades, software or hardware reconfigurations etc.;
(vii) the replacement of upper window/cartridge due to scratching,
stains or other degradation and/or
(viii) any consumable or equivalent (e.g., cables, power supply, bat-
teries, keypads, touch screen, triggers etc.).
No Assignment
Customer may not assign or otherwise transfer its rights or obligations under this warranty except to a purchaser or transferee of product. No attempted assignment or transfer in violation of this
provision shall be valid or binding upon Datalogic.
DATALOGIC'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR
OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT. DATALOGIC SHALL NOT BE LIABLE
FOR ANY DAMAGES SUSTAINED BY CUSTOMER ARISING FROM DELAYS IN THE REPLACEMENT OR REPAIR OF PRODUCTS UNDER THE
ABOVE. THE REMEDY SET FORTH IN THIS WARRANTY STATEMENT IS
THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDY FOR WARRANTY
CLAIMS. UNDER NO CIRCUMSTANCES WILL DATALOGIC BE LIABLE TO
CUSTOMER OR ANY THIRD PARTY FOR ANY LOST PROFITS, OR ANY
INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR CONTINGENT
DAMAGES REGARDLESS OF WHETHER DATALOGIC HAD ADVANCE
NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
Risk of Loss
Customer shall bear risk of loss or damage for product in transit to
Datalogic. Datalogic shall assume risk of loss or damage for product
in Datalogic’s possession. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the
carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
14 SD9030 Dongle
Ergonomic Recommendations
Ergonomic Recommendations
In order to avoid or minimize the potential risk of
ergonomic injury follow the recommendations below.
Consult with your local Health & Safety Manager to
CAUTION
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures
ensure that you are adhering to your company’s
safety programs to prevent employee injury.
Support Through the Website
Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and
click on the SUPPORT link which gives you access to:
Downloads by selecting your product model from the dropdown list in the Search by Product field for specific Data
Sheets, Manuals, Software & Utilities, and Drawings;
Repair Program for On-Line Return Material Authorizations
(RMAs) plus Repair Center contact information;
Customer Service containing details about Maintenance
Agreements;
Technical Support through email or phone.
Quick Reference Guide 15
Support Through the Website
NOTES
16 SD9030 Dongle
NOTES
Support Through the Website
Quick Reference Guide 17
Support Through the Website
NOTES
18 SD9030 Dongle
©2016-2017 Datalogic S.p.A. and/or its affiliates. All rights
+49 711 901188-0
www.kumaident.de
reserved. Datalogic and the Datalogic logo are registered
trademarks of Datalogic S.p.A. in many countries, including
the U.S. and the E.U.
820074814 (Rev A) March 2018
www.datalogic.com
Datalogic S.r.l.
Via S. Vitalino, 13
40012 - Lippo di Calderara di Reno (BO) - Italy
Telefono: +39 0513147011
Fax: +39 0513147288
Loading...
