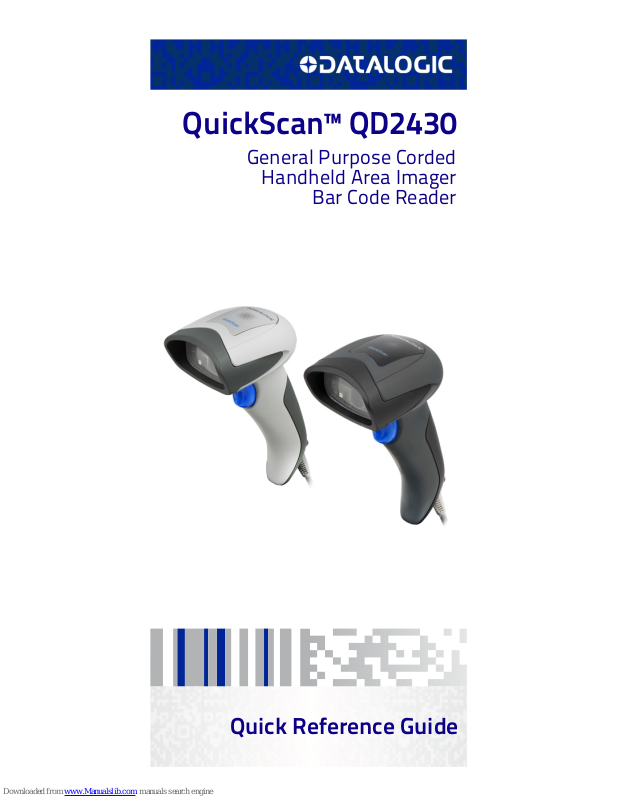

Datalogic QuickScan QD2430 Quick Reference Manual

QuickScan™ QD2430

General Purpose Corded

Handheld Area Imager

Bar Code Reader

Quick Reference Guide

Datalogic USA, Inc.

959 Terry Street
Eugene, OR 97402
USA
Telephone: [phone]
Fax: [phone]

©2013-2017 Datalogic S.p.A. and/or its affiliates

 All rights reserved.  Without limiting the rights under copy-

right, no part of this documentation may be reproduced,
stored in or introduced into a retrieval system, or transmitted
in any form or by any means, or for any purpose, without the
express written permission of Datalogic S.p.A. and/or its affil­iates.
Owners of Datalogic products are hereby granted a non-exclu­sive, revocable license to reproduce and transmit this docu­mentation for the purchaser's own internal business
purposes. Purchaser shall not remove or alter any proprietary
notices, including copyright notices, contained in this docu­mentation and shall ensure that all notices appear on any
reproductions of the documentation.
Should future revisions of this manual be published, you can
acquire printed versions by contacting your Datalogic repre­sentative. Electronic versions may either be downloadable
from the Datalogic website (www.datalogic.com

) or provided
on appropriate media. If you visit our website and would like
to make comments or suggestions about this or other Data­logic publications, please let us know via the "Contact Data­logic" page.

Disclaimer

Datalogic has taken reasonable measures to provide informa­tion in this manual that is complete and accurate, however,
Datalogic reserves the right to change any specification at any
time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including the U.S. and the
E.U. QuickScan is a trademark of Datalogic S.p.A. and/or its
affiliates, registered in many countries including the U.S. and
the E.U. All other brand and product names may be trade­marks of their respective owners.

Patents

See www.patents.datalogic.com

for patent list.

See the Regulatory Addendum included with
your product for additional regulatory, safety
and legal information.

Quick Reference Guide i

Table of Contents

Software Product Policy ............................................................. vi

...................................................................................................... vi

Description .................................................................................... 1

Setting Up the Reader ................................................................. 2

Connect/Disconnect Cable to Reader ............................... 2

Using the Quickscan™ QD24XX ................................................... 3

Selecting the Interface Type ....................................................... 4

Interface Selection .............................................................. 4

Configuring the Interface .......................................... 5

Keyboard Interface .................................................... 6

Scancode Tables......................................................... 9

Country Mode............................................................. 9

Programming .............................................................................. 13

Using Programming Bar Codes .......................................13

Configure Other Settings .................................................. 13

Resetting Product Defaults .............................................13

Caps Lock State........................................................ 14

Numlock.................................................................... 15

Reading Parameters .................................................................. 16

Aiming System .................................................................. 16

Good Read Green Spot Duration ..................................... 16

Operating Modes ........................................................................ 17

Scan Mode ......................................................................... 17

Pick Mode ........................................................................... 19

Multiple Label Reading .....................................................19

Technical Specifications ............................................................ 20

LED and Beeper Indications ...................................................... 22

Programming Mode .......................................................... 24

Error Codes .................................................................................25

Cleaning ....................................................................................... 26

Datalogic Limited Factory Warranty ............................... 27

Ergonomic Recommendations ................................................. 29

Support Through the Website .................................................. 29

ii QuickScan™ QD2430

Quick Reference Guide iii

END USER LICENSE AGREEMENT

NOTICE TO END USER: BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR BY
USING THE DATALOGIC PRODUCT THAT INCLUDES THIS SOFTWARE, THE END USER
CONSENTS TO BE BOUND BY THIS AGREEMENT. IF THE END USER DOES NOT
AGREE WITH ALL OF THE TERMS OF THIS AGREEMENT, THEN DATALOGIC IS NOT
WILLING TO LICENSE THE SOFTWARE AND THE END USER IS NOT ALLOWED TO
DOWNLOAD, INSTALL OR USE THE SOFTWARE OR THE DATALOGIC PRODUCT

This End User License Agreement ("EULA") is between Datalogic IP Tech S.r.l. hav­ing its registered office at Via San Vitalino 13, 40012 Calderara di Reno (Bologna),
Italy ("Datalogic"), and you, either an individual or a single entity, ("End User or
"You"") who has purchased one or more QUICKSCAN™ QD 24XX ("Datalogic Prod­uct") subject to the terms and conditions provided in any relevant purchase or sale
contract. This EULA applies to the software contained in the Datalogic Product
("Embedded Software") and to any other software, to the extent applicable, offered
as optional application software ("Application Software" that together with
"Embedded Software" is herein referred to as "Software"). Any Open Source used
in a conjunction with the Software is subject to the Open Source licenses available
at the following website: http://www.datalogic.com/oss

1. Grant of License

1.1 Datalogic grants to End User, a personal, non-exclusive, non-transferable, non
sub licensable, revocable, limited license to use the Software, solely on the
Datalogic Product in which it is embedded or for which it is intended for use, in
machine-readable form only, solely for End User's internal business purposes.

1.2 End Users shall not distribute, sublicense, rent, loan, lease, assign, export, re­export, resell, ship or divert or cause to be exported, re-exported, resold,
shipped or diverted, directly or indirectly, the Software under this Agreement.
End User shall not, and shall not permit others to: (i) modify, translate, decom­pile, reverse engineer, disassemble, or extract the inner workings of the Soft­ware, (ii) copy the functionality of the Datalogic Products; (iii) remove any
proprietary notices, marks, labels, or logos from the Datalogic Products; (iv)
rent or transfer all or some of the Software to any other party without Data­logic's prior written consent.

1.3 Title to the licensed Software shall be and remain with Datalogic or the third
party from whom Datalogic has obtained a license right. This Agreement does
not grant to End User any intellectual property rights. As used in this Agree­ment the term "purchase" or its equivalent when applied to the Software shall
mean "acquire under license". End User is not entitled to receipt or use of the
source code of any licensed Software.

1.4 Portions of the Datalogic Product are protected by the relevant and applicable
patent and copyright laws, international treaty provisions, and other applica­ble laws. Therefore, End User must treat the Datalogic Product like any other
copyrighted material (e.g., a book or musical recording) except that End User
may make one copy of the Software solely for back-up purposes. Unautho­rized duplication of the Software constitutes copyright infringement.

1.5 Any use of the Software outside of the conditions set forth herein is strictly
prohibited and will be deemed a breach of this Agreement resulting in imme­diate termination of this Agreement. In the event of a breach of this Agree­ment, Datalogic will be entitled to all available remedies at law or in equity
(including but not limiting to immediate termination of the license without
notice, immediate injunctive relief and repossession of all Datalogic Products).

1.6 Without prejudice of the foregoing, End User grants to Datalogic and its inde­pendent accountants or consultants the right to examine End User's books,
records and accounts during End User's normal business hours to verify com­pliance with this Agreement. In the event such audit discloses non-compli­ance with this Agreement, Datalogic shall be entitled to immediately
terminate the Agreement, request End User to promptly pay all (additional)
license fees due and any further damages, if any.

2. License Fee

License fees shall be due by End User to Datalogic according to the terms provided
for in the relevant contract for the purchase of the Datalogic Product.

3. Termination

Without prejudice to any other rights or remedies Datalogic may have, Datalogic
may terminate this Agreement if End User fails to comply with the terms and con­ditions of this Agreement. Datalogic may terminate this Agreement by offering you
a superseding Agreement for the Software or any replacement or modified version
of or upgrade to the Software and conditioning your continued use of the Software
or such replacement, modified or upgraded version on your acceptance of such
superseding Agreement. In addition, either party may terminate this Agreement at

iv QuickScan™ QD2430

any time. Subject to the foregoing, termination shall be effective upon notice to the
other party. In the event that this Agreement terminates for any reason, End
User's license to use the Software will immediately terminate, and End User must
immediately stop using the Software, destroy all copies of the Software and all of
its component parts, and, upon request, provide an affidavit certifying your compli­ance with the foregoing. The provisions of Sub-sections 1.2, 1.3, 1.4, 1.5, 4, 5, 6, 8,
and 12 shall survive termination of this Agreement.

4. Limited Warranty

Datalogic warrants that, under normal use and operation, the Software will con­form substantially to the applicable Datalogic Product documentation for the
period specified in the same, provided that the Software is used with the Datalogic
Product. Datalogic's entire liability and End User's sole and exclusive remedy for
any breach of the foregoing limited warranty will be, at Datalogic's option, the pro­vision of a downloadable patch or replacement software.

Datalogic does not warrant (i) that Software will meet End User's requirements; (ii)
that Software will be uninterrupted or defect error free; (iii) any non conformity
derived from unauthorized use, and/or improper installation or repair not in com­pliance with Datalogic Product documentation. End User agrees that the existence
of such non conformities or errors and Datalogic's inability to remedy such errors
shall not constitute a breach of this Agreement.

EXCEPT AS PROVIDED IN THIS AGREEMENT, THE DATALOGIC PRODUCT IS PRO­VIDED "AS IS" AND DATALOGIC MAKES NO WARRANTIES OF ANY KIND, EXPRESS
OR IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO THE DATALOGIC PRODUCT OR
SOFTWARE, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MER­CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

5. Limitation of Liability

EXCEPT AS PROVIDED IN THIS AGREEMENT, NEITHER DATALOGIC NOR ITS LICEN­SORS SHALL BE LIABLE FOR ANY CLAIMS AGAINST END USER BY ANY OTHER
PARTY. IN NO EVENT SHALL DATALOGIC'S LIABILITY FOR DAMAGES, IF ANY,
WHETHER BASED UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, STRICT LIABILITY, WARRANTY, OR ANY OTHER BASIS, EXCEED THE PRICE
OR FEE PAID BY END USER FOR THE DATALOGIC PRODUCT. UNDER NO CIRCUM­STANCES SHALL DATALOGIC OR ITS LICENSORS BE LIABLE TO END USER OR ANY
THIRD PARTY FOR LOST PROFITS, LOST DATA, INTERRUPTION OF BUSINESS OR
SERVICE, OR FOR ANY OTHER SPECIAL, CONSEQUENTIAL, CONTINGENT, INDIRECT,
INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMILAR DAMAGES, EVEN IF DAT­ALOGIC OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. END USER MUST BRING ANY ACTION UNDER THIS AGREEMENT
WITHIN 12 (TWELVE) MONTHS AFTER THE CAUSE OF ACTION ARISES.

6. Infringement

To the maximum extent permitted by law, End User agrees to defend, indemnify
and hold harmless Datalogic, its affiliates and their respective directors, officers,
employees and agents from and against any and all claims, actions, suits or pro­ceedings, as well as any and all losses, liabilities, damages, costs and expenses
(including reasonable attorney's fees) arising out of or accruing from or related to
Licensee's failure to comply with the terms of this Agreement, including but not
limited to (1) non compliance with any applicable laws or regulations with Data­logic product documentation, (2) unauthorized use or disclosure of Software, and
(3) use of Software in combination with software, hardware, systems, or other
items not provided by Datalogic.

7. Support

End User may request support for Software from Datalogic at Datalogic's standard
support fees and under Datalogic's standard support terms and conditions in
effect at the time the support is requested.

8. Government Restricted Rights; International Use

8.1 Use, duplication, or disclosure of the Software by the U.S. Government is sub­ject to the restrictions for computer software developed at private expense as
set forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g), or

52.227-19 or in the Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013(c)(1)(ii), whichever is applicable.

8.2 If End User is using the Datalogic Product outside of the United States, End
User must comply with the applicable local laws of the country in which the
Datalogic Product is used and with U.S. export control laws,. Without prejudice
of the foregoing, the End User agrees to not export or re-export the Software,
any part thereof, or any process or service that is the direct product of the
Software to any country, person or entity subject to U.S. export restrictions.

Quick Reference Guide v

End User specifically agrees not to export or re-export any of the Software: (i)
to any country to which the U.S. has embargoed or restricted the export of
goods or services or to any national of any such country, wherever located,
who intends to transmit or transport the Software back to such country; (ii) to
any person or entity who you know or have reason to know will utilize the
Software in the design, development or production of nuclear, chemical or
biological weapons; or (iii) to any person or entity who has been prohibited
from participating in U.S. export transactions by any federal agency of the U.S.
government. End User warrants and represents that neither the U.S. Com­merce Department, Bureau of Export Administration nor any other U.S. federal
agency has suspended, revoked or denied its export privileges.

9. Third Party Software

The Datalogic Product may contain one or more items of third party software
which use is governed by separate third party license, unless otherwise stated.

10. Open Source Software

Portions of the Software include or operate with Open Source software ("Open
Source Software").

Open Source Software is software covered by a publicly available license governed
solely under Copyright law, whereas the complete terms and obligations of such
license attach to a licensee solely through the act of copying, using and/or distrib­uting the licensed software, such obligations often include one or more of attribu­tion obligations, distribution obligations, copyleft obligations, and intellectual
property encumbrances. The use of any Open Source Software is subject to the
terms and conditions of this Agreement as well as the terms and conditions of the
corresponding license of each Open Source Software package. If there is a conflict
between the terms and conditions of this Agreement and the terms and condi­tions of the Open Source Software license, the applicable Open Source Software
license will take precedence. Datalogic is required to reproduce the software
licenses, acknowledgments and copyright notices as provided by the authors and
owners, thus, all such information is provided in its native language form, without
modification or translation. Please reference and review the above mentioned
information to identify which Open Source Software packages have source code
provided or available.

11. Notices

All notices required or authorized under this Agreement shall be given in writing,
and shall be effective when received, with evidence of receipt. Notices to Datalogic
shall be sent to the attention of Datalogic IP Tech S.r.l., Legal & IP Department, Via
San Vitalino 13, 40012 Calderara di Reno (Bologna), Italy, or such other address as
may be specified by Datalogic in writing.

12. General Provisions

12.1. Entire Agreement; Amendment. This document contains the entire agree­ment between the parties relating to use of the Datalogic Products and the
licensing of the Software and supersedes all prior or contemporaneous agree­ments, written or oral, between the parties concerning the use of the Data­logic Products and licensing of the Software. This Agreement may not be
changed, amended, or modified except by written document signed by Data­logic.

12.2. Waiver. A party's failure to enforce any of the terms and conditions of this
Agreement shall not prevent the party's later enforcement of such terms and
conditions.

12.3. Governing Law; Venue:

End User agrees to the application of the laws of the
country in which End User obtained the license to govern, interpret, and
enforce all of End User's and Datalogic's respective rights, duties, and obliga­tions arising from, or relating in any manner to, the subject matter of this
Agreement, without regard to conflict of law principles. The United Nations
Convention on Contracts for the International Sale of Goods does not apply.

All rights, duties, and obligations are subject to the courts of the country in
which End User obtained the license. For licenses granted by Licensee who
operates in the countries specified below, the following terms applies.

For Americas:
This Agreement is governed by the laws of the State of Oregon. This Agree-

ment and the rights of the parties hereunder shall be governed by and con­strued in accordance with the laws of the State of Oregon U.S.A, without
regard to the rules governing conflicts of law. The state or federal courts of the
State of Oregon located in either Multnomah or Lane counties shall have
exclusive jurisdiction over all matters regarding this Agreement, except that
Datalogic shall have the right, at its absolute discretion, to initiate proceedings
in the courts of any other state, country, or territory in which End User resides,
or in which any of End User's assets are located. In the event an action is

Software Product Policy

vi QuickScan™ QD2430

brought to enforce the terms and conditions of this Agreement, the prevailing
party shall be entitled to reasonable attorneys' fees, both at trial and on
appeal.

For Europe, Middle East and Africa:
This Agreement is governed by the laws of Italy. This Agreement and the

rights of the parties hereunder shall be governed by and construed in accor­dance with the laws of Italy, without regard to the rules governing conflicts of
law. Italian Court of Bologna shall have exclusive jurisdiction over all matters
regarding this Agreement, except that Datalogic shall have the right, at its
absolute discretion, to initiate proceedings in the courts of any other state,
country, or territory in which End User resides, or in which any of End User's
assets are located. In the event an action is brought to enforce the terms and
conditions of this Agreement, the prevailing party shall be entitled to reason­able attorneys' fees, both at trial and on appeal.

For Asia- Pacific Countries:
The validity, interpretation and construction of the Agreement shall be gov-

erned by and construed in accordance with Laws of the Republic of Singapore.
Parties expressly disclaim the application of the United Nations Convention
for International Sale of Goods.

Any dispute arising out of or in connection with this contract, including any
question regarding its existence, validity or termination, shall be referred to
and finally resolved by arbitration administered by the Singapore International
Arbitration Centre ("SIAC") in accordance with the Arbitration Rules of the Sin­gapore International Arbitration Centre ("SIAC Rules") for the time being in
force, which rules are deemed to be incorporated by reference in this clause.
The seat of the arbitration shall be Singapore.

The number of arbitrators will be three, with each side to the dispute being
entitled to appoint one arbitrator. The two arbitrators appointed by the parties
will appoint a third arbitrator who will act as chairman of the proceedings.
Vacancies in the post of chairman will be filled by the president of the SIAC.
Other vacancies will be filled by the respective nominating party. Proceedings
will continue from the stage they were at when the vacancy occurred. If one of
the parties refuses or otherwise fails to appoint an arbitrator within 30 days
of the date the other party appoints its, the first appointed arbitrator will be
the sole arbitrator, provided that the arbitrator was validly and properly
appointed. All proceedings will be conducted, including all documents pre­sented in such proceedings, in the English language. The English language
version of these terms and conditions prevails over any other language ver­sion.

12.4. Attorneys' Fees. In the event an action is brought to enforce the terms and
conditions of this Agreement, the prevailing party shall be entitled to reason­able attorneys' fees, both at trial and on appeal.

- END -

Software Product Policy

Datalogic reserves the right to ship its products with the
latest version of software/firmware available. This pro­vides our customers with the very latest in Datalogic soft­ware technology.

The only exception to this policy is when the buyer has a
signed contract with Datalogic that clearly defines the
terms and conditions for making software/firmware
changes in products shipped to the buyer.

To arrange for a Software Maintenance and Support
Agreement please contact your Datalogic sales person.

Quick Reference Guide 1

QuickScan™ QD2430

Description

The QuickScan™ QD2400 2D imager has been specifically cre­ated to meet the market demand for omni-directional reading
performance on virtually all codes at an affordable price. Ele­gant design details are incorporated into a smaller, balanced
lightweight enclosure without sacrificing Datalogic's well­known durability.

Ideally suited for applications at the point-of-sale (POS), the
QuickScan QD2400 imager features a new illumination and
aiming system developed with the unique intent to reduce
visual stress of the operator during the daily scanning activi­ties. It consists of a soft, dark red illumination combined with
two blue LED triangles pointing at the targeted bar code. The
result is a precise aiming system which contributes to low eye
fatigue, yet still allows top operator efficiency.

Constructed with a combination of design and performance­based ideals such as bar code reading snappiness, motion tol­erance, perfect ergonomics and an attractive price, this 2D
imager is the ideal solution for the customer who is looking to
replace their linear only reading scanners with image-based
technology.

Omni­Directional
Operating

To read a symbol simply aim the reader and pull the
trigger. The QuickScan™ QD24XX imager is a powerful
omni-directional reader, so the orientation of the sym­bol is not important.
Datalogic’s exclusive patented ‘Green Spot’ for good­read feedback helps to improve productivity in noisy
environments or in situations where silence is
required. When using the product with the cradle at a
45° position, the aiming pattern can work as an aiming
system to aid in positioning the bar code for quick and
intuitive reading.

Decoding

Reliably decodes all standard 1D (linear) and 2D bar
codes, including GS1 DataBar™ linear codes, Postal
Codes (China Post), Stacked Codes (such as GS1
DataBar Expanded Stacked, GS1 DataBar Stacked, GS1
DataBar, Stacked Omnidirectional).
The data stream — acquired from decoding a symbol
— is rapidly sent to the host. The reader is immedi­ately available to read another symbol.

Setting Up the Reader

2 QuickScan™ QD2430

Setting Up the Reader

Follow the steps below to connect and get your reader up and
communicating with its host.

1. Connect the Cable to the reader and the Host.

2. Configure the Interface (see page 5).

3. Configure the Reader starting on page 13 (optional,
depends on settings needed).

Connect/Disconnect Cable to Reader

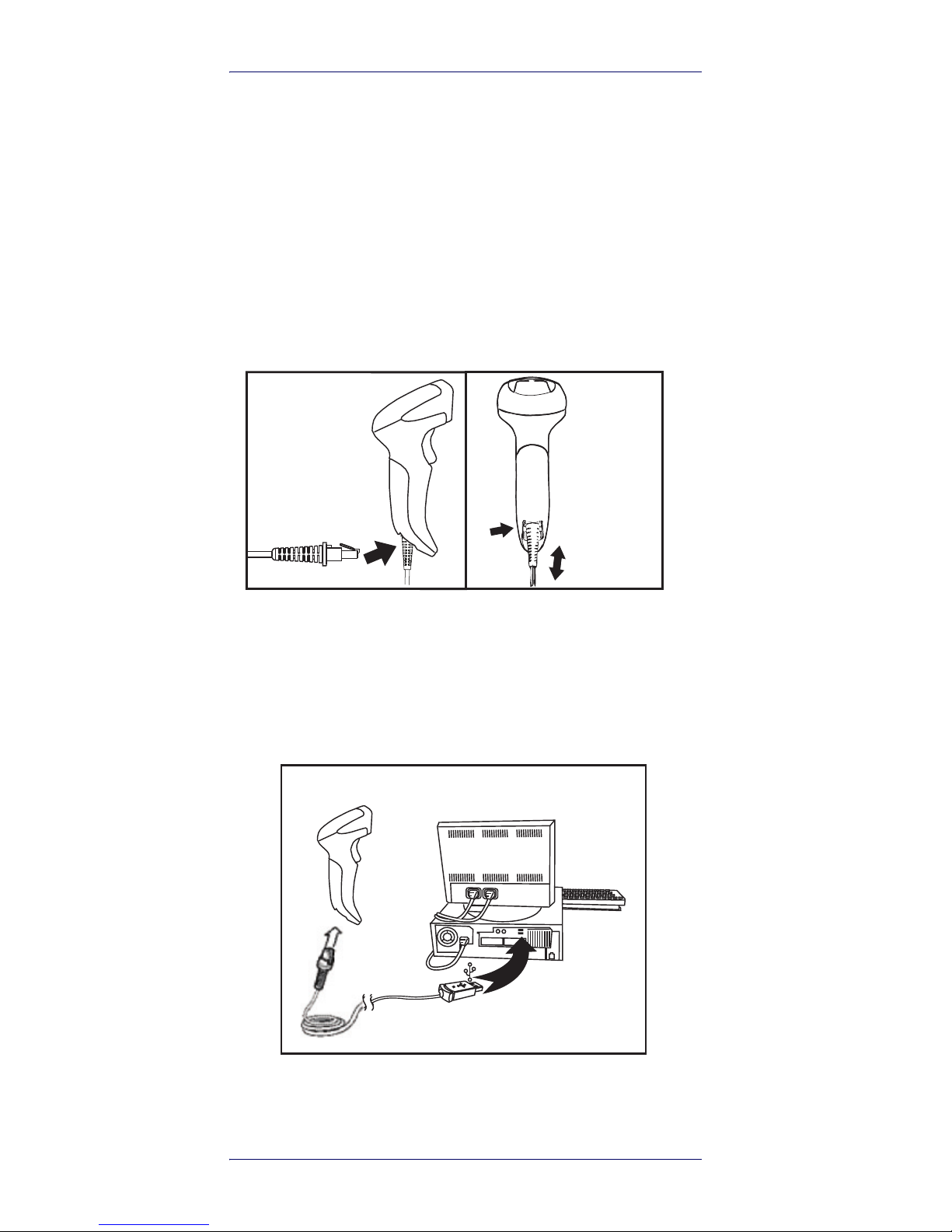

Figure 1. Connecting to the Reader

Host Connection —

The QuickScan plugs directly into the host
device as shown in Figure 2. The power can also be supplied
through an external power supply via the Interface Cable sup­plied with a power jack.

Figure 2. Connecting to the Host

Side View

Rear
View

U

S

B

Side
View

Using the Quickscan™ QD24XX

Quick Reference Guide 3

Using the Quickscan™ QD24XX

The Quickscan™ QD24XX normally functions by capturing and
decoding codes. The aiming system is activated on trigger pull
and indicates the center of the field of view which should be
positioned over the bar code:

Aiming System

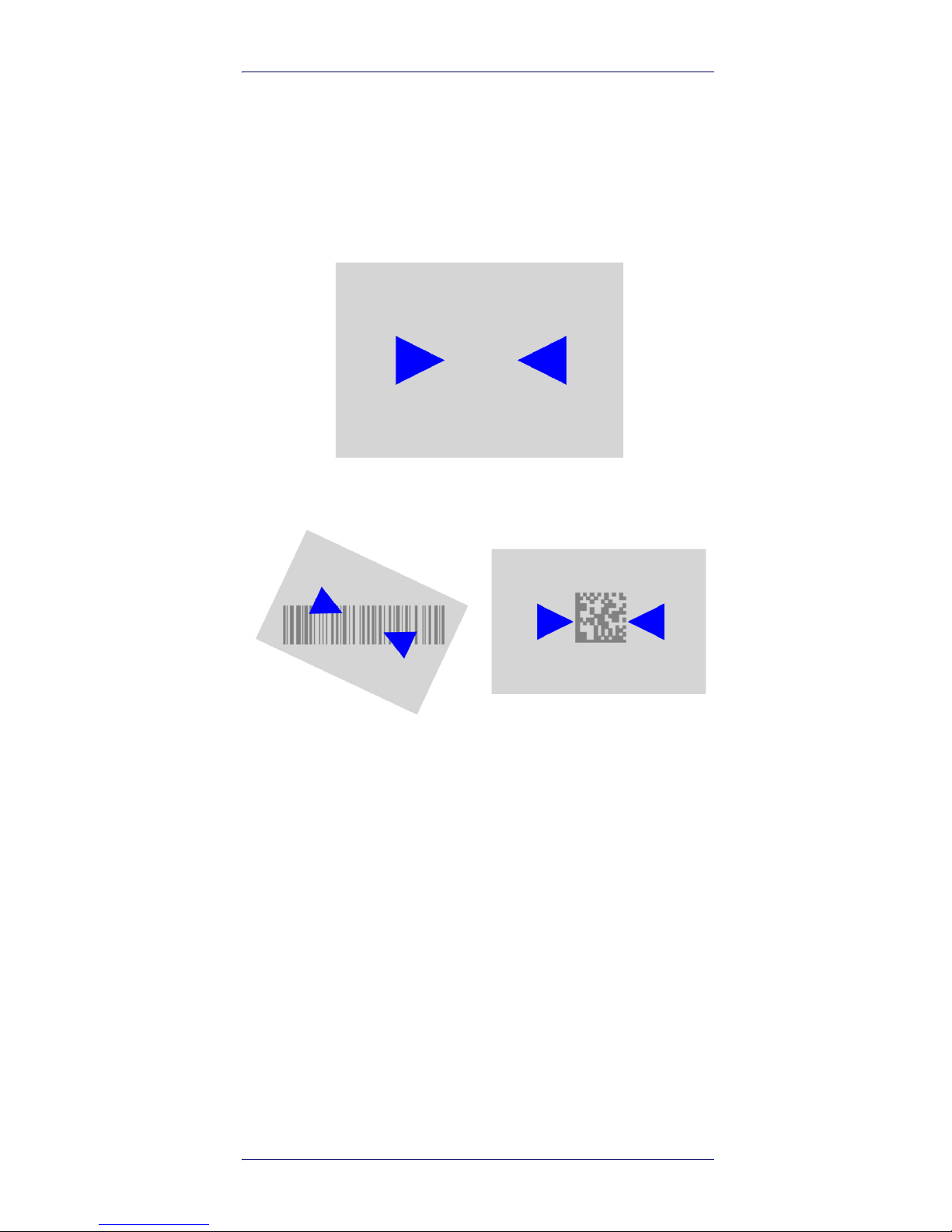

Relative Size and Location of Aiming System Pattern

A beam illuminates the label. The projected pattern of the
aiming system will be smaller when the reader is closer to the
bar code and larger when it is farther from the code. Symbolo­gies with smaller bars or elements (mil size) should be read
closer to the unit. Symbologies with larger bars or elements
(mil size) should be read farther from the unit.

If the aiming system is centered you will get a good read. Suc­cessful reading is signaled by an audible tone plus a good­read green spot LED indicator.

Reference the QuickScan QD24XX Product Reference Guide
(PRG) on the Datalogic website for more information about
this feature and other programmable settings.

2D Matrix symbol

Linear bar

Selecting the Interface Type

4 QuickScan™ QD2430

Selecting the Interface Type

Upon completing the physical connection between the reader
and its host, proceed directly to Interface Selection below for
information and programming for the interface type the
reader is connected to (for example: RS-232, Keyboard Wedge,
USB, etc.) and scan the appropriate bar code to select your
system’s correct interface type.

Interface Selection

The reader model will support one of the following sets of
host interfaces:

General Purpose Models —

RS-232, RS-232 OPOS, USB, Key-

board Wedge.

Retail Point of Sale Models —

RS-232, RS-232 OPOS, USB.

Information and programming options for each interface type
are provided in this section. For defaults and additional infor­mation associated with each interface, proceed to the corre­sponding chapter in the QuickScan QD2430 PRG.

Selecting the Interface Type

Quick Reference Guide 5

Configuring the Interface

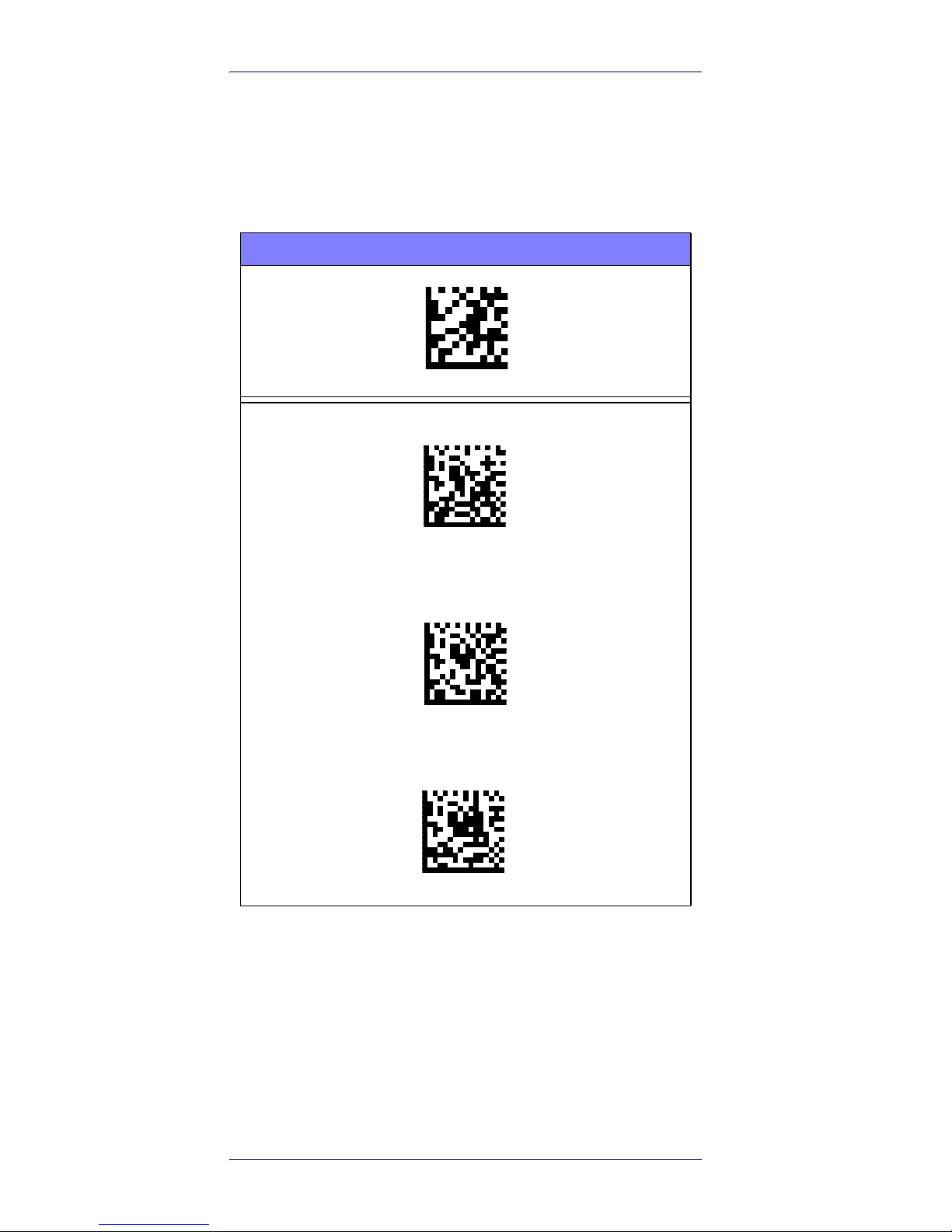

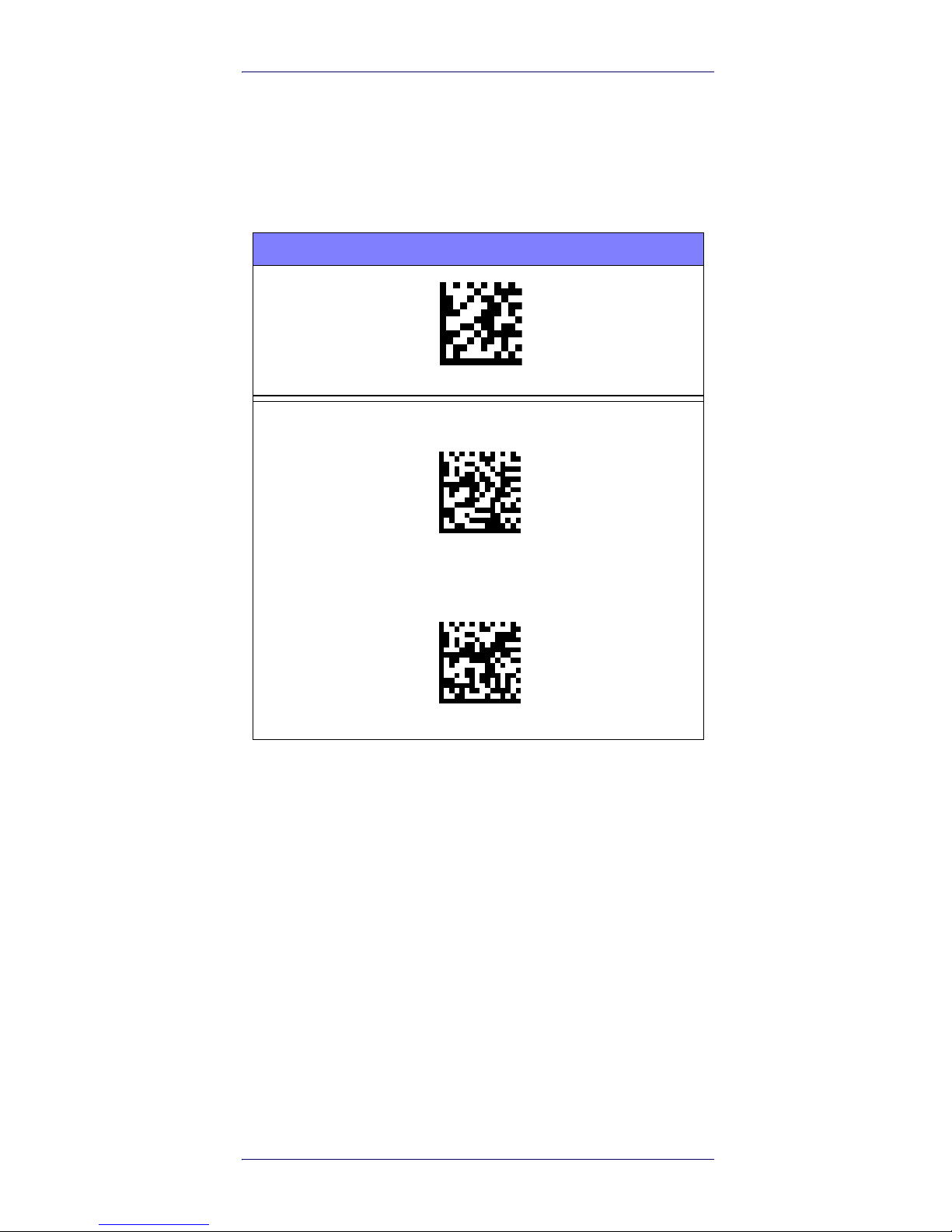

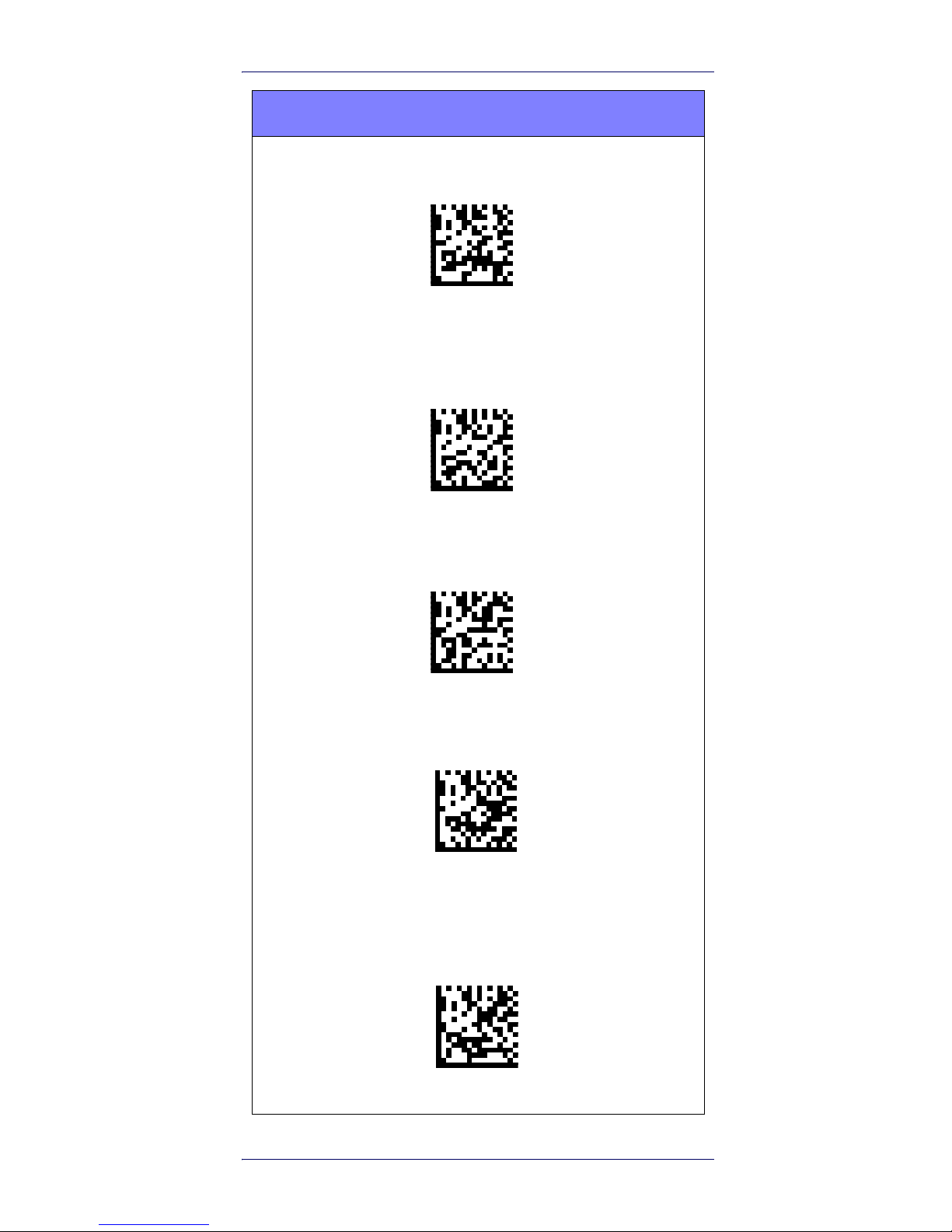

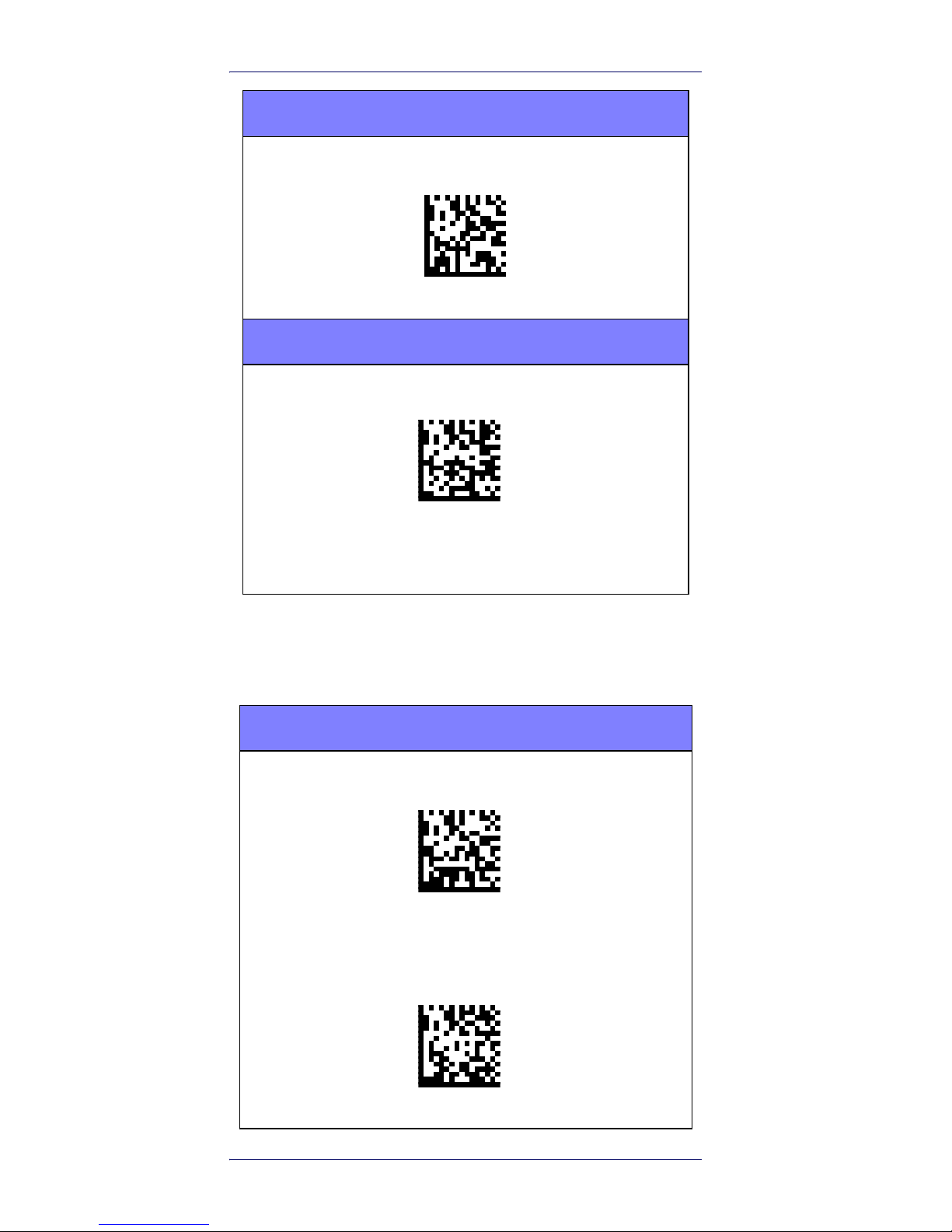

Scan the appropriate programming bar code to select the
interface type for your system.

NOTE

Unlike some other programming features and
options, interface selections require that you
scan only one programming bar code label. DO
NOT scan an ENTER/EXIT bar code prior to
scanning an interface selection bar code.

Some interfaces require the scanner to start in
the disabled state when powered up. If addi­tional scanner configuration is desired while in
this state, pull the trigger and hold for 5 sec­onds. The scanner will change to a state that
allows programming with bar codes.

RS-232

RS-232 standard interface

Select RS232-STD

RS-232 Wincor-Nixdorf

Select RS232-WN

RS-232 for use with OPOS/UPOS/JavaPOS

Select RS-232 OPOS

Selecting the Interface Type

6 QuickScan™ QD2430

RS-232 (continued)

USB Com to simulate RS-232 standard interface

Select USB-COM-STD

a

USB-OEM

USB-OEM (can be used for OPOS/UPOS/JavaPOS)

Select USB-OEM

a. Download the correct USB Com driver from www.datalogic.com

Keyboard Interface

Use the programming bar codes to select options for
USB Keyboard and Wedge Interfaces.

KEYBOARD

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/

Standard Key Encoding

Select KBD-AT

Keyboard Wedge for IBM AT PS2 with standard key encoding

but without external keyboard

Select KBD-AT-NK

Selecting the Interface Type

Quick Reference Guide 7

KEYBOARD (continued)

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95

w/Alternate Key

Select KBD-AT-ALT

Keyboard Wedge for IBM AT PS2 with alternate key encoding

but without external keyboard

Select KBD-AT-ALT-NK

PC/XT w/Standard Key Encoding

Select KBD-XT

Keyboard Wedge for IBM Terminal 3153

Select KBD-IBM-3153

Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx

make break keyboard

Select KBD-IBM-MB

Selecting the Interface Type

8 QuickScan™ QD2430

KEYBOARD (continued)

USB Keyboard with alternate key encoding

Select USB Alternate Keyboard

USB Keyboard for Apple computers

Select USB-KBD-APPLE

Keyboard Wedge for DIGITAL Terminals

VT2xx, VT3xx, VT4xx

Select KBD-DIG-VT

USB Keyboard with standard key encoding

Select USB Keyboard

Selecting the Interface Type

Quick Reference Guide 9

Scancode Tables

Reference the QuickScan QD2430 PRG for information about
control character emulation for keyboard interfaces.

Country Mode

This feature specifies the country/language supported by the
keyboard. Only these interfaces support ALL Country Modes:

• USB Keyboard (without alternate key encoding)

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
w/Std Key Encoding

• Keyboard Wedge for IBM AT PS2 with standard key
encoding but without external keyboard

• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95
without Alternate Key

• Keyboard Wedge for IBM AT PS2 without alternate
key encoding but without external keyboard

All other interfaces support ONLY the following Country
Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain,
Sweden.

COUNTRY MODE

ENTER/EXIT PROGRAMMING MODE

Country Mode = U.S.

Country Mode = Belgium

Selecting the Interface Type

10 QuickScan™ QD2430

COUNTRY MODE (continued)

Country Mode = Croatia*

Country Mode = Czech Republic*

Country Mode = Denmark*

Country Mode = France

Country Mode = French Canadian*

Country Mode = Germany

*

Supports only the interfaces listed in the Country Mode feature description

$CKBCO13(CR)

Selecting the Interface Type

Quick Reference Guide 11

COUNTRY MODE (continued)

Country Mode = Hungary*

Country Mode = Italy

Country Mode = Japanese 106-key*

Country Mode = Lithuanian*

Country Mode = Norway*

Country Mode = Poland*

*

Supports only the interfaces listed in the Country Mode feature description

Selecting the Interface Type

12 QuickScan™ QD2430

COUNTRY MODE (continued)

Country Mode = Portugal*

Country Mode = Romania*

Country Mode = Spain

Country Mode = Sweden

Country Mode = Slovakia*

Country Mode = Switzerland*

*

Supports only the interfaces listed in the Country Mode feature description

Programming

Quick Reference Guide 13

Programming

The reader is factory-configured with a set of standard
default features. After scanning the interface bar code from
the Interfaces section, select other options and customize
your reader through use of the programming bar codes avail­able in the QuickScan QD24XX PRG. Check the corresponding
features section for your interface, and also the Data Editing
and Symbologies chapters of the PRG.

Using Programming Bar Codes

This manual contains bar codes which allow you to reconfig­ure your reader. Some programming bar code labels, like the
"Reset Default Settings" on page 13, require only the scan of
that single label to enact the change.

Other bar codes require the reader to be placed in Program­ming Mode prior to scanning them. Scan an ENTER/EXIT bar
code once to enter Programming Mode; scan the desired
parameter settings; scan the ENTER/EXIT bar code again to
accept your changes, which exits Programming Mode and
returns the reader to normal operation.

Configure Other Settings

Additional programming bar codes are available in the PRG to
allow for customizing programming features. If your installa­tion requires different programming than the standard fac­tory default settings, refer to the PRG.

Resetting Product Defaults

If you aren’t sure what programming options are in your
reader, or you’ve changed some options and want your cus­tom factory settings restored, scan the bar code below to
reset the reader to its initial configuration. Reference the PRG
for other options, and a listing of standard factory settings.

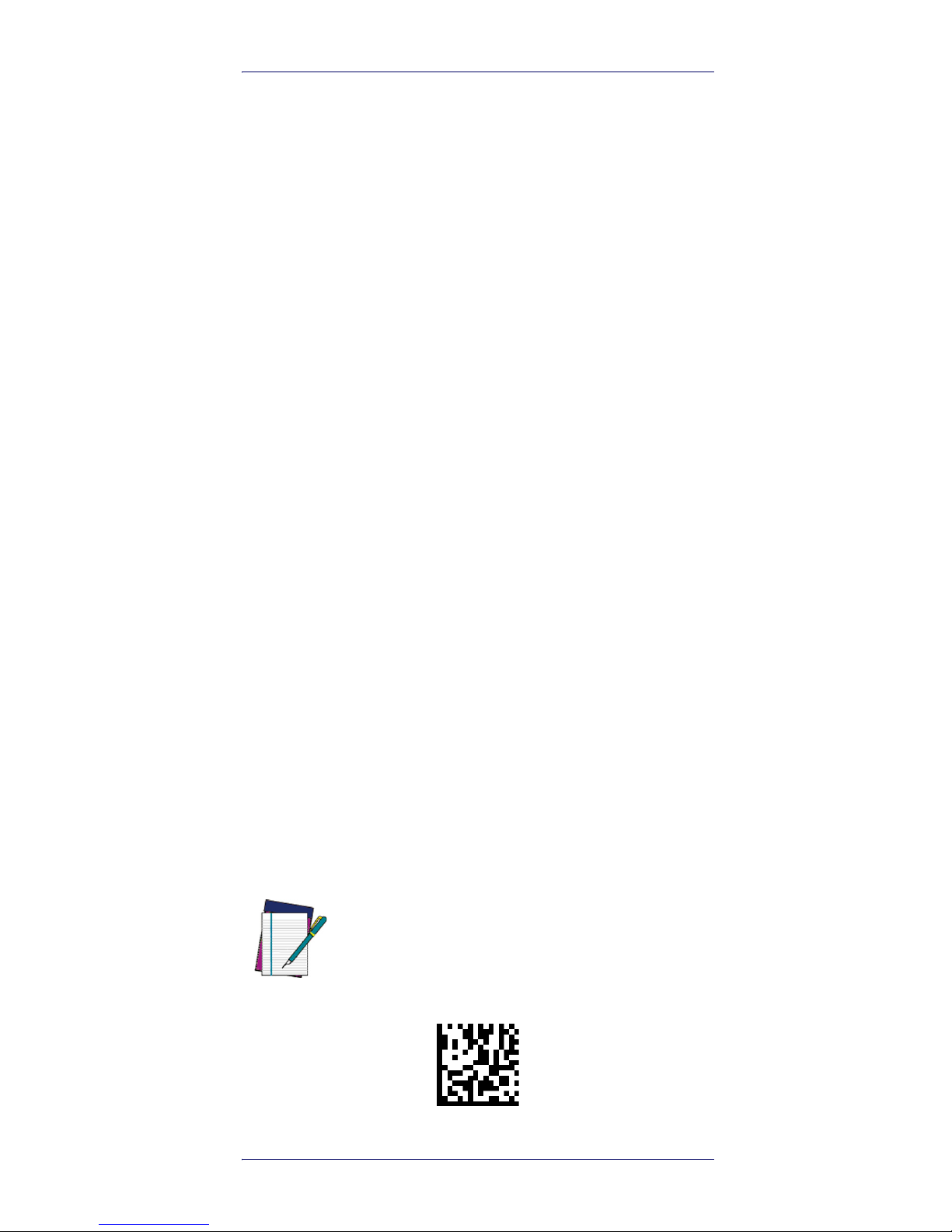

NOTE

Factory defaults are based on the interface type.
Be sure your reader is configured for the correct
interface before scanning this label. See "Select­ing the Interface Type" on page 4 for more infor­mation.

Reset Default Settings

Programming

14 QuickScan™ QD2430

Caps Lock State

This option specifies the format in which the reader sends
character data. This applies to keyboard wedge interfaces.
This does not apply when an alternate key encoding keyboard
is selected.

CAPS LOCK STATE

ENTER/EXIT PROGRAMMING MODE

Caps Lock State = Caps Lock OFF

Caps Lock State = Caps Lock ON

Caps Lock State = AUTO Caps Lock Enable

Programming

Quick Reference Guide 15

Numlock

This option specifies the setting of the Numbers Lock (Num­lock) key while in keyboard wedge interface. This only applies
to alternate key encoding interfaces. It does not apply to USB
keyboard.

NUMLOCK

ENTER/EXIT PROGRAMMING MODE

Numlock = Numlock key unchanged

Numlock = Numlock key toggled

Reading Parameters

16 QuickScan™ QD2430

Reading Parameters

Move the reader toward the target and center the aiming pat­tern and illumination system to capture and decode the
image. See Using the Quickscan™ QD24XX on page 3 for more
information.

The aiming system will briefly switch off after the acquisition
time, and if no code is decoded will switch on again before the
next acquisition. The illuminator will remain on until the sym­bol is decoded.

As you read code symbols, adjust the distance at which you
are holding the reader.

Aiming System

A number of options for customizing control of the Aiming
System are available. See the QuickScan QD24XX PRG for
more information and programming bar codes.

Good Read Green Spot Duration

Successful reading can be signaled by a good read green spot.
Use the bar codes that follow to specify the duration of the
good read pointer beam after a good read.

GOOD READ GREEN SPOT DURATION

ENTER/EXIT PROGRAMMING MODE

Disabled



Short (300 ms)

Medium (500 ms)

Long (800 ms)

Operating Modes

Quick Reference Guide 17

Operating Modes

Scan Mode

The imager can be set to operate in one of several scanning
modes. See the PRG for more information and settings for
any of the options:

Trigger Single (Default) —

This mode is associated with typical
handheld reader operation. When the trigger is pulled, illumi­nation is turned on and the scanner attempts to read a label.
Scanning is activated until one of the following occurs:

• the programmable “maximum scan on time”

1

has

elapsed

• a label has been read

• the trigger is released

Trigger Pulse Multiple —

Scanning begins when the trigger is
pulled and continues after the trigger is released, until the
trigger is pulled again or until the programmable “maximum
scan on time”

1

has elapsed. Reading a label does not disable

scanning. Double Read Timeout

1

prevents undesired multiple

reads while in this mode.

Trigger Hold Multiple —

When the trigger is pulled, scanning
starts and the product scans until the trigger is released or
“maximum scan on time”

1

has elapsed. Reading a label does

not disable scanning. Double Read Timeout

1

prevents unde-

sired multiple reads while in this mode.

Always On —

The illuminator is always ON and the reader is

always ready for code reading. Double Read Timeout

1

pre-

vents undesired multiple reads.

Flashing —

The reader illuminator flashes on and off regard­less of the trigger status. Code reading takes place only
during the Flash On

2

time. Double Read Timeout1 prevents

undesired multiple reads.

Object Detection —

The scanner looks for changes within its
field-of-view. The Aiming Pattern is always on to show the
optimum reading area. If a predefined amount of movement
is detected, the red illumination switches on. Scanning con­tinues until a label is read or "maximum scan on time" is
reached.

1. See the Product Reference Guide (PRG) for these and
other programmable features

2. Controlled by Flash On Time and Flash Off Time. Use
the PRG to program these options.

Operating Modes

18 QuickScan™ QD2430

SCAN MODE



Scan Mode = Trigger Single

Scan Mode = Trigger

Pulse Multiple

Scan Mode = Trigger

Hold Multiple

Scan Mode = Flashing

Scan Mode = Always On

Scan Mode =

Object Detection

Operating Modes

Quick Reference Guide 19

Pick Mode

Specifies the ability of the reader to decode labels only when
they are close to the center of the aiming pattern, which is the
area indicated by the two blue arrows. Pick Mode is a Decod­ing and Transmission process where bar codes that are not
within the configurable distance from the center of the aiming
pattern are not acknowledged or transmitted to the host. It is
active only while the scanner is in Trigger Single mode. If the
scanner switches to a different Read Mode, Pick Mode is
automatically disabled.

Multiple Label Reading

The reader offers a number of options for multiple label read­ing. See the PRG or software configuration tool for descrip­tions of these features and programming labels.

NOTE

This feature is not compatible with Multiple
Labels Reading in a Volume. See the PRG for
more information.

PICK MODE

ENTER/EXIT PROGRAMMING MODE



PIck Mode = Disable

Pick Mode = Enable

Technical Specifications

20 QuickScan™ QD2430

Technical Specifications

The following table contains Physical and Performance Char­acteristics, User Environment and Regulatory information.

Item Description

Physical Characteristics

Color Black & white

Dimensions

Height 6.4"/163 mm
Length 3.6"/91 mm
Width 1.6"/41 mm

Weight (without cable) Approximately 5.1 ounces/145 g

Electrical Characteristics

Voltage & Current

Input Voltage: 4.5 - 14.0VDC
Operating (typical): 140mA
Operating (max): 380mA
Idle/standby (typical): 50mA

Performance Characteristics

Light Source LEDs

Roll (Tilt) Tolerance Up to ± 360°

Pitch Tolerance ± 65°

Skew (Yaw) Tolerance ± 60°

Print Contrast
Minimum

25% minimum reflectance

Depth of Field (Typical)

a

Symbology

Code 39

5mil: 0.2" - 5.9" (0.5 - 15cm)
10mil: 0" - 8.7" (0 - 22cm)
20mil: up to 16" (40cm)

EAN

7.5mil: 0" - 5.9" (0 - 15cm)
13mil: 0.2" - 13.8" (0.5 - 35cm)

PDF-417

6.6mil: 0.39" - 5.1" (1.0 - 130cm)
10mil: 0" - 8.3" (0 - 21cm)
15mil: 0.2" - 9.5" (0.5 - 24cm)

Technical Specifications

Quick Reference Guide 21

Symbology

DataMatrix

10mil: 0.39" - 5.1" (1.0 - 13 cm)
15mil: 0" - 7.1" (0 - 18cm)

QR Code

10mil: 0.2" - 5.1" (0.5 - 13cm)
15mil: 0" - 7.1" (0 - 18cm)

Minimum
Element Width

Standard Range:

1D Min Resolution = 4 mil
PDF-417 Min Resolution = 5 mil
Datamatrix Min Resolution = 7.5 mil

a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade

A, typical environmental light, 20°C, label inclination 10°

Decode Capability

1D Bar Codes

UPC/EAN/JAN (A, E, 13, 8); UPC/EAN/JAN (including P2 /P5); UPC/
EAN/JAN (including; ISBN / Bookland & ISSN); UPC/EAN Coupons;
Code 39 (including full ASCII); Code 39 Trioptic; Code39 CIP (French
Pharmaceutical); LOGMARS (Code 39 w/ standard check digit
enabled); Danish PPT; Code 32 (Italian Pharmacode 39); Code 128;
Code 128 ISBT; Interleaved 2 of 5 ; Standard 2 of 5; Interleaved 2 of 5
CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Matrix 2 of 5; IATA 2of5 Air
cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar; EAN
128; Code 93 ; MSI; PZN; Plessey; Anker Plessey; GS1 DataBar Omni­directional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1
DataBar Truncated; DATABAR Expanded Coupon.

2D / Stacked Codes

The QuickScan QD24XX scanner is capable of decoding the follow­ing symbologies using multiple frames (i.e. Multi-Frame Decoding):

Datamatrix; Inverse Datamatrix; Datamatrix is configurable for the
following parameters:; Normal or Inverted; Square or Rectangular
Style; Data length (1 - 3600 characters); Maxicode; QR Codes (QR,
Micro QR and Multiple QR Codes); Aztec; Postal Codes - (Australian
Post; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail
Code (RM45CC); Intelligent Mail Barcode (IMB); Sweden Post; Portu­gal Post); LaPoste A/R 39; PDF-417; MacroPDF; Micro PDF417; GS1
Composites (1 - 12); French CIP13

a

; GS1 DataBar Stacked; GS1
DataBar Stacked Omnidirectional; GS1 DataBar Expanded Stacked;
GSI Databar Composites; Chinese Sensible Code; Inverted 2D codes

b

.

a

It is acceptable to handle this with ULE

b

The SW can apply the Normal/Reverse Decoding Control to the following

symbologies: Datamatrix, QR, Micro QR, Aztec and Chinese Sensible Code.

Interfaces Supported

RS-232, Keyboard Wedge, USB Com Std.,
USB Keyboard, USB OEM

LED and Beeper Indications

22 QuickScan™ QD2430

LED and Beeper Indications

The reader’s beeper sounds and its top multi-colour LED illu­minates to indicate various functions or errors on the reader.
An optional “Green Spot” also performs useful functions. The
following tables list these indications. One exception to the
behaviors listed in the tables is that the reader’s functions are
programmable, and so may or may not be turned on. For
example, certain indications such as the power-up beep can
be disabled using programming bar code labels.

User Environment

Operating Temperature 0° to 50° C (32° to 122° F)

Storage Temperature -40° to 70 °C (-40° to 158° F)

Humidity

Operating: 0% to 95% relative humidity,
non-condensing

Drop Specifications

Scanner withstands 18 drops from 1.5
meters (5.0 feet) to concrete

Ambient Light
Immunity

Up to 86,000 Lux

Contaminants Spray/
rain Dust/particulates

IEC 529-IP42
(IP52 QD2430-E model only)

ESD Level 16 KV

Regulatory

SEE REGULATORY ADDENDUM

Indicator Description LED Beeper

Power-up
Beep

The reader is in
the process of
powering-up.

Reader beeps
four times at
highest fre­quency and vol­ume upon
power-up.

LED and Beeper Indications

Quick Reference Guide 23

Good Read
Beep

A label has been
successfully
scanned by the
reader.

LED behavior
for this indica­tion is configu­rable via the
feature “Good
Read: When to
Indicate”
(see the PRG for
information.)

The reader will
beep once at
current fre­quency, vol­ume, mono/bi­tonal setting
and duration
upon a suc­cessful label
scan.

ROM Failure

There is an error
in the reader's
software/pro­gramming

Flashes

Reader sounds
one error beep
at highest vol­ume.

Limited
Scanning
Label Read

Indicates that a
host connection
is not estab­lished.

N/A

Reader 'chirps'
six times at the
highest fre­quency and
current volume.

Reader Active
Mode

The reader is
active and ready
to scan.

The LED is lit

steadily

a

N/A

Reader
Disabled

The reader has
been disabled by
the host.

The LED blinks
continuously

N/A

Green Spot

a

flashes
momentarily

Upon success­ful read of a
label, the soft­ware shall turn
the green spot
on for the time
specified by the
configured
value.

N/A N/A

a

Except when in sleep mode or when a Good Read LED Duration other than
00 is selected

Indicator Description LED Beeper

LED and Beeper Indications

24 QuickScan™ QD2430

Programming Mode

The following indications ONLY occur when the reader is in
Programming Mode

.

Indicator Description LED Beeper

Indicator Description LED Beeper

Label Pro­gramming
Mode Entry

A valid program­ming label has
been scanned.

LED blinks

continuously

Reader sounds
four low fre­quency beeps.

Label Pro­gramming
Mode Rejec­tion of Label

A label has been
rejected.

N/A

Reader sounds
three times at
lowest fre­quency and
current vol­ume.

Label Pro­gramming
Mode Accep­tance of Par­tial Label

In cases where
multiple labels
must be scanned
to program one
feature, this indica­tion acknowledges
each portion as it is
successfully
scanned.

N/A

Reader sounds
one short beep
at highest fre­quency and
current vol­ume.

Label Pro­gramming
Mode Accep­tance of Pro­gramming

Configuration
option(s) have been
successfully pro­grammed via labels
and the reader has
exited Program­ming Mode.

N/A

Reader sounds
one high fre­quency beep
and 4 low fre­quency beeps
followed by
reset beeps.

Label Pro­gramming
Mode Cancel
Item Entry

Cancel label has
been scanned.

N/A

Reader sounds
two times at
low frequency
and current
volume.

Error Codes

Quick Reference Guide 25

Error Codes

Upon startup, if the reader sounds a long tone, this means the
reader has not passed its automatic Selftest and has entered
FRU (Field Replaceable Unit) isolation mode. If the reader is
reset, the sequence will be repeated. Press and release the
trigger to hear the FRU indication code.

The following table describes the LED flashes/beep codes
associated with an error found.

Number

of LED

Flashes/

Beeps

Error Corrective Action

1 Configuration

Contact Helpdesk for

assistance

2 Interface PCB

6Digital PCB

11 Imager

Cleaning

26 QuickScan™ QD2430

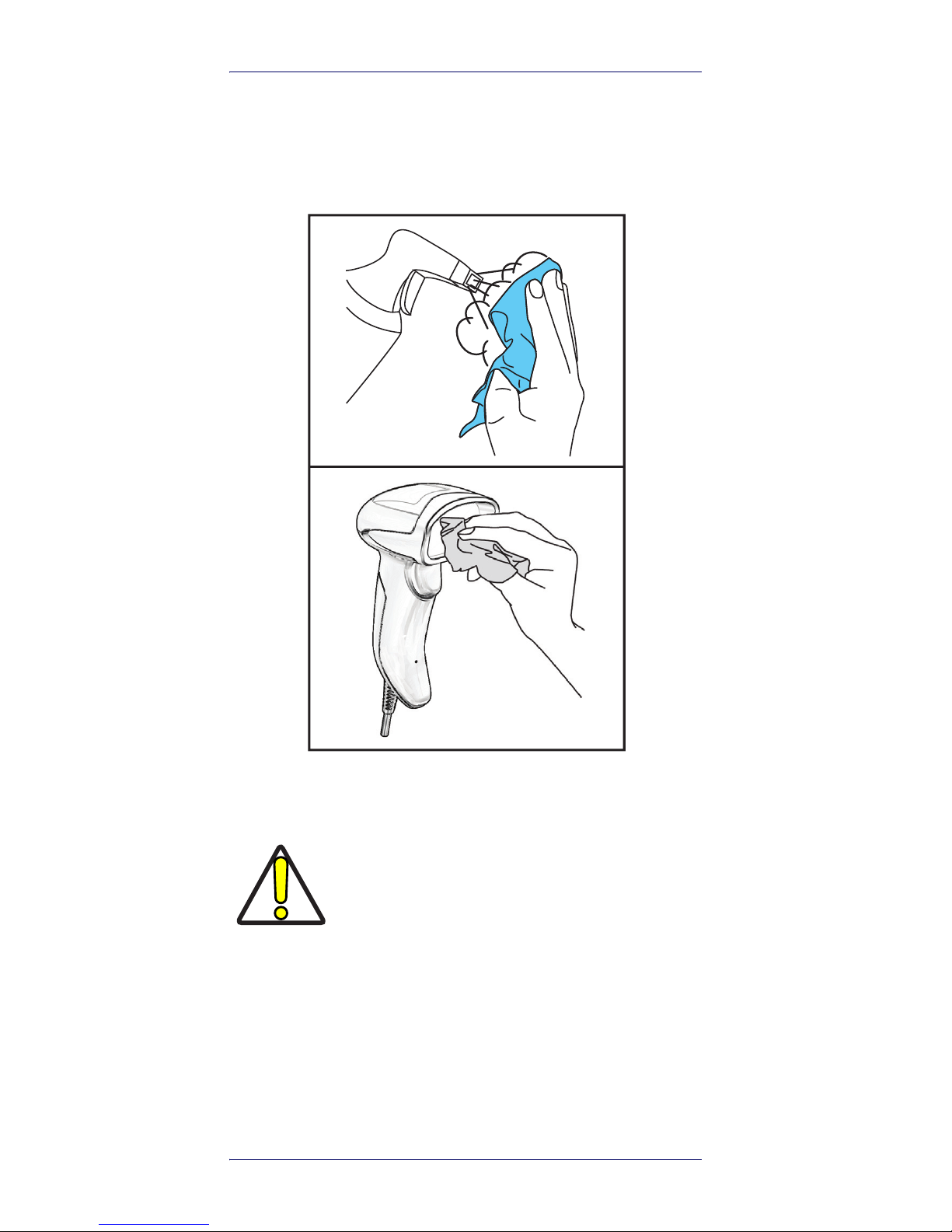

Cleaning

Exterior surfaces and scan windows exposed to spills,
smudges or debris require periodic cleaning to ensure best
performance during scanning.

Use a soft, dry cloth to clean the product. If the product is very
soiled, clean it with a soft cloth moistened with a diluted non­aggressive cleaning solution or diluted ethyl alcohol.

CAUTION

Do not use abrasive or aggressive cleansing
agents or abrasive pads to clean scan windows
or plastics.

Do not spray or pour liquids directly onto the
unit.

Cleaning

Quick Reference Guide 27

Datalogic Limited Factory Warranty

Warranty Coverage

Datalogic warrants to Customer that Datalogic's products will be free
from defects in materials and workmanship for a period of five years
from product shipment. Datalogic (“Datalogic”) hardware products
are warranted against defects in material and workmanship under
normal and proper use. The liability of Datalogic under this warranty
is limited to furnishing the labor and parts necessary to remedy any
defect covered by this warranty and restore the product to its normal
operating condition. Repair or replacement of product during the war­ranty does not extend the original warranty term. Products are sold
on the basis of specifications applicable at the time of manufacture
and Datalogic has no obligation to modify or update products once
sold.

If Datalogic determines that a product has defects in material or
workmanship, Datalogic shall, at its sole option repair or replace the
product without additional charge for parts and labor, or credit or re­fund the defective products duly returned to Datalogic. To perform re­pairs, Datalogic may use new or reconditioned parts, components,
subassemblies or products that have been tested as meeting appli­cable specifications for equivalent new material and products. Cus­tomer will allow Datalogic to scrap all parts removed from the
repaired product. The warranty period shall extend from the date of
shipment from Datalogic for the duration published by Datalogic for
the product at the time of purchase (Warranty period). Datalogic war­rants repaired hardware devices against defects in workmanship and
materials on the repaired assembly for a 90 day period starting from
the date of shipment of the repaired product from Datalogic or until
the expiration of the original warranty period, whichever is longer. Da­talogic does not guarantee, and it is not responsible for, the mainte­nance of, damage to, or loss of configurations, data, and applications
on the repaired units and at its sole discretion can return the units in
the “factory default” configuration or with any software or firmware
update available at the time of the repair (other than the firmware or
software installed during the manufacture of the product). Customer
accepts responsibility to maintain a back up copy of its software and
data.

Warranty Claims Process

In order to obtain service under the Factory Warranty, Customer must
notify Datalogic of the claimed defect before the expiration of the ap­plicable Warranty period and obtain from Datalogic a return authori­zation number (RMA) for return of the product to a designated
Datalogic service center. If Datalogic determines Customer’s claim is
valid, Datalogic will repair or replace product without additional
charge for parts and labor. Customer shall be responsible for packag­ing and shipping the product to the designated Datalogic service cen­ter, with shipping charges prepaid. Datalogic shall pay for the return
of the product to Customer if the shipment is to a location within the
country in which the Datalogic service center is located. Customer
shall be responsible for paying all shipping charges, duties, taxes, and
any other charges for products returned to any other locations. Fail­ure to follow the applicable RMA policy, may result in a processing fee.
Customer shall be responsible for return shipment expenses for
products which Datalogic, at its sole discretion, determines are not
defective or eligible for warranty repair.

Cleaning

28 QuickScan™ QD2430

Warranty Exclusions

The Datalogic Factory Warranty shall not apply to:

(i) any product which has been damaged, modified, altered,

repaired or upgraded by other than Datalogic service person­nel or its authorized representatives;

(ii) any claimed defect, failure or damage which Datalogic

determines was caused by faulty operations, improper use,
abuse, misuse, wear and tear, negligence, improper storage
or use of parts or accessories not approved or supplied by
Datalogic;

(iii) any claimed defect or damage caused by the use of product

with any other instrument, equipment or apparatus;

(iv) any claimed defect or damage caused by the failure to pro-

vide proper maintenance, including but not limited to clean­ing the upper window in accordance with product manual;

(v) any defect or damage caused by natural or man-made

disaster such as but not limited to fire, water damage, floods,
other natural disasters, vandalism or abusive events that
would cause internal and external component damage or
destruction of the whole unit, consumable items;

(vi) any damage or malfunctioning caused by non-restoring

action as for example firmware or software upgrades, soft­ware or hardware reconfigurations etc.;

(vii) the replacement of upper window/cartridge due to scratch-

ing, stains or other degradation and/or

(viii) any consumable or equivalent (e.g., cables, power supply,

batteries, keypads, touch screen, triggers etc.).

No Assignment

Customer may not assign or otherwise transfer its rights or obliga­tions under this warranty except to a purchaser or transferee of prod­uct. No attempted assignment or transfer in violation of this
provision shall be valid or binding upon Datalogic.

DATALOGIC'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WAR­RANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR
OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WAR­RANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PUR­POSE, OR NONINFRINGEMENT. DATALOGIC SHALL NOT BE LIABLE
FOR ANY DAMAGES SUSTAINED BY CUSTOMER ARISING FROM DE­LAYS IN THE REPLACEMENT OR REPAIR OF PRODUCTS UNDER THE
ABOVE. THE REMEDY SET FORTH IN THIS WARRANTY STATEMENT IS
THE CUSTOMER’S SOLE AND EXCLUSIVE REMEDY FOR WARRANTY
CLAIMS. UNDER NO CIRCUMSTANCES WILL DATALOGIC BE LIABLE TO
CUSTOMER OR ANY THIRD PARTY FOR ANY LOST PROFITS, OR ANY
INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR CONTINGENT
DAMAGES REGARDLESS OF WHETHER DATALOGIC HAD ADVANCE
NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Risk of Loss

Customer shall bear risk of loss or damage for product in transit to
Datalogic. Datalogic shall assume risk of loss or damage for product
in Datalogic’s possession. In the absence of specific written instruc­tions for the return of product to Customer, Datalogic will select the
carrier, but Datalogic shall not thereby assume any liability in connec­tion with the return shipment.

Ergonomic Recommendations

Quick Reference Guide 29

Ergonomic Recommendations

• Reduce or eliminate repetitive motion

• Maintain a natural position

• Reduce or eliminate excessive force

• Keep objects that are used frequently within easy
reach

• Perform tasks at correct heights

• Reduce or eliminate vibration

• Reduce or eliminate direct pressure

• Provide adjustable workstations

• Provide adequate clearance

• Provide a suitable working environment

• Improve work procedures.

Support Through the Website

Datalogic provides several services as well as technical sup­port through its website.

Log on to www.datalogic.com and click on the SUPPORT >

General Duty Handheld Scanners category link. From this

page you can select your product model from the dropdown
list which gives you access to:

Downloads including Data Sheets, Manuals, Software & Utili-

ties, and Drawings;

Repair Program for On-Line Return Material Authorizations

(RMAs) plus Repair Center contact information;

Service Program containing details about Maintenance

Agreements;

Technical Support through email or phone.

CAUTION

In order to avoid or minimize the potential risk
of ergonomic injury follow the recommendations
below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your
company’s safety programs to prevent employee
injury.

Support Through the Website

30 QuickScan™ QD2430

www.datalogic.com

820097114 (Rev C) July 2017
