Datalogic Jet User Manual

Download

Datalogic Jet™

User’s Manual

Datalogic Mobile S.r.l. Via S. Vitalino 13 40012 - Lippo di Calderara di Reno Bologna - Italy

Datalogic Jet™ - User's Manual

Software Version: 5.51

Ed.: 06/2008

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic S.p.A.. All other brand and product names mentioned herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners.

Product names mentioned herein are for identification purposes only and may be trademarks and or registered trademarks of their respective companies.

REFERENCES ............................................................................................. v

Conventions .................................................................................................. v

Reference Documentation ............................................................................ v

Services and Support.................................................................................... v

SAFETY REGULATIONS............................................................................ vi

General Safety Rules....................................................................................vi

Bluetooth® Approval......................................................................................vi

Power Supply................................................................................................vi

Laser Safety.................................................................................................vii

Radio Compliance......................................................................................... x

FCC Compliance..........................................................................................xii

SAR Compliance..........................................................................................xii

Patents.........................................................................................................xii

WEEE Compliance .....................................................................................xiii

GENERAL VIEW ........................................................................................ xv

1 INTRODUCTION .......................................................................................... 1

1.1 Datalogic Jet™ PDA Description ..................................................................1

1.2 Available Models........................................................................................... 2

1.3 Package Contents......................................................................................... 2

1.4 Inserting Mini SD Card.................................................................................. 4

1.5 Installing the SIM Card.................................................................................. 6

1.5.1 Removing the SIM Card................................................................................ 8

1.6 Accessories...................................................................................................9

1.7 Operating System .......................................................................................10

2 CONNECTIONS ......................................................................................... 11

2.1 RS232/USB Direct Connection ...................................................................11

2.2 WLAN Connection ......................................................................................12

2.3 WPAN Connection ......................................................................................14

2.4 WWAN Connection .....................................................................................16

2.5 GPS Connection ......................................................................................... 18

2.6 Cradle Connections .................................................................................... 21

2.7 Connection Cables...................................................................................... 22

3 USE AND FUNCTIONING.......................................................................... 23

3.1 PDA Startup................................................................................................ 23

3.2 Windows Mobile Welcome Wizard.............................................................. 25

3.3 Using the Stylus .......................................................................................... 26

3.4 Data Capture............................................................................................... 27

3.4.1 Laser Data Capture..................................................................................... 27

3.4.2 Imager Data Capture .................................................................................. 28

iii

3.4.3 RFID Data Capture ..................................................................................... 29

3.5 Description of the Keys ...............................................................................30

3.5.1 System Control and Navigation Keys.......................................................... 30

3.5.2 Key Selection.............................................................................................. 31

3.5.3 Resetting the Jet......................................................................................... 33

3.6 Status Indicators ......................................................................................... 36

3.6.1 LED Status.................................................................................................. 36

3.6.2 Taskbar....................................................................................................... 37

3.7 Data Capture Configuration ........................................................................39

3.7.1 Configure .................................................................................................... 39

3.7.2 Capture ....................................................................................................... 45

3.8 Control Panel .............................................................................................. 46

3.8.1 Buttons........................................................................................................ 47

3.8.2 Registry....................................................................................................... 49

3.8.3 Files Admin ................................................................................................. 50

3.8.4 Wireless Communications........................................................................... 52

3.8.5 GPS Settings .............................................................................................. 54

3.8.6 Ethernet Settings ........................................................................................ 60

3.8.7 Stylus Calibration ........................................................................................ 63

3.8.8 Volume Settings.......................................................................................... 66

3.9 Windows Connections ................................................................................ 70

3.9.1 Microsoft® ActiveSync® ............................................................................. 70

3.9.2 Bluetooth® Manager Device Setup............................................................. 72

3.9.3 FTP Server Setup .......................................................................................80

3.10 Backup Directory File Management ............................................................81

3.11 Firmware Update For Windows CE............................................................. 82

4 MAINTENANCE .........................................................................................85

4.1 Charging the Battery Pack ..........................................................................85

4.2 Replacing the Battery Pack.........................................................................86

4.3 Cleaning the PDA .......................................................................................89

5 TECHNICAL FEATURES........................................................................... 90

5.1 Technical Data ............................................................................................ 90

5.2 Reading Diagrams ......................................................................................94

6 TEST CODES............................................................................................. 95

GLOSSARY................................................................................................ 98

INDEX....................................................................................................... 101

REFERENCES

CONVENTIONS

This manual uses the following conventions:

“User” refers to anyone using a Datalogic Jet™ PDA. “Mobile computer”, “PDA” and " “You” refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a Datalogic Jet™ PDA.

REFERENCE DOCUMENTATION

For further information regarding

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website. Log on to www.mobile.datalogic.com and click on the information including:

- PRODUCTS

Search through the links to arrive at your product page where you can download specific

Manuals and Software & Utilities

Datalogic Jet™" refer to Datalogic Jet™ PDA.

Datalogic Jet™ refer to the SDK Help on-Line.

links indicated for further

- SERVICES & SUPPORT

- Datalogic Services Warranty Extensions and Maintenance Agreements

- Authorised Repair Centres

- CONTACT US

E-mail form and listing of Datalogic Subsidiaries

SAFETY REGULATIONS

Read this manual carefully before performing any type of connection to the Datalogic Jet™ PDA. The user is responsible for any damages caused by incorrect use of

NOTE

GENERAL SAFETY RULES

− Use only the components supplied by the manufacturer for the specific Datalogic Jet™ PDA being used.

− Do not attempt to disassemble the Datalogic Jet™ PDA, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty.

− When replacing the battery pack or at the end of the operative life of the Datalogic Jet™ PDA, disposal must be performed in compliance with the laws in force. See also par. 4.2.

− Do not submerge the Datalogic Jet™ PDA in liquid products.

BLUETOOTH® APPROVAL

This product is equipped with the following certified Bluetooth module:

Product Name: Datalogic CE BLUETOOTH SUBSYSTEM

Bluetooth ID

Product ID

POWER SUPPLY

This device is intended to be supplied by a UL Listed/CSA Certified Power Unit marked "Class 2" or LPS power source rated 12-14 V DC, minimum 1 A which supplies power directly to the PDA.

the equipment or by inobservance of the indication supplied in this manual.

: B03071

: DLBTCE-02

LASER SAFETY

The laser light is visible to the human eye and is emitted from the window indicated in the figure. This information applies to both Laser models and the Datalogic Jet™ Imager Aiming System.

Laser output window

AVOID EXPOSURE

LASER LIGHT

IS EMITTED FROM

THIS APERTURE

LASER LIGHT - DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1.4 mW

EMITTED WAVELENGTH 630~680 nm

CAUTION-CLASS 2 LASER LIGHT WHEN OPEN - DO NOT STARE INTO BEAM

This product complies wit h

EN60825-1:2001

21 CFR Subchapter J

I D F E

La luce laser è visibile all'occhio umano e viene emessa dalla finestra indicata nella figura.

LUCE LASER NON FISSARE IL FASCIO APPARECCHIO LASER DI CLASSE 2 MINIMA POTENZA DI USCITA: LUNGHEZZA D'ONDA EMESSA: CONFORME A EN 60825-1 (2001)

Die Laserstrahlung ist für das menschliche Auge sichtbar und wird am Strahlaustrittsfenster ausgesendet (siehe Bild).

LASERSTRAHLUNG NICHT IN DER STRAHL BLINKEN PRODUKT DER LASERKLASSE 2 MAXIMALE AUSGANGLEISTUNG: WELLENLÄNGE: ENTSPR. EN 60825-1 (2001)

Le rayon laser est visible à l'œil nu et il est émis par la fenêtre désignée sur l'illustration dans la figure.

RAYON LASER EVITER DE REGARDER LE RAYON APPAREIL LASER DE CLASSE 2 PUISSANCE DE SORTIE: LONGUER D'ONDE EMISE: CONFORME A EN 60825-1 (2001)

La luz láser es visible al ojo humano y es emitida por la ventana indicada en la figura.

RAYO LÁSER NO MIRAR FIJO EL RAYO APARATO LÁSER DE CLASE 2 MÁXIMA POTENCIA DE SALIDA: LONGITUD DE ONDA EMITIDA: CONFORME A EN 60825-1 (2001)

vii

ENGLISH

The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your PDA.

STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 and EN 60825-1 at the date of manufacture. For installation, use and maintenance, it is not necessary to open the device.

Use of controls or adjustments or performance of procedures other than those specified herein may result in exposure to hazardous

WARNING

visible laser light.

The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the laser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.

ITALIANO

Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del PDA.

NORMATIVE STANDARD PER LA SICUREZZA LASER Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 e EN 60825-1. Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o manutenzione.

L'utilizzo di procedure o regolazioni differenti da quelle descritte nella documentazione può provocare un'esposizione pericolosa

ATTENZIONE

a luce laser visibile.

Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un osservatore, anche attraverso superfici riflettenti come gli specchi.

viii

DEUTSCH

Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten Gebrauch vom PDA.

NORM FÜR DIE LASERSICHERHEIT Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1 und CDRH 21 CFR 1040 Normen für die Lasersicherheit. Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und WartungsArbeiten zu öffnen.

Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in dieser Betriebsanleitung beschrieben werden, können ein

ACHTUNG

gefährliches Laserlicht verursachen.

Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch gegen reflektierende Oberflächen zu richten.

FRANÇAIS

Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du PDA.

NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1. Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien.

L'utilisation de procédures ou réglages différents de ceux donnés ici peut entraîner une dangereuse exposition à lumière laser

ATTENTION

visible.

Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces réfléchissantes (miroirs, par exemple).

ESPAÑOL

Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se refieren al uso correcto del PDA.

NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de seguridad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1. No es necesario abrir el aparato para la instalación, la utilización o la manutención.

La utilización de procedimientos o regulaciones diferentes de aquellas describidas en la documentación puede causar una

ATENCIÓN

exposición peligrosa a la luz láser visible.

El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un observador, también a través de superficies reflectantes como los espejos.

LED Illuminator

The use of an illuminator in the Datalogic Jet™ Imager is a Class 1 LED product:

CLASS 1 LED PRODUCT ILLUMINATORE LED CLASSE 1 AUSLEUCHTER LED KLASSE 1 ILLUMINATEUR A LED DE CLASSE 1 ILUMINADOR LED DE CLASE 1

RADIO COMPLIANCE

In radio systems configured with PDAs and access points, the frequencies to be used must be allowed by the spectrum authorities of the specific country in which the installation takes place. Be absolutely sure that the system frequencies are correctly set to be compliant with the spectrum requirements of the country.

The Radio modules used in this product automatically adapt to the frequencies set by the system and do not require any parameter settings.

The following shows the correspondence between the Datalogic Jet™ models and the Radio modules:

 DLBJET™ 5XX-XXX-XXX 802.11b (Wi-Fi) radio card  DLBJET ™ 7XX-XXX-XXX 802.11b/g (Wi-Fi) radio card  DLBJET ™ X1X-XXX-XXX GSM/GPRS Tri-band (900, 1800, 1900 MHz) module  DLBJET ™ DLBJET ™ X4X-XXX-XXX GSM/GPRS Tri-band +GPS modules

Information for the User

ENGLISH

Contact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer to the web site information.

Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificare eventuali restrizioni o licenze. Ulteriori informazioni sono disponibili sul sito:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

Contactez l'autorité compétente en la gestion des appareils à radio fréquence de votre pays pour vérifier d'éventuelles restrictions ou licences. Pour tout renseignement vous pouvez vous adresser au site web:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

Wenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes, um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. Weitere Informationen finden Sie auf der Web Seite:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

Contacta la autoridad competente para la gestión de los dispositivos de radio frecuencia de tu país, para verificar cualesquiera restricciones o licencias posibles requerida. Además se puede encontrar mas información en el sitio web:

http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further

ITALIANO

FRANÇAIS

DEUTSCH

ESPAÑOL

FCC COMPLIANCE

Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment.

This device has been tested and found to comply with the limits for a CLASS A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC ID U4G0019. All DLBJET™ 5XX-XXX-XXX Wi-Fi models contain FCC ID H9PLA4137. All DLBJET™ 7XX-XXX-XXX Wi-Fi models contain FCC ID TWG-SDCCF10G. All DLBJET™ GSM models contain FCC ID QIPMC55. All DLBJET™ RFID models contain FCC ID U4F0018

SAR COMPLIANCE

This product has been tested and found to comply with the following standards:

- EN50360: product standard to demonstrate the compliance of mobile phones with the

basic restrictions related to human exposure to electromagnetic fields (300 MHz – 3 GHz).

- EN50361: basic standard for the measurement of specific absorption rate related to

human exposure to electromagnetic fields from mobile phones (300 MHz – 3 GHz).

- OET BULLETIN 65 SUPPLEMENT C: evaluating compliance with FCC guidelines

for human exposure to radio frequency electromagnetic fields.

- Australian Radiation Protection And Nuclear Safety Agency (ARPANSA): radiation

protection series publication No. 3: maximum exposure levels to radio frequency fields 3 KHz TO 300 GHz.

PATENTS

This product is covered by one or more of the following patents:

U.S. Pat.: 5,992,740; 6,512,218 B1; 6,877,664 B1; 7,102,116 B2; 7,282,688 B2 European Pat.: 681,257 B1; 789,315 B1; 999,514 B1 Additional patents pending.

xii

WEEE COMPLIANCE

Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC

L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani.

Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:

 evitare possibili conseguenze negative per l’ambiente e per la salute umana che

potrebbero invece essere causati dall’errato smaltimento dello stesso;

 recuperare materiali di cui è composto al fine di ottenere un importante risparmio di

energia e di risorse.

Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.mobile.datalogic.com.

Information for the user in accordance with the European Commission Directive 2002/96/EC

At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste.

Disposing of the product according to this Directive:

 avoids potentially negative consequences to the environment and human health

which otherwise could be caused by incorrect disposal

 enables the recovery of materials to obtain a significant savings of energy and

resources.

For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website www.mobile.datalogic.com.

Information aux utilisateurs concernant la Directive Européenne 2002/96/EC

Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé avec les déchets urbains.

Éliminer ce produit selon cette Directive permet de:

xiii

 éviter les retombées négatives pour l'environnement et la santé dérivant d'une

élimination incorrecte

 récupérer les matériaux dans le but d'une économie importante en termes d'énergie

Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com.

Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE

Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos.

Eliminar este producto de accuerdo con la Directiva permite de:

Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site www.mobile.datalogic.com.

Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission

Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.

Beseitigung des Produkts entsprechend der Richtlinie:

Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter www.mobile.datalogic.com.

et de ressources

 evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas

de una eliminación inadecuada

 recuperar los materiales obteniendo así un ahorro importante de energía y recursos

 verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht die Wiederverwendung der Materialien und spart somit Energie und

Resourcen

xiv

GENERAL VIEW

Figure A – General View

A) Data capture/Laser output window B) Scan key(s) (3) C) Bluetooth® LED D) Charging status LED E) Backlit keyboard F) External power supply connector G) Communication/Charger connector H) Headset jack

I) User programmable LED J) Backlit display K) Mini SD card SLOT L) Microphone M) Latch release button N) Battery latch O) Battery pack P) Speaker

xvi

INTRODUCTION

1 INTRODUCTION

1.1 DATALOGIC JET™ PDA DESCRIPTION

The Datalogic Jet™, is the powerful Datalogic PDA. Thanks to the state-of the-art architecture and the most advanced technologies, it can provide the most suitable levels for capturing, computing and communicating data faster and easier.

In addition to the highest robustness and reliability in its class, other key features of the Datalogic Jet™ include fully integrated automatic data capture (barcodes, RFID tags and images) and superior wireless communication capabilities (WLAN, WWAN and WPAN). The PDA is also equipped with the integrated Global Positioning System (GPS) technology. Combined with its advanced wireless and data collection technologies, the result is a single comprehensive mobile solution that eliminates the need for deploying multiple devices to the field.

The Datalogic JET is equipped with a function-based keyboard for direct ERP transactions and with a web-based layout for HTML needs as well. These key requirements make the Datalogic JET perfect for use in field force automation, instore and logistics applications.

The Datalogic Jet™ enables companies and organizations worldwide to make more effective use of people and tools for receiving, storage, and shipping activities. For example, extended mobility allows simultaneous real-time inventory management and control of all stock movements to increase precision while minimizing operating costs. Data on store shelves, inventory levels and storage bins are immediately available to permit greater coordination and cut flow times.

The Datalogic Jet™ provides mobile professionals with the most relevant features needed to operate in demanding environments: reliability, ruggedness, drop resistance, long lasting batteries, flexible communication and efficient data capture. To optimize mobile applications, a user-accessible memory slot is also present to backup data, extend databases, etc.

Thanks to a set of accessories, such as a vehicle cradle (standard and loud speaker), cigarette lighter power adapter, dashboard mounting kit, with state-of-theart technology inside the PDA, the Datalogic Jet is the right answer for all data management needs on the move.

DATALOGIC JET™

1.2 AVAILABLE MODELS

The Datalogic Jet™ PDA is available in different models depending on the options it is equipped with. All options are listed below:

• communication options: Wi-Fi 802.11b, Wi-Fi 802.11b/g, GSM/GPRS, Bluetooth®;

GPS

• capture options: laser, imager, laser + RFID

• compute options (fixed): O.S. version, microprocessor type/speed, memory size

For further details about the Datalogic Jet™ PDA models refer to the web site: www.mobile.datalogic.com.

1.3 PACKAGE CONTENTS

The Datalogic Jet™ PDA package contains:

− 1 Datalogic Jet™ PDA

− 1 CD-ROM Datalogic SDK

− 1 CD-ROM Getting Started Disk only for Windows Mobile

− 2 styluses

− 3 adhesive pull tabs for Mini SD card

− 1 user’s manual

− 1 rechargeable battery pack

− 1 adjustable elastic strap with stylus holder

− 1 belt clip

− 1 belt clip pivot

Any other packages will contain the accessories necessary for the Datalogic Jet™ PDA connection to the host computer and to the network: the cradle, power supply, and one or more connection cables. Remove all the components from their packaging; check their integrity and congruity with the packing documents.

CAUTION

Keep the original packaging for use when sending products to the technical assistance center. Damage caused by improper packaging is not covered under the warranty.

INTRODUCTION

NOTE

Rechargeable battery packs are not initially charged. Therefore the first operation to perform is to charge them. See paragraph 4.1.

DATALOGIC JET™

1.4 INSERTING MINI SD CARD

With Datalogic Jet™ PDA, it is possible to add a Mini SD Card for additional storage capacity. To access the Mini SD card slot, unscrew the cover at the side of Datalogic Jet (see Figure A) and then proceed as follows:

1. Before inserting the Mini SD card, peel the adhesive pull tab and stick it onto to the Mini SD card as shown in the picture below:

2. Open the Mini SD card slot by unscrewing the two screws:

3. Insert the card with the written part upward and push it until it clicks into place:

To remove the Mini SD card slightly push it toward the inside until it clicks; the card is released, pull it out using the adhesive pull tab.

INTRODUCTION

Follow proper ESD precautions to avoid damaging the SD. Proper ESD precautions include, but are not limited to, working on an ESD mat and

CAUTION

ensuring that the operator is properly grounded. Do not force the card. If you feel resistance, remove the card, check

the orientation, and reinsert it. Do not use the SD card slot for any other accessories.

DATALOGIC JET™

1.5 INSTALLING THE SIM CARD

To correctly insert the SIM Card, proceed as follows:

1- Turn off the Datalogic Jet™ PDA.

2- Press the latch release button and pull the battery latch down as indicated in the

figures below:

3- Remove the battery pack to have access to the SIM card slot:

SIM Card Slot

Locking Plate

INTRODUCTION

4- Open the Sim Card slot by pulling up the locking plate.

5- Pull up the cardholder and insert the Sim Card with its contacts downward and

its round corner at the bottom.

6- Lock the card into place by pushing the cardholder down and then pulling the

locking plate down.

Follow proper ESD precautions to avoid damaging the SIM card. Proper ESD precautions include, but are not limited to, working on an

CAUTION

ESD mat and ensuring that the operator is properly grounded. Do not force the card. If you feel resistance, remove the card, check the orientation, and reinsert it. Do not use the SIM card slot for any other accessories.

DATALOGIC JET™

1.5.1 Removing the SIM Card

To remove the SIM card, follow the steps above to access the SIM area, and remove it from its slot.

All the basic functionalities normally associated to the SIM card are managed by the terminal (GPRS connectivity, phone calls, SMS handling).

NOTE

It is possible that not all the services connected to the SIM card can be used or can be managed by the terminal.

INTRODUCTION

1.6 ACCESSORIES

 Cradles

94A151096 Datalogic Jet™ Single Cradle Desk (includes slot for spare battery pack recharge; RS232 and USB communications)

94A151097 Jet™ Vehicle Cradle Loudspeaker 94A151100 Jet™ Vehicle Cradle Standard 94A151109 Datalogic Jet™ Ethernet Desk Multi Cradle

 Charger

94A151098 Datalogic Jet™ Multi-Battery pack Charger (4 slots)

 Batteries

94ACC1293 Datalogic Jet™ Standard Battery pack (Li-Ion battery pack 1070 mAh@7.4 V) 94ACC1294 Datalogic Jet™ Large Capacity Battery pack (Li-Ion battery pack 1800

mAh@7.4 V)

 Power Supply

94ACC1286 PG12-10P35 AC/DC Power Supply without cord for Datalogic Jet™ 94ACC1296 PG12-10P35 AC/DC Power supply EU KIT 94ACC1297 PG12-10P35 AC/DC Power supply UK KIT 94ACC1298 PG12-10P35 AC/DC Power supply US KIT 94ACC1299 PG12-10P35 AC/DC Power supply AUS KIT

94ACC4595 FPS18 Power Supply without cord for Datalogic Jet™ Single Cradle Desk and for Datalogic Jet™ Multi-Battery Charger

94ACC1150 Power cord EU 3-pin

 Cables

94A051008 WIN-NET SERIAL CABLE (HRS 3500-16P-CV) cable for RS232 direct connection between the PDA and the PC

94A051009 WIN-NET USB CABLE (HRS 3500-16P-CV) cable for USB direct connection between the PDA and the PC

94A051012 WIN-NET VEHICLE PWR CAB (HRS 3500-16P-CV) cable for powering Datalogic Jet™ from the car cigarette lighter

 Various

94ACC1331 vo-CE® Headset 94ACC1333 vo-CE® Headset Adapter For Datalogic Jet™ 94ACC1287 Datalogic Jet™ Belt Holster 94ACC1288 Datalogic Jet™ Functional Case 94ACC1307 Datalogic Jet™ Functional Case Plus 94ACC1344 Datalogic Jet™ Backstrap Kit 94ACC1308 Safe Shoulderstrap (5 pcs) 94ACC1301 Stylus Pen (20 pcs)

DATALOGIC JET™

Use only a Datalogic Mobile-approved power supply and cables. Use of an alternative power supply will invalidate any approval given to

NOTE

this device and may be dangerous.

1.7 OPERATING SYSTEM

Datalogic Jet™ comes in two different models, respectively supporting Windows CE and Windows Mobile. For further information regarding Windows Mobile refer to the website: http://www.microsoft.com/windowsmobile.

CONNECTIONS

2 CONNECTIONS

2.1 RS232/USB DIRECT CONNECTION

You can use a cable to connect the Datalogic Jet™ PDA to a host computer to transfer data.

Key:

A Host computer C RS232 cable or USB cable B Datalogic Jet™ PDA D *Power Supply

(only necessary for battery charging)

* Recommended Power Supply: PG12-10P35 AC/DC Power Supply

If the PDA supports Windows Mobile, before plugging the RS232 cable you have to check the 'COM1 Enable' option on the 'System Configuration' window. (Start -> Programs -> System

CAUTION

Configuration).

USB communication may not be completely guaranteed while batteries are simultaneously in charge. Avoid the power supply

CAUTION

connection when the USB link is active.

DATALOGIC JET™

2.2 WLAN CONNECTION

Datalogic Jet™ Wi-Fi 802.11b and Wi-Fi 802.11b/g the host using the on-board radio frequency module and an Access Point connected to the host computer.

For models using the WiFi7 radio (7xx-xxx-xxx models), you can find information about the applet for radio configuration:

http://www.summitdatacom.com/SCU.htm.

To launch this utility you can tap the specific icon if it’s visible on the taskbar or:

1. On Windows CE device, you can open Connections folder or Control Panel from desktop and select the ‘Summit Client Utility’ icon.

2. On Windows Mobile device, you can select the menu item: Start->Programs>Summit and tap the ‘Summit Client Utility’ icon.

models can communicate with

Key: A) Datalogic Jet™ PDA B) Access point C) Host – Application Server

Note: unless otherwise specified, the Wi-Fi term is used both for the 802.11b and the 802.11b/g cards.

CONNECTIONS

Wi-Fi module is on by default. In order to avoid wasting energy, you can switch it off using the Wireless Communications applet (see par. 3.8.4). To start configuring your WLAN connection, tap the Wi-Fi icon at the

NOTE

bottom of the screen.

Suspending the terminal powers off the 802.11b/g radio and drops the radio connection. When the terminal resumes, depending on the radio power mode and security protocol selected, it takes

NOTE

approximately from 10 to 30 seconds for the 802.11b/g radio driver to re-associate the radio to the network.

Area coverage and radio performance may vary, due to environmental conditions, access points types or interference caused

NOTE

by other devices (microwave ovens, radio transmitters, etc.)

2.3 WPAN CONNECTION

Datalogic Jet™ PDAs can communicate with a Bluetooth within a range of 10 m, using the on-board Bluetooth

module.

DATALOGIC JET™

device, such as a printer,

Key: A) Datalogic Jet™ PDA B) Bluetooth® printer

In order to avoid wasting energy, the Bluetooth® module is off by default. If you need to have Bluetooth® working, the module must be powered on using the Wireless Communications applet (see par.

NOTE

3.8.4), and perform the Discovery procedure (see par. 3.9.2).

The Blue LED flashing signals that the Bluetooth® module is on.

Suspending the terminal powers off the Bluetooth radio and drops the piconet (Bluetooth connection). When the terminal resumes, it takes approximately 10 seconds for the Bluetooth radio driver to re-

NOTE

initialize the radio.

CONNECTIONS

Area coverage and Bluetooth radio performance may vary, due to environmental conditions or interference caused by other devices

NOTE

(microwave ovens, radio transmitters, etc.), etc.

DATALOGIC JET™

2.4 WWAN CONNECTION

Datalogic Jet™ GSM/GPRS models enhance your connectivity solutions giving you an opening to an international wireless infrastructure that is the standard in Europe and Asia.

GSM (Global System for Mobile communications) is a digital mobile phone system based on TDMA; it utilizes the 900, 1800 and 1900 MHz bands. GPRS supports IP (Internet Protocol) and allows accessing Internet and Intranet services, such as sending and receiving e-mail or Web browsing.

In order to use a WWAN Connection you have to install a SIM Card (see instructions on par. 1.5).

NOTE

In order to avoid wasting energy, the GSM/GPRS module is off by default. If you need to have GSM/GPRS working, the module must be powered on using the Wireless Communications applet (see par. 3.8.4).

Suspending the terminal powers off the GSM/GPRS radio and drops the connection. When the terminal resumes, if the connection was managed by Microsoft Internet Explorer, it is automatically restored, otherwise, the radio connection must be manually re-initialized.

CONNECTIONS

The GSM voice capability of this mobile computer has to be addressed to occasional use, in well covered areas.

NOTE

If the coverage is poor, the voice quality can be highly affected. In case of vehicle cradle installations, a good habit is to install the external microphone to minimize the risk of noises and echoes. If the coverage is poor, in case of continuous communication, some degradation of the barcode reading capabilities can be experienced.

DATALOGIC JET™

2.5 GPS CONNECTION

Datalogic Jet™ GPS model provides a GPS Connection to allow for both satellite communications (if equipped) and geolocating abilities.

The Global Positioning System (GPS) is a satellite-based navigation system made up of a network of 24 satellites that provides location and timing information around the globe. GPS works in any weather conditions, anywhere in the world, 24 hours a day. There are no subscription fees or setup charges to use GPS.

To use the GPS Connection you have the following options:

− install a commercial navigation software with country or regional maps preinstalled on its SD Card (see instructions on par. 1.4);

− access to a free web mapping service via a GPRS/Wi-Fi connection;

− design a navigation software following the instructions on the Help SDK .

Datalogic Jet™ GPS model only supports Windows Mobile operating system.

CONNECTIONS

To locate a position, the Datalogic Jet™ GPS must be outdoors to obtain the best possible reception. First-time initialisation of GPS can take several minutes depending on the environment and quality of the reception of GPS satellite signals. If it takes longer than 5 minutes to locate a position, the user has to make sure to be in an open place without tall buildings or trees all around.

In the future, the time required for GPS acquisition will vary depending on when the device was last used:

− if the Datalogic Jet™ GPS is switched on after it has been switched off for several minutes, satellite positioning is almost instantaneous (“hot start”);

− if the Datalogic Jet™ GPS device has been switched off for more than 4 hours, the GPS could take up to five minutes (“warm start”);

− if the Datalogic Jet™ GPS is only used occasionally, and has been switched off for more than 24 hours, GPS initialisation could take from between 10 to 15 minutes (“cold start”).

The time required for GPS acquisition also varies according to the surroundings:

− if the vehicle is equipped with an athermic windscreen, GPS reception may be slower;

− if there are high buildings, narrow streets or many trees, reception will be slower. Move to an area clear of obstructions to improve reception;

− in bad weather GPS reception may be slower;

− if the Datalogic Jet™ GPS is in a building, parking lot, or a tunnel, the user will

not receive any GPS signals.

NOTE

In order to avoid wasting energy, the GPS module is off by default. If you need to have GPS working, the module must be powered on using the External GPS applet (see par. 3.8.5).

Suspending the terminal powers off the GPS and drops the connection. When the terminal resumes, if the check box “Enable GPS at reboot” was checked, the GPS connection it is automatically restored, otherwise, it must be manually re-initialized (see par. 3.8.5).

NOTE

CAUTION

DATALOGIC JET™

The user must ensure that the Datalogic Jet™ GPS is placed correctly for optimal GPS signal reception and stays in place. The GPS receiver can be tested in a stationary situation.

Many modern vehicles have a heat reflective shield embedded in the windshield preventing good reception when the GPS receiver is placed on the dashboard. To improve GPS signal strength, the Datalogic Jet™ GPS should be placed as close as possible to the windscreen, where there is a clear view of the sky.

GPS is operated and controlled under the sole responsibility of the Government of the United States of America which is responsible for its availability and accuracy. Any changes in GPS availability and accuracy, or in environmental conditions, may impact the operation of GPS. Datalogic Mobile cannot accept any liability for the availability and accuracy of GPS.

The user is entirely responsible for the positioning and use of the portable navigation system and its accessories so that it neither obstructs the driver’s visibility nor hinders operation of the vehicle’s security systems to avoid any risk of accident, injury or damage.

CONNECTIONS

Before using the Datalogic Jet™ GPS, the user should become familiar with the laws and regulations relating to satellite positioning in effect in

CAUTION

the country in which he is driving.

The distances indicated by the Datalogic Jet™ GPS can differ slightly from those indicated on the road signs. In the event of a discrepancy, the user must always follow the directions displayed on the road signs. Data (maps, routes, fixed speed cameras, traffic information, points of interest, etc.) are provided for information purposes, and are subject to modification at any time.

We recommend to use these data taking into consideration the real context of travelling: the general condition of the vehicle, its equipment, the speed, the road surface, weather conditions, etc.

The user is expected to check road signs when using satellite positioning, in particular for one-way streets and speed-limit signs. The user must also follow the Highway Code and road safety rules applicable in the country in which he is driving.

Non-compliance with these warnings could lead to accidents or damage. Datalogic Mobile and/or suppliers accept no responsibility for any use of products likely to provoke accidents, cause damage or infringe on any laws or for any other consequences, whether direct or indirect.

2.6 CRADLE CONNECTIONS

The Datalogic Jet™ can also communicate via RS232, USB and Ethernet, using various cradle models. For further details, refer to the specific cradle model User’s Manual.

2.7 CONNECTION CABLES

The following cables are listed with their order number.

 RS232 Direct Connection:

94A051008 WIN-NET SERIAL CABLE (HRS 3500-16P-CV)

 USB Direct Connection:

94A051009 WIN-NET USB CABLE (HRS 3500-16P-CV)

 Power Supply Polarity:

Datalogic Jet™ side

16-pin

6 2

Datalogic Jet™ side

16-pin

14 15

HOST/PC side

9-pin (female)

CTS

RTS

DSR

DTR

GND

V+

D+

D-

VEXT

DATALOGIC JET™

HOST/PC side

9-pin (female)

GND

USE AND FUNCTIONING

3 USE AND FUNCTIONING

The use of the Datalogic Jet™ PDA depends on the application software loaded. However there are several parameters that can be set and utilities that can be used to perform some basic functions such as data capture, communications, file management, etc.

3.1 PDA STARTUP

The Datalogic Jet™ PDA turns on when the battery pack or the external supply is inserted.

After the battery pack is installed, use the [ON/OFF] key to turn the PDA on and off.

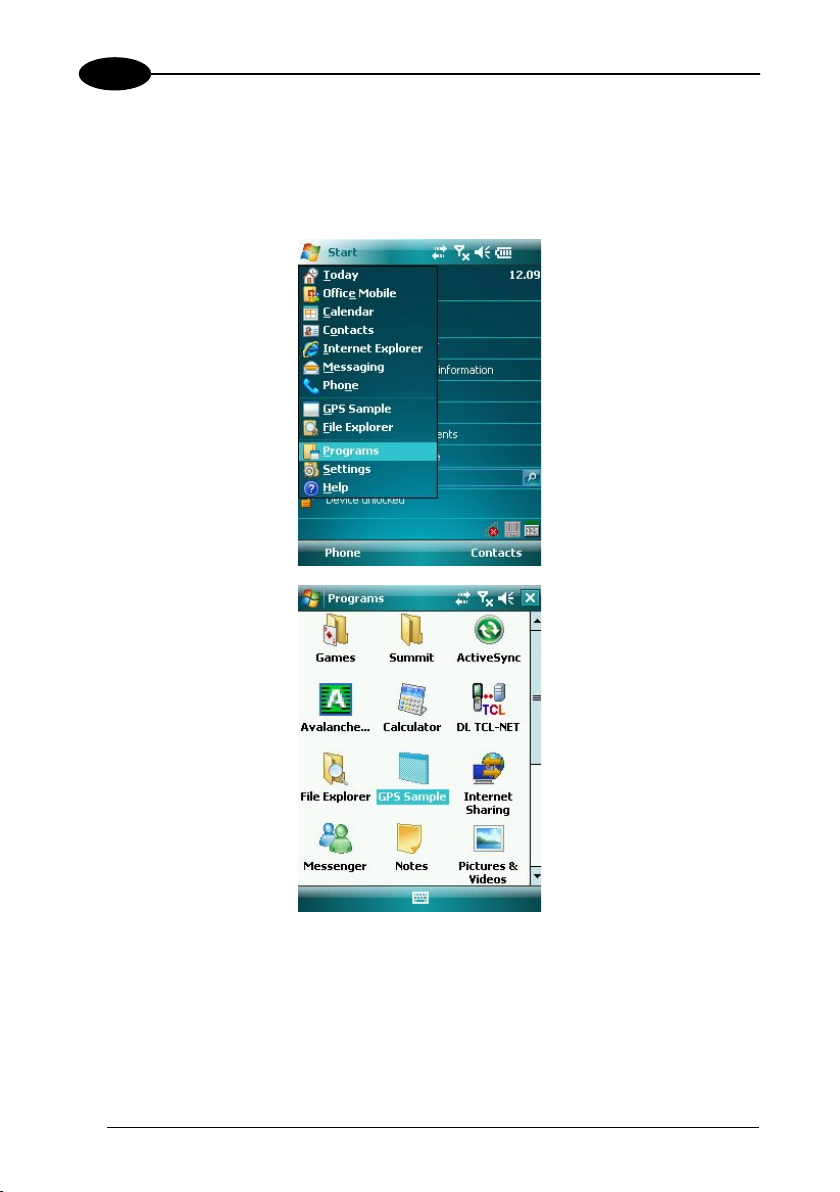

As soon as the PDA is on, the Windows CE/ Windows Mobile desktop screen will appear. Wait a few seconds before starting any activity so that the PDA completes its startup procedure.

START MENU

LEFT SOFT

KEY

Windows CE Desktop Windows MobileToday Screen

LEFT SOFT KE

Use the stylus as suggested in paragraph 3.3 to select icons and options.

For the use of Left and Right Soft Keys, refer to par. 3.8.1.

RIGHT

SOFT

KEY

DATALOGIC JET™

When it is no longer used for more than a programmable timeout, which is defined in the POWER applet of the Control Panel, the PDA goes into power-off (low power with display and keyboard backlight off). In this mode it can be awakened (resuming operation) by the [ON/OFF] key.

The PDA can also be awakened or turned off by the application program.

NOTE

USE AND FUNCTIONING

3.2 WINDOWS MOBILE WELCOME WIZARD

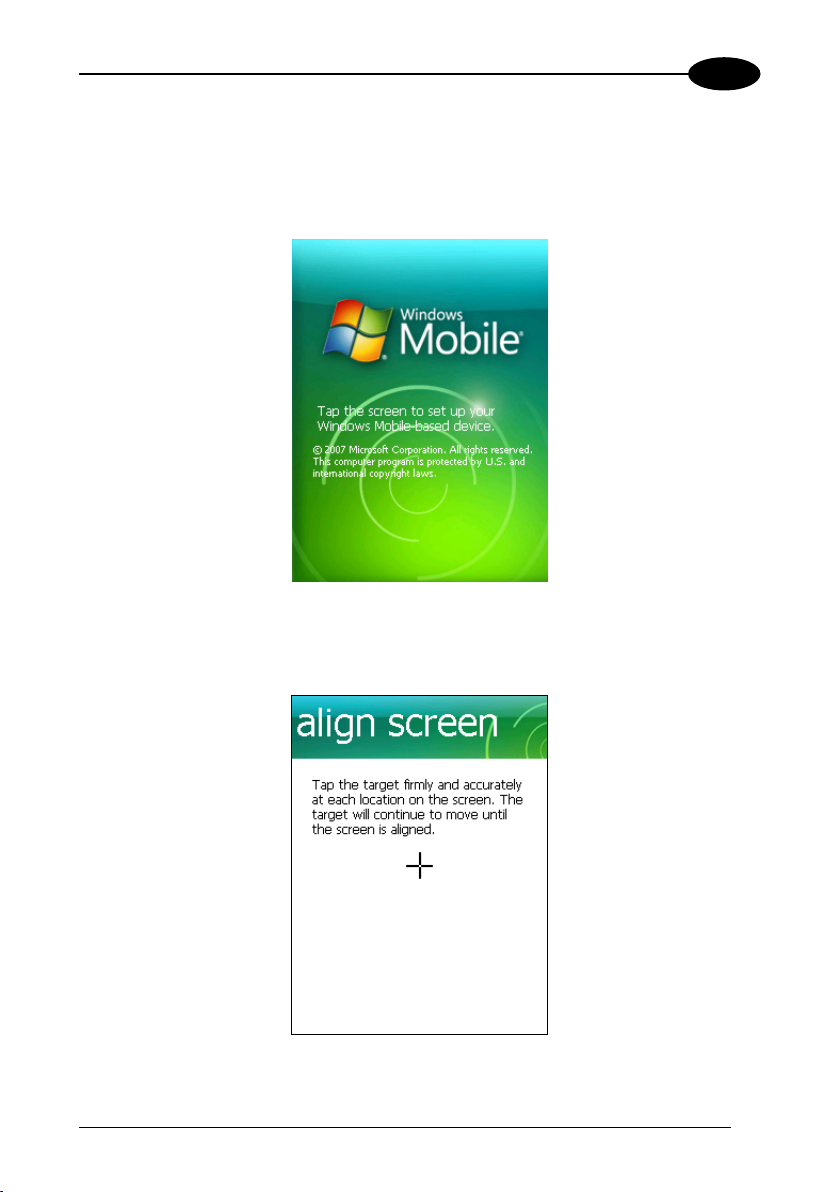

In Windows Mobile, at the very first Jet™ startup, following a cold boot or following a registry restore to default values, the PDA startup (see par. 3.1) is preceded by the Welcome Wizard.

Welcome Wizard Screen

The Welcome Wizard allows the user to calibrate the touch screen (see par. 3.8.7) and to configure an email account and a password to protect the terminal.

Touch Screen Calibration Screen

DATALOGIC JET™

3.3 USING THE STYLUS

The stylus selects items and enters information. The stylus functions like a mouse.

Tap:

Double Tap:

Touch the screen once with the stylus to open items and select options (Windows Mobile only).

Touch the screen twice with the stylus to open items and select options (Windows CE only).

Drag:

Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items.

Tap and hold the stylus on an item to see a list of actions

Tap-and-hold:

available for that item. On the pop-up menu that appears, tap the action you want to perform.

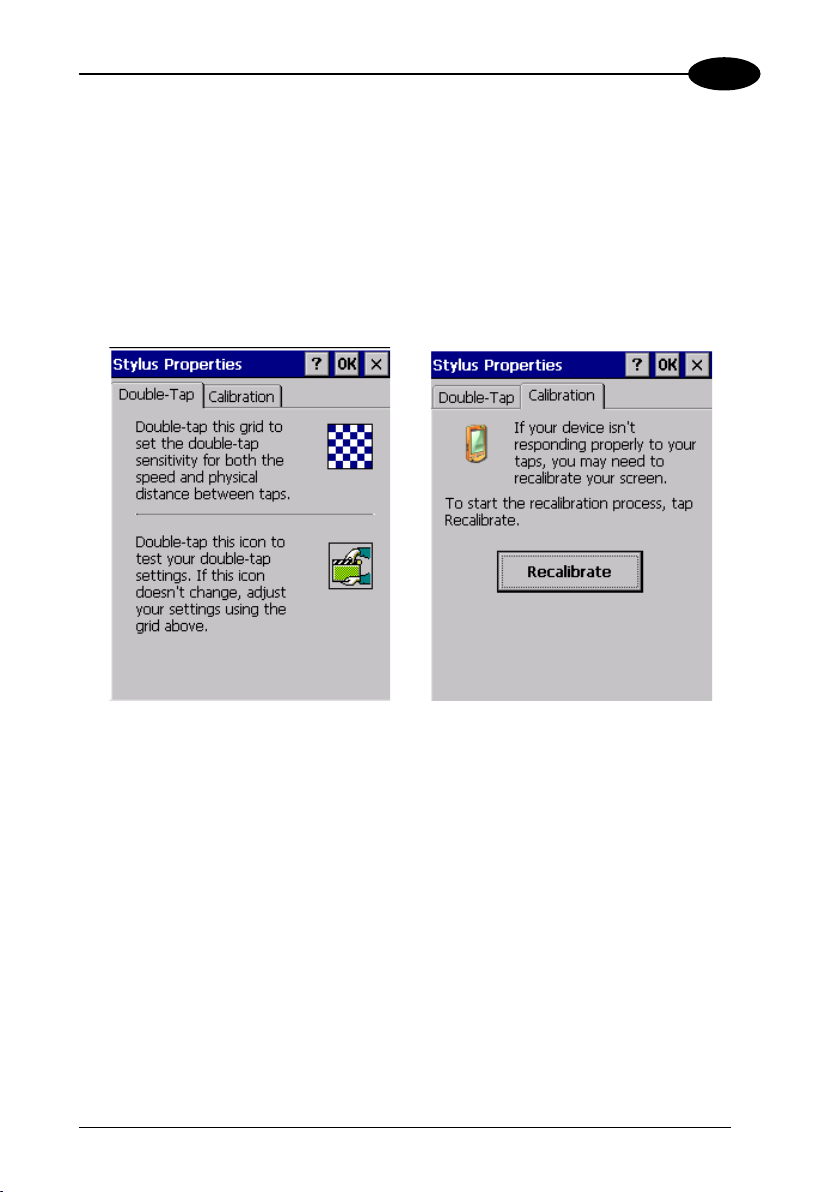

To recalibrate the touch screen use the Stylus Applet (see par. 3.8.7)

Use only original Datalogic styluses supplied with the product itself.

CAUTION

In harsh applications, use of screen protectors should be taken into consideration, in order to extend the touch screen operating life.

To prevent damage to the screen, do not use sharp devices or any device other than the Datalogic Mobile-provided stylus.

Do not apply not necessary high pressures on the screen.

For applications where an intensive use of the touch screen is foreseen, please consider that touch screen components are subject to progressive wear.

USE AND FUNCTIONING

3.4 DATA CAPTURE

To capture data, first of all select the barcode icon on the bottom-right side of the display and tap the 'Capture' menu item, then proceed with the following directions.

To configure and enable data capture parameters refer to par. 3.7.

3.4.1 Laser Data Capture

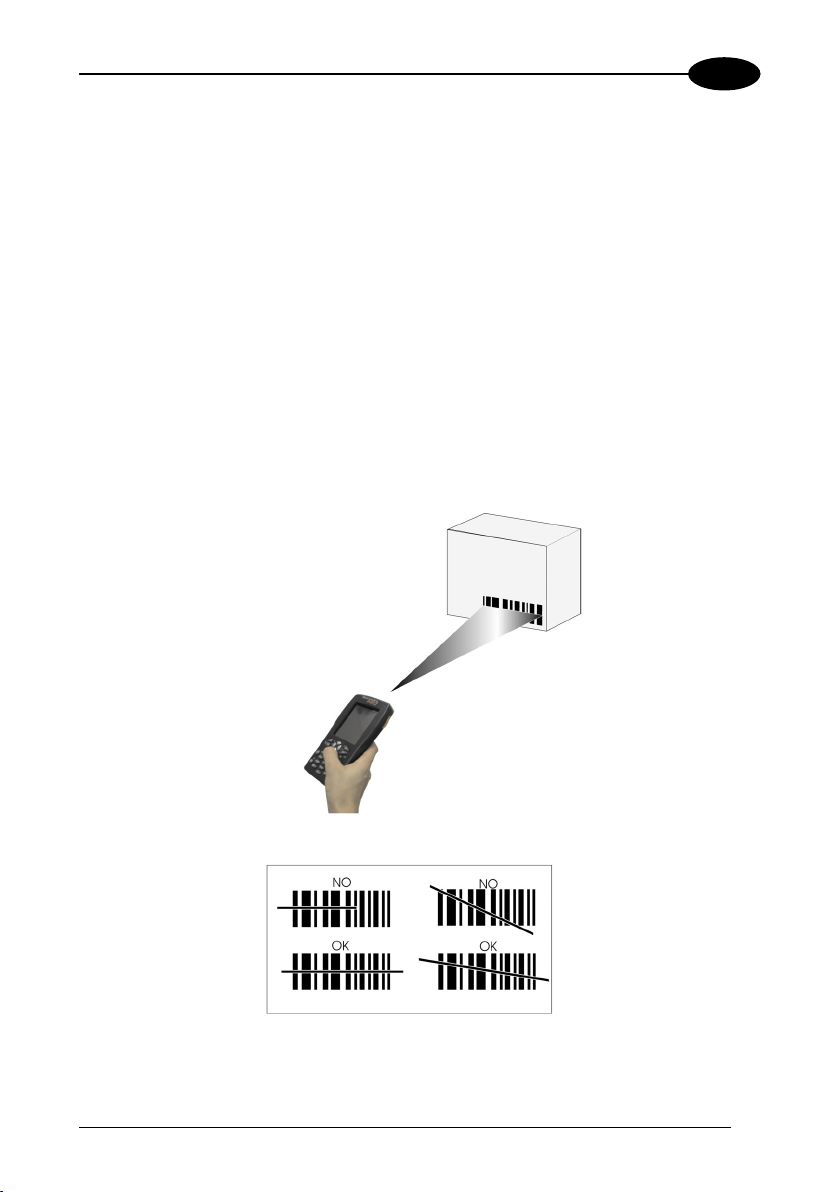

To scan barcodes, point the Datalogic Jet™ PDA laser model onto the code from a distance within the reading range while pressing one of the three SCAN Keys. See the reading diagrams in par. 5.2 for the reading range of your model.

The lighted band emitted by the laser must completely intercept the barcode as shown in the figure below. If enabled, the emission of an acoustic signal will indicate that the scan has taken place correctly.

DATALOGIC JET™

3.4.2 Imager Data Capture

To read a 1D or 2D code, simply point the Datalogic Jet™ Imager model onto the code from a distance within the reading range (see par. 5.1, section Datalogic Jet™ Imager Optical Features) and press one of the three SCAN Keys.

The Datalogic Jet™ Imager uses an intelligent aiming system pattern, similar to those on cameras, indicating the field of view, which should be positioned over the code:

Aiming System

If the aiming system pattern is centered over the entire symbology as shown in the following figure, either wait for the timeout or release the Scan key to capture the image.

A red beam illuminates the code, which is captured and decoded. You will get a good read.

USE AND FUNCTIONING

Linear barcode 2D Matrix symbol

ÌBX3ÉÎ

Relative Size and Location of Aiming System Pattern

The field of view changes its size as you move the reader closer or farther away from the code. The field of view indicated by the aiming system pattern will be smaller when the Datalogic Jet™ Imager is closer to the code and larger when it is farther from the code.

Symbologies with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements (mil size) should be read farther from the unit. (See par. 5.1 for further details).

3.4.3 RFID Data Capture

To read or write a tag, place the Datalogic Jet™ PDA so that the RFID emission window is in front of and almost in contact with the tag, then press one of the three SCAN Keys or the application-defined key.

DATALOGIC JET™

3.5 DESCRIPTION OF THE KEYS

The Datalogic Jet™ PDA provides a function-oriented keyboard having a total of 27 keys. The keyboard can be divided as follows:

2 Lateral SCAN keys (1 per side)

System Control

and Navigation

Keys

Power Key

General keys

3.5.1 System Control and Navigation Keys

Powers the PDA ON or OFF.

They let you move forwards or backwards within the Internet Explorer browser pages.

They let you move forwards, backwards, upwards or downwards within Text fields, scroll through a Menu list or browse among folder files.

Switches on/off the keyboard backlight. The backlight automatically turns off after a set timeout.

USE AND FUNCTIONING

3.5.2 Key Selection

The following figure shows the Datalogic Jet™ PDA keyboard:

Some of these keys carry extra symbols and are logically divided in up to 3 sections according to the following figure:

Each section corresponds to a symbol that can be obtained using the corresponding keyboard method according to the following scheme:

A) function of the key when simultaneously pressed along with the Orange key; B) function of the key when directly pressed; C) function of the key when in Alpha mode, in order to digit all the alphabetic

characters positioned over the keys.

It starts Data capture.

DATALOGIC JET™

The ORANGE key pressed simultaneously along with any other keyboard key enables the character positioned above or at its right/left side (in case of keys displayed at the top of keyboard).

Ex: ORANGE key + [5 jkl] key corresponds to the character.

When in alphanumeric mode, by pressing repeatedly the key, you can scroll through a list of punctuation signs and symbols and select the desired one by a timeout.

It enters a special mode through which it is possible to digit all the alphabetic characters positioned over the keys. Ex: [7pqrs] in alphanumeric mode: press once for ‘p’, twice for ‘q’, three times for ‘r’, four times for ‘s’. To exit the Alpha mode and return to the keyboard normal functioning it is necessary to press the Alpha key again.

It locks and unlocks the Keyboard.

It corresponds to pressing ALT-F on a standard PC running Windows that is it opens the first entry of a drop-down Menu.

NOTE

Switches on/off the keyboard backlight. Both display and keyboard backlight automatically turn off after a timeout, depending on Control Panel settings. The backlights automatically turn off after a set timeout.

Once the Alpha mode has been entered, press the Alpha key again to exit this mode.

USE AND FUNCTIONING

3.5.3 Resetting the Jet

Windows CE

There are several reset methods for the Jet. A warm boot terminates an unresponsive application and clears the working RAM, but preserves both the file system and the registry. A cold boot forces all applications to close and clears the working RAM and the files not resident on the persistent flash memory. Registry is restored from persistent memory if available or returned to factory default. A Clean Boot restores the Jet to factory configuration: both the registry and the file system return to factory default.

Warm Boot

A warm boot closes all applications and clears the working RAM, but preserves both the file system and the registry. If an application hangs, initiate a warm boot to terminate the application. To perform a warm boot, press the following keys simultaneously:

Cold Boot

A cold boot is a complete reset of the Jet in which all applications are forcibly closed and the RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see 3.8.2) and RAM file system is completely erased. You will lose any applications and data (included registry) which are not stored in persistent flash memory. A cold boot is necessary when the Windows CE operating system locks up and the warm boot command does not work. To perform a cold boot, press and hold the following keys simultaneously:

Clean Boot

A clean boot is a cold boot that causes the device to be restored to factory configuration. The Jet will reset to its factory configuration, clear the working RAM and initialize the file system. You will lose any applications and data stored in persistent flash memory. At the next startup the system will ask to recalibrate the touch screen.

DATALOGIC JET™

To perform a clean boot, follow these steps:

1. Perform a Cold Boot (see Cold Boot).

2. Quickly release all the keys when the screen goes black.

3. Within 1 second press and hold down the Esc and 0 keys until the left orange led starts blinking.

4. Release the Esc and 0 keys.

5. Enter 1 to proceed with the Clean Boot sequence. Enter 0 to cancel the Clean Boot and proceed with a Cold Boot.

Warm

Cold Boot Clean Boot

Boot

Registry

Flash Disk (Backup

Preserved Restored from flash (if

available)

Factory default

Preserved Preserved Clean disk

Folder) RAM File System

Preserved Reinitialized (factory default) Factory

default

Windows Mobile

There are several reset methods for the Jet. A warm boot terminates an unresponsive application and clears the working RAM, but preserves the file system. Registry are restored from persistent memory if available or returned to factory default. A cold boot forces all applications to close reinitializing completely the system. It clears the working RAM, but the file system is preserved. Registry are restored from persistent memory if available or returned to factory default. A clean boot restores the Jet to a clean configuration: both the registry and the file system return to a clean status that conform to factory default, unless the user has installed an additional package.

Warm Boot

A warm boot closes all applications and clears the working RAM, but preserves the file system. Registry are restored from persistent memory if a saved copy is available (see Registry Applet, par. 3.8.2) or returned to factory default. If an application hangs, initiate a warm boot to terminate the application. To perform a warm boot, press and hold the following keys simultaneously:

USE AND FUNCTIONING

Cold Boot

A cold boot is a complete reset of the Jet in which all applications are forcibly closed and the RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see Registry Applet, par. 3.8.2). Applications and data stored on file system are preserved. A cold boot is necessary when the Windows Mobile operating system locks up and the warm boot command does not work. To perform a cold boot, press and hold the following keys simultaneously:

Clean Boot

A clean boot is a cold boot that causes the device to be restored to a clean configuration. The Jet will be reset to its factory configuration only if the user has not installed any additional package. Please note that you will lose any applications and data stored in persistent flash memory. To perform a clean boot, follow these steps:

1. Perform a Cold Boot (see Cold Boot).

2. Quickly release all the keys when the screen goes black.

3. Within 1 second press and hold down the Esc and 0 keys until the left orange led starts blinking.

4. Release the Esc and 0 keys.

5. Enter 1 to proceed with the Clean Boot sequence. Enter 0 to cancel the Clean Boot and proceed with a Cold Boot.

Registry

File

Warm Boot Cold Boot Clean Boot

Restored from flash

Clean configuration (no user config)

Preserved Preserved Clean Installation (no user files)

System

DATALOGIC JET™

3.6 STATUS INDICATORS

3.6.1 LED Status

The Datalogic Jet™ provides three different LEDs signaling the PDA status.

LED STATUS

General Purpose (left-side)

Bluetooth® (extreme right -side)

Charging Status

(right side)

Green/Red This LED is available to the application

program.

Blue blinking It blinks when the Bluetooth® module is

on.

Green constant It is constant once the charging process

has been completed.

Red blinking It blinks when the battery pack is running

down.

Red constant It is constant while charging.

Green/Red They turn on alternatively while

discharging.

Orange blinking It blinks when a charging error has

occurred, for example when the external power is connected but no battery is inserted.

USE AND FUNCTIONING

3.6.2 Taskbar

As well as tasks opened in Windows, the Taskbar provides several status icons that report information about the time, the battery level, the keyboard function, and the decoding status.

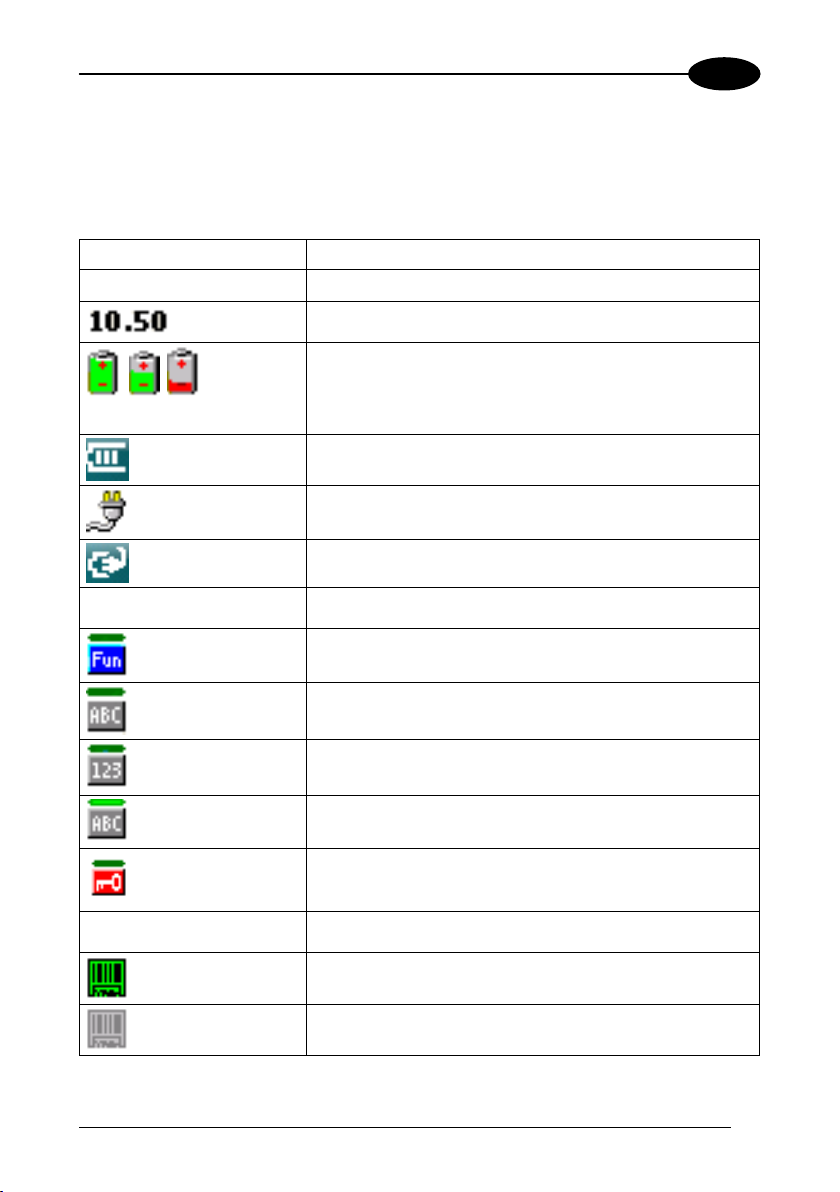

ICONS DESCRIPTION

Time and Battery Icons

Keyboard Status Icons

Decoding Status Icons

It shows the time.

In Windows CE, they are representative of five different icons indicating the battery level. The icon is green or red colored according to the power left (green when >20%, red when <20%).

In Windows Mobile, it displays the system battery status.

It shows the battery is charging (Windows CE).

It shows the battery is charging (Windows Mobile).

It shows the Keyboard is in FUNC mode.

It shows the Keyboard is in ALPHA mode.

It shows the Keyboard is in Normal mode.

It shows the Capslock is active.

It shows the Keyboard is locked.

It shows the decoder is active.

It shows the decoder is not active.

DATALOGIC JET™

Windows CE Taskbar

Windows Mobile Taskbars

USE AND FUNCTIONING

3.7 DATA CAPTURE CONFIGURATION

From the Windows CE Taskbar, tap the "Data Capture" icon to open a drop–down menu. Data Capture can also be accessed from the Control Panel. By selecting the Info item from this drop-down menu you can access information about the Scanner and the Software; the Configure item opens the configuration applet (Data Capture Configuration Window), while Capture accesses the data capture applet (Data Capture Window), which enables code reading. The last menu item (Wedge) enables Wedge Emulation.

From the Windows Mobile Start menu, tap Settings -> System -> Data Capture. The "Data Capture" icon opens the configuration applet (Data Capture Configuration Window).

Windows CE Windows Mobile

3.7.1 Configure

The Configuration applet contains the barcode scanning configuration parameters in a directory tree structure. The available barcode parameters are divided into two groups: Reader Parameters and Scan Parameters.

The Reader Parameters depend on the type of scanner module installed on the PDA and allow barcode configuration (i.e. enable/disable Code 39, check digit control, etc.).

DATALOGIC JET™

The Scan Parameters are common to all scanner modules and allow control of the scanning device (i.e. beeper control, LED control, laser timeout, etc.).

Each Data Capture screen window corresponds to a branch of the tree, and the name of the current branch is displayed at the bottom of each screen window.

Data Capture Configuration Window

The screen format shows two columns where the left column indicates branches or parameters. Branches have three dots in the right column (...). You can navigate through the tree structure using the stylus or keyboard arrows directly on the item field or from the menu.

Parameters have their corresponding current values in the right column. You can edit parameter values using the stylus or keyboard arrows directly on the item field or from the menu. To change a value for example, select the line of the value to be changed, choose Edit from the Parameter Menu then choose a new value from the values listed in the box (see following figures).

USE AND FUNCTIONING

Selecting Data Capture Setup Parameters

Alternatively using the stylus, you can tap once directly on the value on the right column; continue tapping until the desired value is reached.

To activate a new configuration select the File ->Save Menu to send the new configuration to the barcode decoding software and save the new configuration. This will save the configuration to non-volatile memory preventing loss at the next system reset.

Reader Parameters

The barcode reading parameters and values are dependent upon the type of scanner module mounted in your PDA. For a detailed list of parameters and of their configuration procedures, please refer to the SDK Help file on the CD.

Scan Parameters

The Scan Parameters are common to all scanner modules and allow control of the scanning device. The Scan parameters are described as follows:

ScanTimeout: the maximum time, in milliseconds, during which the scanner remains on without decoding any barcode.

GoodReadSound: is the filename of a .wav file played when the scanner reads a code.

LedDuration: the length of the good-read led pulse, in milliseconds.

LedPulses: the number of times the good-read led pulse is emitted when the

scanner reads a barcode.

DATALOGIC JET™

ContinuousMode: when enabled, the scanner can only be turned off by releasing the SCAN key, or if Soft Trigger is enabled, by the application program. Continuous Mode overrides Scan Timeout.

KeyboardEmulation: if enabled all scanned data are transformed into keyboard events and can therefore be displayed and saved to a file as if input from the PDA keyboard. If set to “Yes (Clipboard)”, it copies the scanned data to the system clipboard.

SoftTrigger: when enabled, the laser can be turned on/off by the application software.

ScanAlwaysOn: enables the scanner for barcode reading independently from the application software. If set to “Disabled after read”, it disables the reading after a reading attempt. In case the scan button is accidentally pressed, this selection prevents the driver from decoding new data while the application is still elaborating previous data.

NotPrintableChar: if set to “Remove”, all not printable characters included in the scanned data are deleted and the final barcode will include only printable characters.

ScanButton: enables/disables the scan button. If the scan button is disabled, the reader can be triggered under software control.

USE AND FUNCTIONING

Default Settings

The following tables contain the default values for the major barcode setup parameters, according to the type of scan engine mounted on the PDA. For a complete list of parameters and of their configuration procedures, please refer to the SDK Help file on the CD.

SCAN PARAMETERS HP Laser Imager RFID+Laser ScanTimeout 5000 Not available 5000

GoodReadSound Beep.wav Beep.wav Beep.wav LedDuration 200 ms 200 ms 200 ms LedPulses 1 1 1 ContinuousMode Disabled Disabled Disabled KeyboardEmulation Disabled Disabled Disabled SoftTrigger Enabled Enabled Enabled ScanAlwaysOn Disabled Disabled Disabled NotPrintableChar Leave Leave Leave ScanButton Enabled Enabled Enabled

BARCODE SYMBOLOGY SPECIFIC READER PARAMETERS

UPC A UPC E EAN 8 EAN 13 UPC E1 EAN Bookland UPC/EAN/JAN Code 39 Code 39 Full ASCII Code 32 Code 39 Trioptic 2/5: Interleaved 2/5: Industrial 2/5: Matrix Code 128 EAN 128 ISBT 128 Codabar RSS

* In the Imager models these codes may only be enabled or disabled as a group by the UPC/EAN/JAN family selection (see a few lines below).

HP Laser Imager RFID+Laser

Enabled Enabled Enabled Enabled Enabled Enabled Enabled

Enabled Disabled Disabled Enabled Enabled Enabled Enabled Disabled Disabled Disabled Disabled Disabled Disabled Enabled Enabled Enabled Disabled Disabled Disabled Enabled Enabled Enabled Enabled Disabled Enabled Disabled Enabled Enabled Disabled Disabled

BARCODE SYMBOLOGY SPECIFIC

HP Laser Imager RFID+Laser

READER PARAMETERS MSI Plessey Code 93 Code 11

PDF - 417 Data Matrix QR POSTNET PLANET Japan Post Australia Post KIX Code Royal Mail Code (RM4SCC)

*These codes may be enabled individually but are disabled as a group.

Enabled Disabled Disabled Disabled Enabled Disabled Disabled Enabled Enabled Enabled

Disabled*

RFID SYMBOLOGY PARAMETERS RFID+Laser Data Type I.CODE Iso-15693 Read Type Identifier

DATALOGIC JET™

USE AND FUNCTIONING

3.7.2 Capture

The Data Capture applet (Capture) enables code reading.

Data Capture Window

Data Capture can also be enabled through the Configuration applet by selecting File

->Scanner from the main menu, or by enabling the parameter Scan Always On in the Scan Parameters branch.

Enabling the Data Capture

DATALOGIC JET™

3.8 CONTROL PANEL

From the Windows CE Desktop, double tap on the "Control Panel" icon to open the Windows CE control panel main window. The Control Panel can also be launched from Start ->Settings ->Control Panel.

APPLET programs are displayed as icons; one icon corresponds to each APPLET.

Windows CE Control Panel

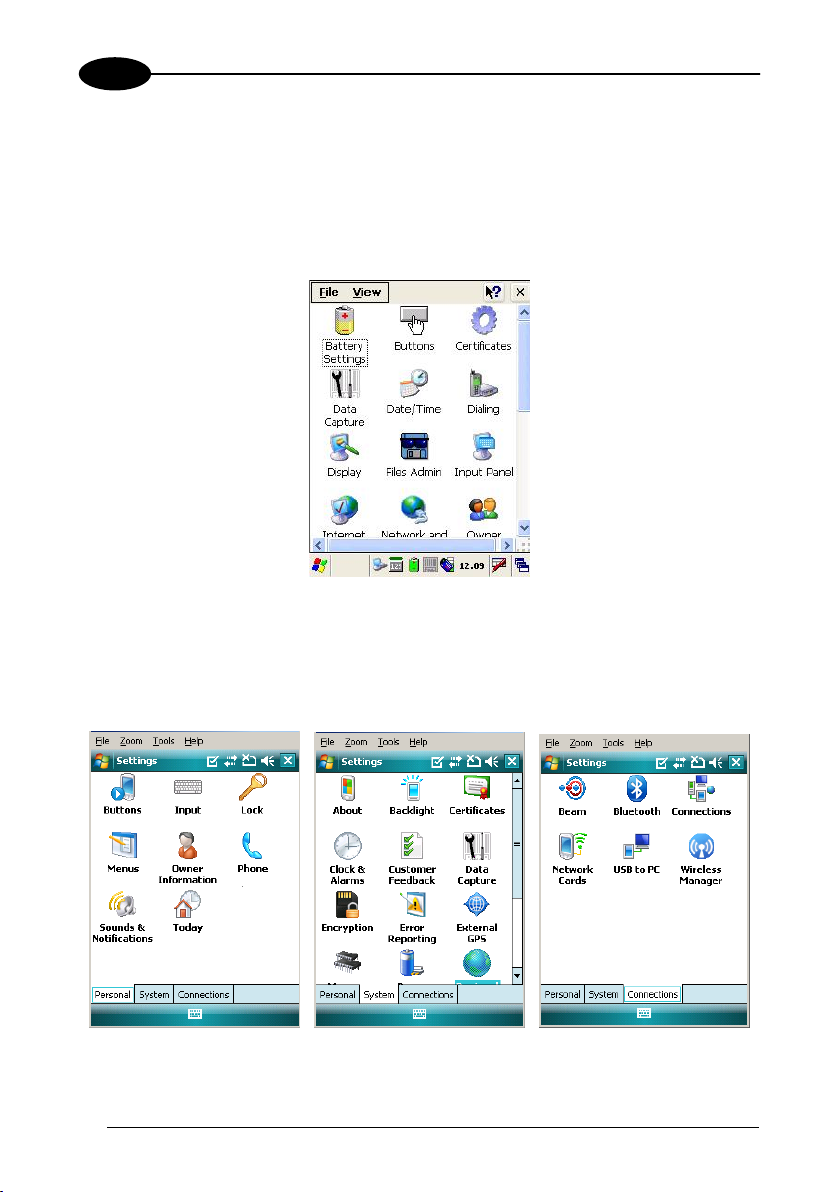

From the Windows Mobile Start menu, tap Settings. A three tab dialog opens: Personal, System, Connections.

APPLET programs are displayed as icons; one icon corresponds to each APPLET.

Windows Mobile Control Panel

USE AND FUNCTIONING

3.8.1 Buttons

The BUTTONS Applet allows assigning desired applications to be launched by one of the function keys (F1, F2, F3, F4).

Windows CE Buttons Icon Windows Mobile Buttons Icon

On a Windows Mobile unit the user is also able to assign a shortcut to a function key. The default programs/shortcut assigned to the function keys on Windows Mobile are the following:

F1 : select the Left Soft Key F2 : select the Right Soft Key F3 : open the Start Menu F4 : open the Today Screen

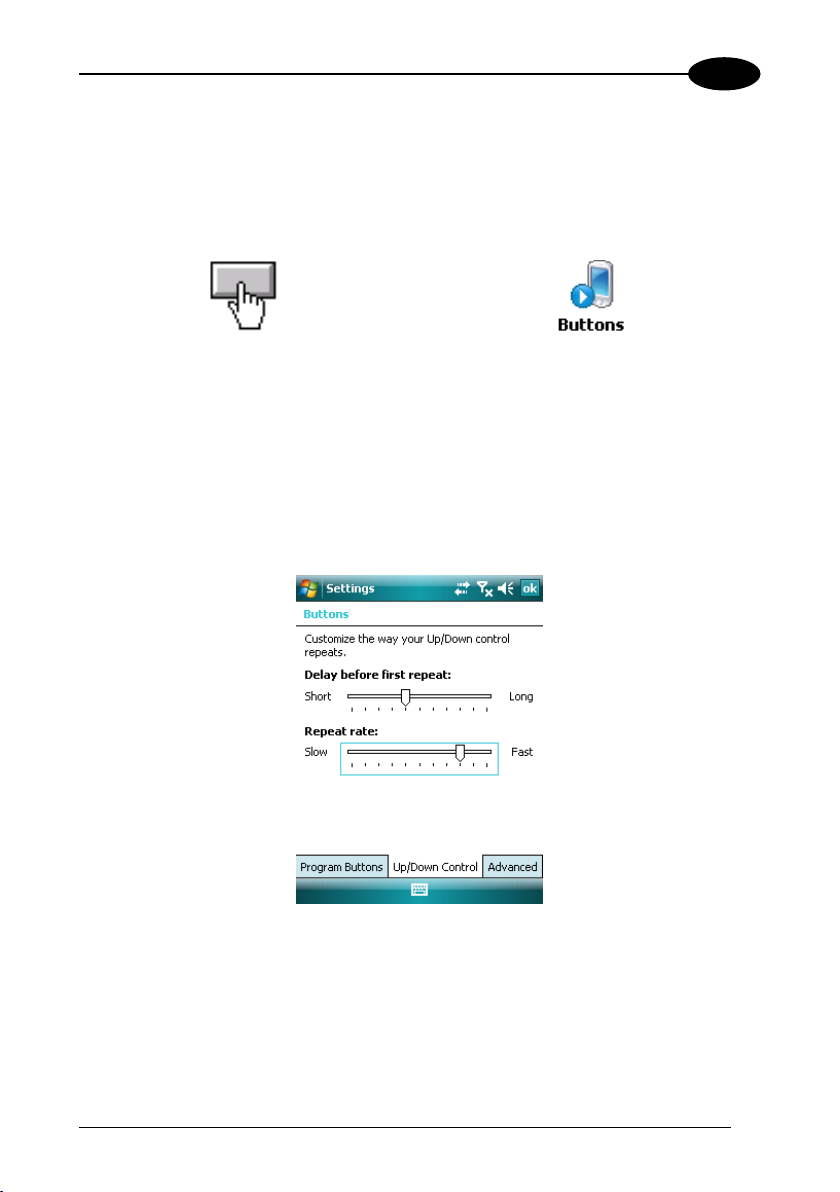

To configure the way up/down and the rest of keys control repeats, use the Up/Down Control applet (Start -> Settings -> Personal -> Buttons -> Up/Down Control).

DATALOGIC JET™

Select the “Enable Multipress” check box to enable multipress text input mode. To enables

F5, F6, F7, F8, F9, F10 function keys, you need to change the

ORANGE key mapping. Select the “F5-F10” check box:

Windows CE Windows Mobile

If pressed along with keys [5 jkl], [6 mno], [7 pqrs], [8 tuv], [9 wxyz], [0 ], the ORANGE key now enables

F5, F6, F7, F8, F9, F10 function keys.

USE AND FUNCTIONING

3.8.2 Registry

The REGISTRY ADMIN applet provides management of Windows CE/ Windows Mobile registry.

From the Windows CE control panel main window, select the REGISTRY ADMIN applet by double tapping the Registry Admin icon.

From the Windows Mobile Start menu, tap Settings -> System ->Registry. Select the REGISTRY ADMIN applet by tapping the Registry Admin icon.

The Registry Administration Main window appears. Two functions are available:

- Save Registry allows permanently saving the Windows configuration (example: custom configuration of screen desktop background color, or network adapter configuration) to non-volatile memory (SAVE button).

- Restore Default Registry allows restoring the initial factory default configuration (Restore Default button). After restoring the factory default configuration, you must perform a warm boot (see par. 3.5.3).

Saving the registry to non-volatile memory guarantees the persistence of the Windows configuration in case of battery pack replacement, cold boot or warm boot on Windows Mobile.

Registry Administration Window

DATALOGIC JET™

3.8.3 Files Admin

The FILES ADMIN applet enables control of the permanence of files in the Windows CE System Folder. Because Windows Mobile mounts the entire file system in persistent store (rather than using RAM), it provides both users and applications with a reliable storage platform even in the absence of battery power. The FILES ADMIN applet is therefore not necessary.

Two functions are available on the Files Admin Main window by means of two buttons:

Files Admin Main Window

Save Session: with this button all files will be permanently saved in the \Windows

directory in non-volatile memory. This function guarantees the steady maintenance of every file produced during the current working session - even of sub-directories and relevant files - with the exception of the files belonging to the FLASH image. These current working session files will be backed-up in the \Backup\Windows directory. At the next cold boot, the files previously saved in the \Backup\Windows directory will be restored to the Windows directory (see par. 3.10).

Safe Setup: with this button, the installation of software programs will be saved to non-volatile memory (Backup directory). Before doing this, it will be checked that the Backup directory has enough space to save the files. If the directory space is not enough, an error message will be shown and the program will exit the Safe Setup function. Two activating procedures are available for Safe Setup:

USE AND FUNCTIONING

- Select an installation file (for example, a .CAB cabinet file) from the Safe Setup mask.

Safe Setup First Mask

− Then select \Windows or a relevant sub-directory in the path box. Then, Safe Setup will recognize the new files and directories present in the \Windows directory, and will copy them to the \Backup\Windows directory. At the next cold boot, these files will be restored (see par. 3.10).

- Simply skip the first mask either by closing it or by pressing the ESC key. When it closes, a new mask will pop up: it will enable any type of installation (even remote ones like ActiveSync

installations). Make sure the installation directory is \Windows or one of its sub-directories. After installation, tap OK: Safe Setup will save the new files in the \Backup\Windows directory.

Safe Setup Second Mask

DATALOGIC JET™

3.8.4 Wireless Communications

The WIRELESS COMMUNICATIONS applet provides management of the Wi-Fi Card, the Bluetooth

and GSM/GPRS modules.

Windows CE Wireless Communications

Icon

Windows Mobile Connectivity Icon

If the PDA supports Windows CE, select the WIRELESS COMMUNICATIONS applet by double tapping the Wireless Communications icon from the Windows CE control panel main window. The following window will appear:

Windows CE Wireless Communications Window

USE AND FUNCTIONING

If the PDA supports Windows Mobile, the Wireless Manager application manages access to wireless connections. The 'Wireless Manager' is a sort of 'Control Panel' for bluetooth and phone modules. From here it's possible to turn on or off bluetooth and phone radio stacks. Open the Wireless Manager by tapping Start -> Settings -> Wireless Manager, or by tapping the

Connectivity icon located at the top of the screen. The following window

will appear:

Windows Mobile Wireless Communications Window

To turn on/off the WiFi radio open the Wi-Fi power applet by tapping Start -> Settings

-> System -> Power -> Wi-Fi:

DATALOGIC JET™

3.8.5 GPS Settings

To access to GPS connection, you have to install a commercial GPS navigation software, which is available from various suppliers. Before purchasing, downloading or installing any GPS navigation software check with the software supplier that the application is compatible with the Datalogic Jet

. Refer

to the application’s user guide for application installation and setup information.

The Datalogic Jet

GPS is provided with a free sample software which is intended to be used as a very simple interface to the GPS enabled PDA. As such, this software cannot be used to navigate.

Datalogic Jet™ GPS model only supports Windows Mobile operating system.

GPS Startup

To show the GPS Settings dialog box, do the following steps:

tap Start -> Settings -> System -> External GPS:

USE AND FUNCTIONING

Tap Programs to choose the program port to be used to obtain GPS data:

DATALOGIC JET™

Tap Hardware to select the hardware port to which the GPS device is connected:

Tap Access to manage access to the GPS device. Select the “Manage GPS automatically” check box to prevent some programs from obtain GPS data:

USE AND FUNCTIONING

Tap Advanced and select the “Enable GPS” check box to enable GPS. Select the “Enable GPS at reboot” check box to re-enable GPS after warm and cold boots:

GPS Sample

To start the GPS Sample, do the following steps:

tap Start -> Programs -> GPS Sample:

DATALOGIC JET™

USE AND FUNCTIONING

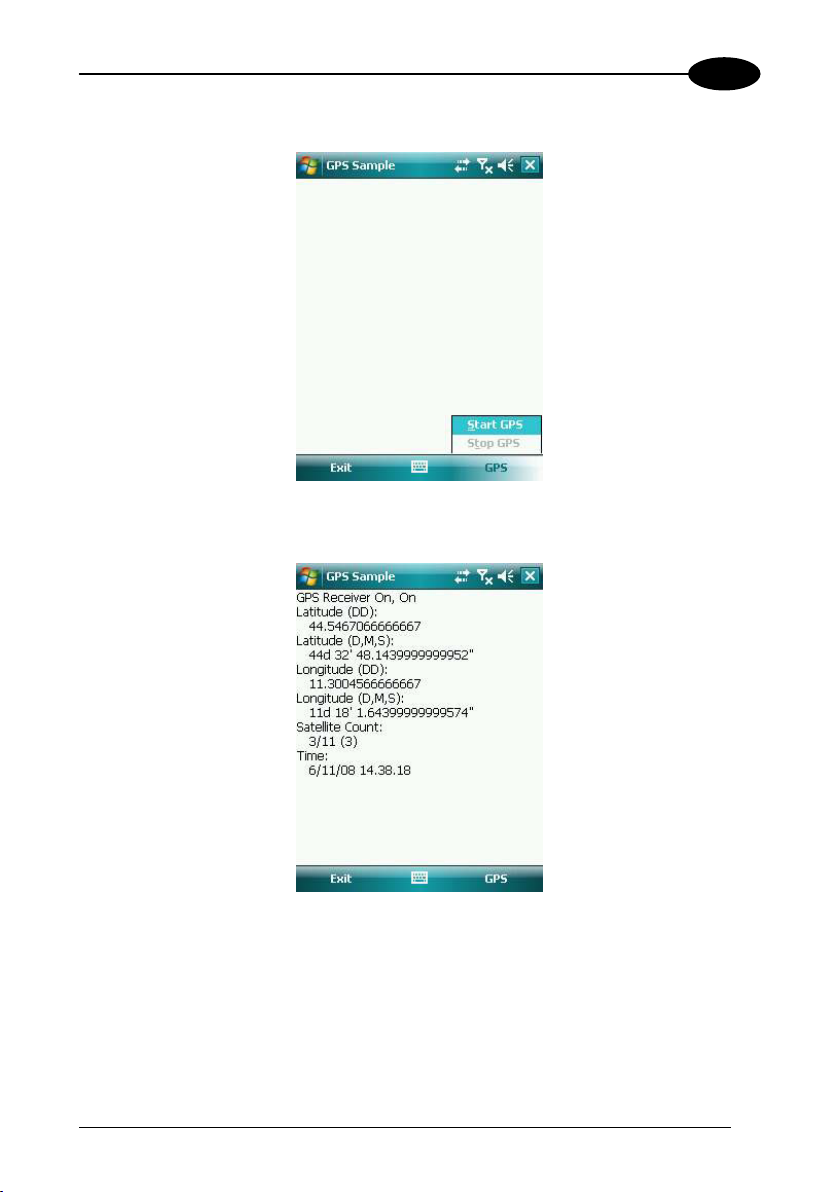

Tap GPS and select Start GPS to start the sample:

As soon as the GPS receiver locates a position, all the GPS data will appear on the screen:

To stop the sample, tap GPS and select Stop GPS.

DATALOGIC JET™

3.8.6 Ethernet Settings

Windows CE Ethernet Cradle

Datalogic Jet™ can be connected to an Ethernet network by inserting it into the Datalogic Jet™ Ethernet Multi Cradle.

Ethernet communication requires Datalogic Jet™ SW version 5.41 or later. Verify the software version by tapping on Software – Version in the Datalogic default home page. Otherwise, search for the file

NOTE

When correctly inserted into the Ethernet Multi Cradle, the Ethernet driver installed on the mobile computer will automatically run, and using the DHCP service, will dynamically assign the IP Address.

1. From the Datalogic Jet™ open Internet Explorer>Internet Options and check use

LAN no autodial then OK.

2. From the Datalogic Jet™ > Explorer, enter the IP address or the PC

name in the address bar. You may be required to enter your network username and password. The LAN connection will take place and you will be able to see the PC shared folders and exchange files.

If your network provides Internet Service and does not use a proxy server you can directly access the Internet. Otherwise set the internet proxy parameters according to your network settings.

version.htm under the Windows folder.

USE AND FUNCTIONING

The LAN icon will appear on the Taskbar indicating the LAN connection status.

By double tapping on the LAN icon in the Taskbar, the LANNDS1 applet allows visualizing the TCP/IP information. Other information such as the MAC Address is available by tapping the Details... button.

If it is necessary to set static TCP/IP parameters, you must open the LANNDS1 applet from the Network and Dial-up Connections applet in the Control Panel. This applet is only visible when the mobile computer is correctly inserted into the Ethernet Multi Cradle.

LAN icon

Ethernet LANNDS1 Communications Window

The IP Address belongs to Datalogic Jet™ while the MAC address is specific to each cradle slot.

DATALOGIC JET™

Windows Mobile Ethernet Cradle

Before using the ethernet cradle you have to un-check the 'COM1 Enable' option on the 'System Configuration' window (Start -> Programs -> System Configuration) and re-boot the unit.

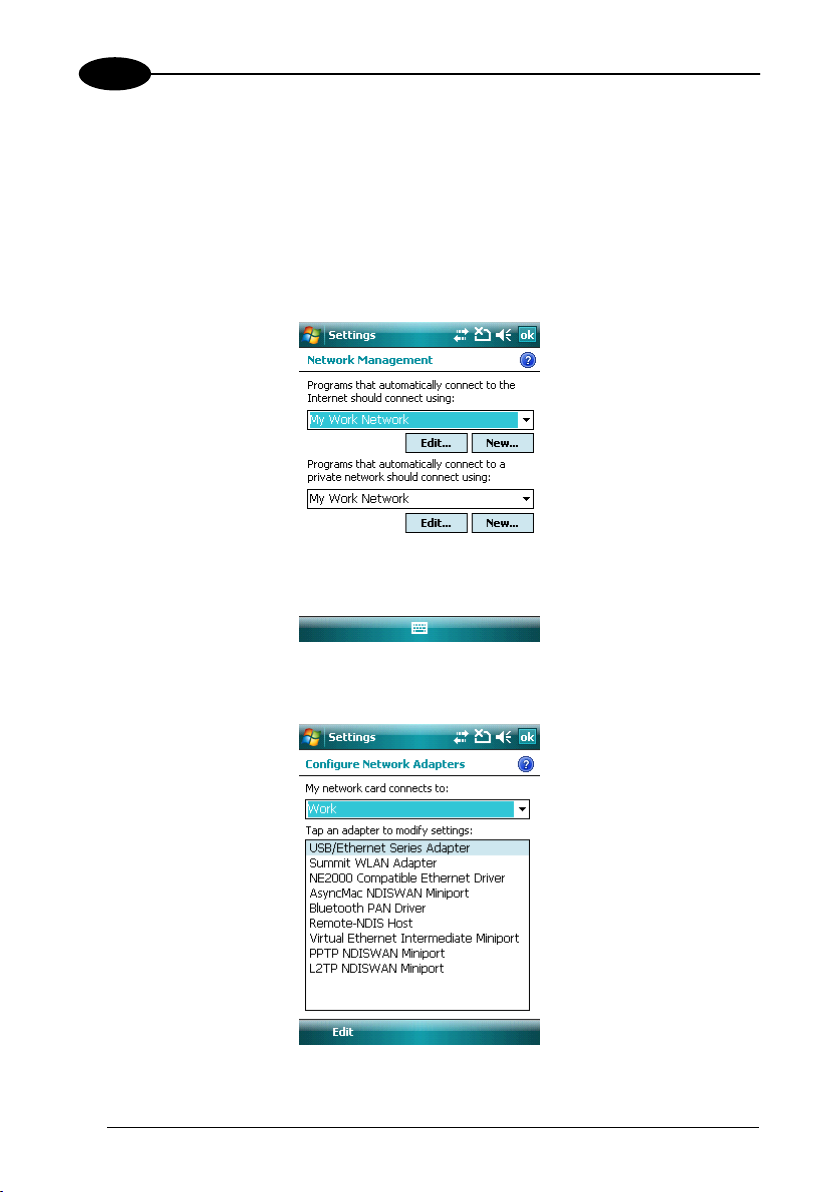

For internet browsing through the ethernet cradle ensure that programs that automatically connect to the internet should connect using 'My Work Network' -> go to Start -> Settings -> Connections -> Connections -> Advanced -> Select Networks:

then ensure that the USB/Ethernet Adapter card connects to Work -> go to Start -> Settings -> Connections -> Connections -> Advanced -> Network Cards:

USE AND FUNCTIONING

3.8.7 Stylus Calibration

You might need to recalibrate the touch screen (i.e. when you attempt to select one item with the stylus, another item is erroneously selected).

To recalibrate the touch screen on Windows CE, complete the following steps:

1. Select Start > Settings > Control Panel > Stylus to open the Stylus

Properties dialog as shown in Figure 1.

2. Adjust Double-Tap sensitivity if needed or desired.

3. Select the Calibration tab to open the Calibration application.

Figure 1

4. Tap Recalibrate to open the Calibration screen shown in Figure 2.

5. Carefully press and briefly hold stylus on the center of the target. Repeat as the

target moves around the screen. Press the <ESC> key to cancel the stylus calibration.

6. Press the <ENTER> key or tap the screen to accept the new calibration settings.

7. Press the <ESC> key to keep the old settings.

8. New calibration settings are persistently saved in registry.

DATALOGIC JET™

Figura 2

To recalibrate the touch screen on Windows Mobile, complete the following steps:

1. Select Start > Settings > System > Screen to open the Screen

Settings dialog as shown in Figure 3.

Figure 3

USE AND FUNCTIONING

2. Tap Align Screen to open the Calibration screen shown in Figure 4.

3. Carefully press and briefly hold stylus on the center of the target. Repeat as the

target moves around the screen. Press the <ESC> key at any time to cancel the stylus calibration.

4. By completing the calibration procedure you implicitly accept the new calibration

settings.

5. New calibration settings are persistently saved in registry.

Figure 4

Startup stylus calibration on Windows CE

When starting the terminal, a stylus calibration screen comes up if valid calibration settings are not available. This happens in the following circumstances:

1. At the first startup of the terminal.

2. After restoring registry default settings using the applet Registry Admin and

performing a warm boot.

3. After a Clean Boot.

4. After a Firmware Update (see par. 3.11).

Startup stylus calibration on Windows Mobile

When starting the terminal, a Welcome Wizard (with Stylus Calibration) comes up if valid calibration settings are not available. This happens in the following circumstances:

1. At the first startup of the terminal.

2. After restoring registry default settings using the applet Registry Admin and

performing a boot.

3. After a Clean Boot.

DATALOGIC JET™

3.8.8 Volume Settings

From the Windows CE control panel main window, select the VOLUME SETTINGS applet by double tapping the Volume Settings icon.

From the Windows Mobile Start Menu, tap Settings -> System -> Volume Settings. Select the VOLUME SETTINGS applet by tapping the Volume Settings icon.

The Volume Settings applet allows managing the audio features and appears as follows:

Volume Settings Window

The window is divided into three tabs:

- Output tab: allows setting the volume for each audio profile;

- Input tab: allows setting the microphone recording volume;

- Cradle tab: allows selecting the cradle type and managing the vehicle cradle

headset functioning.

The Taskbar always displays the current audio profile, which is activated automatically (by the device) or manually (by the user). Available profiles are:

- Speaker: it is the typical profile reproducing audio through the mobile computer

speaker;

- Cradle: it is automatically activated as soon as the mobile computer is inserted

into the vehicle cradle. Audio is reproduced by the vehicle cradle loudspeaker.

- Headset: it is automatically activated as soon as a headset is directly connected

to the mobile computer. In case the device is inserted into the vehicle cradle and the headset is connected to the cradle, this profile must be manually activated through the dedicated button (refer to “Cradle Tab” paragraph). When this profile is active, the speaker does not work;

USE AND FUNCTIONING

- GSM: it is automatically activated each time a phone-call is started. It is not

available when using the cradle loudspeaker (in this case Current Profile = Cradle).

Output Tab

It allows setting the volume for each audio profile:

The “Master Volume” slider allows setting the volume used by all audio profiles. In addition, it is possible to attenuate the volume for each single profile through the dedicated slider.

Input Tab

It allows setting the microphone recording volume:

The “Record Gain” slider allows setting the recording volume, while the “Enable Preamplifier” check box enables/disables the preamplifier (this option is not selectable when Current Profile = Cradle or GSM).

Cradle Tab

DATALOGIC JET™

It allows selecting the cradle type and managing the vehicle cradle headset functioning:

Two radio buttons allow selecting the type of cradle to be used.

Check the “Cradle desk, AC plug or none” radio button, if using a cradle different from the vehicle cradle or an AC adapter plug.

If using a vehicle cradle, check the related radio button.

By inserting the mobile computer into the cradle when the “Cradle vehicle” radio button is checked, the mobile computer speaker is deactivated and audio will be reproduced through the vehicle cradle

NOTE

speaker or headset.

By selecting the “Cradle Vehicle” check box, a further button will appear allowing to enable the headset profile when using the vehicle cradle. If pressed, the button displays the headset icon in gray until the device is inserted into the vehicle cradle. Once inserted, the headset icon turns to green and the device activates the headset profile (refer to the following figures). Actually, the headset is ready to reproduce audio as soon as it is connected to the cradle jack:

USE AND FUNCTIONING

WARNING

Do not use the vehicle cradle headset if the headset button is disabled, since it may cause hearing damage.

DATALOGIC JET™

3.9 WINDOWS CONNECTIONS

To connect the PDA to another device (i.e. Host PC) from Windows, several programs are available in the "Connections" folder on the Datalogic Jet™ Desktop. These programs require specific electrical connections in order to function properly. From the Desktop, double tap on the "Connections" folder to open the following window:

3.9.1 Microsoft® ActiveSync®

Microsoft your Datalogic Jet™ PDA and synchronize the information on them. Synchronization compares the data on the Datalogic Jet™ PDA with that on the desktop computer and updates both computers with the most recent information.

With ActiveSync

- Back up and restore Datalogic Jet™ PDA data.

- Copy files between Datalogic Jet™ PDA and desktop computer.

- Synchronize files by selecting a synchronization mode.

You can establish an ActiveSync following electrical interfaces:

RS232 either directly or through the Datalogic Jet™ Single Cradle

USB either directly or through the Datalogic Jet™ Single Cradle

Bluetooth (see par. 3.9.2)

It is possible to constantly synchronize while connected to a desktop computer or, alternatively, synchronization can be performed only when the synchronize command is chosen. You can select which information types are synchronized and control how much data is synchronized.

ActiveSync® gives you the possibility to connect your desktop computer to

, it is possible to:

connection to your Datalogic Jet™ through the

NOTE

By default, ActiveSync® does not automatically synchronize all types of information. Use ActiveSync and off for specific information types.

options to turn synchronization on

For example: Synchronize Microsoft Word and Microsoft Excel files between the Datalogic Jet™ PDA and the desktop computer. The files will automatically be converted to the correct format.

USE AND FUNCTIONING

In Windows Mobile before using the ActiveSync follow the directions described in 2.1

NOTE

Visit the following Microsoft Web site for the latest in updates and technical information:

NOTE

http://www.microsoft.com/windowsmobile/activesync/default.mspx

ActiveSync® Remote

Microsoft® ActiveSync® Remote is no longer supported in Windows CE. For backward compatibility you can download it from the internet. We suggest enabling the FTP Server and connecting to an FTP Client.

NOTE

See par. 3.9.3.

DATALOGIC JET™

3.9.2 Bluetooth® Manager Device Setup

Windows CE Bluetooth® Manager Device Setup

In order to enable a Bluetooth PDA you must perform the discovery procedure and enable the device as follows:

1. Place the Bluetooth

meters).

2. From the “Connections” folder double tap on the “Bluetooth” applet to open the

Bluetooth

Manager Device window:

device for communication with the Datalogic Jet™

device within the range of the Datalogic Jet™ PDA (10

USE AND FUNCTIONING

3. Tap on the “Me” button to enter the related window; then, tap on the “ON” button

to activate the Bluetooth

module. The module activation may be also performed

by using the WIRELESS COMMUNICATION applet as described in par. 3.8.4.

By tapping on the “HW Details” and “SW Details” buttons, information about the

PDA Bluetooth Encryption” button starts encryption of the Bluetooth tapping on the “Close” button the Bluetooth

hardware and software will be displayed, while the “Enable

Manager Device window will be

communication data. If

closed.

4. Tap on the “Discovery” button to enter the related window; then, tap on the

“Scan” button to run the Discovery procedure:

DATALOGIC JET™

Once the Discovery procedure has been completed, select the desired Bluetooth the Bluetooth

device from the list. It is also possible to digit (12 hexadecimal digits)

address of the desired device by tapping on the “Add” button.

The “Clear” button deletes all discovered devices from the list.

5. Once the desired Bluetooth

Wizard” button to enter the related window where selecting the connection type to be used for communication with the Bluetooth

device has been selected, tap on the “Connection

device:

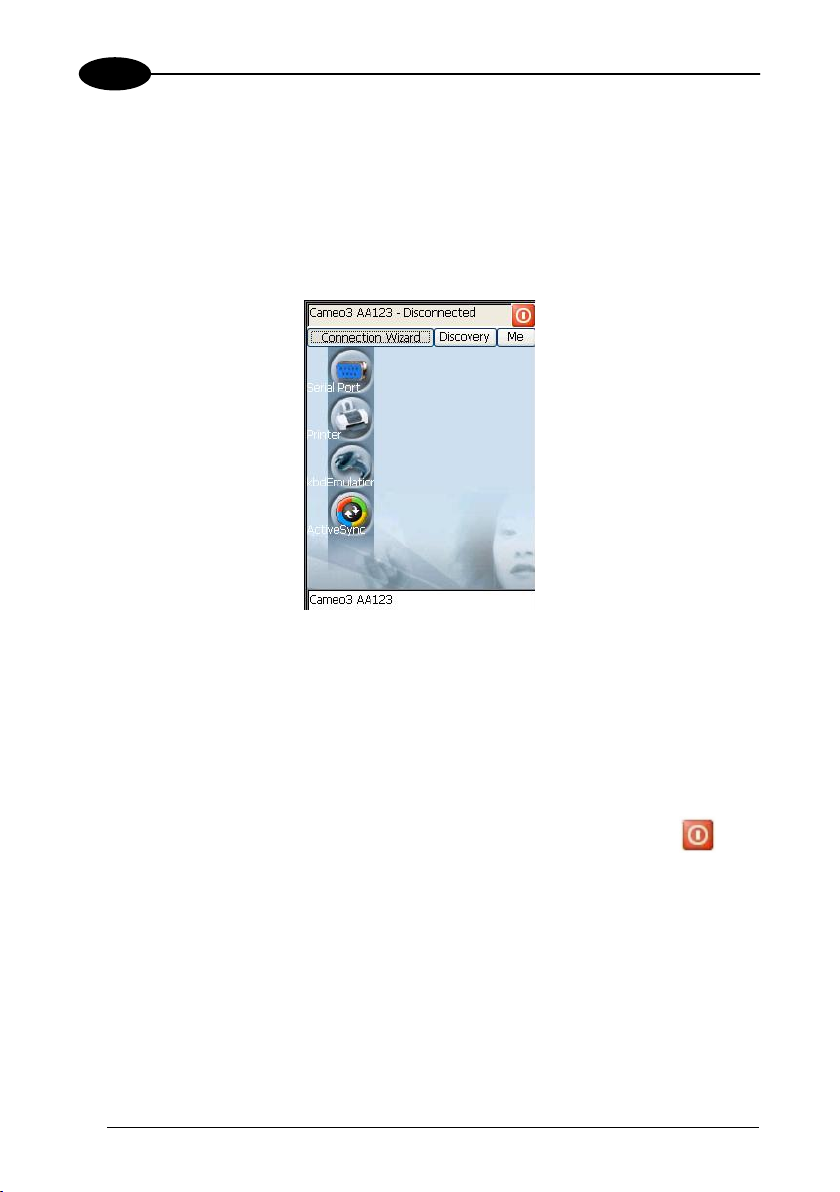

The “Serial Port” button starts communication through the Bluetooth COM 5 (typically used for connection with GPS devices). The “Printer” button starts communication with a printer through the Bluetooth

serial port

serial port COM 5. The “Kbd Emulation” button allows connection with a barcode reader using the keyboard emulation. The “ActiveSync” button starts communication with a PC equipped with a Bluetooth

antenna and the related ActiveSync.

6. Hide the Bluetooth

Manager Device window by tapping on the icon available on each window or close it through the “Close” button available in the “Me” window (see step 3 of this procedure).

USE AND FUNCTIONING

Windows Mobile Bluetooth® Manager Device Setup

Before turning on Bluetooth®, ensure that the two devices are within close range and that both Bluetooth-enabled devices are discoverable.

1. Tap Start -> Settings -> Connections tab.

2. Tap Bluetooth > Mode

3. Select or clear the “Turn on Bluetooth” check box:

By default, Bluetooth® is turned off. If you turn it on, and then turn off your device, Bluetooth® also turns off. When you turn on your device

NOTE

again, Bluetooth® turns on automatically.

To create a Bluetooth® partnership between your device and another device that has Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and within close range.

1. Tap Start -> Settings -> Connections tab.

2. Tap Bluetooth -> Devices tab -> Add new devices. Your device searches for other devices with Bluetooth® capabilities, and displays them in the list:

DATALOGIC JET™

3. Tap the name of the other device, and tap Next:

4. In Passkey, if you want to use a passkey (recommended for enhanced security), enter a alphanumeric passkey between 1 and 16 characters, and tap Next. Otherwise, leave the passkey blank, and tap Next:

USE AND FUNCTIONING

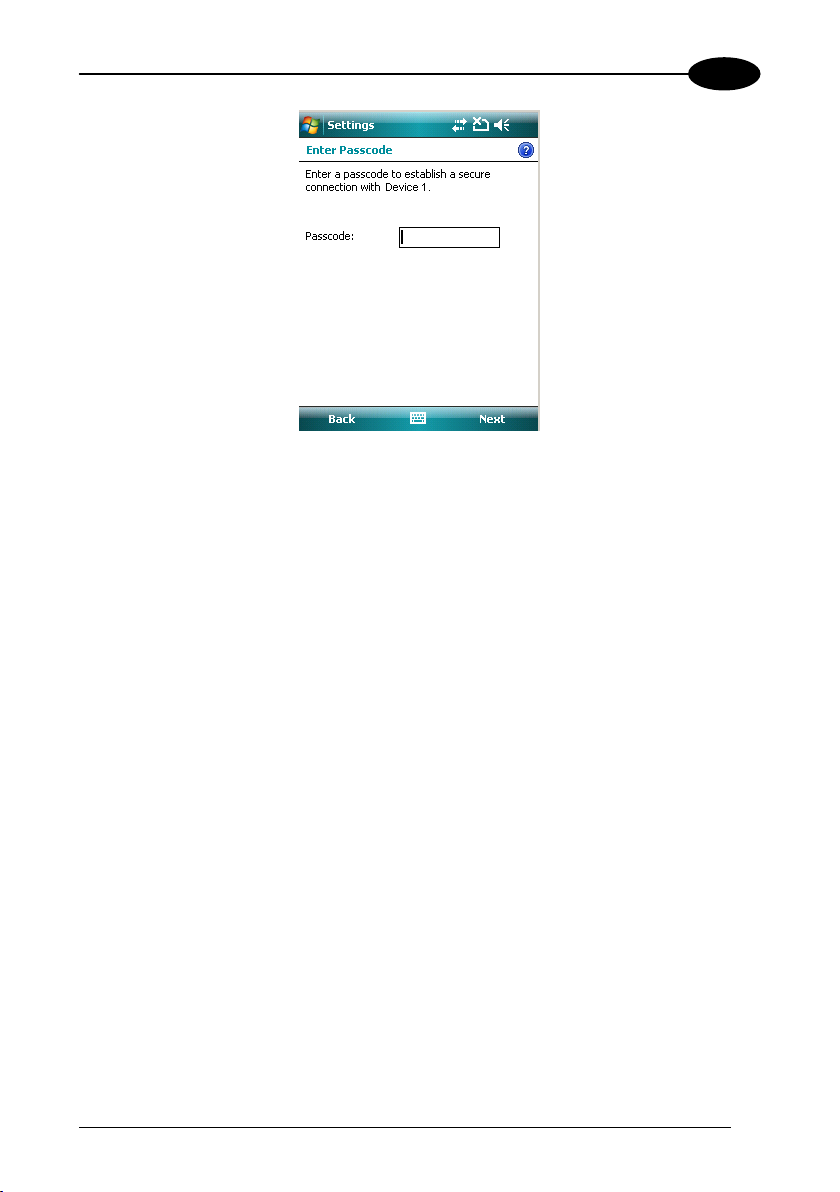

5. Enter the same passkey on the other device.

6. To give the partnership a more meaningful name, change the name of the device in Name.

7. Tap Finish.

You can give a more meaningful name to a Bluetooth® partnership to help you recognize it when selecting from a list of partnerships.

1. Tap Start -> Settings -> Connections tab.

2. Tap Bluetooth > Devices tab.

3. Tap the partnership to rename.

4. In Name, enter a new name for the partnership.

5. Tap Finish.

To end a Bluetooth® partnership:

1. Tap Start -> Settings -> Connections tab.

2. Tap Bluetooth > Devices tab.

3. Tap and hold the partnership you want to end.

4. Tap Delete:

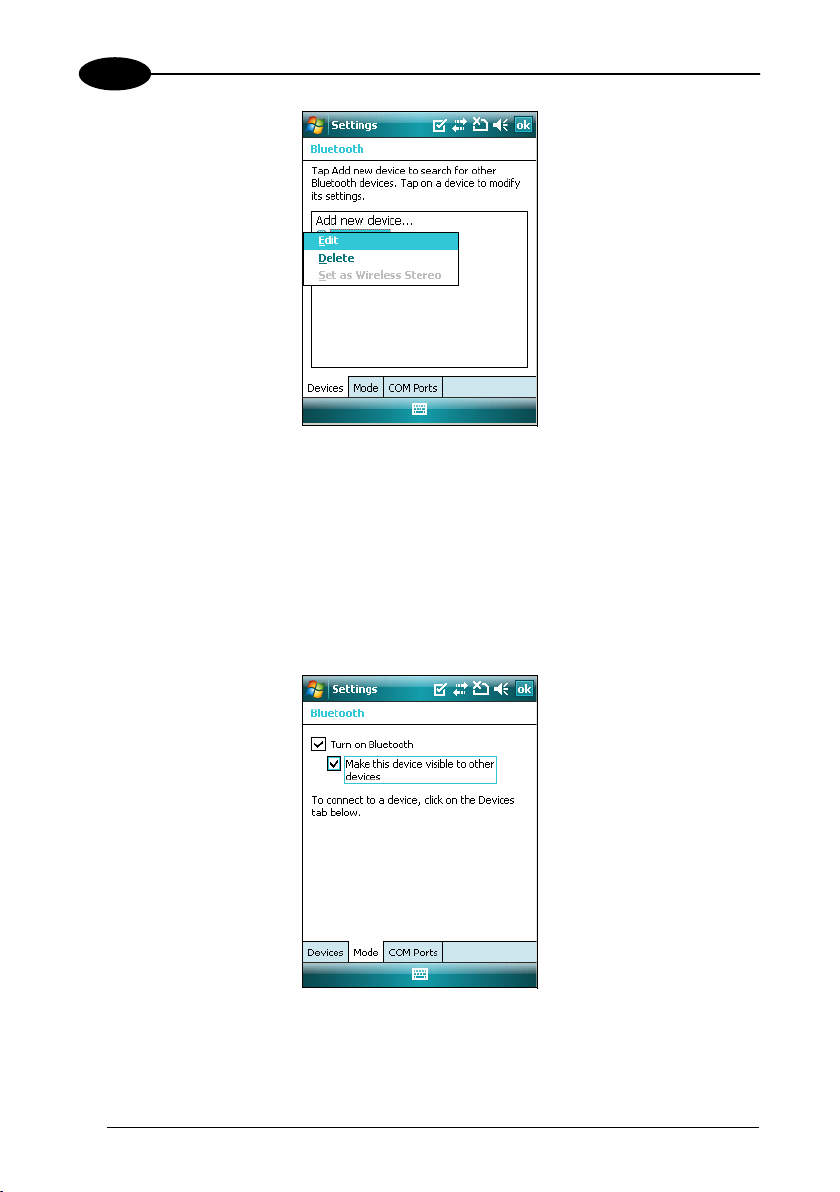

DATALOGIC JET™

Other devices with Bluetooth® capabilities can detect your device and attempt to beam information to it, establish a partnership, or use a Bluetooth® service. To make a device discoverable:

1. Tap Start -> Settings -> Connections tab.

2. Tap Bluetooth > Mode Tab.

3. Select the “Turn on Bluetooth” check box, and then select the “Make this device visible to other devices” check box:

Other Bluetooth®-enabled devices can now detect your phone and attempt to beam information to it, establish a Bluetooth® partnership, or use a Bluetooth® service.

USE AND FUNCTIONING

If you no longer want your device to be discoverable, clear the “Make this device visible to other devices” check box. Your device will not detect and notify you of incoming Bluetooth® beams unless you set it up to do this. To receive a Bluetooth® beam:

1. Tap Start -> Settings -> Connections tab -> Beam:

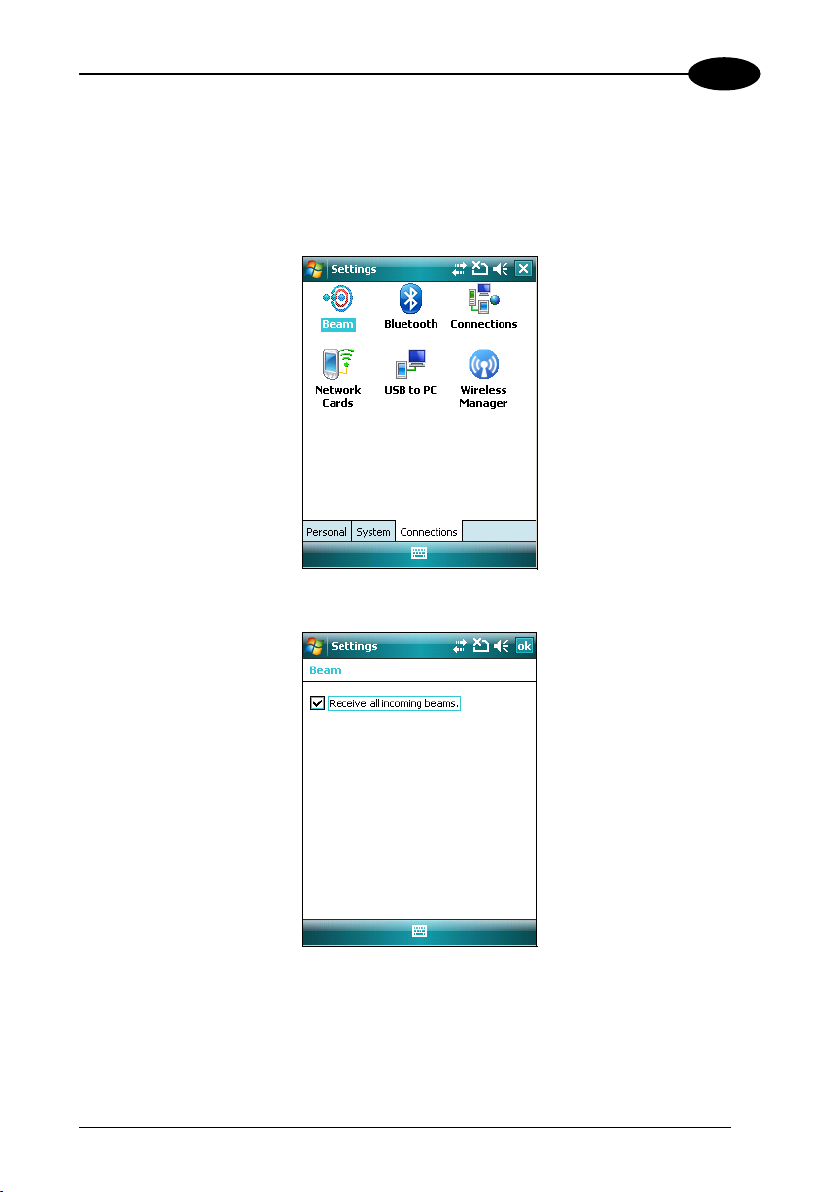

2. Select the “Receive all incoming beams” check box:

3. Ensure that your device is turned on, discoverable, and within close range of the device that is beaming the information.

4. When prompted to receive an incoming beam, tap “Yes” to receive the beamed information.

DATALOGIC JET™

3.9.3 FTP Server Setup

The Datalogic Jet™ Windows CE Operating System includes a sample File Transfer Protocol (FTP) server. FTP is used for copying files to and from remote computer systems over a network using TCP/IP. You can establish a connection to your Datalogic Jet™ using its FTP Server through the following interfaces:

WLAN using the Wi-Fi radio

LAN through the Datalogic Jet™ Ethernet Multi Cradle (see par. 3.8.5)

Proceed as follows:

1. Create a registry file (extension .reg) to setup and enable FTP Server communication. A simple example file for anonymous logon is given below:

REGEDIT4

[HKEY_LOCAL_MACHINE\Comm\FTPD] "DefaultDir"="\\" "AllowAnonymousUpload"=dword:00000001 "UseAuthentication"=dword:00000000 "BaseDir"="\\" "IsEnabled"=dword:00000001 "LogSize"=dword:00001000 "DebugOutputMask"=dword:00000017 "DebugOutputChannels"=dword:00000002 "IdleTimeout"=dword:0000012c "AllowAnonymous"=dword:00000001 "AllowAnonymousVroots"=dword:00000001

2. Copy this file to the Datalogic Jet™ using ActiveSync

3. Launch the .reg file from the Datalogic Jet™.

4. Perform a warm boot on the Datalogic Jet™.

5. From the PC > Explorer address bar (or running an FTP Client from the PC), enter the Datalogic Jet™ IP address.

NOTE

For more information on FTP Client/Server connections refer to the following web page:

http://msdn2.microsoft.com/en-us/library/aa922316.aspx.

USE AND FUNCTIONING

3.10 BACKUP DIRECTORY FILE MANAGEMENT

All of the Windows CE system files reside in RAM (volatile memory) except for the Backup directory, which resides in FLASH (non-volatile memory). Therefore the contents of the Backup directory are persistent even if the PDA is re-booted or the battery pack is changed.

You can save your more important files that you don't want to lose due to PDA reboot, in the Backup directory or create a sub-directory within Backup.

Even though the Windows Directory resides in RAM, it often contains files or subdirectories created by the user or by installation programs that you don't want to lose at re-boot. To keep these files persistent it is necessary to copy them to the directory \Backup\Windows. This directory doesn't exist originally (only Backup exists), and therefore it must be created. At the next cold boot, before activating the shell, Windows CE will copy the contents including all sub-directories of \Backup\Windows to \Windows.

Likewise, to maintain files that must be run at Windows CE startup, (i.e. .exe, .lnk, .vb, .htm, etc.), it is necessary to copy them to the directory \Backup\Startup. This directory does not exist originally (only Backup exists), and therefore it must be created. The application programs will be run after any type of re-boot (both software and cold boot).

As an alternative to the Safe Setup function, it is possible to copy the .cab files to the directory \Backup\Cabfiles (the Cabfiles sub-directory doesn't exists originally and must therefore be created) and perform a PDA cold boot to have the application installed. Once these files are copied to the directory \Backup\Cabfiles, the application will be run after each re-boot.

From the second cold boot on, a message may be displayed such as "<application name> is already installed. Re-install?". This message blocks the boot process. Press the [Enter] key to continue the system initialization.

Even if the entire Windows Mobile file system reside in FLASH (non-volatile memory), the mechanism described above is supported also on Windows Mobile for backward compatibility.

DATALOGIC JET™

3.11 FIRMWARE UPDATE FOR WINDOWS CE

The Datalogic Jet™ is equipped with a tool that implements a firmware update service. This tool, called Datalogic Updater (DLUpdater), is compatible with all hardware versions of the following WindowsCE 5.0 models:

Datalogic Skorpio™; Datalogic Jet™; Datalogic Kyman™; Datalogic Memor™.

The DLUpdater, that is automatically invoked at startup, search for a potential update file (DLUpdate.bin) in the storage card. If it finds it, it proceeds to update only the components that are damaged or not updated. An update can be explicitly invoked by running the application DLUpdater.exe, provided together with the update file. The update must be contained in folder “\Storage Card”.

It is advisable, even if not binding, to connect the terminal to an external power source before starting the update process. This prevents the terminal from turning off while running and avoids a corruption of flash content.

CAUTION

After the update process, all the data stored in the backup folder could be irreparably lost, as well as the device configuration (even that one stored in persistent memory). Therefore, before starting a firmware update it is advisable to run a backup copy of the data you

CAUTION

want to preserve on SD Card or on PC (e.g. using ActiveSync).

Retrieving a Firmware Image Update

The following instructions use Internet Explorer to retrieve the most current firmware image.

1. Launch Internet Explorer on your PC and navigate to www.mobile.datalogic.com.

2. Navigate the Downloads section of the web site.

3. Select the product, desired language, and software updates. Click Go!

4. Select the file you want to download, then click Save and navigate to the location where you want to save the firmware files.

USE AND FUNCTIONING

5. Click Save again to begin copying the files to your local machine (or local network location).

Firmware Update Procedure

1. Download the update from the web site (see previous par.). It is a zip file containing the files:

• DLUpdater.exe – that starts the update;

• DLUpdate.bin – binary file containing the updated firmware;

2. Copy the files DLUpdater.exe (optional) and DLUpdate.bin on a Mini SD card.

3. Insert the Mini SD card in the terminal slot (see par. 0).

4. Open the folder “\Storage Card” on the terminal and run DLUpdater.exe (double tap the icon). As an alternative, you can also perform a reboot of the terminal (warm or cold).

5. The message shown in figure 1 will come up on the screen. It informs that DLUpdater found a firmware update in “\Storage Card\DLUpdate.bin”. It also warns the user that by proceeding with the terminal firmware upgrade all data and configurations (registry) may be lost. Select <YES> to continue, <NO> to cancel operations.

6. DLUpdater detects whether an external power source is present. If not, a warning will come up on the screen asking for a confirmation before carrying on (see figure 2).

Figure 1 Figure 2

DATALOGIC JET™

7. DLUpdater performs all the necessary operations of check, update and verify and, if no errors occur during the update, terminates the running invoking a cold boot of the terminal, so that the update process could be completed.

8. Following the operating system upgrade, the message shown in figure 3 may come up at the terminal startup. It informs the user that a flash disk formatting (folder \backup) would required for a clean update and asks whether to proceed with this operation. Select <YES> to format the flash disk. Select <NO> to preserve the current data stored in the backup folder. Sometimes the update process may force a flash format. In these cases the data stored in the backup folder will be irreparably lost. It is therefore recommended to run a backup of the data you want to preserve before starting a firmware update.

Figure 3

Datalogic Jet User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

REFERENCES

CONVENTIONS

REFERENCE DOCUMENTATION

SERVICES AND SUPPORT

SAFETY REGULATIONS

GENERAL SAFETY RULES

BLUETOOTH® APPROVAL

POWER SUPPLY

LASER SAFETY

RADIO COMPLIANCE

FCC COMPLIANCE

SAR COMPLIANCE

PATENTS

WEEE COMPLIANCE

GENERAL VIEW

INTRODUCTION

1.5.1 Removing the SIM Card

CONNECTIONS

USE AND FUNCTIONING

3.4.1 Laser Data Capture

3.4.2 Imager Data Capture

3.5.1 System Control and Navigation Keys

3.5.3 Resetting the Jet

LED STATUS

3.8.2 Registry

3.9.2 Bluetooth® Manager Device Setup
