Datalogic Heron HD3130 Product Reference Manual

Download

Heron™ HD3130

Product Reference Guide

Linear Imager

Datalogic ADC, Inc.

959 Terry Street Eugene, OR 97402 USA Telephone: (541) 683-5700 Fax: (541) 345-7140

An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation. Should future revisions of this manual be published, you can acquire printed versions by co

ntacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners.

See www.patents.datalogic.com for patent list.

Patents

Table of Contents

INTRODUCTION ....................................................................................................................................................... 1

About the Scanner .............................................................................................................................................................1

Using the Heron Reader ...........................................................................................................................................1

About this Manual .............................................................................................................................................................2

Overview ....................................................................................................................................................................2

Manual Conventions .................................................................................................................................................3

Technical Support ..............................................................................................................................................................3

Datalogic Website Support ......................................................................................................................................3

Reseller Technical Support ......................................................................................................................................3

Telephone Technical Support .....................................................................................................

SETUP....................................................................................................................................................................... 5

Unpacking ...........................................................................................................................................................................5

Setting Up the Scanner ..........................................................................................................

Connect Host Interface ............................................................................................................................................6

Stand Installation .....................................................................................................................................................8

Using as a Hands-Free Stand ....................................................................................................

Interface Selection .......................................................................................................................................................... 11

Configuring the Interface ...................................................................................................................................... 11

Customizing Configuration Settings ............................................................................................................................ 14

Using the Programming Bar Codes ..................................................................................................................... 14

Interface Settings .................................................................................................................................................. 15

Configuring Other Features ......................................................................................................

Software Version Transmission ........................................................................................................................... 15

CONFIGURATION USING BAR CODES.................................................................................................................. 17

Configuration Parameters ............................................................................................................................................. 17

Global Interface Features .............................................................................................................................................. 19

Host Commands — Obey/Ignore ........................................................................................................................ 19

USB Suspend Mode ............................................................................................................................................... 20

RS-232 ONLY INTERFACE 21

RS-232 Standard Factory Settings .................................................................................................

Baud Rate .......................................................................................................................

Stop Bits ........................................................................................................................

Parity ..........................................................................................................................

Handshaking Control ...................................................................................................................................................... 24

RS-232/USB-COM INTERFACES 25

Standard Factory Settings ........................................................................................................

Intercharacter Delay ....................................................................................................................................................... 26

Beep On ASCII BEL ..............................................................................................................

Beep On Not on File ............................................................................................................

ACK NAK Options ............................................................................................................................................................ 28

ACK Character ......................................................................................................................................................... 29

NAK Character ...................................................................................................................

ACK NAK Timeout Value ........................................................................................................................................ 30

ACK NAK Retry Count ..............................................................................................................

ACK NAK Error Handling .........................................................................................................

Indicate Transmission Failure ....................................................................................................................................... 33

Disable Character ................................................................................................................

Enable Character .................................................................................................................

KEYBOARD INTERFACE 35

Country Mode ...................................................................................................................

Caps Lock State ................................................................................................................

Numlock ........................................................................................................................................................................... 39

................................................. 21

................................................... 22

...................................................... 23

............................................ 27

............................................ 33

............................................ 34

............................................... 36

............................................... 39

.............................3

...........................................5

.............................9

............................ 15

.............................. 21

..................................... 25

..................................... 29

.............................. 31

.............................. 32

Product Reference Guide i

Keyboard Numeric Keypad ............................................................................................................................................ 40

Keyboard Send Control Characters ............................................................................................................................... 41

Wedge Quiet Interval ..................................................................................................................................................... 42

Intercharacter Delay .............................................................................................................

Intercode Delay ............................................................................................................................................................... 44

USB Keyboard Speed ...................................................................................................................................................... 45

USB-OEM INTERFACE 47

Introduction ....................................................................................................................

Standard Factory Settings ............................................................................................................................................. 47

USB-OEM Device Usage ...........................................................................................................

USB-OEM Interface Options .......................................................................................................................................... 48

DATA FORMAT 49

Global Prefix/Suffix ...........................................................................................................

Global AIM ID ................................................................................................................................................................... 51

GS1-128 AIM ID ..................................................................................................................

Label ID ............................................................................................................................................................................ 52

Label ID: Pre-loaded Sets ...................................................................................................................................... 52

Label ID: Set Individually Per Symbology ........................................................................................

Label ID Control ...................................................................................................................................................... 53

Label ID Symbology Selection ............................................................................................................................... 54

Case Conversion .............................................................................................................................................................. 60

Character Conversion ..................................................................................................................................................... 60

READING PARAMETERS 61

Double Read Timeout .............................................................................................................

Label Gone Timeout ........................................................................................................................................................ 64

LED and Speaker Indicators ........................................................................................................................................... 65

Power On Alert ....................................................................................................................................................... 65

Audio Jingles ................................................................................................................................................................... 65

Audio Jingle Enable ................................................................................................................................................ 66

Select Audio Jingle for Power-up Event ..........................................................................................

Select Audio Jingle for Good Read Event ............................................................................................................. 68

Select Audio Jingle for Enter Stand Mode ........................................................................................................... 69

Select Audio Jingle for Exit Stand Mode .........................................................................................

Select Audio Jingle for Transmit Error Sound ..................................................................................................... 71

Good Read: When to Indicate ............................................................................................................................... 72

Good Read Beep Type .............................................................................................................

Good Read Beep Frequency .................................................................................................................................. 73

Good Read Speaker Volume ................................................................................................................................. 74

Good Read Beep Length ............................................................................................................

RGB LED Settings ............................................................................................................................................................ 76

Enable/Disable RGB LED ...................................................................................................................................... 76

Good Read LED Color ............................................................................................................

RGB Good Read Raising Time .....................................................................................................

RGB Good Read Falling Time ................................................................................................................................ 78

RGB Good Read Holding Time ......................................................................................................

RGB Auto Delay ...................................................................................................................

Scanning Features .......................................................................................................................................................... 80

Scan Mode .............................................................................................................................................................. 80

Stand Mode Triggered Timeout ....................................................................................................

Scanning Active Time ...........................................................................................................

Stand Mode Flash ...............................................................................................................

Flash On Time ..................................................................................................................

Flash Off Time ..................................................................................................................

Stand Mode Sensitivity ..........................................................................................................

SYMBOLOGIES 85

Introduction ....................................................................................................................

Standard Factory Settings for Symbologies

Disable All Symbologies .........................................................................................................

Coupon Control .................................................................................................................

UPC-A ...........................................................................................................................

UPC-A Enable/Disable .......................................................................................................................................... 87

UPC-A Check Character Transmission ............................

................................................................................................................ 85

.................................................................................... 87

.......................................... 43

................................................. 47

...................................... 48

............................................. 50

............................................. 51

..................... 53

........................................ 62

.................... 67

..................... 70

............................... 73

............................ 75

................................. 77

.......................... 77

........................ 78

................................... 79

........................ 81

................................. 82

................................... 83

...................................... 83

...................................... 84

............................... 84

................................................. 85

........................................ 86

............................................... 86

.................................................... 87

ii Heron™ HD3130

Expand UPC-A to EAN-13 ..................................................................................................................................... 88

UPC-A Number System Character Transmission ............................................................................................... 88

In-Store Minimum Reads ..................................................................................................................................... 89

UPC-E ............................................................................................................................................................................... 90

UPC-E Enable/Disable .......................................................................................................................................... 90

UPC-E Check Character Transmission ................................................................................................................. 90

Expand UPC-E to EAN-13 .........................................................................................................

Expand UPC-E to UPC-A ....................................................................................................................................... 91

UPC-E Number System Character Transmission ............................................................................................... 92

UPC-E Minimum Read ..............................................................................................................

EAN 13 .............................................................................................................................................................................. 93

EAN 13 Enable/Disable ......................................................................................................................................... 93

EAN 13 Check Character Transmission ............................................................................................................... 93

EAN-13 Flag 1 Character ....................................................................................................................................... 94

EAN-13 ISBN Conversion ..........................................................................................................

ISSN Enable/Disable ............................................................................................................................................. 95

EAN 13 Minimum Reads ....................................................................................................................................... 95

EAN 8 ................................................................................................................................................................................ 96

EAN 8 Enable/Disable ........................................................................................................................................... 96

EAN 8 Check Character Transmission ................................................................................................................. 96

Expand EAN 8 to EAN 13 .........................................................................................................

EAN 8 Minimum Reads ......................................................................................................................................... 97

UPC/EAN Global Settings .............................................................................................................................................. 98

UPC/EAN Decoding Level ..................................................................................................................................... 98

UPC/EAN Price Weight Check .............................................................................................................................. 99

UPC-A Minimum Reads ...................................................................................................................................... 100

Add-Ons ......................................................................................................................................................................... 101

Optional Add-ons ................................................................................................................................................. 101

Optional Add-On Timer ....................................................................................................................................... 102

P2 Add-Ons Minimum Reads ........................................................................................................

P5 Add-Ons Minimum Reads ............................................................................................................................. 104

GS1 DataBar™ Omnidirectional ................................................................................................................................. 105

GS1 DataBar Omnidirectional Enable/Disable ................................................................................................. 105

GS1 DataBar Omnidirectional GS1-128 Emulation .......................................................................................... 105

GS1 DataBar Omnidirectional Minimum Reads ............................................................................................... 106

GS1 DataBar™ Expanded .............................................................................................................................................. 107

GS1 DataBar Expanded Enable/Disable ........................................................................................................... 107

GS1 DataBar Expanded GS1-128 Emulation ..................................................................................................... 107

GS1 DataBar Expanded Minimum Reads ..............................................................................................

GS1 DataBar Expanded Length Control ............................................................................................................. 109

GS1 DataBar Expanded Set Length 1 ...............................................................................................

GS1 DataBar Expanded Set Length 2 ...............................................................................................

GS1 DataBar™ Limited .................................................................................................................................................. 111

GS1 DataBar Limited Enable/Disable ............................................................................................................... 111

GS1 DataBar Limited GS1-128 Emulation ..........................................................................................

GS1 DataBar Limited Minimum Reads ................................................................................................

Code 39 ........................................................................................................................................................................... 113

Code 39 Enable/Disable ...................................................................................................................................... 113

Code 39 Check Character Calculation ............................................................................................

Code 39 Check Character Transmission ...........................................................................................

Code 39 Start/Stop Character Transmission ....................

Code 39 Full ASCII .............................................................................................................

Code 39 Quiet Zones .............................................................................................................

Code 39 Minimum Reads ..........................................................................................................

Code 39 Decoding Level ...........................................................................................................

Code 39 Length Control ...........................................................................................................

Code 39 Set Length 1 ............................................................................................................

Code 39 Set Length 2 ............................................................................................................

Code 39 Interdigit Ratio ........................................................................................................

Code 39 Stitching ..............................................................................................................

Code 32 (Italian Pharmaceutical) ................................................................................................................................ 125

Code 32 Enable/Disable ...................................................................................................................................... 125

................................................................................ 115

............................ 91

............................ 92

............................ 94

.............................. 97

..................... 103

............ 108

................. 109

................. 110

.............. 111

.............. 112

..................... 114

................. 115

................................... 116

............................... 117

.......................... 118

............................ 119

............................ 120

............................... 121

............................... 122

............................... 123

................................... 125

Product Reference Guide

iii

Code 32 Feature Setting Exceptions .................................................................................................................. 126

Code 32 Check Character Transmission ............................................................................................................ 126

Code 32 Start/Stop Character Transmission .................................................................................................... 126

Code 39 CIP (French Pharmaceutical) ......................................................................................................................... 127

Code 39 CIP Enable/Disable ............................................................................................................................... 127

Code 128 ........................................................................................................................................................................ 127

Code 128 Enable/Disable .................................................................................................................................... 127

Expand Code 128 to Code 39 .............................................................................................................................. 128

Code 128 Check Character Transmission .......................................................................................................... 128

Code 128 Function Character Transmission .........................................................................................

Code 128 Sub-Code Change Transmission ....................................................................................................... 129

Code 128 Quiet Zones ............................................................................................................

Code 128 Minimum Reads .................................................................................................................................. 131

Code 128 Decoding Level .................................................................................................................................... 132

Code 128 Length Control ........................................................................................................

Code 128 Set Length 1 ......................................................................................................................................... 134

Code 128 Set Length 2 ......................................................................................................................................... 135

Code 128 Stitching ..............................................................................................................

GS1-128 ......................................................................................................................................................................... 136

GS1-128 Enable .................................................................................................................................................... 136

Interleaved 2 of 5 (I 2 of 5) ........................................................................................................................................... 137

I 2 of 5 Enable/Disable ........................................................................................................................................ 137

I 2 of 5 Check Character Calculation ................................................................................................................... 138

I 2 of 5 Check Character Transmission ...........................................................................................

I 2 of 5 Minimum Reads ...................................................................................................................................... 140

I 2 of 5 Decoding Level ......................................................................................................................................... 141

I 2 of 5 Length Control ........................................................................................................

I 2 of 5 Set Length 1 ............................................................................................................................................. 143

I 2 of 5 Set Length 2 ............................................................................................................................................. 144

I 2 of 5 Zero Pattern ............................................................................................................

Interleaved 2 of 5 CIP HR ............................................................................................................................................. 145

Interleaved 2 of 5 CIP HR Enable/Disable ......................................................................................................... 145

Datalogic 2 of 5 ............................................................................................................................................................. 146

Datalogic 2 of 5 Enable/Disable ......................................................................................................................... 146

Datalogic 2 of 5 Check Character Calculation ................................................................................................... 146

Datalogic 2 of 5 Check Character Transmission ...................................................................................

Datalogic 2 of 5 Minimum Reads ....................................................................................................................... 147

Datalogic 2 of 5 Decoding Level .......................................................................................................................... 148

Datalogic 2 of 5 Length Control ................................................................................................

Datalogic 2 of 5 Set Length 1 .............................................................................................................................. 149

Datalogic 2 of 5 Set Length 2 ....................................................................................................

Datalogic 2 of 5 Interdigit Ratio ................................................................................................

Codabar .......................................................................................................................................................................... 153

Codabar Enable/Disable ..................................................................................................................................... 153

Codabar Check Character Calculation .............................................................................................

Codabar Check Character Transmission ............................................................................................

Codabar Start/Stop Character Transmission .....................

Codabar Start/Stop Character Set ...............................................................................................

Codabar Start/Stop Character Match ..............................

Codabar Quiet Zones ............................................................................................................

Codabar Minimum Reads ...........................................................................................................

Codabar Decoding Level .........................................................................................................

Codabar Length Control .........................................................................................................

Codabar Set Length 1 ...........................................................................................................

Codabar Set Length 2 ...........................................................................................................

Codabar Interdigit Ratio .......................................................................................................

ABC Codabar .................................................................................................................................................................. 164

ABC Codabar Enable/Disable ............................................................................................................................. 164

ABC Codabar Concatenation Mode ..................................................................................................

ABC Codabar Dynamic Concatenation Timeout ......................................................................................

ABC Codabar Force Concatenation .................................................................................................................... 165

Code 11 ........................................................................................................................................................................... 166

.............................................................................. 154

.................................................................................. 155

............................. 130

............................. 133

................................. 135

................................. 142

................................. 144

............................... 156

............................. 158

............................. 159

............................... 160

............................... 161

............................... 162

............ 129

................... 139

............ 147

.......................... 148

.......................... 150

.......................... 151

................... 153

................ 154

...................... 155

........................ 157

.................. 164

......... 165

iv Heron™ HD3130

Code 11 Enable/Disable ...................................................................................................................................... 166

Code 11 Check Character Calculation ................................................................................................................. 167

Code 11 Check Character Transmission ............................................................................................................ 167

Code 11 Minimum Reads ..........................................................................................................

Code 11 Length Control ....................................................................................................................................... 169

Code 11 Set Length 1 ........................................................................................................................................... 169

Code 11 Set Length 2 ............................................................................................................

Code 11 Interdigit Ratio ....................................................................................................................................... 171

Code 11 Decoding Level ....................................................................................................................................... 173

Standard 2 of 5 .............................................................................................................................................................. 174

Standard 2 of 5 Enable/Disable ......................................................................................................................... 174

Standard 2 of 5 Check Character Calculation ..................

Standard 2 of 5 Check Character Transmission ............................................................................................... 175

Standard 2 of 5 Minimum Reads ....................................................................................................................... 175

Standard 2 of 5 Decoding Level ..................................................................................................

Standard 2 of 5 Length Control .......................................................................................................................... 176

Standard 2 of 5 Set Length 1 .............................................................................................................................. 177

Standard 2 of 5 Set Length 2 ....................................................................................................

Industrial 2 of 5 ............................................................................................................................................................. 179

Industrial 2 of 5 Enable/Disable ........................................................................................................................ 179

Industrial 2 of 5 Check Character Calculation .................

Industrial 2 of 5 Check Character Transmission ............................................................................................... 180

Industrial 2 of 5 Length Control ......................................................................................................................... 180

Industrial 2 of 5 Set Length 1 .................................................................................................

Industrial 2 of 5 Set Length 2 ............................................................................................................................. 182

Industrial 2 of 5 Minimum Reads ....................................................................................................................... 183

IATA ................................................................................................................................................................................ 184

IATA Enable/Disable ............................................................................................................................................ 184

IATA Check Character Transmission .................................................................................................................. 184

ISBT 128 ......................................................................................................................................................................... 185

ISBT 128 Concatenation ...................................................................................................................................... 185

ISBT 128 Concatenation Mode ........................................................................................................................... 185

ISBT 128 Dynamic Concatenation Timeout .........................................................................................

ISBT 128 Force Concatenation ............................................................................................................................ 187

ISBT 128 Advanced Concatenation Options ...................................................................................................... 187

MSI .................................................................................................................................................................................. 188

MSI Enable/Disable ............................................................................................................................................. 188

MSI Check Character Calculation ........................................................................................................................ 188

MSI Check Character Transmission ...............................

MSI Length Control .............................................................................................................................................. 189

MSI Set Length 1 ...............................................................................................................

MSI Set Length 2 ...............................................................................................................

MSI Minimum Reads ...............................................................................................................

MSI Decoding Level .............................................................................................................................................. 193

Code 93 ........................................................................................................................................................................... 194

Code 93 Enable/Disable ...................................................................................................................................... 194

Code 93 Check Character Calculation ............................................................................................

Code 93 Check Character Transmission ...........................................................................................

Code 93 Length Control ...........................................................................................................

Code 93 Set Length 1 ............................................................................................................

Code 93 Set Length 2 ............................................................................................................

Code 93 Minimum Reads ..........................................................................................................

Code 93 Decoding Level ...........................................................................................................

Code 93 Quiet Zones .............................................................................................................

Codablock F ................................................................................................................................................................... 202

Codablock F Enable/Disable ............................................................................................................................... 202

Codablock F EAN Enable/Disable .................................................................................................

Codablock F AIM Check ...........................................................................................................

Codablock F Length Control ......................................................................................................

Codablock F Set Length 1 ........................................................................................................

Codablock F Set Length 2 .................................................................................................................................... 205

Code 4 ............................................................................................................................................................................. 206

.................................................................................. 174

.................................................................................. 179

.................................................................................... 189

.......................... 168

............................... 170

........................ 176

.......................... 178

............................ 181

.............. 186

................................... 190

................................... 191

............................ 192

..................... 194

................. 195

............................ 195

............................... 197

............................... 198

.......................... 199

............................ 200

............................... 201

..................... 202

............................ 203

.......................... 203

............................ 204

Product Reference Guide

Code 4 Enable/Disable ........................................................................................................................................ 206

Code 4 Check Character Transmission .............................................................................................................. 206

Code 4 Hex to Decimal Conversion .................................................................................................................... 207

Code 5 ............................................................................................................................................................................. 207

Code 5 Enable/Disable ........................................................................................................................................ 207

Code 5 Check Character Transmission .............................................................................................................. 208

Code 5 Hex to Decimal Conversion .................................................................................................

Code 4 and Code 5 Common Configuration Items .................................................................................................... 209

Code 4 and 5 Decoding Level .............................................................................................................................. 209

Code 4 and Code 5 Minimum Reads .................................................................................................

Follett 2 of 5 .................................................................................................................................................................. 211

Follett 2 of 5 Enable/Disable .............................................................................................................................. 211

BC412 ............................................................................................................................................................................. 211

BC412 Enable/Disable ........................................................................................................................................ 211

BC412 Check Character Calculation ................................................................................................

BC412 Minimum Reads ....................................................................................................................................... 212

BC412 Decoding Level ......................................................................................................................................... 213

BC412 Length Control ...........................................................................................................

BC412 Set Length 1 ............................................................................................................................................. 214

BC412 Set Length 2 ............................................................................................................................................. 215

................... 208

................. 210

................... 212

............................... 214

REFERENCES...................................................................................................................................................... 217

RS-232 Parameters ...................................................................................................................................................... 218

RS-232 Only .......................................................................................................................................................... 218

RS-232/USB COM Parameters .......................................................................................................................... 219

Keyboard Interface ....................................................................................................................................................... 226

Wedge Quiet Interval ........................................................................................................................................... 226

Intercharacter Delay ............................................................................................................................................ 227

Intercode Delay .................................................................................................................................................... 228

Data Format .................................................................................................................................................................. 229

Data Editing .......................................................................................................................................................... 229

Global Prefix/Suffix ............................................................................................................................................. 230

Global AIM ID ..................................................................................................................

Label ID ................................................................................................................................................................. 232

Character Conversion .......................................................................................................................................... 236

Reading Parameters ..................................................................................................................................................... 237

Label Gone Timeout ............................................................................................................................................. 237

RGB LED Features ............................................................................................................................................... 238

Scanning Features ........................................................................................................................................................ 241

Scan Mode ............................................................................................................................................................ 241

Scanning Active Time ...........................................................................................................

Flash On Time ..................................................................................................................

Flash Off Time ..................................................................................................................

Symbologies .................................................................................................................................................................. 245

Decoding Levels ................................................................................................................................................... 245

Set Length ......................................................................................................................

...................................... 231

............................... 242

.................................... 243

.................................... 244

...................................... 245

TECHNICAL SPECIFICATIONS............................................................................................................................ 249

LED and Beeper Indications ........................................................................................................................................ 251

Programming Mode ............................................................................................................................................. 252

Troubleshooting ............................................................................................................................................................ 252

Error Codes .....................................................................................................................

Standard Cable Pinouts .........................................................................................................

Stand Dimensions ................................................................................................................

Stand Base Plate Template ........................................................................................................

............................................... 253

...................................... 254

........................................ 255

................................. 256

STANDARD DEFAULTS....................................................................................................................................... 257

Default Exceptions ........................................................................................................................................................ 268

SAMPLE BAR CODES ......................................................................................................................................... 271

1D Bar Codes ................................................................................................................................................................. 271

GS1 DataBar (RSS) ..............................................................................................................

GS1 DataBar-14 ................................................................................................................................................... 273

........................................... 273

vi Heron™ HD3130

KEYPAD............................................................................................................................................................... 275

SCANCODE TABLES............................................................................................................................................ 279

Control Character Emulation ....................................................................................................................................... 279

Single Press and Release Keys ........................................................................................................................... 279

Interface Type PC AT PS/2 or USB-Keyboard ............................................................................................................ 280

Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode ........................................................................... 282

Microsoft Windows Codepage 1252 .................................................................................................

.......................... 284

Index ............................................................................................................................................................285

Product Reference Guide

vii

NOTES

viii Heron™ HD3130

About the Scanner

Bridging the gap between man and machine, the Heron™ HD3130 linear imager brings high style along with technology to the modern point of sale. Distinctive features such as side and top lights, polyphonic speaker and stylish top covers, as well as Green Spot technology, characterize this innovative reader.

Perfect for use as both a handheld and a presentation style reader, the Heron

mager is lightweight and ergonomically shaped for handheld use and includes

i an auto-sensing stand in the package.

Developed to satisfy the most demanding reading requirements for linear reading at POS checkout, the Heron linear imager is available as an all-in-one multi-i

The Heron™ HD3130 Linear Imager has several new features. See

Parameters"

nterface solution (RS-232, USB and Wedge).

• The reader's attractive illumination (top and sides) selectively changes lor to indicate its status.

• The user has the option to use personal

uploaded via Datalogic Aladdin™ configuration software) instead of the normal beep tone.

Chapter 1

Introduction

"Reading

on page 61 for information on setting these features:

jingles (a short user-defined tune

Using the Heron Reader

Heron readers automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the center of the light bar emitted from the reading window. This bar must cover the entire code.

Effective scanning is obtained by tilting th to avoid direct reflections, which impair the reading performance (see Figure 1A below). A successful read is signaled by an audible tone or a jingle (previously uploaded), plus a good-read green spot. The side and upper illuminators become green (unless another color has been configured with Datalogic Aladdin™ configurator).

Once the reader is correctly inserted into the automatically read any code present in its reading area without pressing the trigger. Furthermore, a green aiming light (Datalogic’s patented ‘Green Spot’) is continuously emitted to facilitate the positioning of the bar code to be read (shown in Figure 1B).

To guarantee single code reading, consecutive reading of the same code requires the code to be removed from the reading area (no decoding) before the reader will accept the same code again.

Product Reference Guide 1

e scanner with respect to the barcode

stand, it is immediately ready to

Introduction

Figure 1. Correct positioning of scanner

About this Manual

This Product Reference Guide (PRG) is provided for users seeking advanced technical information, including connection, programming, maintenance and specifications. The Quick Reference Guide (QRG) and other publications associated with this product are downloadable free of charge from the website listed

he back cover of this manual.

on Typically, units are factory-programmed for the most common terminal and

mmunications settings. If you need to modify any programmable settings,

o custom configuration can be accomplished by scanning the programming bar codes within this guide.

Programming can alternatively be performed using the Configuration application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates to the device using a serial or USB cable and can also create configuration bar codes to print.

Datalogic Aladdin™

Overview

Chapter 1, Introduction

cable connection information.

Chapter 2, Setup

ner, and interface configuration bar codes and details.

Chapter 3, Configuration Using Bar Codes

for customizing your scanner. There are diff general features, data formatting, and symbology-specific features.

Chapter 4, References Appendix A, Technical Specifications

as well as environmental and regulatory specific dard cable pin-outs and descripti scanner’s LED and Speaker indicators.

Appendix B, Standard Defaults

scanner features and options.

Appendix C, Sample Bar Codes

bologies.

Appendix D, Keypad

parameter settings.

Appendix E, Scancode Tables

Wedge and USB Keyboard interfaces.

presents information about unpacking and setting up the scan-

provides a product overview, unpacking instructions, and

provides instructions and bar code labels

erent sections for interface types,

provides details concerning programmable features.

lists physical and performance characteristics,

ations. It also provides stan-

ons of the functions and behaviors of the

references common factory default settings for

offers sample bar codes of several common sym-

includes numeric bar codes to be scanned for certain

lists control character emulation information for

2 Heron™ HD3130

Manual Conventions

The symbols listed below are used in this manual to notify the reader of key issues or procedures that must be observed when using the scanner:

Technical Support

Notes contain information necessary for properly diagnosing, and operating the scanner.

NOTE

The CAUTION symbol advises you of actions that could da ment or property.

CAUTION

Technical Support

Datalogic Website Support

The Datalogic website ( support and information fo port, warranty information, product manuals, product tech notes, software updates, demos,

Reseller Technical Support

and instructions for returning products for repair.

mage equip-

www.datalogic.com

r Datalogic products. The site offers product sup-

) is the complete source for technical

repairing

An excellent source for technical assistance and information is an authorized Datalogic reseller. A reseller is acquainted with specific types of businesses, application software, and computer systems and can provide individualized assistance.

Telephone Technical Support

If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.

Current versions of the Product Referen (QRG), the Datalogic Aladdin™ Configuration application, software/firmware and any additional manuals, instruction sheets and utilities for this product can be downloaded from the website listed on the back cover of this manual. Alternatively, printed copies or product support your Datalogic reseller.

e Guide (PRG), Quick Reference Guide

CDs may be

purchased through

Product Reference Guide

Introduction

NOTES

4 Heron™ HD3130

Unpacking

Cable Connector

Paper clip

Check carefully to ensure the scanner and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact Technical Support on page 3.

KEEP THE PACKAGING. Should the unit ever require service, it should be retu

rned in its original shipping container.

Setting Up the Scanner

Follow the steps provided in this section to connect and get your scanner up and communicating with its host:

Chapter 2

Setup

1. Connect the Interface Cable at the sc connect the cable, insert a paper clip or similar object into the opening shown (item #3).

2. Connect the other end to the Host (see the next section,

face on page 6

3. Modify " are needed from factory settings).

and Figure 3).

Customizing Configuration Settings" on page 14

anner as shown in Figure 2. To dis-

Connect Host Inter-

(only if modifications

Figure 2. Cable Connection/Disconnection at the Scanner

Product Reference Guide 5

Setup

Connect Host Interface

The scanner kit you ordered to match your interface should provide a compatible cable for your installation. If this is not so, contact

The scanner can communicate using the following interfaces:

RS-232 Serial Connection

Turn off power to the terminal/PC and connect the scanner to the terminal/PC serial port via the RS-232 cable as shown in Figure 3. If the terminal will not support POT (Power Off the Terminal) to supply sc approved power supply (AC Adapter). Plug the AC Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter plug into a standard power outlet.

Technical Support

anner power, use the

RS-232:

RS-232 host.

RS-232 OPOS:

The scanner can communicate with a standard or Wincor-Nixdorf (W-N)

This interface is used for OPOS/UPOS/JavaPOS systems.

Keyboard Wedge Connection

The Keyboard Wedge cable has a ‘Y’ connection from the scanner. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the terminal/PC.

Keyboard Wedge (KBW) :

scanned data as keystrokes and supports several international keyboards (for the Windows

environment). See

When connected using this interface, the host interprets

"Country Mode"

on page 36 for a full listing.

USB Connection

Connect the scanner to a USB port on the terminal/PC using the correct USB cable for the interface type you ordered.

USB :

Select to communicate either by USB OEM, USB COM STD, or USB Keyboard interface types by scanning the appropriate interface type bar codes available in this manual. The default interface is USB-KBD, or RS-232-STD.

6 Heron™ HD3130

Figure 3. Connection to the Host

USB

Keyboard Wedge

Setting Up the Scanner

RS-232

NOTE

Specific cables are required for connection to different hosts. The connections illustrated in Figure 3 are examples only. Actual connectors may vary from those illustrated, but the steps to conn same.

ect the scanner remain the

Product Reference Guide

Setup

Screws

Rubber

Feet

Stand Installation

The stand can be affixed to a flat surface such as a desk or countertop. If needed, it can also be easily removed.

To install the stand:

1. Remove the protective film from the rubber feet and ad to the corresponding recessed areas on the bottom surface of the stand.

re them

2. Turn to "

plate" on page 256

mask at the desired position of the stand base

3. Use a pen to mark the location of the small holes (shown in red) on the desk surface. Remove the mask before installing the screws.

4. Screw the 2 wood screws into the desk, centering in the marked holes. Leave about 4-5 mm of the screw protruding from the upper surface of

the desk.

Stand Base Plate Tem-

. Place the

on the desk.

It is recommended to use two n.2 wood screws ISO 7050, diameter. 3.5 mm, length 16 mm or equivalent. On hard surfaces, an electric screwdriver can be used for easier installation of the screws.

NOTE

8 Heron™ HD3130

Setting Up the Scanner

5. Set the stand in place on the screws by aligning the large holes (circled in

blue) with the screw heads.

6. Rotate the stand counterclockwise until you feel it lock into place.

7. If the rotation is obstructed, or if the sta

remove the stand and adjust the height of the screws. Retry.

8. To remove the stand, rotate clockwise and lift to detach.

nd does not lock into place,

Insertion Into Stand

Place the reader into the stand, taking care to insert the handle into the stand clip as shown.

Correct insertion will be signaled by a beep; then, the reader will be ready to read bar codes.

Using as a Hands-Free Stand

The Heron HD3130 Stand can be used as a hands-free stand. Once the reader is correctly inserted into the stand, it is immediately ready to

automatically read any code present in its reading area without pressing the trigger. A green aiming light is continuously emitted to facilitate the positioning of the bar code to be read. Adjust the st the following section.

Product Reference Guide

and posi

tion as needed, as shown in

Setup

Screw

Adjusting the Stand Position

The stand can easily be adjusted to change the inclination of the reader while in the stand.

To adjust the stand:

1. With fingers, loosen the screw on the bottom of the stand by turning it counterclockwise.

2. Set the stand upright and slide to adjust to the desired position.

3. Re-tighten the screw to secure the stand.

10 Heron™ HD3130

Interface Selection

Upon completing the physical connection between the scanner and its host, proceed directly to programming for the interface type the scanner is connected to (for example: RS-232, K section to select your system’s correct interface type.

The scanner, depending upon the model, will support one of the following sets

host

USB Models (2.0 full speed)

• USB-KBD

• USB-COM STD

• USB-OEM

• USB-KBD-ALT

RS-232 / Keyboard Wedge Models

• RS-232 (Standard, Wincor-Nixdorf, OPOS)

• Keyboard Wedge

eyboard Wedge, USB, etc.) and scan the appropriate bar code in that

interfaces:

"Configuring the Interface"

Interface Selection

on page 11 for information and

Configuring the Interface

Scan the programming bar code from the following section which selects the appropriate interface type to match the system the scanner will be connected to. Next, proceed to the corresponding chapter in this manual (also listed in the table) to configure any desired settings and features associated with that interface.

Unlike some other programming features and opt tions require that you scan only one programming bar code label. DO NOT sc code.

NOTE

Some interfaces require the scanner to start in the disabled state when powered up. If ad state, pull the trigger and hold it for five seconds. The scanner will change to a state that allows programming with bar codes.

ions, interface selec-

an an ENTER/EXIT bar code prior to scanning an interface selection bar

ditional scanner configuration is desired while in this

Product Reference Guide

Setup

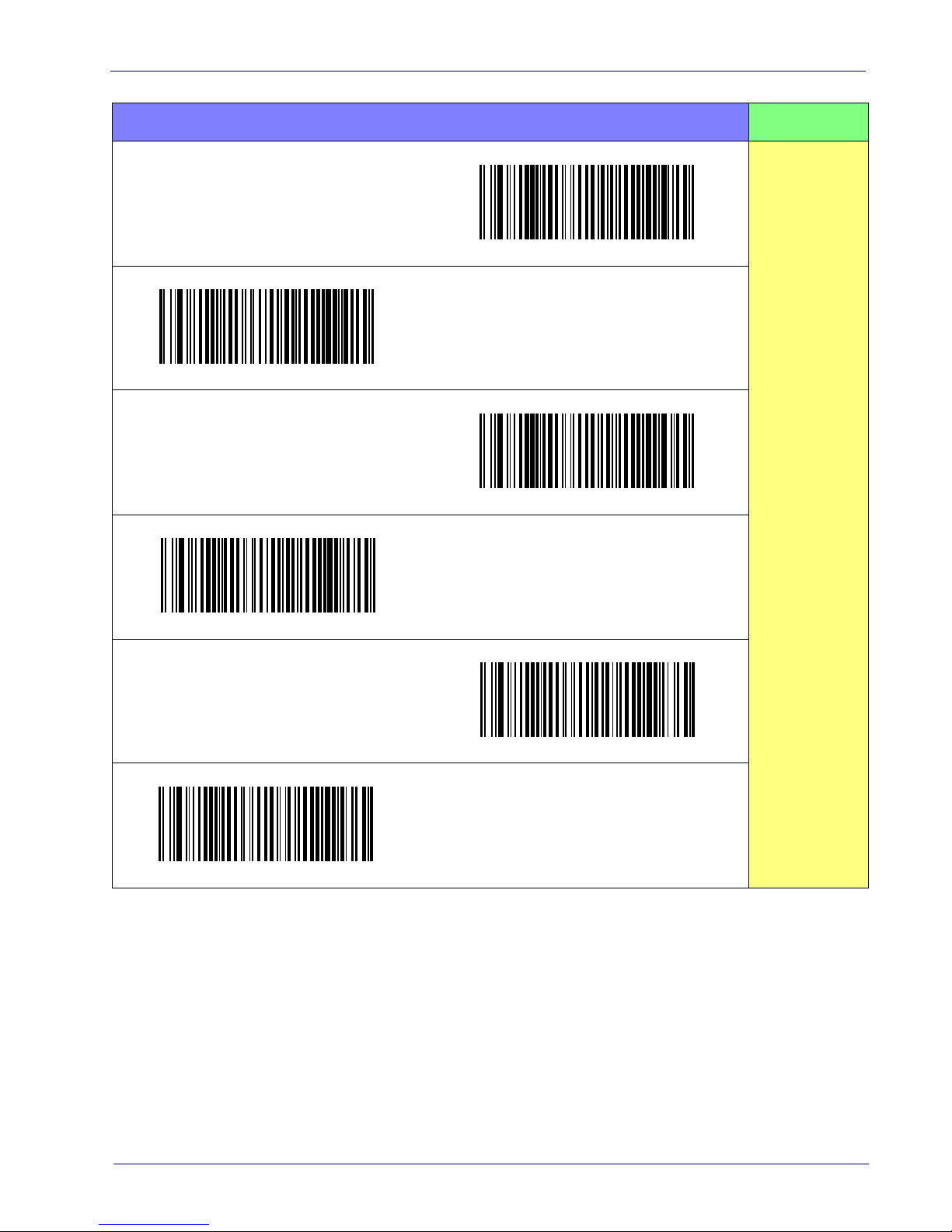

Table 1. Available Interfaces

RS-232

RS-232 standard interface

$P,HA12,P

Select RS232-WN

RS-232 for use with OPOS/UPOS/JavaPOS

$P,HA47,P

$P,HA05,P

Select RS232-STD

RS-232 Wincor-Nixdorf

$P,HA13,P

Select RS-232 OPOS

FEATURES

Set RS-232

Interface Features

starting on

page 21

USB Com to simulate RS-232 standard interface

Select USB-COM-STD

USB-OEM

(can be used for OPOS/UPOS/JavaPOS)

a. Download the correct USB Com driver from www.datalogic.com

$P,HA45,P

Select USB-OEM

FEATURES

Set USB-OEM

Interface Features

starting on

page 47

12 Heron™ HD3130

Interface Selection

KEYBOARD

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding

$P,HA11,P

Select KBD-AT-NK

AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90

& 95 w/Alternate K

$P,HA10,P

$P,HA29,P

Select KBD-AT

Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard

$P,HA26,P

Select KBD-AT-ALT

Keyboard Wedge for IBM AT PS2 with alternate key

encoding but wi

thout external keyboard

FEATURES

Set KEYBOARD

WEDGE Interface Features

starting on

page 35

Select KBD-AT-ALT-NK

USB Keyboard with standard key encoding

$P,HA2B,P

Select USB Alternate Keyboard

$P,HA35,P

Select USB Keyboard

USB Keyboard with alternate key encoding

Product Reference Guide

Setup

Customizing Configuration Settings

Using the Programming Bar Codes

This manual contains feature descriptions and bar codes which allow you to reconfigure your scanner. Some programming bar code labels, like

Product Configuration to Defaults"

label to enact the change. Most of ever, require the scanner to be placed in Programming them. Scan an ENTER/EXIT bar code once to enter Programming Mode. Once the scanner is in Programming Mode, you can scan a number of parameter settings before scanning the ENTER/EXIT bar accept your changes, exit Programming Mode and return the scanner to normal operation.

on page 16, require only the scan of that single

the programming labels in this manual, how-

"Resetting the

Mode prior to scanning

ode a second time, which will then

There are some exceptions to the ty

pical programming sequence described above. Please read the description and setting instructions carefully when configuring each given programmable feature.

NOTE

Datalogic Aladdin™ Utility

Programming can alternatively be performed using the Datalogic Aladdin™ Configuration application which is available for free download from the Datalogic website listed on the back cover of this manual. This multi-platform utility

ogra

pr using a serial or USB cable and can also create configuration bar codes to print.

Datalogic Aladdin™ is a multi-platform utility program providing a quick and user Aladdin utility is available on the Datalogic website. Aladdin allows you to program the scanner by selecting configuration commands through a user-friendly graph over the selected communication interface, or they can be printed as bar codes to be scanned.

Aladdin also provides the ability to perform a software upgrade for the connected device (see the Datalogic Aladdin™ Help On-Line for more details).

m allows device configuration using a PC. It communicates to the device

-friendly configuration method via the RS-232/USB-COM interface. The

cal interface running on a PC. These commands are sent to the scanner

14 Heron™ HD3130

Interface Settings

Transmit Software Version

RevA

The scanner is typically factory-configured with a set of default features standard to the interface type you ordered. See

Global Interface Features, starting on page 19

interface types. If your installation requires you to further customize your scanner, you can select other options through use of the instructions and programming bar codes available in the appropriate section for your interface.

RS-232 ONLY Interface, starting on page 21

•

RS-232/USB-COM Interfaces, starting on page 25

•

Keyboard Interface, starting on page 35 USB-OEM Interface, starting on page 47

•

Configuring Other Features

If your installation requires different programming than the standard factory default settings, the following sections of this manual allow configuration of non-interface-specific settings you might require:

Configuration Using Bar Codes: General Features includes programming for scan-

ning, speaker and LED indicators and other such universal settings.

Customizing Configuration Settings

"Interface Selection"

provides settings configurable by all

on page 11.

Reading Parameters: Reading Parameters include programming for scanning,

speaker and LED indicators and other universal settings.

Symbologies: Includes options concerning the bar code label types (symbolo-

gies). These settings allow you to enable/disable symbologies, set label

gths, require check digit, etc.

len

Software Version Transmission

The software version of the device can be transmitted over the RS-232, Keyboard and USB interfaces by scanni

ng the following label.

Product Reference Guide

Setup

$P,HA00,P

Restore Custom Default Configuration

Restore USA Factory Configuration

$P,AE,P

Restore EU Factory Configuration

$P,Ae,P

Resetting the Product Configuration to Defaults

If you aren't sure what programming options are in your scanner, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the

uration

rently active interface.

bar code below. This will restore the custom configuration for the cur-

Custom defaults are based on the interface type. Configure the scanner for the correct interface before scanning this label.

NOTE

If you aren't sure what programming options are in your scanner, or you've changed some options and want to restore the Factory Configuration, you have two options. You can scan the

Restore EU Factory Configuration

configuration to the factory settings including the interface type. The USA label

ores Label IDs to those historically used in the USA. The EU label restores

rest Label IDs to those historically used in Europe. The Label ID sets for USA and EU are shown in the Label ID section of this manual.

Restore USA Factory Configuration

bar code below. Both labels restore the scanner

Restore Custom Default Config-

bar code or the

Scanning either of the “Restore Factory Configuration” commands below will result in the loss of any custom configuration settings for your device.

CAUTION

The programming section on the following pages lists the factory default settings for each of the menu commands (indicated by shaded blocks and bold text).

16 Heron™ HD3130

Chapter 3

Configuration Using Bar Codes

This and following sections provide programming bar codes to configure your scanner by changing the default settings. For details about additional methods of programming, see "

Customizing Configuration Settings" on page 14

You must first enable your scanner to read use this section. If you have not done this, go to

NOTE

page 5

Configuration Parameters

Once the scanner is set up, you can change the default parameters to meet your application needs. Refer to "

for initial configuration in order to set the default values and select the

interface for your application. The following configuration parameters are divided into logical groups, making

it easy

Interface Configuration:

Parameters common to all interface applications:

to find the desired function based on its reference group.

• "RS-232 ONLY Interface" on page 21

• "RS-232/USB-COM Interfaces" on page 25

• "Keyboard Interface" on page 35

• "USB-OEM Interface" on page 47

• "

Global Prefix/Suffix" on page 50

• "

Data Format" on page 49

ization of scanned data output.

• "

Reading Parameters" on page 61

cators status functioning.

bar codes in order to

Setup, starting on

and complete the appropriate procedure.

Resetting the Product Configuration to Defaults" on page

offers advanced configuration options for custom-

control various operating modes and indi-

Symbology-specific parameters:

"Symbologies" on page 85

programming bar codes necessary for configuring these features.

Product Reference Guide 17

NOTE

defines options for all symbologies and provides the

You must first enable your scanner to read bar codes in order to use this section. If you have not done this, go to

and complete the appropriate procedure.

page 5

Setup, starting on

Enter/Exit Programming Mode

To program features:

1. Scan the ENTER/EXIT PROGRAMMING bar code, available at the top of each programming page, when applicable.

2. Scan the bar code to set the desire to cover unused bar codes on the page, and possibly the facing page, to ensure that the scanner reads only the bar code you intend to scan.

d pr

ogramming feature. You may need

3. If additional input parameters ar scan the appropriate characters from the keypad.

e needed, go to

Appendix D, Keypad

, and

Additional information about many features can be found in the “References” chapter.

NOTE

If you make a mistake before the last character, scan the CANCEL bar code to abor

t and not save the entry string. You can then start again at

the beginning.

4. Complete the programming sequence by scanning the ENTER/EXIT PROGRAMMING bar code to exit

For more detailed descriptions, programming information and setting selected configuration items, see

Programming Mode.

References, starting on page 217

examples for

18 Heron™ HD3130

Global Interface Features

DEFAULT

The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual.

Enter/Exit Programming Mode

HOST COMMANDS — OBEY/IGNORE

USB SUSPEND MODE

on page 20

Host Commands — Obey/Ignore

This option specifies whether the scanner will obey or ignore host commands. When set to ignore, the scanner will ignore all host commands except for those necessary for:

•service mode

• flash programming mode

•keeping the inte

• transmission of labels.

rface active

on page 19

$CIFIH00

Host Commands = Obey

$CIFIH01

Host Commands = Ignore

Product Reference Guide

Enter/Exit Programming Mode

DEFAULT

USB Suspend Mode

This setting enables/disables the ability of the USB interface to enter suspend mode.

$CUSSE01

USB Suspend Mode = Enable

$CUSSE00

USB Suspend Mode = Disable

20 Heron™ HD3130

RS-232 ONLY Interface Enter/Exit Programming Mode

DEFAULT

RS-232 ONLY Interface

Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 5, RS-232/USB-COM Interfaces.

BAUD RATE on page 21 PARITY on page 23

STOP BITS on page 22 HANDSHAKING CONTROL on page 24

RS-232 Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Baud Rate

Baud rate is the number of bits of data transmitted per second. Set the scanner's baud rate to match the baud rate sett improper baud rate setting, data may not reach the host correctly.

$CR2BA01

Baud Rate = 2400

$CR2BA03

ing of the host device. With an

$CR2BA00

Baud Rate = 1200

$CR2BA02

Baud Rate = 4800

Baud Rate = 9600

Product Reference Guide

Enter/Exit Programming Mode Stop Bits

Baud Rate (continued)

$CR2BA04

Baud Rate = 19,200

$CR2BA05

Baud Rate = 38,400

$CR2BA06

Baud Rate = 57,600

$CR2BA07

Stop Bits

Baud Rate = 115,200

The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. The number of stop bits selected (one or two) depends on date. Set the number of stop bits to ma

the number the receiving terminal is programmed to accommo-

tch host device requirements.

$CR2ST00

DEFAULT

1 Stop Bit

$CR2ST01

2 Stop Bits

22 Heron™ HD3130

RS-232 ONLY Interface Enter/Exit Programming Mode

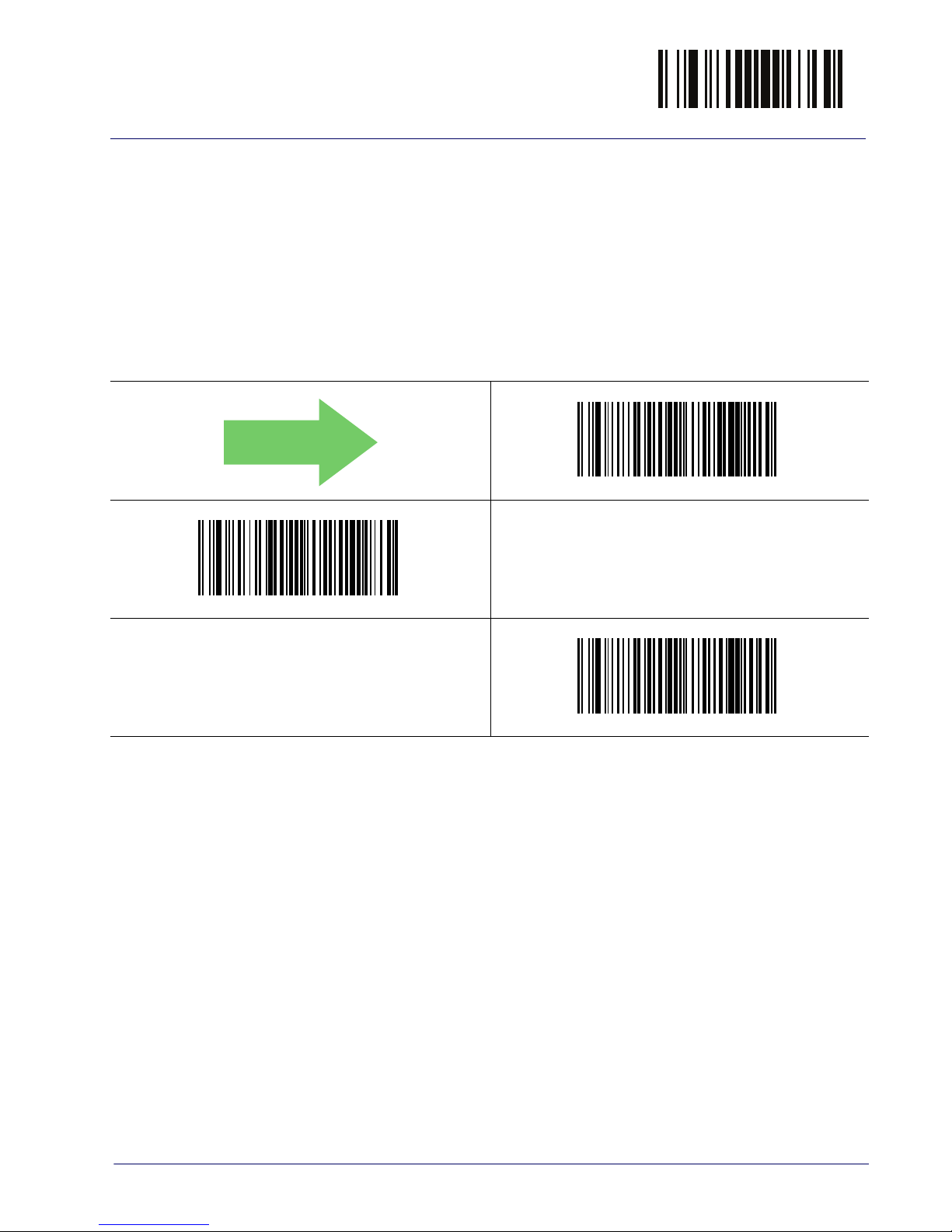

Parity

This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements.

• Select None when no parity bit is

• Select Odd parity and the parity bit value is

ensure that an odd number of 1 bits are contained in the coded character.

• Select Even parity and the pari

ensure that an even number of 1 bits are contained in the coded character.

DEFAULT

$CR2PA01

required.

set to 0 or 1, based on data, to

ty bit value is set to 0 or 1, based on data, to

$CR2PA00

Parity = None

Parity = Even

$CR2PA02

Parity = Odd

Product Reference Guide

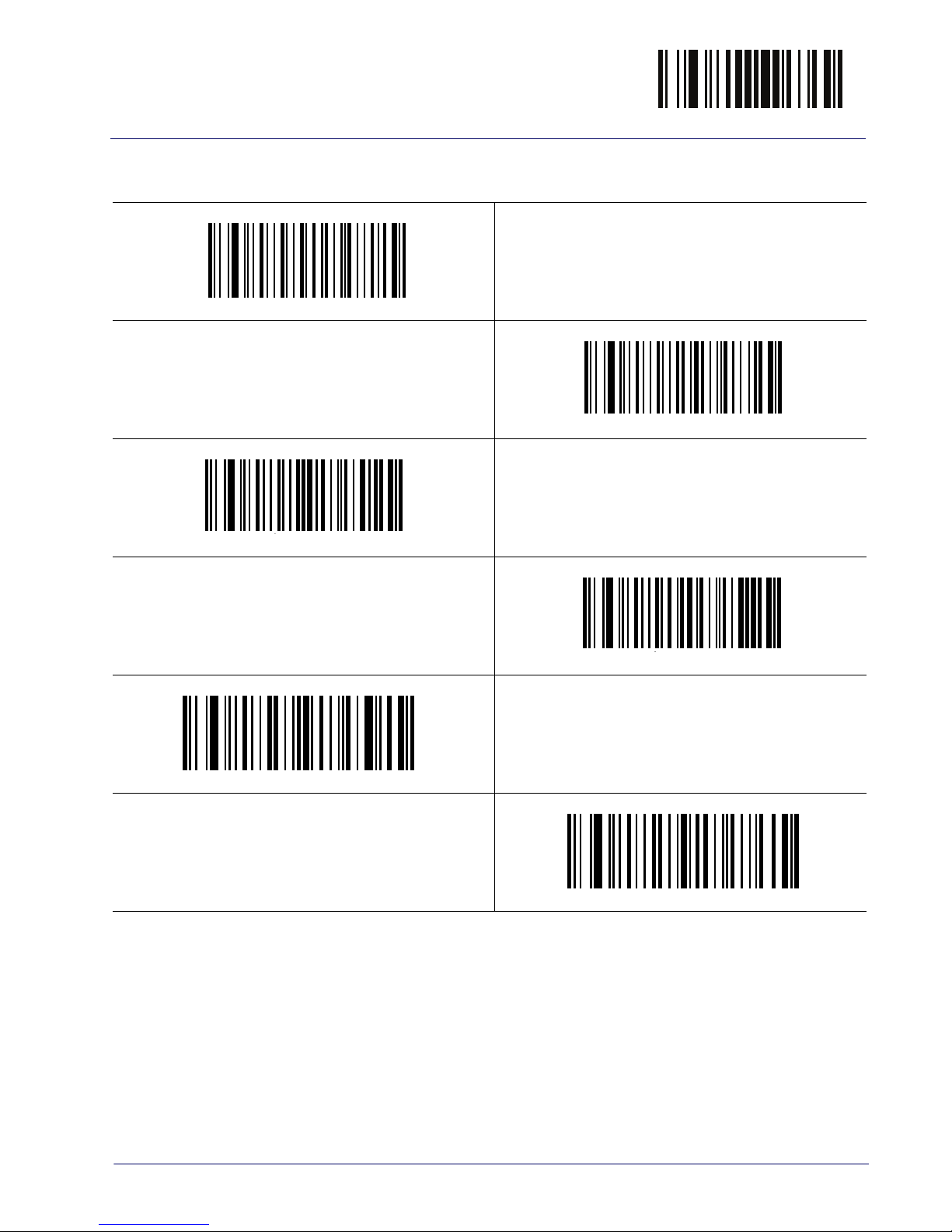

Enter/Exit Programming Mode Handshaking Control

Handshaking Control

The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Handshaking Control includes the following options:

• RTS — RTS is asserted during transm

• RTS/CTS — RTS is asserted during tr sions.

• RTS/XON/XOFF — RTS is asserted during tra XON and XOFF gate transmissions.

• RTS On/CTS — RTS is always asserted. CTS gates transmissions.

• RTS/CTS Scan Control — RTS is asserted d transmissions and controls enable and disable state of scanner.

DEFAULT

$CR2HC01

issions. CTS is ignored.

ansmissions. CTS gates transmis-

nsmissions. CTS is ignored.

uring transmissions. CTS gates

$CR2HC00

Handshaking Control = RTS

Handshaking Control = RTS/CTS

$CR2HC03

Handshaking Control = RTS On/CTS

$CR2HC02

Handshaking Control = RTS/XON/XOFF

$CR2HC04

Handshaking Control = RTS/CTS Scan Control

24 Heron™ HD3130

RS-232/USB-COM Interfaces Enter/Exit Programming Mode

RS-232/USB-COM Interfaces

The programming bar codes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces.

INTERCHARACTER DELAY on page 26

BEEP ON ASCII BEL on page 27

BEEP ON NOT ON FILE on page 27

ACK NAK OPTIONS on page 28

ACK CHARACTER on page 29

NAK CHARACTER on page 29

ACK NAK TIMEOUT VALUE on page 30

ACK NAK RETRY COUNT on page 31

ACK NAK ERROR HANDLING on page 32

INDICATE TRANSMISSION FAILURE on page 33

DISABLE CHARACTER on page 33

ENABLE CHARACTER on page 34

Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Product Reference Guide

Enter/Exit Programming Mode Intercharacter Delay

00 = No Intercharacter Delay

Intercharacter Delay

This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero

990 milliseconds in 10ms increments. A setting of zero specifies no

(0) to delay. See "Label ID: Pre-loaded Sets" on pa ming instructions.

ge 232 for more detailed program-

$CR2IC00

Intercharacter Delay = No Delay

$CR2IC

Select Intercharacter Delay Setting

Make a mistake? Scan the CANCEL bar code to abort and

not save the entry string. You can then start again at the

beginning.

DEFAULT

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

representing your desired character(s). End by

pad

scanning the ENTER/EXIT bar code again.

CANCEL

Appendix D, Key-

26 Heron™ HD3130

RS-232/USB-COM Interfaces Enter/Exit Programming Mode

DEFAULT

Beep On ASCII BEL

When this parameter is enabled, the scanner issues a beep when a <BEL> character is detected on the RS-232 serial li attention to an illegal entry or other important event.

$CR2BB00

Beep On ASCII BEL = Disable

ne. <BEL> is issued to gain a user's

DEFAULT

$CR2BB01

Beep On ASCII BEL = Enable

Beep On Not on File

This option enables/disables the action of the scanner to sound a three beep sequence upon receiving a Not-On-File (NOF) host command.

$CBPNF00

Beep On Not On File = Disable

$CBPNF01

Beep On Not On File = Enable

Product Reference Guide

Enter/Exit Programming Mode ACK NAK Options

ACK NAK Options

This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error.

Options are:

•Disable

• Enable for label transmission response from the host when a label is sent.

• Enable for host-command acknowledge — The scanner will respond with ACK/NAK when the host send

• Enable for label transmission and host-com

DEFAULT

$CR2AE01

— The scanner expects an ACK/NAK

s a command.

mand acknowledge

$CR2AE00

ACK/NAK Protocol = Disable ACK/NAK

ACK/NAK Protocol = Enable for label transmission

$CR2AE03

ACK/NAK Protocol = Enable for label transmission and host-

command acknowledge

$CR2AE02

ACK/NAK Protocol = Enable for host-command

acknowledge

28 Heron™ HD3130

RS-232/USB-COM Interfaces Enter/Exit Programming Mode

0x06 ‘ACK’ Character

0x15 ‘NAK’ Character

ACK Character

This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See

"ACK Character" on page 22

Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option

NOTE

$CR2AC

Select ACK Character Setting

on page 22

0 for more detailed programming instructions.

Stop Bits

has been set as 7 Data Bits.

DEFAULT

NAK Character

This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See

"NAK Character" on pa

Select NAK Character Setting

NOTE

$CR2NA

DEFAULT

ge 221 for more detailed programming instructions.

Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters. 8-bit data is not recognized when the option

on page 22

has been set as 7 Data Bits.

Stop Bits

Product Reference Guide

Enter/Exit Programming Mode ACK NAK Options

DEFAULT

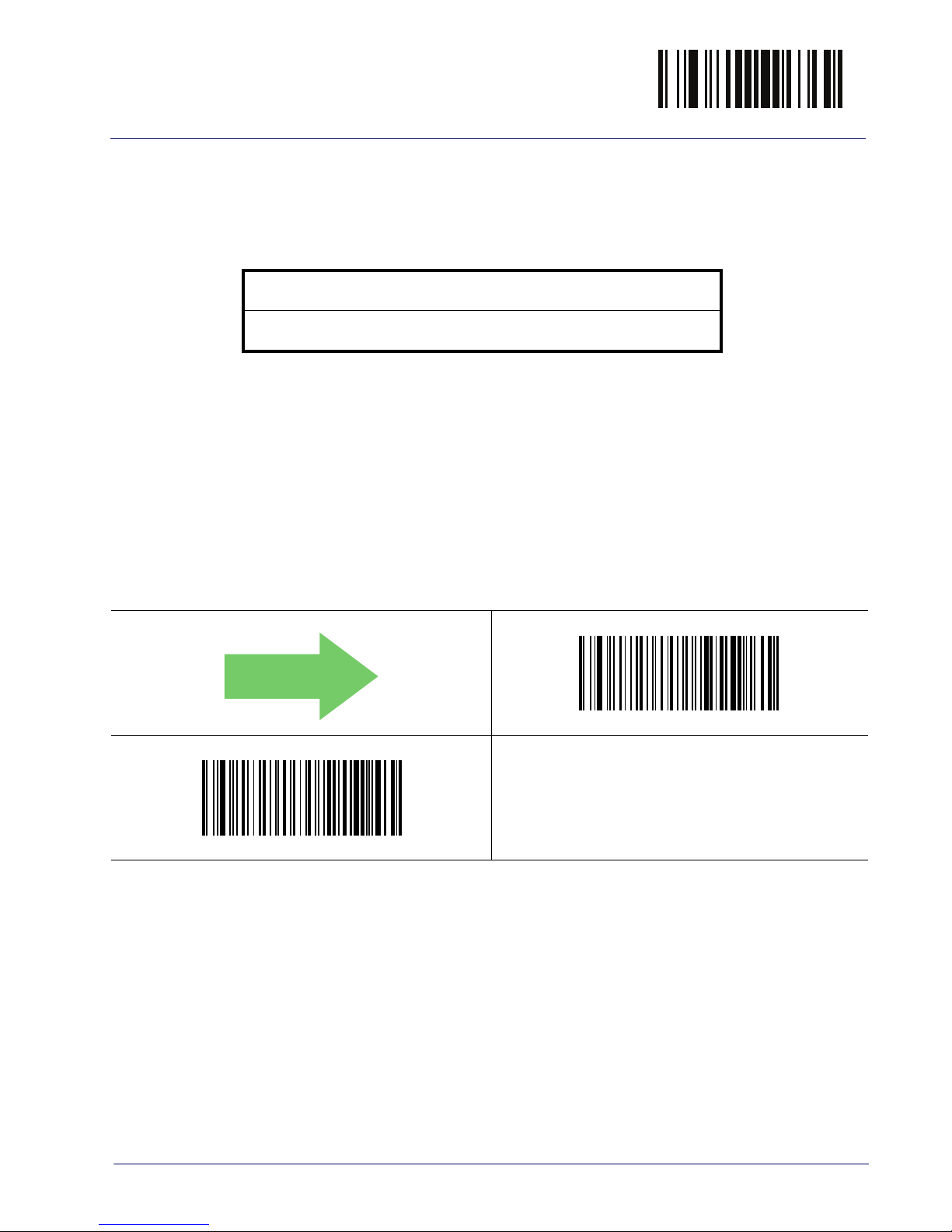

01 ACK NAK Timeout value is 200ms

ACK NAK Timeout Value

This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. See "ACK NAK Timeout Value" on detailed programming instructions.

page 22

2 for more

$CR2AT

Select ACK NAK Timeout Value Setting

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

pad

representing your desired character(s). End by

scanning the ENTER/EXIT bar code again.

Appendix D, Key-

CANCEL

30 Heron™ HD3130

RS-232/USB-COM Interfaces Enter/Exit Programming Mode

003 = 3 Retries

ACK NAK Retry Count

This feature specifies the number of times the scanner retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A

ction of 0 disables the count, and a selection of 255 specifies unlimited

sele retries. See "ACK NAK Retry Count" on pa ming instructions.

ge 223 for more detailed program-

$CR2AR

Select ACK NAK Retry Count Setting

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

DEFAULT

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

pad

representing your desired character(s). End by

scanning the ENTER/EXIT bar code again.

CANCEL

Appendix D, Key-

Product Reference Guide

Enter/Exit Programming Mode ACK NAK Options

ACK NAK Error Handling

This feature specifies the method the scanner uses to handle receive errors detected while waiting for an ACK character from the host.

Options are:

• Ignore errors detected

• Process error as valid ACK character

• Process error as valid NAK character

$CR2EH00

DEFAULT

ACK NAK Error Handling = Ignore Errors Detected

$CR2EH01

ACK NAK Error Handling = Process Error

as Valid ACK C

haracter

$CR2EH02

ACK NAK Error Handling = Process Error

lid NAK Character

32 Heron™ HD3130

RS-232/USB-COM Interfaces Enter/Exit Programming Mode

0x44 = Disable Character is ‘D’

Indicate Transmission Failure

This option enables/disables the scanner’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode

Indicate Transmission Failure = Disable Indication

$CR2TF01

Indicate Transmission Failure = Enable Indication

$CR2TF00

DEFAULT

Disable Character

Specifies the value of the RS-232 host command used to disable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. See "Disable

Character" on

NOTE

$CR2DC

Select Disable Character Setting

DEFAULT

ge 224 for more detailed programming instructions.

Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.

Product Reference Guide

Enter/Exit Programming Mode Enable Character

0x45 = Enable Character is ‘E’

Enable Character

Specifies the value of the RS-232 host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. See "Enable

Character" on pa

NOTE

$CR2EC

Select Enable Character Setting

ge 225 for more detailed programming instructions

Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.

DEFAULT

34 Heron™ HD3130

Keyboard Interface

Use the programming bar codes in this chapter to select options for USB Keyboard and Wedge Interf listing of standard factory settings. Information about c tion which applies to keyboard interfaces is listed in Appendix E, Scancode

Tables.

COUNTRY MODE on page 36

CAPS LOCK STATE on page 39

NUMLOCK on page 39

KEYBOARD NUMERIC KEYPAD on page 40

KEYBOARD SEND CONTROL CHARACTERS on page 41

WEDGE QUIET INTERVAL on page 42

INTERCODE DELAY on page 44

USB KEYBOARD SPEED on page 45

aces. Reference Appendix B, Standard Defaults for a

ontrol character emula-

Product Reference Guide 35

Enter/Exit Programming Mode Country Mode

Country Mode

This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encod-

ing.

$CKBCO00

DEFAULT

Country Mode = U.S.

$CKBCO01

Country Mode = Belgium

$CKBCO02

$CKBCO11

Country Mode = Croatia

$CKBCO03

Country Mode = Denmark

Country Mode = Britain

$CKBCO0E

Country Mode = Czech Republic

$CKBCO04

36 Heron™ HD3130

Country Mode = France

Keyboard Interface Enter/Exit Programming Mode

Country Mode (continued)

$CKBCO05

Country Mode = Germany

$CKBCO0D

Country Mode = Hungary

$CKBCO06

Country Mode = Italy

$CKBCO0C

$CKBCO07

Country Mode = Norway

$CKBCO08

Country Mode = Portugal

Country Mode = Japanese 106-key

$CKBCO12

Country Mode = Poland

$CKBCO10

Product Reference Guide

Country Mode = Romania

Enter/Exit Programming Mode Country Mode

Country Mode (continued)

$CKBCO0F

Country Mode = Slovakia

$CKBCO09

Country Mode = Spain

$CKBCO0A

Country Mode = Sweden

$CKBCO0B

Country Mode = Switzerland

$CKBCO14

Country Mode = Lithuania

$CKBCO13

Country Mode = French Canadian

38 Heron™ HD3130

Keyboard Interface Enter/Exit Programming Mode

Caps Lock State

This option specifies the format in which the scanner sends character data. This applies to Keyboard Wedge interfaces. encoding keyboard is selected. This does not apply to USB Keyboard.

DEFAULT

$CKBCL01

Caps Lock State = Caps Lock ON

This does not apply when an alternate key

$CKBCL00

Caps Lock State = Caps Lock OFF

$CKBCL02

Numlock

Caps Lock State = AUTO Caps Lock Enable

This option specifies the setting of the Numbers Lock (Numlock) key while in Keyboard Wedge interface. This only applies to alternate key encoding interfaces.

It does not apply to USB Keyboard.

$CKBNL00

DEFAULT

Numlock = Numlock key unchanged

$CKBNL01

Numlock = Numlock key toggled

Product Reference Guide

Enter/Exit Programming Mode Keyboard Numeric Keypad

Keyboard Numeric Keypad

This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad

DEFAULT

$CKBKP01

Keyboard Numeric Keypad = Numeric Keypad

$CKBKP00

Keyboard Numeric Keypad = Standard Keys

40 Heron™ HD3130

Keyboard Interface Enter/Exit Programming Mode

Keyboard Send Control Characters

This feature is used by the Keyboard Wedge and USB Keyboard interfaces. It specifies how the scanner transmits ASCII control characters to the host. Reference Appendix E, Scancode Tables for more information about control characters.

Options are as follows:

Send Ctrl+Key :

the format Ctrl+Key. Special keys are available in the range from 81H to A1.

Send Ctrl+Shift+Key :

in the format Ctrl+Shift+Keys.

Send Special Function Key :

the special function key mapping table (see "Interface Type PC AT PS/2 Alt

Mode

are not in the normal ASCII set. A unique set is provided for each available scancode set.

or USB-Keyboard Alt Mode" on page 282). This is used to send keys that

ASCII characters from 00H to 0x1FH inclusive are transmitted in

The behavior is the same as above, but control keys are sent

Send characters between 00H and 1FH according to

$CKBSC00

DEFAULT

Keyboard Send Control Characters = Send Ctrl+Key

$CKBSC01

Keyboard Send Control Characters = Send Ctrl+Shift+Key

Product Reference Guide

$CKBSC02

Keyboard Send Control Characters = Send Special Function

Key :

Enter/Exit Programming Mode Wedge Quiet Interval

10 = Quiet Interval of 100 ms

Wedge Quiet Interval

This option specifies the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments.

See "Wedge Quiet Interval" on instructions.

This feature applies ONLY to the Keyboard Wedge interface.

NOTE

ge 226 for more detailed programming

$CKBQI

Select Wedge Quiet Interval Setting

Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

DEFAULT

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in representing your desired charac the ENTER/EXIT bar code again.

Appendix D, Keypad

CANCEL

ter(s). End by scanning

42 Heron™ HD3130

Keyboard Interface Enter/Exit Programming Mode

00 = No Intercharacter Delay

Intercharacter Delay

This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero

990 milliseconds in 10ms increments. A setting of zero specifies no

(0) to delay. See "Intercharacter Delay" on page 22

instructions.

7 for more detailed programming

$CR21C00

Intercharacter Delay = No Delay

$CR21C

Select Intercharacter Delay Setting

Make a mistake? Scan the CANCEL bar code to abort and not

save the entry string. You can then start again at the begin-

ning.

DEFAULT

Appendix D, Keypad

CANCEL

ter(s). End by scanning

Product Reference Guide

Enter/Exit Programming Mode Intercode Delay

DEFAULT

00 = No Wedge Intercode Delay

Intercode Delay

Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. See "Intercode Delay" on page 228 for more detailed programming instru

ctions.

$CKBID

Set Intercode Delay

Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

Appendix D, Keypad

CANCEL

ter(s). End by scanning

44 Heron™ HD3130

USB Keyboard Speed

This option specifies the USB poll rate for a USB Keyboard.

This feature applies ONLY to the USB Keyboard interface.

NOTE

DEFAULT

$CKBSP02

USB Keyboard Speed = 2ms

USB Keyboard Speed

$CKBSP01

USB Keyboard Speed = 1ms

$CKBSP03

$CKBSP05

USB Keyboard Speed = 5ms

$CKBSP0A

USB Keyboard Speed = 10ms

USB Keyboard Speed = 3ms

$CKBSP07

USB Keyboard Speed = 7ms

Product Reference Guide

Keyboard Interface

NOTES

46 Heron™ HD3130

USB-OEM Interface

USB-OEM DEVICE USAGE on page 48

USB-OEM INTERFACE OPTIONS on page 48

Introduction

Feature settings for USB interfaces differ depending upon which host type the scanner will be connected with. Use the feature settings in this chapter to specifically configure for the USB-OEM interface. Other USB interfaces are included

the appropriate chapter for their host type.

Standard Factory Settings

Reference Appendix B, Standard Defaults for a listing of standard factory settings.

Product Reference Guide 47

Enter/Exit Programming Mode USB-OEM Device Usage

DEFAULT

USB-OEM Device Usage

The USB-OEM protocol allows for the scanner to be identified as one of two different types of bar code scanners. Depending on what other scanners you may

ready have connected to a USB-OEM POS, you may need to change this setting

al to enable all devices to communicate.

Options are:

• Tabletop Scanner

• Handheld Scanner

It may be necessary to switch device usage when connecting two scanners of the same type to a POS system.

NOTE

$CIBUT00

USB-OEM Device Usage = Tabletop Scanner

$CIBUT01

USB-OEM Device Usage = Handheld Scanner

USB-OEM Interface Options

This setting provides for an interface specific control mechanism. Options are:

• Obey — Obey Scanner Configuration Host Commands

• Ignore — Ignore Scanner Configuration Host Commands

$CIFO102

USB-OEM Interface Options = Ignore

$CIFO101

USB-OEM Interface Options = Obey

Heron™ HD3130

Data Format

GLOBAL PREFIX/SUFFIX on page 50

GLOBAL AIM ID on page 51

LABEL ID starting on page 52

•Label ID: Pre-loaded Sets on page 52

•Label ID: Set Individually Per Symbology on

page 53

•Label ID Control on page 53

•Label ID Symbology Selection on page 54

CASE CONVERSION on page 60

CHARACTER CONVERSION on page 60

The features in this chapter can be used to build specific user-defined data into a message string. See "References" star instructions on setting these features.

ting on page 217 for more detailed

Product Reference Guide 49

Enter/Exit Programming Mode Global Prefix/Suffix

No Global Prefix Global Suffix = 0x0D(CR)

Global Prefix/Suffix

Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See

"Global Prefix/Suffix" on page

230 for more detailed programming instructions.

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in senting your desired character(s). End by scanning the ENTER/EXIT bar c

Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

ode again.

Appendix D, Keypad

$CLFSU

Set Global Suffix

repre-

DEFAULT

$CLFPR

Set Global Prefix

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in resenting your desired character( ENTER/EXIT bar code again.

Appendix D, Keypad

CANCEL

s). End by scanning the

rep-

50 Heron™ HD3130

Data Format Enter/Exit Programming Mode

DEFAULT

Global AIM ID

This feature enables/disables addition of AIM IDs for all symbology types.

NOTE

AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See "Global

AIM ID" on pa

DEFAULT

$CAIEN01

ge 231 for more detailed programming instructions.

$CAIEN00

Global AIM ID = Disable

Global AIM ID = Enable

GS1-128 AIM ID

If Global AIM ID is disabled, the AIM ID for GS1-128 can be enabled/disabled independently. The AIM ID for GS1-128 is a ]C1, ]C2 or ]C3.

AIM IDs for other symbologies can be enabled/disabled independently as Contact Customer Support for assistance.

$CU8AI01

GS1-128 AIM ID = Enable

well.

$CU8AI00

GS1-128 AIM ID = Disable

Product Reference Guide

Enter/Exit Programming Mode Label ID

Label ID

A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled. This feature provides options for configuring custom Label IDs as a pre-loaded set (see "Label ID: Pre-loaded Sets" on

e 52) or individually per symbology (see "Label ID: Set Individually Per Sym-

pag

bology" on

industry standard label identi feature "Global AIM ID" on pa

page 53).

Label ID: Pre-loaded Sets

The scanner supports two pre-loaded sets of Label IDs, the USA set and the EU set. See "Label ID: Pre-loaded Sets" on page 23 ing the pre-loaded sets that are provided.

When changing from one Label ID set to another, all other scanner configuration settings, including the host interface type, will be erased and set to the factory defaults. Any custom configuration or custom

CAUTION

defaults will be lost.

If you wish to program the scanner to always include an

fier for ALL symbology types, see the previous

ge 51.

2 for more information concern-

DEFAULT

$Ae

Label ID Pre-loaded Set = EU Set

$AE

Label ID Pre-loaded Set = USA Set

52 Heron™ HD3130

Data Format Enter/Exit Programming Mode

Label ID: Set Individually Per Symbology

This feature configures a Label ID individually for a single symbology.

This setting requires the scanning of bar codes from multiple sect

ions. See

on page 234 for more detailed programming instructions.

NOTE

"Label ID: Set Individually Per Symbology"

Label ID Control

This option controls whether a Label ID is disabled, or sent as a prefix or suffix for a given symbology type.

$CIDCO00

DEFAULT

Label ID Transmission = Disable

$CIDCO01

Label ID Transmission = Enable as Prefix

CANCEL

$CIDCO02

Label ID Transmission = Enable as Suffix

Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.

Product Reference Guide

Enter/Exit Programming Mode Label ID

Label ID Symbology Selection

This option selects the symbology for which a Label ID is to be configured. See

"Label ID: Set Individually Per Symbology" on page 23

Set UPC-A Label ID Character(s)

$CA2ID

Set UPC-A/P2 Label ID Character(s)

for full instructions.

$CABID

$CA5ID

$CEBID

Set UPC-E Label ID Character(s)

$CE5ID

Set UPC-E/P5 Label ID Character(s)

Set UPC-A/P5 Label ID Character(s)

$CE2ID

Set UPC-E/P2 Label ID Character(s)

54 Heron™ HD3130

Data Format Enter/Exit Programming Mode

Label ID Symbology Selection (continued)

$C3BID

Set EAN 13 Label ID Character(s)

$C32ID

Set EAN 13/P2 Label ID Character(s)

$C35ID

Set EAN 13/P5 Label ID Character(s)

$C8BID

Set EAN 8 Label ID Character(s)

$C85ID

Set EAN 8/P5 Label ID Character(s)

$C82ID

Set EAN 8/P2 Label ID Character(s)

Product Reference Guide

Enter/Exit Programming Mode Label ID

Label ID Symbology Selection (continued)

$C4BID

Set GS1 DataBar Omnidirectional Label ID Character(s)

$CXBID

Set GS1 DataBar Expanded Label ID Character(s)

$CLBID

Set GS1 DataBar Limited Label ID Character(s)

$CC3ID

Set Code 39 Label ID Character(s)

$CCCID

Set Code 39 CIP Label ID Character(s)

$CP3ID

Set Code 32 Label ID Character(s)

56 Heron™ HD3130

Data Format Enter/Exit Programming Mode

Label ID Symbology Selection (continued)

$CC8ID

Set Code 128 Label ID Character(s)

$CU8ID

Set GS1-128 Label ID Character(s)

$CI2ID

Set Interleaved 2 of 5 Label ID Character(s)

$CD2ID

Set Datalogic 2 of 5 CIP HR Label ID Character(s)

$CACID

$CHRID

Set Interleaved 2 of 5 CIP HR Label ID Character(s)

$CCBID

Set Codabar Label ID Character(s)

Set ABC Codabar Label ID Character(s)

Product Reference Guide

Enter/Exit Programming Mode Label ID

Label ID Symbology Selection (continued)

$CC1ID

Set Code 11 Label ID Character(s)

$CS2ID

Set Standard 2 of 5 Label ID Character(s)

$CU2ID

Set Industrial 2 of 5 Label ID Character(s)

$CINID

$CIAID

Set IATA Label ID Character(s)

$CMSID

Set MSI Label ID Character(s)

Set ISSN Label ID Character(s)

$CI8ID

Set Concatenated ISBT 128 Label ID Character(s)

$CC9ID

58 Heron™ HD3130

Set Code 93 Label ID Character(s)

Data Format Enter/Exit Programming Mode

Label ID Symbology Selection (continued)

$CCFID

Set Codablock F Label ID Character(s)

$CCRID

Set Code 4 Label ID Character(s)

$CC5ID

Set Code 5 Label ID Character(s)

$CF2ID

$CISID

Set ISBN Label ID Character(s)

Set Follett 2 of 5 Label ID Character(s)

$CI8ID

Set Concatenated ISBT Label ID Character(s)

Product Reference Guide

Enter/Exit Programming Mode Case Conversion

0xFFFFFFFFFFFFFFFF (No character conversion)

Case Conversion

This feature allows conversion of the case of all alphabetic characters to upper or lower case.

Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data.

NOTE

$CLFCA00

DEFAULT

Case Conversion = Disable (no case conversion)

$CLFCA01

Case Conversion = Convert to upper case

$CLFCA02

Character Conversion

Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to. If the character to convert in a pair is FF, then no conversion is done. See "Character Conversion" on programming instructions.

DEFAULT

Case Conversion = Convert to lower case

page 236 for more detailed

$CLFCH

Configure Character Conversion

60 Heron™ HD3130

Reading Parameters

DOUBLE READ TIMEOUT

LABEL GONE TIMEOUT

LED AND SPEAKER INDICATORS

POWER ON ALERT

on page 65

AUDIO JINGLE ENABLE

on page 62

on page 64

on page 65

on page 66

SELECT AUDIO JINGLE FOR POWER-UP

VENT

on page 67

SELECT AUDIO JINGLE FOR GOOD READ

VENT

GOOD READ: WHEN TO INDICATE

GOOD READ BEEP TYPE

GOOD READ BEEP FREQUENCY

GOOD READ SPEAKER VOLUME

on page 68

on page 72

on page 73

on page 74

ENABLE/DISABLE RGB LED

GOOD READ LED COLOR

RGB GOOD READ RAISING TIME

RGB GOOD READ FALLING TIME

RGB GOOD READ HOLDING TIME

RGB AUTO DELAY

SCAN MODE

on page 80

on page 79

on page 76

on page 77

on page 78

STAND MODE TRIGGERED TIMEOUT

SCANNING ACTIVE TIME

STAND MODE FLASH

FLASH ON TIME

on page 83

on page 82

on page 83

on page

GOOD READ BEEP LENGTH

Product Reference Guide 61

on page 75

FLASH OFF TIME

on page 84

STAND MODE SENSITIVITY

on page 84

Enter/Exit Programming Mode Double Read Timeout

Double Read Timeout

To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored. Double Read Timeout does not apply to scan modes that require is read.

$CSNDR14

a trigger pull for each label that

$CSNDR0A

Double Read Timeout = 0.1 Second

Double Read Timeout = 0.2 Second

$CSNDR28

Double Read Timeout = 0.4 Second

$CSNDR1E

Double Read Timeout = 0.3 Second

62 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

Double Read Timeout (continued)

$CSNDR32

Double Read Timeout = 0.5 Second

$CSNDR3C

DEFAULT

Double Read Timeout = 0.6 Second

$CSNDR46

$CSNDR50

Double Read Timeout = 0.8 Second

$CSNDR64

Double Read Timeout = 1 Second

Double Read Timeout = 0.7 Second

$CSNDR5A

Double Read Timeout = 0.9 Second

Product Reference Guide

Enter/Exit Programming Mode Label Gone Timeout

DEFAULT

016 = Timeout of 160 ms

Label Gone Timeout

This feature sets the time after the last label segment is seen before the scanner prepares for a new label. The timeout can be set within a range of 10 milliseconds to 2,550 milliseconds (2.55 seconds) i Timeout does not apply to scan modes that require a trigger pull for each label that is read. See " ming instructions.

Label Gone Timeout" on page 237

n 10ms increments. Label Gone

for more detailed program-

$CSNLG

Select Label Gone Timeout Setting

ake a mistake? Scan the CANCEL bar code to abort and

not save beginning.

he entry string. You can then start again at the

Appendix D, Keypad

CANCEL

64 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

LED and Speaker Indicators

Power On Alert

Disables or enables the indication (from the Speaker) that the scanner is receiving power.

$CBPPU00

Power On Alert = Disable (No Audible Indication)

$CBPPU01

DEFAULT

Power On Alert = Power-up Beep

Audio Jingles

The scanner can be set up to sound a predefined “Jingle” (a short, user-defined tune uploaded via Datalogic Aladdin™ configuration software) or traditional beep sounds to indicate good read and power-up events.

To upload a jingle in Aladdin:

1. Install Datalogic Aladdin™ (v 1.7.0.0.0 or later) on your computer.

2. Connect the scanner you want to program to the computer.

3. Use Device Autodetection to allow Aladdin to sea

4. After the Configuration screen opens, click on the music icon in the menu

You will be prompted to specify a sound file to upload. The supported format of audio files is WAV uncompressed PCM. Best quality is obtained using stereo audio files with 16 bit encoding.

Up to 15 jingles can be uploaded and programmed.

rch for your reader, or

click on Offline Configuration to select the file for your device.

bar i

n the upper right-hand part of the screen:

Product Reference Guide

Enter/Exit Programming Mode Audio Jingles

DEFAULT

Audio Jingle Enable

This option determines whether the scanner will sound predefined “Jingles” (a short, user-defined tune uploaded via Datalogic Aladdin™ configuration software) or traditional beep sounds to indicate good read.

See below for power-up or good read events. Additional items such as enter stand mode, exit stand mode, and error beep can also be programmed using Datalogic Aladdin.

$CAUEN01

Audio Jingle = Enable Jingles

parameters to define which preloaded Jing

$CAUEN00

Audio Jingle = Disable (Use traditional beep sounds)

le to sound upon

66 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

DEFAULT

00 = Use built-in power-up sound

Select Audio Jingle for Power-up Event

Selects which preloaded Jingle to use to indicate scanner power-up.

Audio Jingles must be enabled (using the previous option) for this sele tion to take effect.

NOTE

After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin™ configuration utility, use this setting to specify which of the Jingles (1-15) or the built-in sound will be used to indicate scanner power-up. The built-in (default) sound for power-up is Dialtone.wav

$CAUPW

Select Audio Jingle on Power-up

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

ning the ENTER/EXIT bar code again.

representing the desired Jingle #. End by scan-

CANCEL

Appendix D,

Product Reference Guide

Enter/Exit Programming Mode Audio Jingles

DEFAULT

00 = Use built-in Good Read Jingle (Shutter.wav)

Select Audio Jingle for Good Read Event

This parameter selects which preloaded Jingle to use in indicating a good read event.

"Audio Jingle Enable"

item to take effect.

NOTE

After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin (1-15) will be sounded when the scanner performs a good read.

Select Audio Jingle on Good Read

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

™

configuration utility, use this setting to designate which of the Jingles

$CAUGR

on page 66 must be selected for this configuration

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

ning the ENTER/EXIT bar code again.

representing the desired Jingle #. End by scan-

CANCEL

Appendix D,

68 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

DEFAULT

00 = Use built-in Enter Stand Mode indication

Select Audio Jingle for Enter Stand Mode

This parameter selects which preloaded Jingle to use in indicating an Enter Stand Mode event.

"Audio Jingle Enable"

item to take effect.

NOTE

After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin (1-15) will be sounded when the scanner enters Stand Mode.

Select Audio Jingle on Enter Stand Mode

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

™

configuration utility, use this setting to designate which of the Jingles

$CAUEM

on page 66 must be selected for this configuration

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

ning the ENTER/EXIT bar code again.

representing the desired Jingle #. End by scan-

CANCEL

Appendix D,

Product Reference Guide

Enter/Exit Programming Mode Audio Jingles

DEFAULT

00 = Use built-in Exit Stand Mode indication

Select Audio Jingle for Exit Stand Mode

This parameter selects which preloaded Jingle to use in indicating an Exit Stand Mode event.

"Audio Jingle Enable"

item to take effect.

NOTE

After uploading up to fifteen (15) Jingles to the scanner using the Datalogic

™

Aladdin

configuration utility, use this setting to designate which of the Jingles

(1-15) will be sounded when the scanner exits Stand Mode.

$CAUXM

Select Audio Jingle on Exit Stand Mode

Make a mistake? Scan the CANCEL bar code to abort and not save t

he entry string. You can then start again at the

beginning.

on page 66 must be selected for this configuration

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

representing the desired Jingle #. End by scan-

Appendix D,

ning the ENTER/EXIT bar code again.

CANCEL

70 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

DEFAULT

00 = Use built-in Transmit Error Sound indication

Select Audio Jingle for Transmit Error Sound

This parameter selects which preloaded Jingle to use to indicate a Transmit Error sound.

"Audio Jingle Enable"

item to take effect.

NOTE

After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin (1-15) will be sounded when the scanner performs a good read.

Select Audio Jingle on Tx Error event

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

™

configuration utility, use this setting to designate which of the Jingles

$CAUAL

on page 66 must be selected for this configuration

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

ning the ENTER/EXIT bar code again.

representing the desired Jingle #. End by scan-

CANCEL

Appendix D,

Product Reference Guide

Enter/Exit Programming Mode Audio Jingles

DEFAULT

Good Read: When to Indicate

This feature specifies when the scanner will provide indication (beep or Jingle and/or LED) upon successfully reading a bar code. Choices are:

• Good Read = Indicate after decode

• Good Read = Indicate after transmit

• Good Read = Indicate after CTS

This option, which uses CTS, is only valid for RS-232 interfaces.

NOTE

$CBPIN01

goes inactive, then activ

$CBPIN00

Indicate Good Read = After Decode

Indicate Good Read = After Transmit

$CBPIN02

Indicate Good Read = After CTS Goes Inactive, Then Active

72 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

DEFAULT

Good Read Beep Type

Specifies whether the good read beep has a mono or bitonal beep sound.

$CBPTY00

Good Read Beep Type = Mono

$CBPTY01

Good Read Beep Type = Bitonal

Good Read Beep Frequency

Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the speaker’s pitch/tone.)

$CBPFR01

Good Read Beep Frequency = Medium

$CBPFR00

Good Read Beep Frequency = Low

$CBPFR02

Good Read Beep Frequency = High

Product Reference Guide

Enter/Exit Programming Mode Audio Jingles

Good Read Speaker Volume

Selects the speaker volume (loudness) upon a good read Jingle or beep. There are three selectable volume levels.

$CBPVO00

Good Read Speaker Volume = Speaker Off

$CBPVO01

Good Read Speaker Volume = Low

$CBPVO02

$CBPVO03

Good Read Speaker Volume = High

Good Read Speaker Volume = Medium

DEFAULT

74 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

Good Read Beep Length

Specifies the duration of a good read beep.

$CBPLE06

Good Read Beep Length = 60 msec

$CBPLE08

DEFAULT

Good Read Beep Length = 80 msec

$CBPLE0A

$CBPLE0C

Good Read Beep Length = 120 msec

$CBPLE10

Good Read Beep Length = 160 msec

Good Read Beep Length = 100 msec

$CBPLE0E

Good Read Beep Length = 140 msec

Product Reference Guide

Enter/Exit Programming Mode RGB LED Settings

Good Read Beep Length (continued)

$CBPLE12

Good Read Beep Length = 180 msec

$CBPLE14

Good Read Beep Length = 200 msec

RGB LED Settings

The following configuration Items specify settings for the RGB (Red Green Blue) LEDs, which are used to indicate Good Read and Auto Presentation Mode (colors change when Scanner is in Idle mode).

Enable/Disable RGB LED

Enable/Disable RGB LED as a good read indicator..

$CRGBE01

RGB LED = Enable

$CRGBE00

RGB LED = Disable

DEFAULT

76 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

00 = No time

Good Read LED Color

Specifies the color of the RGB Good Read LED.

$CRBCL00

Good Read LED Color = Red

$CRBCL01

DEFAULT

Good Read LED Color = Green

$CRBCL02

RGB Good Read Raising Time

Specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state.

"RGB Good Read Raising/Falling Time"

See ming instructions.

$CRBRT

Set RGB Good Read Raising Time

Make a mistake? Scan the CANCEL bar code to abort and

not save beginning.

he entry string. You can then start again at the

Good Read LED Color = Blue

on page 238 for more detailed program-

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by two digits from the Alphanumeric characters in

Keypad

representing your desired character(s). End by

Appendix D,

scanning the ENTER/EXIT bar code again.

CANCEL

DEFAULT

Product Reference Guide

Enter/Exit Programming Mode RGB LED Settings

14 = 20 seconds Falling Time

14 = 20 seconds Holding Time

RGB Good Read Falling Time

Specifies the time for the RGB good read to change the status from the Brightness state to the Off state.

"RGB Good Read Raising/Falling Time"

See ming instructions.

on page 238 for more detailed program-

$CRBFT

Set RGB Good Read Falling Time

ake a mistake? Scan the CANCEL bar code to abort and

M not save t

he entry string. You can then start again at the

beginning.

DEFAULT

RGB Good Read Holding Time

Specifies how long the RGB good read will stay in Brightness state. See

Good Read Holding Time"

on page 239 for more information.

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

Appendix D, Keypad

representing your desired character(s). End by scanning the ENTER/EXIT bar code again.

CANCEL

"RGB

$CRBHT

Set RGB Good Read Holding Time

ake a mistake? Scan the CANCEL bar code to abort and

not save

he entry string. You can then start again at the

beginning.

DEFAULT

78 Heron™ HD3130

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

Appendix D, Keypad

representing your desired character(s). End by scanning the ENTER/EXIT bar code again.

CANCEL

Reading Parameters Enter/Exit Programming Mode

04 = 2 seconds Auto Delay

RGB Auto Delay

Specifies the delay time for running the RGB auto mode after the scanner has gone into an idle state (no label reading, label programming or communication with Host). The value 0x00 means Auto Mode is disabled. See

on page 240 for more information.

Time"

"RGB Auto Delay

$CRBID

Set RGB Auto Delay

Make a mistake? Scan the CANCEL bar code to abort and not save t

he entry string. You can then start again at the

beginning.

DEFAULT

To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the Alphanumeric characters in

Appendix D, Keypad

representing your desired character(s). End by scanning the ENTER/EXIT bar code agai

CANCEL

Product Reference Guide

Enter/Exit Programming Mode Scanning Features

Scanning Features

Scan Mode

See

"Scan Mode"

$CSNRM00

Scan Mode = Trigger Single

$CSNRM02

on page 241 for more detailed programming instructions.

DEFAULT

$CSNRM01

Scan Mode = Trigger Hold Multiple

Scan Mode = Trigger Pulse Multiple

$CSNRM04

Scan Mode = Always On

$CSNRM03

Scan Mode = Flashing

$CSNRM05

Scan Mode = Stand Mode

80 Heron™ HD3130

Reading Parameters Enter/Exit Programming Mode

DEFAULT

Stand Mode Triggered Timeout

This feature specifies the time to remain in “Trigger Single” mode after the trigger is pulled while in “Stand Mode”.

This timeout is only used when the Scan Mode is configured as Stand Mode.

NOTE

$CSNOT01

Stand Mode Triggered Timeout = 0.5 Seconds

$CSNOT03

$CSNOT04

Stand Mode Triggered Timeout = 2 Seconds

$CSNOT08

Stand Mode Triggered Timeout = 4 Seconds

Stand Mode Triggered Timeout = 1.5 Seconds

$CSNOT06

Stand Mode Triggered Timeout = 3 Seconds

$CSNOT0C

Product Reference Guide

Stand Mode Triggered Timeout = 6 Seconds

Enter/Exit Programming Mode Scanning Features

005 = Scanning is active for 5 Seconds

Stand Mode Triggered Timeout (continued)

$CSNOT10

Stand Mode Triggered Timeout = 8 Seconds

$CSNOT00

Stand Mode Triggered Timeout = 0

Do Not Switch Back to Stand Mode

When set to 0, the scanner will remain in single trigger mode after the trigger is pulled. It will return to object sense mode after a reset.

NOTE

Scanning Active Time

This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. See programming instructions.

$CSNET

Select Scanning Active Time Setting

ake a mistake? Scan the CANCEL bar code to abort and

not save beginning.

he entry string. You can then start again at the

DEFAULT

"Scanning Active Time"

on page 242 for more detailed

Appendix D, Keypad

CANCEL

82 Heron™ HD3130

Stand Mode Flash

10 = Flash is ON for 1 Second

DEFAULT

Enables/disables the LED flash when the reader is in Stand Mode.

$CSMFL01

Stand Mode Flash = Enable

Flash On Time

Scanning Features

$CSMFL00

Stand Mode Flash = Disable

This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See gramming instructions.

$CSNFN

Select Flash ON Time Setting

Make a mistake? Scan the CANCEL bar code to abort and not save t beginning.

he entry string. You can then start again at the

"Flash On Time"

DEFAULT

on page 243 for more detailed pro-

CANCEL

Appendix D, Keypad

Product Reference Guide

Reading Parameters

06 = Flash is OFF for 600ms

Flash Off Time

This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See gramming instructions.

"Flash Off Time"

on page 244 for more detailed pro-

$CSNFF

Select Flash OFF Time Setting

ake a mistake? Scan the CANCEL bar code to abort and

M not save t beginning.

he entry string. You can then start again at the

DEFAULT

Stand Mode Sensitivity

Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high.

Appendix D, Keypad

CANCEL

$CSMSE01

Stand Mode Sensitivity = Medium

$CSMSE00

Stand Mode Sensitivity = Low

DEFAULT

$CSMSE02

Stand Mode Sensitivity = High

84 Heron™ HD3130

Symbologies

Introduction

The scanner supports the following symbologies (bar code types). Options for each symbology are included in this chapter.

UPC-A on page 87 Datalogic 2 of 5 on page 146

UPC-E on

EAN 13 on page 93 ABC Codabar on page 164

EAN 13 on page 93 (JAN 13) Code 11 on page 166

EAN 8 on page 96 (JAN 8) Standard 2 of 5 on page 174

Add-Ons on page 101 Industrial 2 of 5 on page 179

GS1 DataBar™ Omnidirectional on page 105 IATA on page 184

GS1 DataBar™ Expanded on page 107 ISBT 128 on page 185

GS1 DataBar™ Limited on page 111 MSI on page 188

Code 39 on page 113 Code 93 on page 194

Code 32 (Italian Pharmaceutical) on page 125

Code 39 CIP (French Pharmaceutical) on page 127

Code 128 on page 127 Code 5 on page 207

GS1-128 on page 136 Follett 2 of 5 on page 211

Interleaved 2 of 5 (I 2 of 5) on page 137 BC412 on page 211

Interleaved 2 of 5 CIP HR on page 145

page 90 Codabar on page 153

Codablock F on page 202

Code 4 on page 206

Standard Factory Settings for Symbologies

Default settings are indicated at each feature/option with a green arrow. Also reference Appendix B, Standard Defaults for a listing of the most widely used set of standard factor custom settings needed or implemented for your system.

Product Reference Guide 85

y settings. That section also provides space to record any

Enter/Exit Programming Mode Disable All Symbologies

DEFAULT

Disable All Symbologies

Scan this label to disable all symbologies.

$AD

Disable all symbologies

Coupon Control

This feature is used to control the method of processing coupon labels. Options are:

• Allow all — allow all coupon bar codes to

• Enable only UPC/EAN — enables only UPC/EAN coupon decoding

• Enable only GS1 DataBar — enables only GS1 DataBar coupon decoding

To set this feature:

be decoded

1. Scan the Enter/Exit bar code.

Scan either the enable or disable bar code below. You’ll need to cover any

2. unused bar codes on this and the facing page to ensure that the scanner sees only the bar code you intend to scan.

3. Complete the programming sequence by scanning the Enter/

$CCPCL01

Coupon Control = Enable only UPC/EAN

Exit bar code.

$CCPCL00

Coupon Control = Allow all

$CCPCL02

86 Heron™ HD3130

Coupon Control = Enable only GS1 DataBar

Symbologies Enter/Exit Programming Mode

DEFAULT

UPC-A

The following options apply to the UPC-A symbology.

UPC-A Enable/Disable

When disabled, the scanner will not read UPC-A bar codes.

$CABEN00

UPC-A = Disable

$CABEN01

UPC-A = Enable

UPC-A Check Character Transmission

Enable this option to transmit the check character along with UPC-A bar code data.

$CABCT01

UPC-A Check Character Transmission = Send

$CABCT00

UPC-A Check Character Transmission = Don’t Send

Product Reference Guide

Enter/Exit Programming Mode UPC-A

DEFAULT

Expand UPC-A to EAN-13

Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13.

$CAB3B00

DEFAULT

UPC-A to EAN-13 = Don’t Expand

$CAB3B01

UPC-A to EAN-13 = Expand

UPC-A Number System Character Transmission

This feature enables/disables transmission of the UPC-A number system character.

$CABNS01

UPC-A Number System Character = Transmit

$CABNS00

UPC-A Number System Character = Do not transmit

88 Heron™ HD3130

Symbologies Enter/Exit Programming Mode

DEFAULT

In-Store Minimum Reads

This feature specifies the minimum number of consecutive times an in-store label must be decoded before it is accepted as good read.

In-store labels are defined as UPC-A labels with a number2 or 4 as well as EAN 8 and EAN 13 labels with a Flag1 character of 2 or an EAN 13 label starting with the three characters '980'.

$CINMR01

In-Store Minimum Reads = 1

$CINMR02

In-Store Minimum Reads = 2

$CINMR03

In-Store Minimum Reads = 3

$CINMR04

system character of

In-Store Minimum Reads = 4

Product Reference Guide

Enter/Exit Programming Mode UPC-E

DEFAULT

UPC-E

The following options apply to the UPC-E symbology.

UPC-E Enable/Disable

When disabled, the scanner will not read UPC-E bar codes.

$CEBEN00

UPC-E = Disable

$CEBEN01

UPC-E = Enable

UPC-E Check Character Transmission

Enable this option to transmit the check character along with UPC-E bar code data.

$CEBCT01

UPC-E Check Character Transmission = Send

$CEBCT00

UPC-E Check Character Transmission = Don’t Send

90 Heron™ HD3130

Datalogic Heron HD3130 Product Reference Manual
