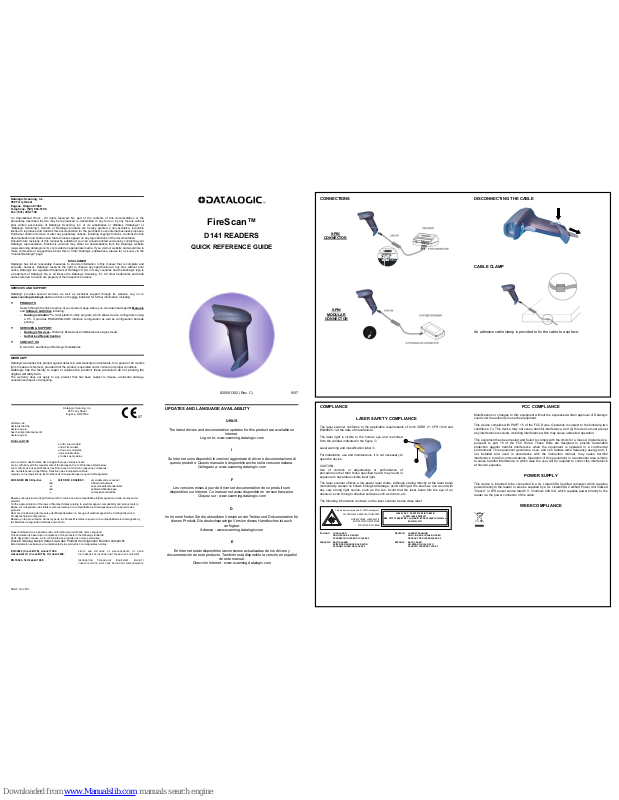

Page 1
Datalogic Scanning, Inc.
959 Terry Street
Eugene, Oregon 97402
Telephone: (541) 683-5700
Fax: (541) 345-7140
An Unpublished Work - All rights reserved. No part of the contents of this documentation or the
procedures described therein may be reproduced or transmitted in any form or by any means without
prior written per-mission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic" o
r
“Datalogic Scanning”). Owners of Datalogic products are hereby granted a non-exclusive, revocable
license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any reproductions of the documentation.
Should future revisions of this manual be published, you can acquire printed versions by contacting you
r
Datalogic representative. Electronic versions may either be downloadable from the Datalogic website
(www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to
make comments or suggestions about this or other Datalogic publications, please let us know via the
"Contact Datalogic" page.
DISCLAIMER
Datalogic has taken reasonable measures to provide information in this manual that is complete and
accurate, however, Datalogic reserves the right to change any specification at any time without prio
r
notice. Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is
a trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade
names referred to herein are property of their respective owners.
SERVICES AND SUPPORT
Datalogic provides several services as well as technical support through its website. Log on to
www.scanning.datalogic.com and click on the links
indicated for further information including:
• PRODUCTS
Search through the links to arrive at your product page where you can download specific Manuals
and Software & Utilities including:
- Datalogic Aladdin™ a multi-platform utility program, which allows device configuration using
a PC. It provides RS232/USB-COM interface configuration as well as configuration barcode
printing.
• SERVICES & SUPPORT
-
Datalogic Services - Warranty Extensions and Maintenance Agreements
- Authorised Repair Centres
• CONTACT US
E-mail form and listing of Datalogic Subsidiaries
WARRANTY
Datalogic warranties this product against defects in workmanship and materials, for a period of 24 months
from the date of shipment, provided that the product is operated under normal and proper conditions.
Datalogic has the faculty to repair or replace the product; these provisions do not prolong the
original warranty term.
The warranty does not apply to any product that has been subject to misuse, accidental damage,
unauthorized repair or tampering.
Datalogic Scanning, Inc.
959 Terry Street
Eugene, OR 97402
07
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
FireScan D1XX
e tutti i suoi modelli
and all its models
et tous ses modèles
und seine Modelle
y todos sus modelos
sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below:
sont conformes aux spécifications des Directives de l'Union Européen ne ci-dessous:
den nachstehenden angeführten Direktiven des Europäischen Rats:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
89/336/EEC EMC Directive
e
92/31/EEC, 93/68/EEC
emendamenti successivi
and
further amendments
et
ses successifs amendements
und
späteren Abänderungen
y
succesivas enmiendas
Basate sulle legislazioni degli Stati membri in relazione alla c ompatibilità elettromagnetica ed alla sicurezza dei
prodotti.
On the approximation of the laws of Member States relating to electromagnet ic compatibility and product safety.
Basée sur la législation des Etats membres relative à la compatibilité é lectromagnétique et à la sécurité des
produits.
Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektr omagnetische Verträglichkeit und
Produktsicherheit entsprechen.
Basado en la aproximación de las leyes de los Países Miembros res pecto a la compatibilidad electromagnética y
las Medidas de seguridad relativas al producto.
Questa dichiarazione è basata sulla conformità dei prodotti alle norm e seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes :
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con la siguientes normas:
EN 55022 (CLASS B ITE),
A
UGUST 1994:
A
MENDMENT A1 (CLASS B ITE), OCTOBER 2000:
LIMITS AND METHODS OF MEASUREMENTS OF RADIO
DISTURBANCE OF INFORMATION TECHNOLOGY EQUIPMENT
EN 55024, S
EPTEMBER 1998:
I
NFORMATION TECHNOLOGY EQUIPMENT. IMMUNITY
CHARACTERISTICS
. LIMITS AND METHODS OF MEASUREMENTS
March 1st, 2007
FireScan™
D141 READERS
QUICK REFERENCE GUIDE
820001302 (Rev. C) 9/07
UPDATES AND LANGUAGE AVAILABILITY
UK/US
The latest drivers and documentation updates for this product are available on
Internet.
Log on to: www.scanning.datalogic.com
I
Su Internet sono disponibili le versioni aggiornate di driver e documentazione di
questo prodotto. Questo manuale è disponibile anche nella versione italiana.
Collegarsi a: www.scanning.datalogic.com
F
Les versions mises à jour de drivers et documentation de ce produit sont
disponibles sur Internet. Ce manuel est aussi disponible en version française.
Cliquez sur : www.scanning.datalogic.com
D
Im Internet finden Sie die aktuellsten Versionen der Treiber undDokumentation für
dieses Produkt. Die deutschsprachige Version dieses Handbuches ist auch
verfügbar.
Adresse : www.scanning.datalogic.com
E
En Internet están disponibles las versiones actualizadas de los drivers y
documentación de este producto. También está disponible la versión en español
de este manual.
Dirección Internet : www.scanning.datalogic.com
CONNECTIONS
9-PIN
CONNECTOR
8-PIN
MODULAR
CONNECTOR
COMPLIANCE
LASER SAFETY COMPLIANCE
The laser scanner conforms to the applicable requirements of both CDRH 21 CFR 1040 and
EN60825-1 at the date of manufacture.
The laser light is visible to the human eye and is emitted
from the window indicated in the figure c.
Laser warning and classification label d.
For installation, use and maintenance, it is not necessary to
open the device.
CAUTION:
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
exposure to hazardous visible laser light.
The laser scanner utilizes a low-power laser diode. Although staring directly at the laser beam
momentarily causes no known biological damage, avoid staring at the beam as one would with
any very strong light source, such as the sun. Avoid that the laser beam hits the eye of an
observer, even through reflective surfaces such as mirrors, etc.
The following information is shown on the laser scanner device class label:
This product complies with 21 CFR Subchapter J
A
VOID EXPOSURE
-
LASER LIGHT I
S
EMITTED FROM THIS APE RTURE
LASER LIGHT -
DO NOT STARE INTO BEAM
CLASS2 LASER PRODUCT
MAX. OUTPUT RADIATION 1.0 mW-EMITTED WAVE LENGTH 630-680 nm
EN 60825-1:2001
DO NOT STARE INTO BEAM
CAUTION
-
CLASS 2 LASER LIGHT WHEN OPEN
ITALIANO LUCE LASER
NON FISSARE IL RAGGIO
APPARECCHIO LASER DI CLASSE 2
DEUTSCH LASERSTRAHLUNG
NICHT IN DEN STRAHL BLICKEN
PRODUKT DER LASERKLASSE 2
FRANÇAIS RAYON LASER
EVITER DE REGARDER LE RAYON
APPAREIL LASER DE CLASSE 2
ESPAÑOL RAYO LÁSER
NO MIRAR FIJO EL RAYO
APARATO LÁSERDE CLASE 2
DISCONNECTING THE CABLE
CABLE CLAMP
An adhesive cable clamp is provided to fix the cable to a surface.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval of Datalogic
could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accep
t
any interference received, including interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, i
f
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
d
c
POWER SUPPLY
This device is intended to be connected to a UL Listed/CSA Certified computer which supplies
power directly to the reader or else be supplied by a UL Listed/CSA Certified Power Unit marked
“Class 2” or LPS power source rated 5 V, minimum 200 mA,which supplies power directly to the
reader via the power connector of the cable.
WEEE COMPLIANCE
Page 2
USING FIRESCAN™ SERIES READERS
FireScan™ laser scanners automatically scan barcodes at a distance. Simply aim
and pull the trigger. Code scanning is performed along the scan line emitted from
the reading window.
This line must cross the entire code.
Successful scanning is obtained by tilting the scanner with respect to the barcode
to avoid direct reflections, which impair the reading performance, see the figure
above.
TECHNICAL FEATURES
FireScan™ D141
Electrical Features
Power supply 4.75 - 14 Vdc
Consumption
Operating
Stand by
180 mA @ 5 Vdc
5 mA @ 5 Vdc
Scan Rate
35 ± 5 scans/sec
Reading Indicators
Laser On (red) LED / Good Read (green
LED), Beeper (available for suitable
decoders)
Optical Features
Light Source VLD 630 ~ 680 nm
Power (peak) 0.9 mW
Scan Angle
42° ± 2°
Laser Safety Class
EN 60825-1 / CDRH
2
Reading Field see reading diagram
Max. Resolution 0.12 mm (5 mils)
PCS min. 15% (Datalogic Test Chart)
Environmental Features
Working Temperature
0 °C to + 50 °C
Storage Temperature
-20 °C to + 70 °C
Humidity 90% non condensing
Drop resistance
(on concrete)
IEC 68-2-32 Test ED
1.5 m
ESD Protection 16 KV
Protection Class IP30
Mechanical Features
Weight (without cable) about 210 g (7.4 oz)
Cable length
(CAB 397 – fully extended)
(CAB 396 – fully extended)
2.60 m (8 ft 5 in)
3.00 m (9 ft 9 in)
ELECTRICAL CONNECTIONS
The FireScan™ D141 scanner can be used with CAB 397 (coiled cable and 9-pin
male connector) for direct connection to the DATAPLUS and DLD series decoders.
CAB 397
1 - Not connected 5 - TRIGGER
2 - SCAN 6 - BEEPER/LED
3 - Not connected 7 - VIDEO
6
78
9
123
45
4 - GND 8 – LASER ON
9-pin male connector
9 - +VCC
The FireScan™ D141 scanner can be used with CAB 396 (coiled cable and 8-pin
modular connector) for direct connection to PSC Inc. flat bed scanners.
CAB 396
1 - TRIGGER 5 - BEEPER/LED
2 – LASER ON 6 - Not connected
3 - Not connected 7 - +VCC
8
1
4 - VIDEO 8 - GND
8-pin modular connector
A definition of the terms used to identify the pins is as follows:
SCAN This scanner “open collector” output signal is used to
synchronize the decoding logic with the scanner. Each
transition of this signal from low-to-high or high-to-low
corresponds to the start of a scan. The signal is a TTL level
57 ms period square wave (see the following figure Video and
Scan signals).
GND Supply ground and signal reference.
TRIGGER This output is connected to GND when the trigger is pressed
and is left floating when the trigger is released.
BEEPER/LED This scanner input drives the green decoding LED, and the
beeper in the scanner. The LED turns on when a positive
current is applied to the pin. The beeper sound is obtained
pulsating this current at a frequency of about 2 kHz. The
maximum voltage that can be applied to this input is 5 Vdc.
VIDEO This “open collector” scanner output is electrically identical to
the barcode. It supplies a series of pulses the length of which
are proportional to the width of the elements within the
barcode read. A low output level corresponds to a bar. The
frequency of the pulses depends on the density of the code,
the distance from code and the programmed output scan
frequency (see the following figure Video and Scan signals).
LASER ON A positive voltage between 4.75 and 5 Vdc is applied to this
input by the decoder when the decoding logic senses the
trigger is pressed; this causes the laser to start scanning and
the red LED to turn on.
+VCC This input must be connected to the positive pin of the supply
voltage (4.75 - 14 Vdc). When the LASER ON pin is positive,
all the current necessary to power the scanner flows through
+VCC.
Video and Scan Signals
CODE
VIDEO
SCAN
Loading...
