DKG-154

REMOTE START UNIT

INSTALLATION AND OPERATING INSTRUCTIONS

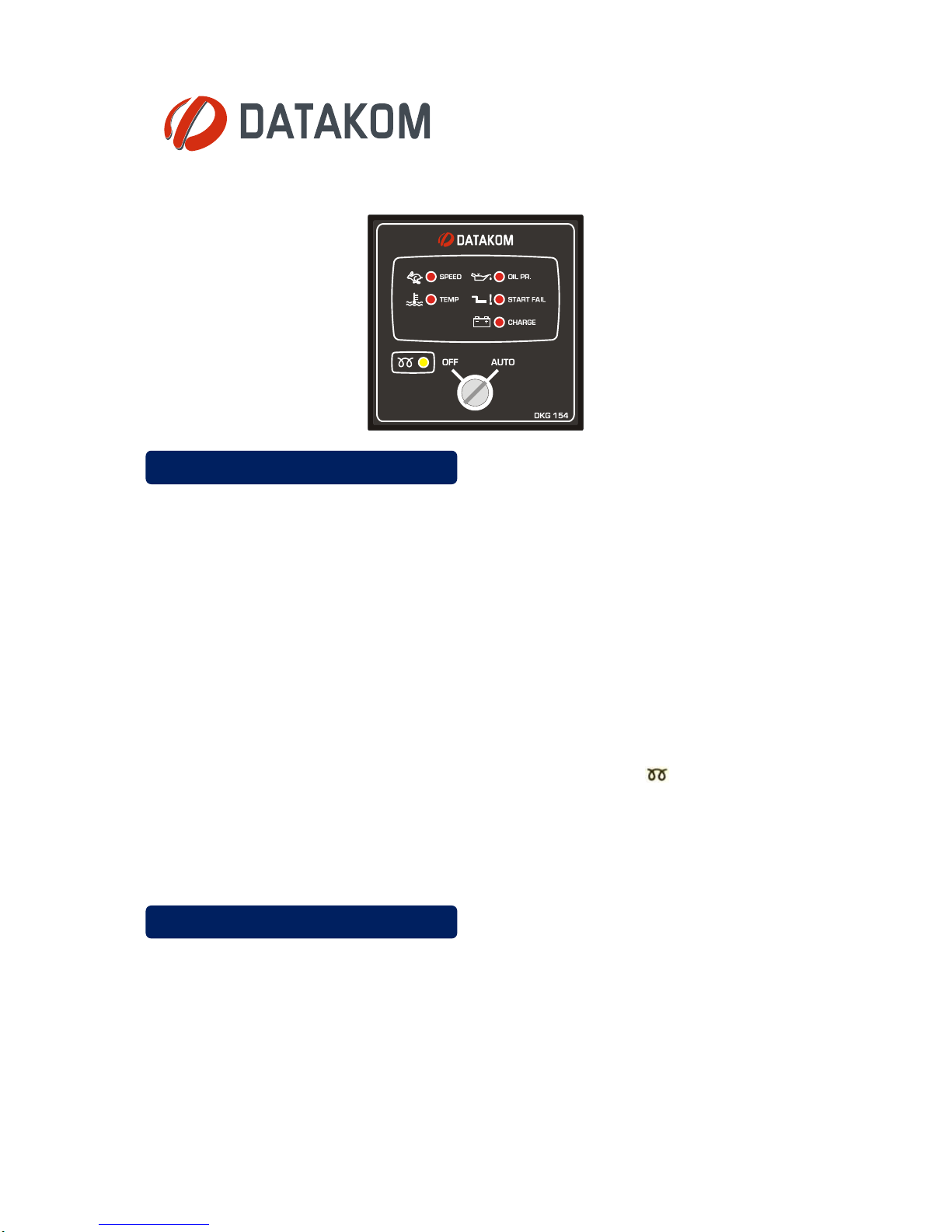

The DATAKOM model DKG-154 is a low cost,
microprocessor controlled unit designed to start
and stop the genset automatically on request of an
external Remote Start signal.

When the engine is running, the unit monitors fault
conditions and shuts-down the engine automatically
in the occurrence of an alarm. The alarms are
identified by a group of LEDs displaying only the
first occurring one.

The unit has jumper selectable options for the
auxiliary relay output function. The selection is
made by the position of a single jumper situated at
the left side panel of the unit.

If the jumper is placed between:
A & B : 50 Hz nominal, AUX is Preheat output
B & C : 60 Hz nominal, AUX is Preheat output
C & D : 60 Hz nominal, AUX is Stop output
D & A : 50 Hz nominal, AUX is Stop output

In the OFF position, the DC supply is removed from
the module, thus remote start operation is disabled
and zero power consumption is achieved.

The unit powers up when the AUTO position on the
front panel is selected. It will start the engine when
its Remote Start input is pulled to battery negative
and will act like below:

If ‘Preheat’ option is selected, it energizes the
AUXILIARY output for Preheat Delay, then
releases it.

Then it energizes the FUEL output for Wait Before

Start delay, then energizes the START output for

Start Duration. If the engine fires, the start output

is immediately released. The protections will be
enabled only after the Protection Hold-off Timer
has expired.

If the engine does not fire, start and fuel outputs are
deenergized, if ‘Preheat’ option is selected, the
AUXILIARY output will be energized and the unit
will wait for Wait Between Starts period before a
new crank cycle is initiated. The engine is cranked
up to 3 times.

If the Remote Start signal disappears while the
engine is running, the engine will continue to run for
Cooldown Duration. Then the fuel output is
deenergized, if the ‘Activate to Stop’ option is
selected, the AUXILIARY output will be energized
for Stop Timer, and the unit will be ready for a new
Remote Start.

The PREHEAT/STOP ( ) led will continuously
indicate the AUXILIARY output status.

The occurrence of below fault conditions will cause
the engine to be stopped immediately:

-Overspeed,

-Underspeed,

-High engine temperature,

-Low oil pressure,

If a fault condition occurs, the FUEL solenoid will
be deenergized. If the ‘Energize to Stop’ option is
selected, the AUXILIARY output will be energized
during Stop Timer and the led associated with this
fault condition will turn on.

Only the first occurring fault will be indicated. To
reset the fault condition, turn the switch to the OFF
position for a few seconds.

The Charge Fail condition is treated as a warning
only and do not cause the engine to stop. The input
monitors the D+ terminal of the charge alternator.

OPERATION

DESCRIPTION

DC SUPPLY: 12 or 24 volts DC, (+) and (-) terminals.
L1: Generator phase voltage.
NEUTRAL: Generator neutral terminal.
HIGH TEMP SWITCH: Negative closing switch input.
LOW OIL PRESSURE: Negative closing switch input.
REMOTE START: A negative supply connection to this
input will cause the engine to run.
CHARGE: Connect the charge alternator’s D+ end to

this terminal. This terminal will supply the excitation
current and measure the voltage of the charge
alternator.

FUEL SOLENOID, START, AUXILIARY: These are
fully protected, negative pulling solid state outputs.
Each output is rated 1.2amps@28V-DC.

JUMPER SELECTABLE STANDARD
FEATURES:

Preheat with Activate to Start,
Energize to Stop without preheat,
50Hz nominal,
60Hz nominal.

OPTIONAL FEATURES:
(SUBJECT TO SPECIAL ORDER)

Engine control (without alternator),
Manual Start version (DKG-151)
Negative pulling semiconductor outputs (DKG-154).
Customized timer values.

Alternator Voltage: 15 to 300 V-AC
Alternator Frequency: 50 or 60 Hz nominal.
Overspeed: nominal frequency + 14%

(+24% overshoot)

Underspeed: 25Hz
DC Supply Range: 8 to 33 V-DC.
Current consumption: 80mA max. (Outputs open).
Charge fail threshold: 6 V-DC.
Charge excitation current: via 82 ohms resistor
connected to the FUEL output.
Preheat Delay: 10 sec.
Wait Before Start: 0.75 sec.
Start Duration: 6 sec.
Wait Between Starts: 10 sec.
Number of Start Cycles: 3
Protection Hold-off Timer: 12 sec.
Cooldown Duration: 2 minutes.
Stop Timer: 30 sec.
Operating temp.: -20C (-4F) to 70 C (158F).
Storage temp.: -30C (-22F) to 80 C (176F).
Maximum humidity: 95% non-condensing.
Dimensions: 72x72x38mm (WxHxD)
Panel cutout dimensions: 68x68 mm
Weight: 100g (approx.)
Installation: Front panel mounted. Retaining steel

spring provided.

DATAKOM Electronics Ltd.

Tel: [phone] Fax: [phone] e-mail: [e-mail] http: www.datakom.com.tr

TECHNICAL SPECIFICATIONS

OPTIONS

OUTPUTS

INPUTS

TYPICAL CONNECTION DIAGRAM
