DataBay VS-201H, VS-401H, VS-801H User Manual

VS-201H
VS-401H
VS-801H

2/4/8-Port

350MHz Video S

p

litter

User Manual

◄ V2.2 ►

www.databay.co

m.tw

www.green-box.com.tw

2/4/8-Port 350MHz Video Splitter

1. Package Content

VS-201H/VS-401H/VS-801H VGA Splitter:

 2/4/8-Port VGA Splitter x 1
 VGA Cable x 1 (option)
 DC Power Adapter x 1
 User Manual x 1

2. Product Introduction

The main function of VS-201H/VS-401H/VS-801H is broadcasting one VGA
source to multiple monitors each at 350MHz video outputs. It allows VGA
Screen sharing multiple devices, including the projector, PDP, LCD TV. In
addition, they also transfer the video signals within distances up to 65m.
The Video Splitters is applied popularly to teaching/training program, media,
conferences, and public transportation or display, etc.

3. Product Features

 Multiply one VGA source to 2/4/8 VGA outputs
 Effective extended distance: 65M (200ft)
 Compatible with VGA, SVGA, XGA, Multi-sync, TFT-LCD monitors
 Supports DDC, DDC2, DDC2B functions for optimum setup

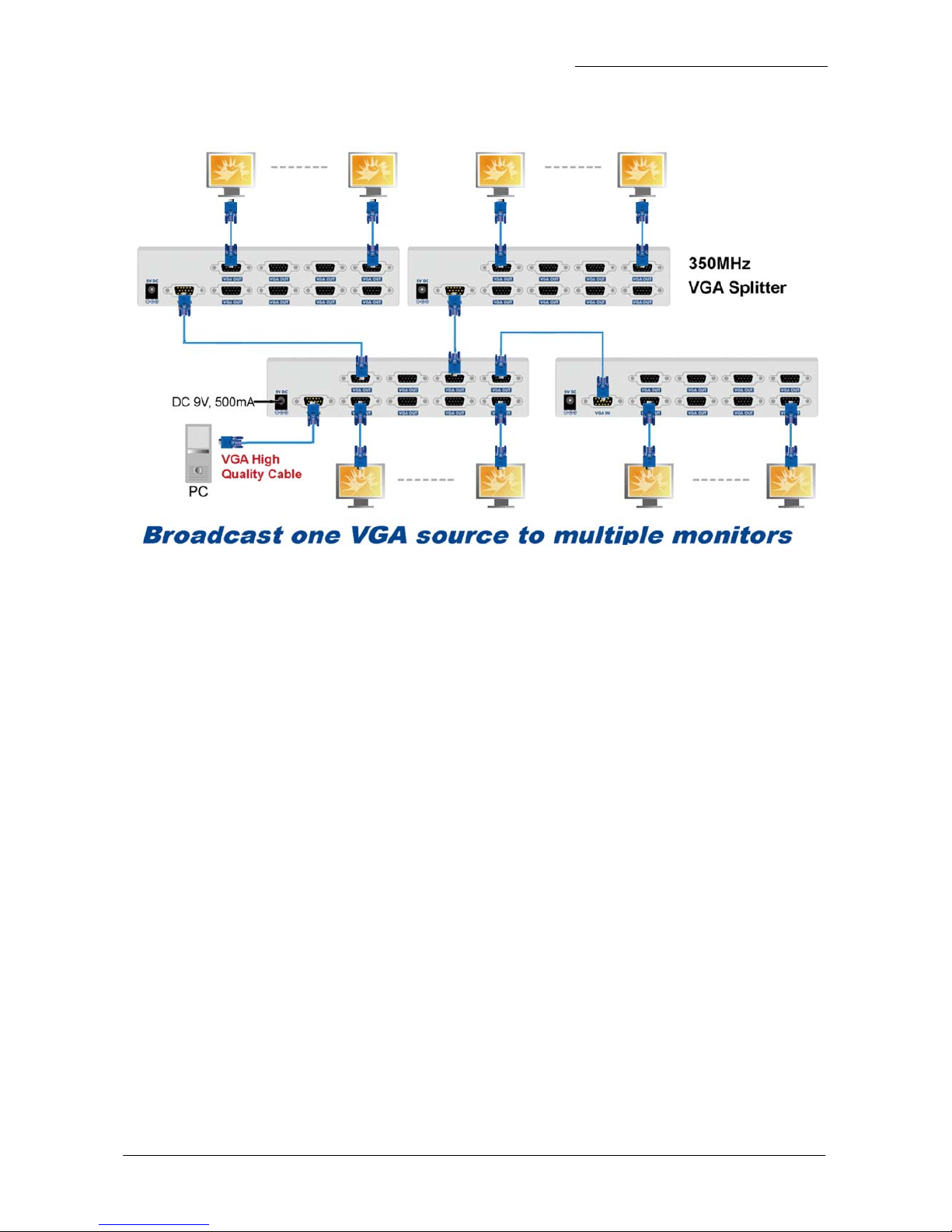

 Easy cascading to increase VGA outputs
 Bottom design with magnetic pad is easy to install on any metallic plane

4. Application

 Multimedia presentations & public exhibits
 Simple PC training system
 Video conference & business meeting
 Monitor testing and bum-in

2 / 8

2/4/8-Port 350MHz Video Splitter

5. Product Descriptions

 VS-201H

 VS-801H

 VS-401H

Power

To Monitor

Status Display

VGA Input (To PC)

3 / 8
