VGA and Audio CAT-5 AV Extender
Contents
1. Product Introduction........................................................................4
2. Product Features..............................................................................4
3. Panel Descriptions ...........................................................................5
4. Installation and Operation. ..............................................................7
4.1 AVE-M180T Single-Port Transmitter Installation .......................7
4.2 Receiver AVE-M180R installation and UTP Connection...............8
5. Specifications.................................................................................11
6. Remarks.........................................................................................12
7. Notice ............................................................................................12
2 / 12
VGA and Audio CAT-5 AV Extender
Certifications
FCC
This equipment has been tested and found to comply with Part 15 of the FCC
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CE
This equipment is in compliance with the requirements of the following
regulations:
EN 55022: CLASS B
RoHS
All contents of this package, including products, packing materials and
documentation comply with RoHS.
© 2009 by Green-Box
Green-Box Technology Co. Ltd. reserves the right to make changes in the hardware, packaging, and any
accompanying documentation without prior written not ice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior writte n permission of Green-Box Technology Co. Ltd.
3 / 12
VGA and Audio CAT-5 AV Extender
1. Product Introduction
AVE-M180 is the smallest AV Extender in the industry; the main body is
as big as a VGA connector and able to transmit VGA + Audio by a single
Cat5e cable up to 180m. With its simplified design, you can install the
extender very easily and save space. You can use it to broadcast AV
signal from PC, KVM switch, matrix AV switcher and applied in the device
extension of projector, plasma TV, LCD TV, LCD monitor, HDTV, and CRT.
It can also be integrated with splitter and selector to fulfill different AV
application.
2. Product Features
This system can send VGA and Audio signal from Transmitter
by Cat5/5e/6 cable, and broadcast to Receiver. The standard maximum
broadcasting distance is 180m
Compact design with VGA and Audio transmit function
Maximum supported distance and resolution: 2048x1536@180m
Use CAT-5 Enhance UTP cable (350MHz bandwidth) for better video quality
Receiver and Transceiver build in video gain and focus control to adjust the
video quality
Software free, pure hardware design, support Plug & Play
Transmitter and Receiver build with LEDs to indicate system status
Transmitter takes DC5V power from USB port
Receiver build in EQ to adjust image quality
Stackable capacity to expand the AV broadcasting
4 / 12
VGA and Audio CAT-5 AV Extender
3. Panel Descriptions

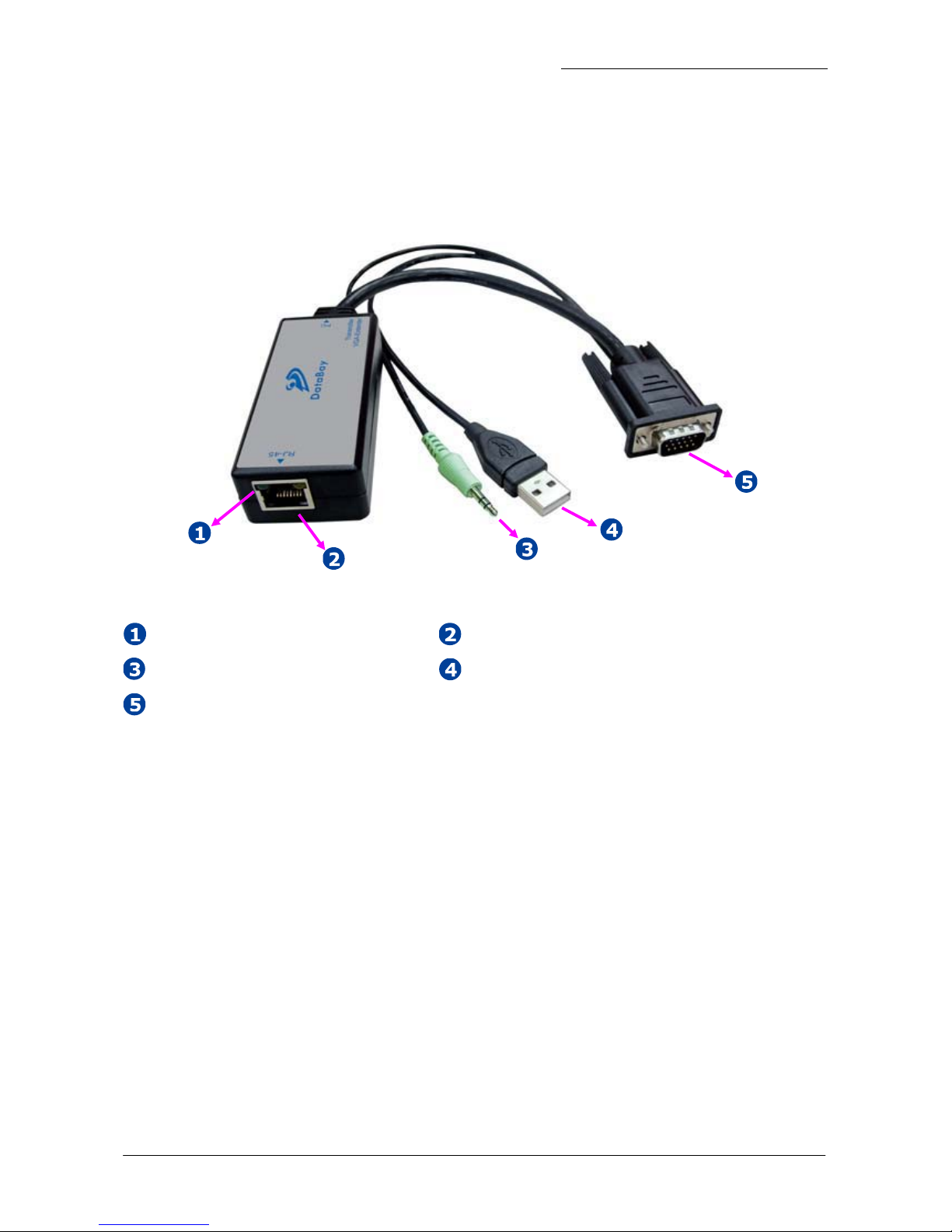

AVE-M180T Single-Port AV Transmitter
Power Indicator RJ-45 System Link
Audio Output To USB Power(DC 5V)
VGA Output
5 / 12
VGA and Audio CAT-5 AV Extender
AVE-M180R Single-Port AV Receiver
Power Indicator RJ-45 System Link
Video Control Power Jack
Audio Input VGA Input
6 / 12
VGA and Audio CAT-5 AV Extender
4. Installation and Operation
4.1 AVE-M180T Single-Port Transmitter Installation:
(1) Connecting Transmitter: Take AVE-180T and connect the interface to
computer’s VGA, Audio and USB port. The Transmitter will take the
DC5V power from computer’s USB port.
(2) Function Test: Turn on your PC or VGA player, the LED of Transmitter
will turn on before VGA signal is turned ON and remain ON after VGA
signal is turned ON.
7 / 12
VGA and Audio CAT-5 AV Extender
4.2 Receiver AVE-M180R installation and UTP Connection:
(1) Power Up: Plug power adapter to the Receiver and connect to monitor
and speaker. The LED above RJ-45 port should blink to indicate the
unconnected status of AV signal.
You can also use a short VGA cable (in the package) to connect in
between Receiver and monitor and place the receiver in other place.
(2)
Selection of UTP Cable: For best VGA resolution, please use Cat5
Enhanced cable (350MHz bandwidth), the maximum extended length of
one section (one pair of Transmitter or Receiver) should not exceed 180
meters. The connector must be made by 568B/568B type.
PAIR 3
The EIA/TIA definition of 568B in the
pin assignment is (1)orange white,
(2)orange, (3)green white, (4)blue,
(5)blue white, (6)green, (7)brown
white, and (8)brown.
PAIR 2 PAIR1 PAIR4
1 2 3 4 5 6 7 8
Jack Position
8 / 12
VGA and Audio CAT-5 AV Extender
(3)Connect UTP Cable:
Installation Diagram of Receiver AVE-M180R
Plug two ends of UTP cable to Transmitter and Receiver’s RJ45 SYSTEM
LINK ports, the Receiver’ s connected monitor and speaker should work
now and the LEDs above RJ-45 port should remain ON. You can adjust
the “FOCUS” control of Receiver to have the best VGA display.
(4) Function Test: After above installation, you will be able to broadcast
the AV signal to Receiver’s connected monitor and speaker.
(5) Problem and Solving: If you find unstable image or audio problems
after installation, please confirm following list or contact your direct
vendor for further assistance:
a. Check if PC’s VGA resolution and frequency over the limit of monitor
display, if so, please change the VGA configuration from Windows
Control panel.
b. Try to connect Monitor and speaker directly to a PC, and ensure the
basic function of these devices.
9 / 12
VGA and Audio CAT-5 AV Extender
c. When using LCD or same type monitor, there might have some image
offset or blinking, please adjust the position, clock or phase of the
LCD monitor, or simply press Auto Adjust / Tune to have a better
image solution.
10 / 12
VGA and Audio CAT-5 AV Extender
5. Specifications
Model Name
AV Transmitter AV Receiver
Model No.
AVE-M180T AVE –M180R
AV Output
RJ45 x1
VGA x 1
Audio x 1
AV Input
VGA x 1
Audio x 1
RJ45 x1
Audio
- Stereo
Video CTRL
- Video Focus
LED
Power
Video Quality
PC: Support all VGA format and with a maximum capacity of
2048x1536@180m
Power
Consumption
DC 5V power from USB port DC 5V, 1A
Environmental
Condition
• Operation Temp.: 0~50˚C
• Storage Temp.: -20~60˚C
• Humidity: 10~90%
11 / 12
VGA and Audio CAT-5 AV Extender
12 / 12
6. Remarks
I. Before operating this system, please read operation manual carefully.
II. Please use correct power adapter and use high quality cable for optimum
broadcasting.
III. To prevent potential power damage, please don’t use 2 -wire extension
cord and ensure AC outlets at relative devices on the same electronic
phase and have correct grounding.
IV. Limited Warranty:
(1) In no events shall the vendor’s liability for direct or indirect, special,
incidental or consequential damages, loss of profit, loss of business, or
financial loss which hay be caused by the use of the product exceeds
the price paid for the product.
(2) The vendor ma kes n o wa rrant y or representation, expressed or implied
with respect to the contents or use of this documentation, and
especially disclaims its quality, performance, merchantability, or fitness
for any particular purpose.
(3) The vendor also reserves the right to revise or update the product or
documentation without obligation to notify any user of such revisions
or updates. For further information please contact your vendor.
7. Notice
1. All other company or product names mentioned herein are trademarks
or registered trademarks of their respective companies.
2. Specifications are subject to change without notice.
3. Please read user manual carefully before operating the device
4. Please use the power adaptor accompanied with this product. Warranty
does not cover for damages caused by pairing other power adaptor
5. Please check all connecting devices are properly grounded to avoid
electric failure
6. This product has limited warranty for one year from defects in material
and workmanship. Items that are physically damaged, misused,
tempered with or altered are void of warranty. For further details please
contact your distributor. In case warranty sticker is damaged or missing,
warranty is void. For further details please contact your distributor.
