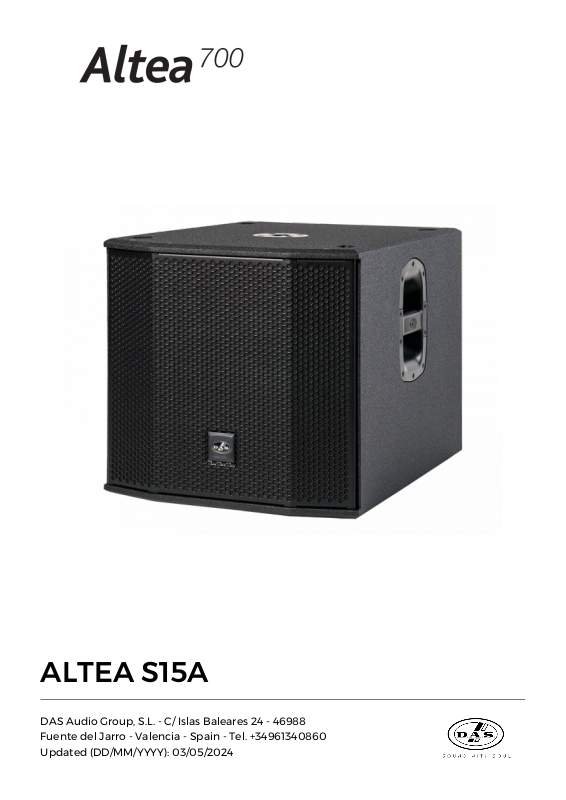

ALTEA S15A
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988
Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 03/05/2024
Page 2
KEY FEATURES
· Active bass-reflex subwoofer
· Class-D power amplifier with switching power supply
· 24-bit DSP with 2-channel signal routing
· DASControl™ display + encoder
· Cardioid-Presets
· Prepared for transport wheels
· PowerCon In/Out
DESCRIPTION
The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design
that delivers deep frequency response and impressive sound pressure levels.
The 15" DAS 15FW4 woofer boasts a high-quality construction with a 3" voice coil and
die-cast aluminium basket, allowing for high excursion and a power handling of 600
watts/AES. An optimized ventilation system enables a high sustained load with
extremely reduced power compression.
The woofer is driven by an integrated Class-D power amplifier with a wide-range
switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up
to 131dB/max SPL with a frequency response of 40Hz to 125kHz.
The ALTEA-S15A also features an extensive range of settings to ensure the best
possible performance. PowerCon In/Out power connections are included, while the
integrated DSP with DAScontrol™ (LCD display+encoder) allows for adjustable
crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the
cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A
units to reduce the sound energy emitted to the rear.
The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished
with our rugged ISOflex™ PU coating. The high-quality front grille is powder-coated.
For transport, in addition to two side handles, the ALTEA-S15A is prepared for the
mounting of rear wheels.
ALTEA S15A
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988
Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 03/05/2024
Page 3
SPECIFICATIONS
Performance
Frequency Range (-10 dB) 40 Hz - 125 Hz
Maximum Peak SPL at 1 m 131 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 600 W
Nominal Amplifier Power (peak) 1200 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
Control DAScontrol™
AC Output Connector powerCON NAC3MPB
Current Draw 230 V / 115 V 1.4 A/2.8 A
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D )
Net Weight 30,0 kg ( 66,0 lb )
470 x 485 x 685 mm
18,5 x 19,1 x 27,0 in
ALTEA S15A
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988
Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 03/05/2024
Page 4
Components
LF Driver 15FW4
Shipping
DIMENSIONS
Carton Dimensions ( H x W x D )
515 x 525 x 716 mm
20,3 x 20,7 x 28,2 in
Shipping Weight 35,0 kg ( 77,0 lb )
ORDERING
Model Description P/N
INFORMATION
System
ALTEA-S15A 10404985
Replacement Parts
15FW4 Cone Transducer 20208986
DSP-EV115 Dsp 20406441
GM-15FW4 Recone Kit 20208537
ALTEA S15A
DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988
Fuente del Jarro - Valencia - Spain - Tel. +34961340860
Updated (DD/MM/YYYY): 03/05/2024
Page 5
MP-EV115 Power Module 20405101
Accessories
TRD-6 Installation & Stacking Acc. 10104470
TRD-7 Installation & Stacking Acc. 10104471
