DASAN Zhone Solutions 67X8 User Manual

ZHONE
6748-W1-EU,6748-W1-UK,6748-W1-NA
User Manual
VER: 1.0
FCC Statement
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user ’s aut hority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This eq uipment should be in stalled and operated with a minimum distance of 20 centimeters between the radiator and your body. This e quipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution!
The m anufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. FCC - PART 68 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. O n the bottom of this equipment is a label that contains, among other information, a product identifier in the form at US: 6R TDL01B67X8. If reques ted, t his number must b e provided to the telephone company. This equipment uses the following USOC jacks: RJ11C. REN (RINGER EQUIV ALENT NUMBERS) STATEMENT Notice: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. ATTACHMENT LIMITATIONS STATEMENT Notice: This equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). This is confirmed by marking the equipment with the Industry Canada certification number. The Department does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate
CE Statement
Hereby, Zhone Technologies, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
User Manual
Contents
1 Safety Precautions.............................................................................................1
2 Overview............................................................................................................2
2.1 Application.............................................................................................2
2.2 Features ................................................................................................3
2.3 Standards Compatibility and Compliance..............................................4
3 Hardware Description and Installation ...............................................................5
3.1 Hardware Description............................................................................5
3.1.1 Front Panel.................................................................................5
3.1.2 Rear Panel and Side Panel ........................................................7
3.2 Hardware Installation.............................................................................8
3.2.1 Choosing the Best Location for Wireless Operation...................8
3.2.2 Connecting the Device ...............................................................8
4 PC Network Configuration and Login...............................................................10
4.1 PC Network Configuration...................................................................10
4.2 Logging In to the DSL Router..............................................................12
5 Web-Based Management ................................................................................13
5.1 Quick Setup.........................................................................................13
5.2 Advanced Setup ..................................................................................16

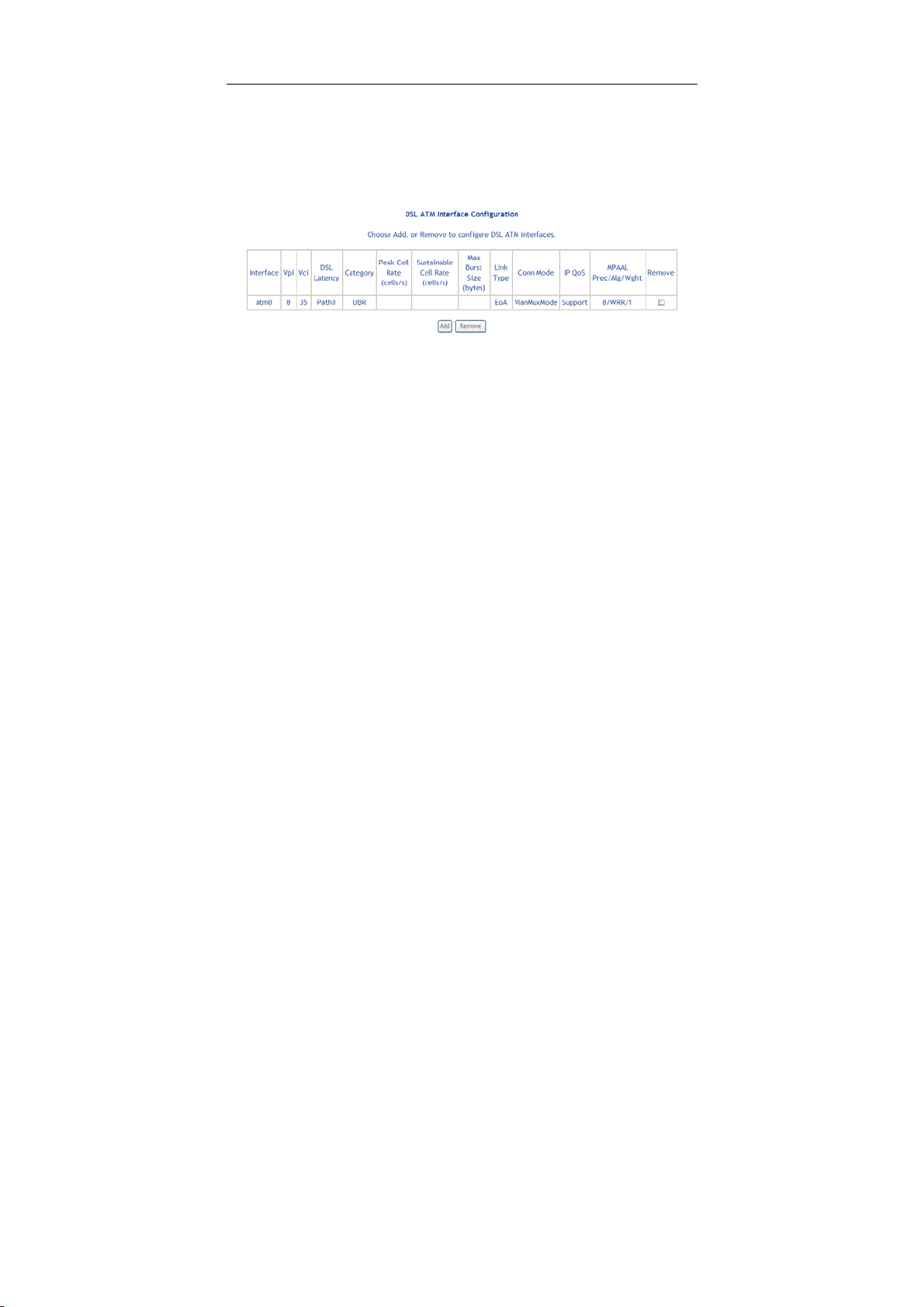

5.2.1 Layer2 Interface........................................................................16

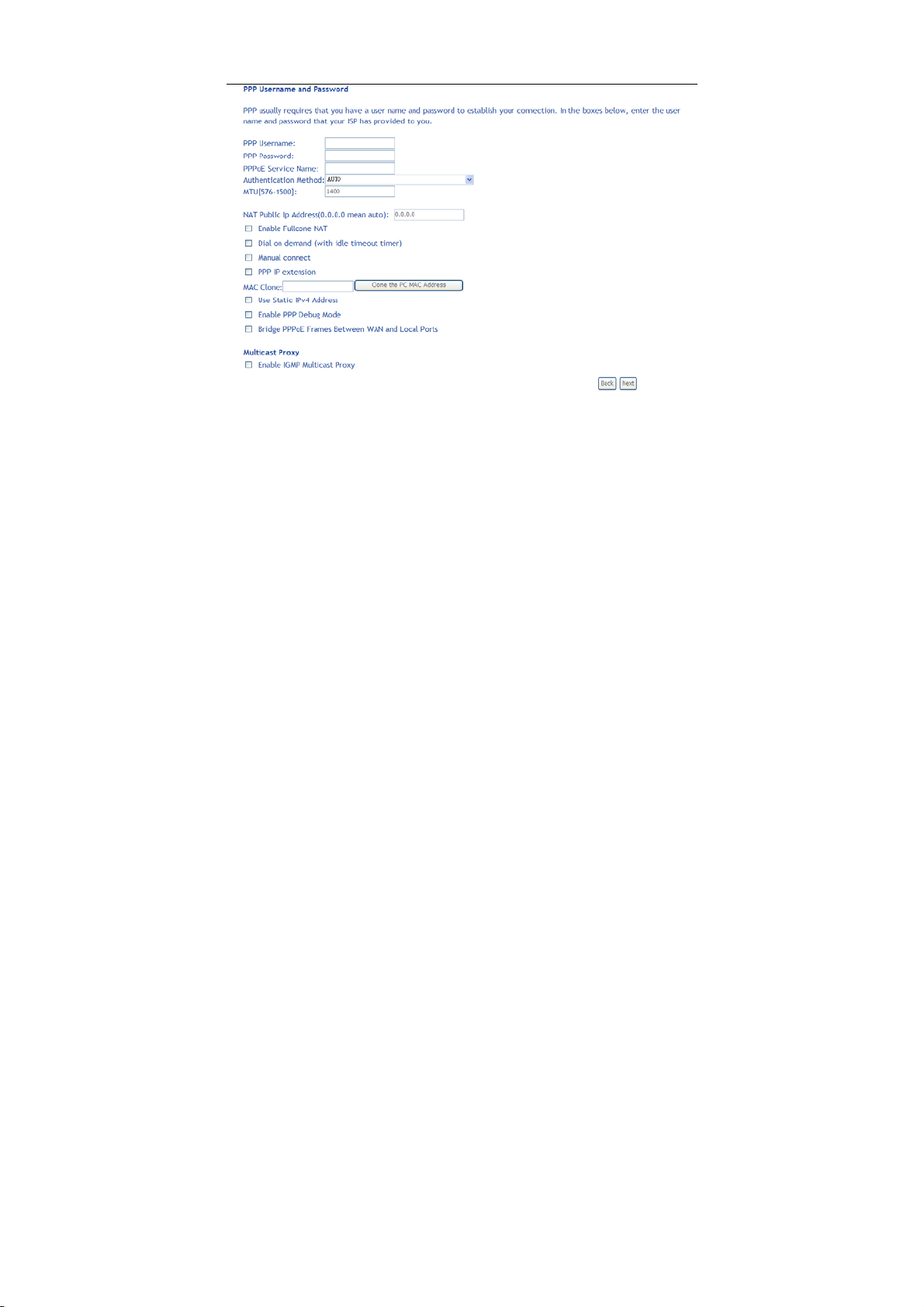

5.2.2 WAN Service ............................................................................20
5.2.3 3G WAN Service.......................................................................28
5.3 Wireless...............................................................................................30
5.3.1 Basic Settings...........................................................................30
5.3.2 Security.....................................................................................31
5.4 Voice....................................................................................................33
5.4.1 VoIP Status...............................................................................34

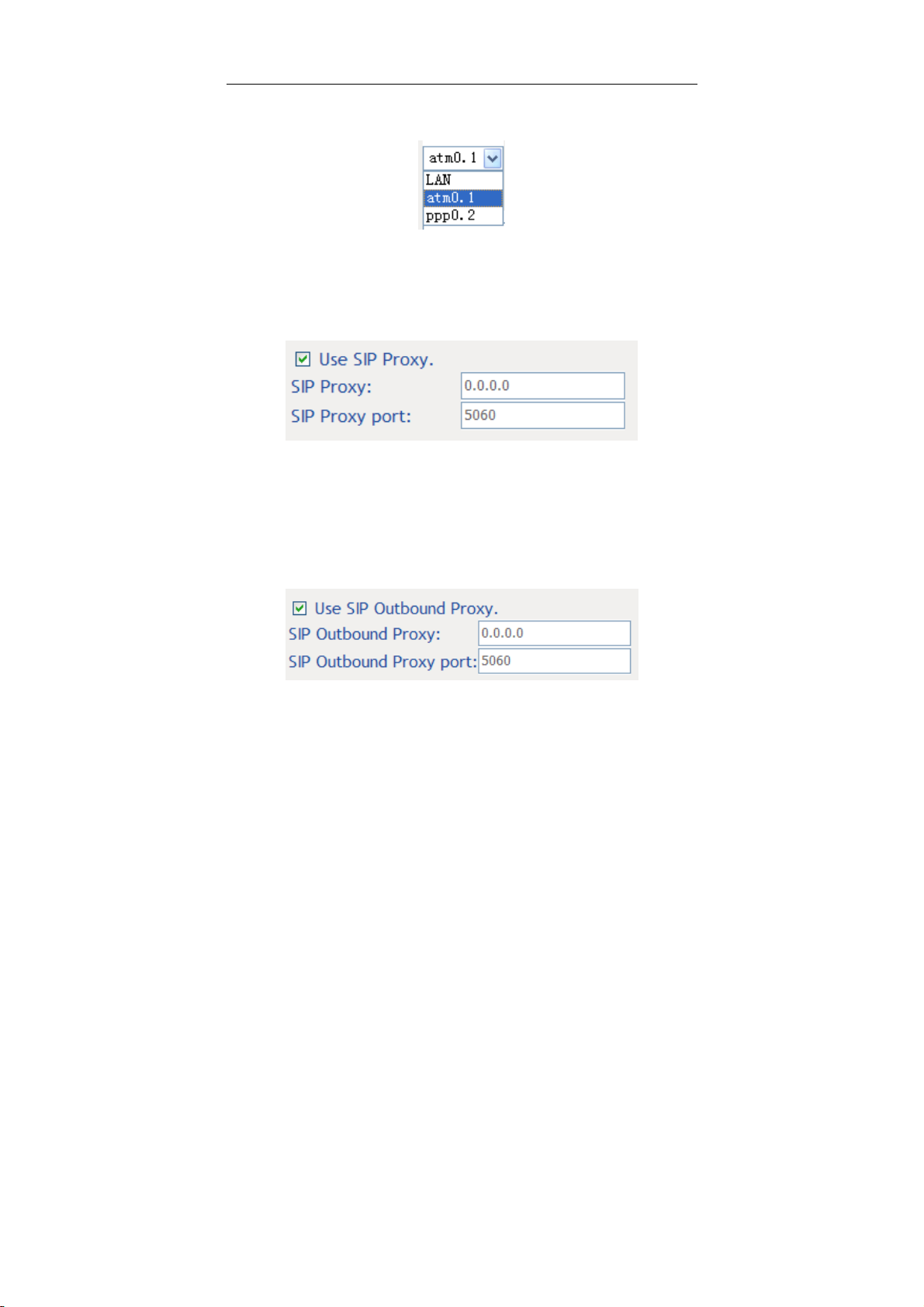

5.4.2 SIP Basic Setting......................................................................34
5.4.3 SIP Advanced Setting...............................................................38
5.4.4 SIP Extra Setting ......................................................................42
5.4.5 SIP Debug Setting....................................................................42
5.5 Management........................................................................................43
5.5.1 Access Control..........................................................................43
i
User Manual
5.5.2 Update Software.......................................................................44
6 Q&A..................................................................................................................45
ii
User Manual
1 Safety Precautions
Read the following information carefully before operating the device. Please follow the following precaution items to protect the device from risks and damage caused by fire and electric power:
Use volume labels to mark the type of power.  Use the power adapter that is packed within the device package.  Pay attention to the power load of the outlet or prolonged lines. An
overburden power outlet or damaged lines and plugs may cause electric shock or fire accident. Check the power cords regularly. If you find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid any damage
caused by overheating to the device. The holes on the device are designed for heat dissipation to ensure that the device works normally. Do not cover these heat dissipation holes.
Do not put this device close to a place where a heat source exits or high
temperature occurs. Avoid the device from direct sunshine.
Do not put this device close to a place where is over damp or watery. Do not
spill any fluid on this device.
Do not connect this device to any PC or electronic product, unless our
customer engineer or your broadband provider instructs you to do this, because any wrong connection may cause any power or fire risk.
Do not place this device on an unstable surface or support.
1
User Manual
2 Overview
The xDSL Router integrates wireless LAN, USB, and VoIP service into one unit. It is designed to provide a simple and cost-effective xDSL Internet connection for a private Ethernet and 802.11b/802.11g/802.11n wireless network. The Router combines high-speed xDSL Internet connection, Ethernet uplink, IP routing for the LAN and wireless connectivity in one package. It is usually preferred to provide high access performance applications for the individual users, the SOHOs, and the small enterprises. The Router supports 3G WAN service. The Router is easy to install and use. The Router connects to an Ethernet LAN or computers via standard Ethernet ports. The xDSL connection is made using ordinary telephone line with standard connectors. You can connect the Ethernet interface of WAN to Internet with Ethernet cable for ETH uplink. Multiple workstations can be networked and connected to the Internet by a single Wide Area Network (WAN) interface and single global IP address. The advanced security enhancements, packet filtering and port redirection, can help protect your network from potentially devastating intrusions by malicious agents from outside your network. Network and Router management is done through the web-based management interface that can be accessed through the local Ethernet using any web browser. Y ou may also enable remote management to enable configuration of the Router via the WAN interface.
2.1 Application
 Home gateway  SOHOs  Small enterprises  Higher data rate broadband sharing  Audio and video streaming and transfer  PC file and application sharing  Network and online gaming  Voice over IP (VoIP)  USB storage
2
User Manual
3G WAN service
2.2 Features
User-friendly GUI for web configuration  Several pre-configured popular games. Just enable the game and the port
settings are automatically configured.
Compatible with all standard Internet applications  Industry standard and interoperable DSL interface  Simple web-based status page displays a snapshot of system configuration,
and links to the configuration pages
Downloadable flash software updates  Support for up to 8 permanent virtual circuits (PVC)  Support for up to 8 PPPoE sessions  Support RIP v1 & RIP v2  WLAN with high-speed data transfer rates, compatible with IEEE 802.11b/g/n  Optimized Linux 2.6 Operating System  IP routing and bridging  Asynchronous transfer mode (ATM) and digital subscriber line (DSL) support  Packet Transfer Mode (PTM)  Ethernet (ETH) Transfer Mode  Point-to-point protocol (PPP)  Network/port address translation (NAT/PAT)  Quality of service (QoS)  Wireless LAN security: WPA, 802.1x, RADIUS client  Universal plug-and-play(UPnP)  File server for network attached storage (NAS) devices  Print server  Web filtering  Management and control
- Web-based management (WBM)
- Command line interface (CLI)
- TR-069 WAN management protocol
- Simple Network Management Protocol (SNMP)
Remote update System statistics and monitoring
3
User Manual
DSL router is targeted at the following platforms: DSL modems, wireless
access points and bridge.
2.3 Standards Compatibility and Compliance
Support application level gateway (ALG)  ITU G.992.1 (G.dmt)  ITU G.992.2 (G.lite)  ITU G.994.1 (G.hs)  ITU G.992.3 (ADSL2)  ITU G.992.5 (ADSL2+)  ITU G.993.1 (VDSL)  ITU G993.2 (VDSL2)  3G (WCDMA, CDMA2000, TD-SCDMA)  ANSI T1.413 Issue 2  IEEE 802.3  IEEE 802.3u  IEEE 802.11b  IEEE 802.11g  IEEE 802.11n  RFC3261 (SIP for VoIP)
4
User Manual
3 Hardware Description and Installation
Note:
The figures in this document are for reference only.
3.1 Hardware Description
3.1.1 Front Panel
Figure 1 Front panel
The following table describes the indicators on the front panel.
Indicator Color Status Description
On
Green
Power
Red
DSL Green
Internet
WAN Green
Green
Red On Authentication has failed.
Blink The software is upgrading. Off The device is powered off. On The device is initiating. Blink The software is upgrading. On DSL link has established. Blink The DSL line is training. Off Device is powered off.
On Blink Internet data is being transmitted.
Off Ethernet interface is disconnected.
On Blink Network data is transmitting.
Off The WAN interface is not connected to the
The device is powered on and the device operates normally.
Internet is synchronized successfully in the route mode.
The WAN interface is connected to the Ethernet cable.
5
User Manual
Indicator Color Status Description
Ethernet cable.
On The Ethernet interface is connected. LAN 1/2/3/4
WiFi Green
WPS Green
USB1/2 Green
Phone1/2 Green
Green
Blink
Off The Ethernet interface is disconnected.
On WIFI is enabled.
Blink
Off WIFI is disabled.
On
Blink
Off Wi-Fi Protected Setup is disabled.
On
Blink Data is being transmitted.
Off No signal is detected.
Off No FXS signal is detected.
Blink The user data is passing through FXS port.
On The FXS interface is ready to work.
Data is being transmitted through the Ethernet interface.
Data is being transmitted through the wireless interface.
Connection succeeds under Wi-Fi Protected Setup. Negotiation is in progress under Wi-Fi Protected Setup.
The connection of 3G or USB flash disk has established.
6
User Manual
3.1.2 Rear Panel and Side Panel
Figure 2 Rear panel
The following table describes the interfaces and the buttons.
Interface Description
DSL Phone1/2 RJ-11 port, using the telephone cable to connect the telephone set. LAN 4~1 WAN For connecting Ethernet cable to provide Ethernet uplink. Reset
USB1/2 Power Power interface, for connecting the power adapter.
On/Off WiFi WiFi switch, for enabling or disabling the WiFi function.
RJ-11 port. Connect the router to DSL connector or splitter through telephone cable.
RJ-45 port, for connecting the router to a PC or another network device.
Press the button for at least 1 second and then release it. System restores the factory default settings. USB port, for connecting the 3G network card or other USB storage devices.
Power switch.
7
Figure 3 Side
panel
User Manual
Interface Description
This button is used for enabling WPS PBC mode. If WPS is enabled,
WPS
Warning:
Do not press the Reset button unless you want to clear the current settings. The Reset button is in a small circular hole on the rear panel. If you want to restore the
default settings, please press the Reset button gently for 1 second with a fine needle inserted into the hole and then release the button. The system reboots and returns to the factory defaults.
press this button, and then the wireless router starts to accept the negotiation of PBC mode.
3.2 Hardware Installation
3.2.1 Choosing the Best Location for Wireless Op eration
Many environmental factors may affect the effective wireless function of the DSL Router. If this is the first time that you set up a wireless network device, read the following information: The access point can be placed on a shelf or desktop, ideally you should be able to see the LED indicators in the front, as you may need to view them for troubleshooting. Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless LAN lets you access your network from anywhere you want. However, the numbers of walls, ceilings, or other objects that the wireless signals must pass through limit sign al range. Typical ranges vary depending on types of materials and background RF noise in your home or business.
3.2.2 Connecting the Device
Step 1 Connect the DSL port of the router and the Modem port of the splitter
with a telephone cable; connect the phone to the phone port of the splitter through a cable; and connect the incoming line to the Line port of the splitter.
The spliiter has three ports:
Line: Connect to a wall phone jack (RJ-11 jack)  Modem: Connect to the Line interface of the router
8
User Manual
Phone: Connect to a telephone set
Step 2 Connect the LAN port of the router to the network card of the PC through
an Ethernet cable.
Step 3 Plug the power adapter to the wall outlet and then connect the other end
of it to the Power port of the router.
The followig figure displays the connection of the DSL router, PC, and telephones.
Figure 4 Connecting the DSL router
Note:
If you use 3G WAN service, connect the 3G USB data card to the USB port of the router.
If you use the Ethernet uplink, connect the WAN interface that is defined to the Internet with Ethernet cable.
The xDSL uplink, 3G WAN service, and Ethernet uplink can not coexist.
9
User Manual
4 PC Network Configuration and Login
4.1 PC Network Configuration
Each network interface on the PC should either be configured with a statically defined IP address and DNS address, or be instructed to automatically obtain an IP address using the network DHCP server. DSL router provides a DHCP server on its LAN and it is recommended to configure your LAN to automatically obtain its IP address and DNS server IP address. The configuration principle is identical but should be carried out differently on each operating system. The following displays the TCP/IP Properties dialog box on Windows XP.
10
