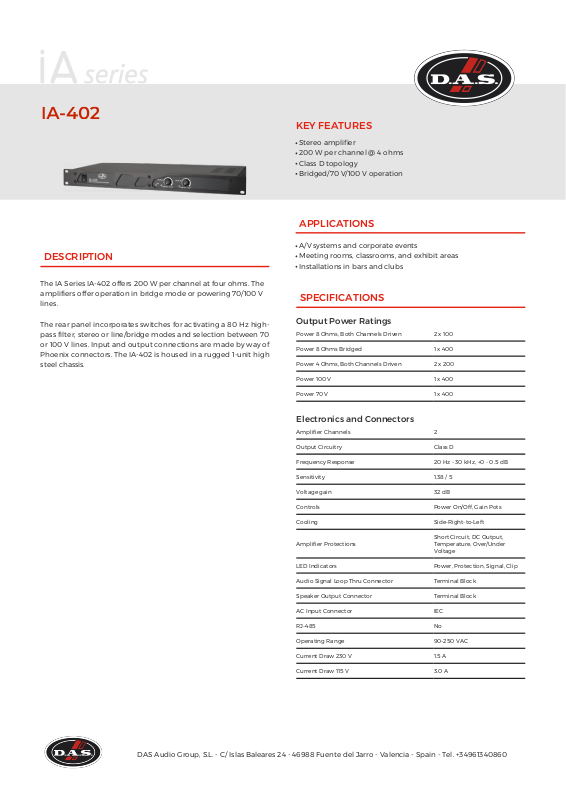

DAS IA-402 Datasheet

DESCRIPTION

The IA Series IA-402 offers 200 W per channel at four ohms. The
amplifiers offer operation in bridge mode or powering 70/100 V
lines.

KEY FEATURES

· Stereo amplifier

· 200 W per channel @ 4 ohms

· Class D topology

· Bridged/70 V/100 V operation

APPLICATIONS

· A/V systems and corporate events

· Meeting rooms, classrooms, and exhibit areas

· Installations in bars and clubs

SPECIFICATIONS

The rear panel incorporates switches for activating a 80 Hz high­pass filter, stereo or line/bridge modes and selection between 70
or 100 V lines. Input and output connections are made by way of
Phoenix connectors. The IA-402 is housed in a rugged 1-unit high
steel chassis.

Output Power Ratings

Power 8 Ohms, Both Channels Driven 2 x 100

Power 8 Ohms Bridged 1 x 400

Power 4 Ohms, Both Channels Driven 2 x 200

Power 100 V 1 x 400

Power 70 V 1 x 400

Electronics and Connectors

Amplifier Channels 2

Output Circuitry Class D

Frequency Response 20 Hz - 30 kHz, +0 - 0.5 dB

Sensitivity 1.38 / 5

Voltage gain 32 dB

Controls Power On/Off, Gain Pots

Cooling Side-Right-to-Left

Amplifier Protections

LED Indicators Power, Protection, Signal, Clip

Audio Signal Loop Thru Connector Terminal Block

Speaker Output Connector Terminal Block

AC Input Connector IEC

RJ-485 No

Operating Range 90-250 VAC

Current Draw 230 V 1.5 A

Current Draw 115 V 3.0 A

Short Circuit, DC Output,
Temperature, Over/Under
Voltage

DAS Audio Group, S.L. - C/ Islas Baleares 24 - 46988 Fuente del Jarro - Valencia - Spain - Tel. [phone]

Dimensions-Weight

Dimensions ( H x W x D )

Net Weight 2,7 kg ( 5,9 lb )

44 x 483 x 208 mm
1,7 x 19,0 x 8,2 in

ORDERING INFORMATION

Performance

Model Description P/N

Shipping

Carton Dimensions ( H x W x D )

Shipping Weight 3,7 kg ( 8,1 lb )

130 x 525 x 315 mm
5,1 x 20,7 x 12,4 in

DIMENSIONS

System

IA-402 10717510
