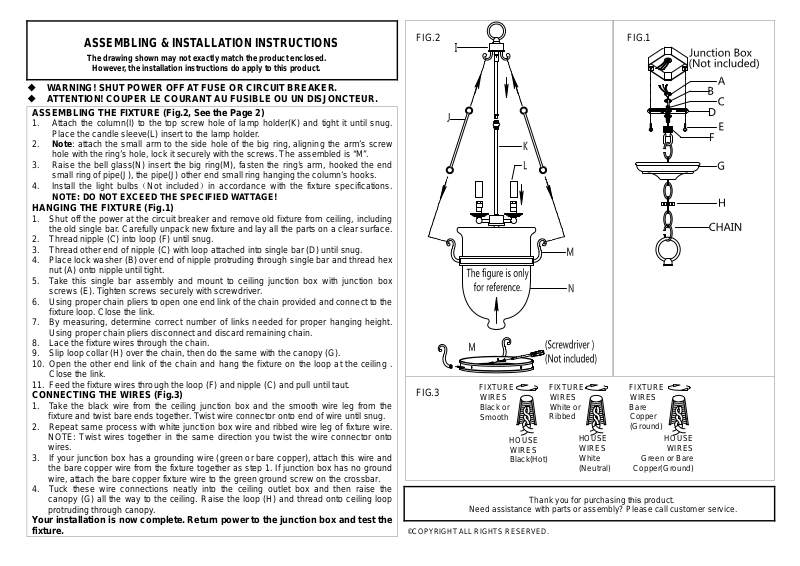

ASSEMBLING & INSTALLATION INSTRUCTIONS

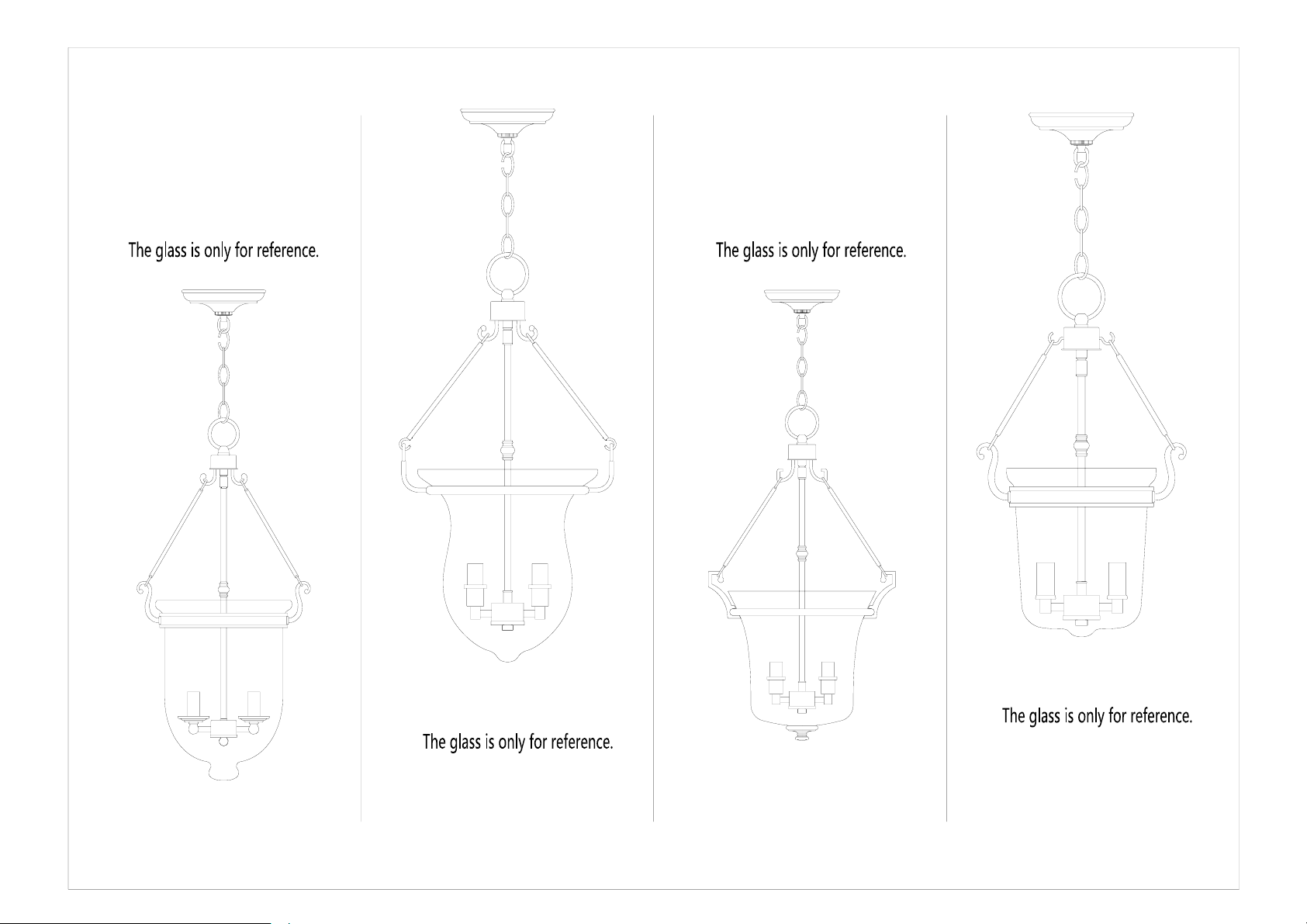

The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.2, See the Page 2)
1. Attach the column(I) to the top screw hole of lamp holder(K) and tight it until snug.
2. Note: attach the small arm to the side hole of the big ring, aligning the arm’s screw
3. Raise the bell glass(N) insert the big ring(M), fasten the ring’s arm, hooked the end
4. Install the light bulbs（Not included）in accordance with the fixture specifications.
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture from ceiling, including
2. Thread nipple (C) into loop (F) until snug.
3. Thread other end of nipple (C) with loop attached into single bar (D) until snug.
4. Place lock washer (B) over end of nipple protruding through single bar and thread hex
5. Take this single bar assembly and mount to ceiling junction box with junction box
6. Using proper chain pliers to open one end link of the chain provided and connect to the
7. By measuring, determine correct number of links needed for proper hanging height.
8. Lace the fixture wires through the chain.
9. Slip loop collar (H) over the chain, then do the same with the canopy (G).
10. Open the other end link of the chain and hang the fixture on the loop at the ceiling .
11. Feed the fixture wires through the loop (F) and nipple (C) and pull until taut.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth wire leg from the
2. Repeat same process with white junction box wire and ribbed wire leg of fixture wire.
3. If your junction box has a grounding wire (green or bare copper), attach this wire and
4. Tuck these wire connections neatly into the ceiling outlet box and then raise the
Your installation is now complete. Return power to the junction box and test the
fixture.
Place the candle sleeve(L) insert to the lamp holder.
hole with the ring’s hole, lock it securely with the screws. The assembled is “M”.
small ring of pipe(J), the pipe(J) other end small ring hanging the column’s hooks.
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
the old single bar. Carefully unpack new fixture and lay all the parts on a clear surface.
nut (A) onto nipple until tight.
screws (E). Tighten screws securely with screwdriver.
fixture loop. Close the link.
Using proper chain pliers disconnect and discard remaining chain.
Close the link.
fixture and twist bare ends together. Twist wire connector onto end of wire until snug.
NOTE: Twist wires together in the same direction you twist the wire connector onto
wires.
the bare copper wire from the fixture together as step 1. If junction box has no ground
wire, attach the bare copper fixture wire to the green ground screw on the crossbar.
canopy (G) all the way to the ceiling. Raise the loop (H) and thread onto ceiling loop
protruding through canopy.
