cPCI-LK03 user’s Manual (Rev 1.0)
-
1- http://www.daqsystem.com
cPCI-LK03
User’s Manual
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations ment ioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or oth er ri ght s of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the pr io r written consent.
Copyrights 2005 DAQ s ystem, All rights reserved.
cPCI-LK03 user’s Manual (Rev 1.0)
-
2- http://www.daqsystem.com
-- Contents --
1. cPCI-LK03 Introduction
2. cPCI-LK03 Description
2-1. cPCI-LK03 Connection
2-2. JP3 Connecter Pin-out
2-3. J2 Connecter Pin-out
Appendix
A.1 cPCI-LK03 Dimension
cPCI-LK03 user’s Manual (Rev 1.0)
-
3- http://www.daqsystem.com

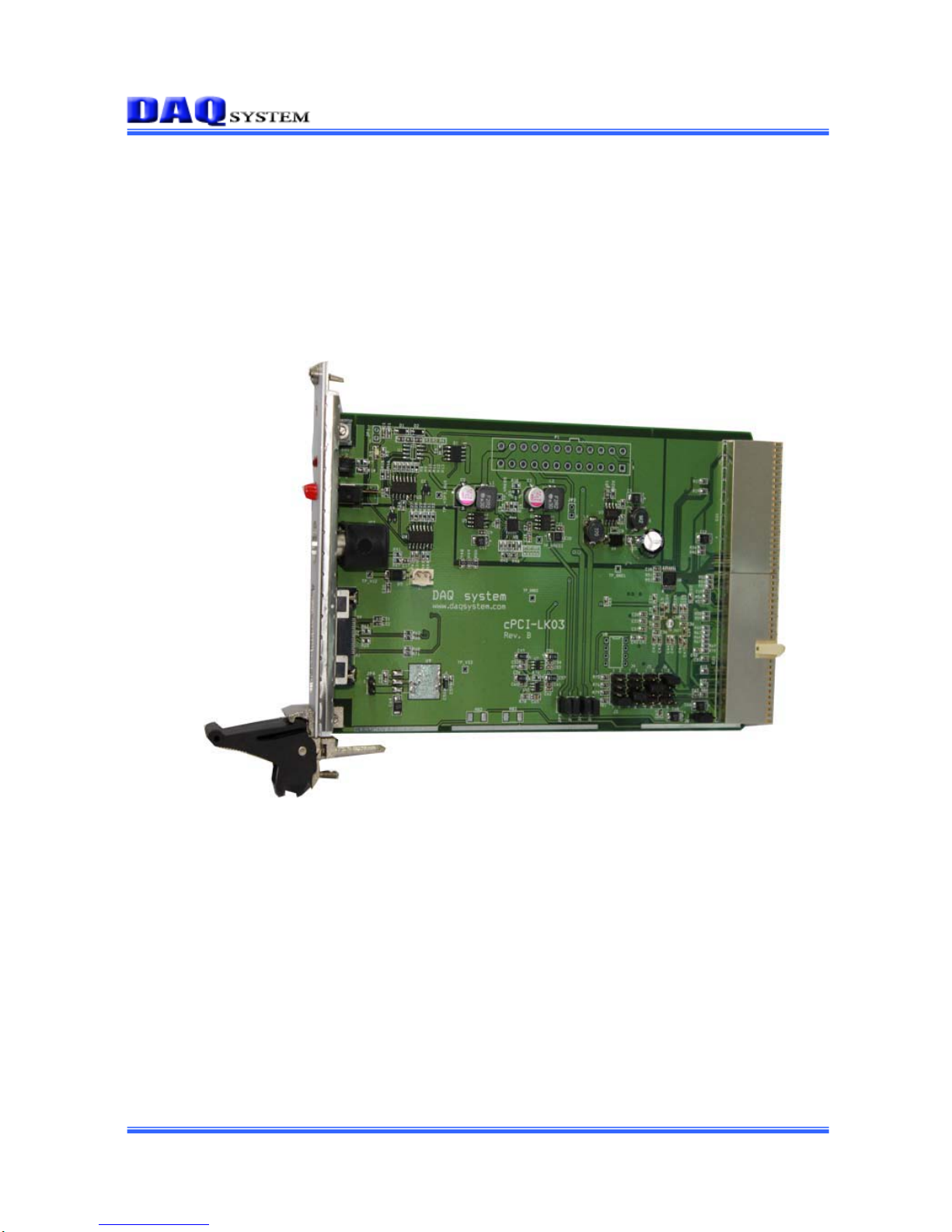

1. cPCI-LK03 Introduction
The cPCI-LK03 board is designed for easy acces s to Compact PCI solution on ge neral Desktop or
Laptop computers. It is equ ipped to the s ystem s lot with the Com pact PCI Back plane and can ac cess 6
Compact PCI products. It can be connected to the Standard Express Card/PCMCIA Bus (for Laptop
computer) and PCI Express Bus (f or Desktop com puter). This bo ard is a Com pact PCI Link bo ard that
can be used any operating systems without driver.
[Figure 1-1] shows that the connection of cPCI-LK03 in the Compact PCI System.
[Figure 1-1. cPCI-LK03 and Compact PCI System Connection]
Main Features
Support a Compact PCI 32/64bit, 33MHz/66Mhz
Maximum 8 Compact PCI Products
Low Power
Support various power (12V, 3.3V, 3.3V AUX) through Mini Circular for external devices
Applications
Compact PCI board Hardware debugging on PC or Notebook
Compact PCI board Software development on PC or Notebook
cPCI-LK03 user’s Manual (Rev 1.0)
-
4- http://www.daqsystem.com
[Figure 1-2. eCard-LK02 and Compact PCI System Connection]
[Figure 1-3. PCIe-LK12 and Compact PCI System Connection]
cPCI-LK03 user’s Manual (Rev 1.0)
-
5- http://www.daqsystem.com
2. cPCI-LK03 Description
The cPCI-LK03 board can be accessed maximum 8 Compact PCI products.
2-1 cPCI-LK03 Connection

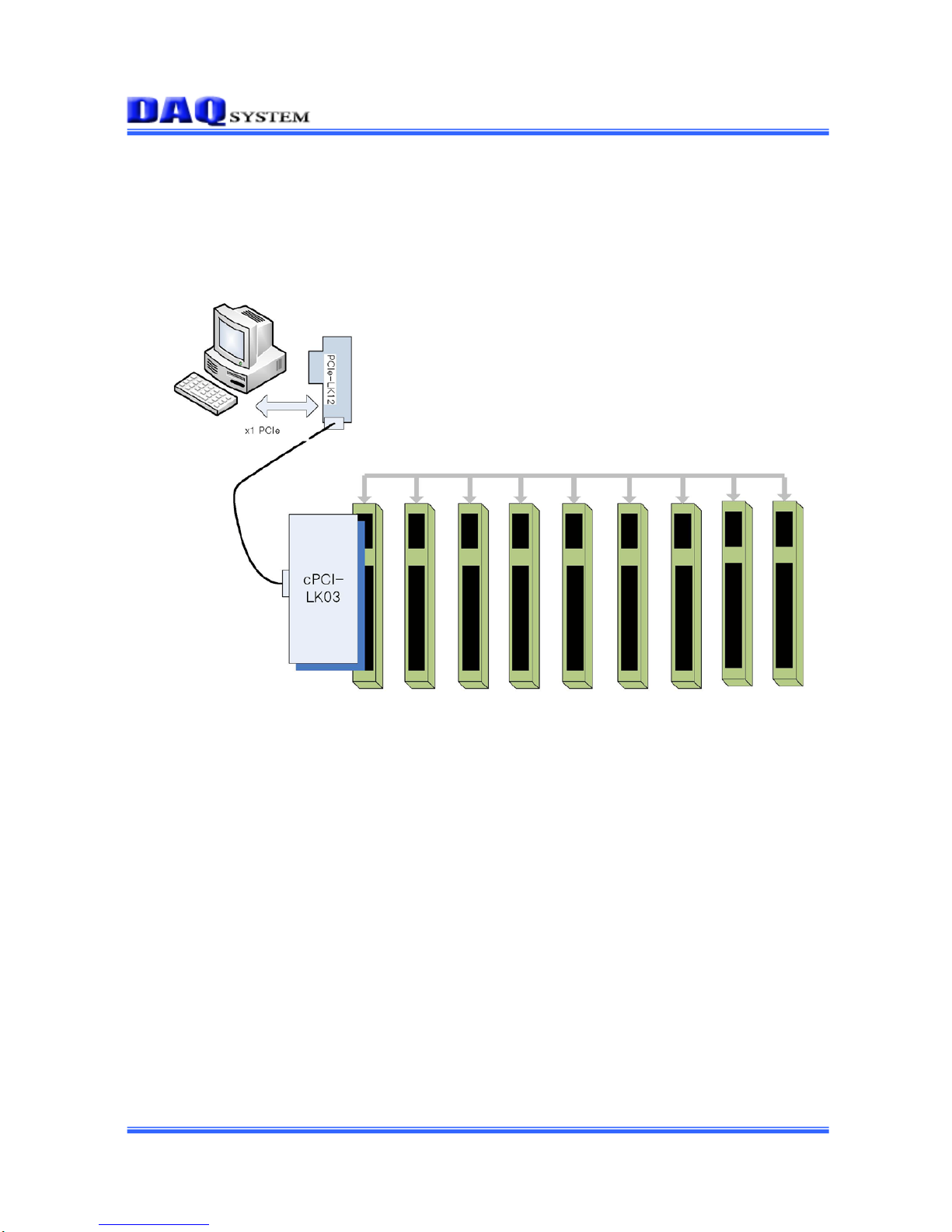

[Figure 2-1. cPCI-LK03 and Compact PCI Link Board Connection]
[Figure 2-1] shows that the connection of cPCI-LK03 and PCIe-LK12 (for Desktop computer)
in the Compact PCI system.
cPCI-LK03 user’s Manual (Rev 1.0)
-
6- http://www.daqsystem.com
2-2. JP3 Connecter Pin-Out
The cPCI-LK03 receives various power (12V, 3.3V AUX) through JP3 (HR10-7R-6S-RA)
Mini Circular connecter for 8 Compact PCI board in the system.
[Figure 2-2. cPCI-LK03 JP3 Connector Pin-out]
[Table 1. JP3 Connecter Description]
No. Name Description Remark
1
+3.3VauX
+3.3V Auxiliary Power
2
+12V
+12V Power
3
+12V
+12V Power
4
GND
Ground
5
GND
Ground
6
GND
Ground
cPCI-LK03 user’s Manual (Rev 1.0)
-
7- http://www.daqsystem.com
2-3. J2 Connecter Pin-Out
The cPCI-LK03 transmits the Express PCI signals through J2 (MDR-18) connecter.

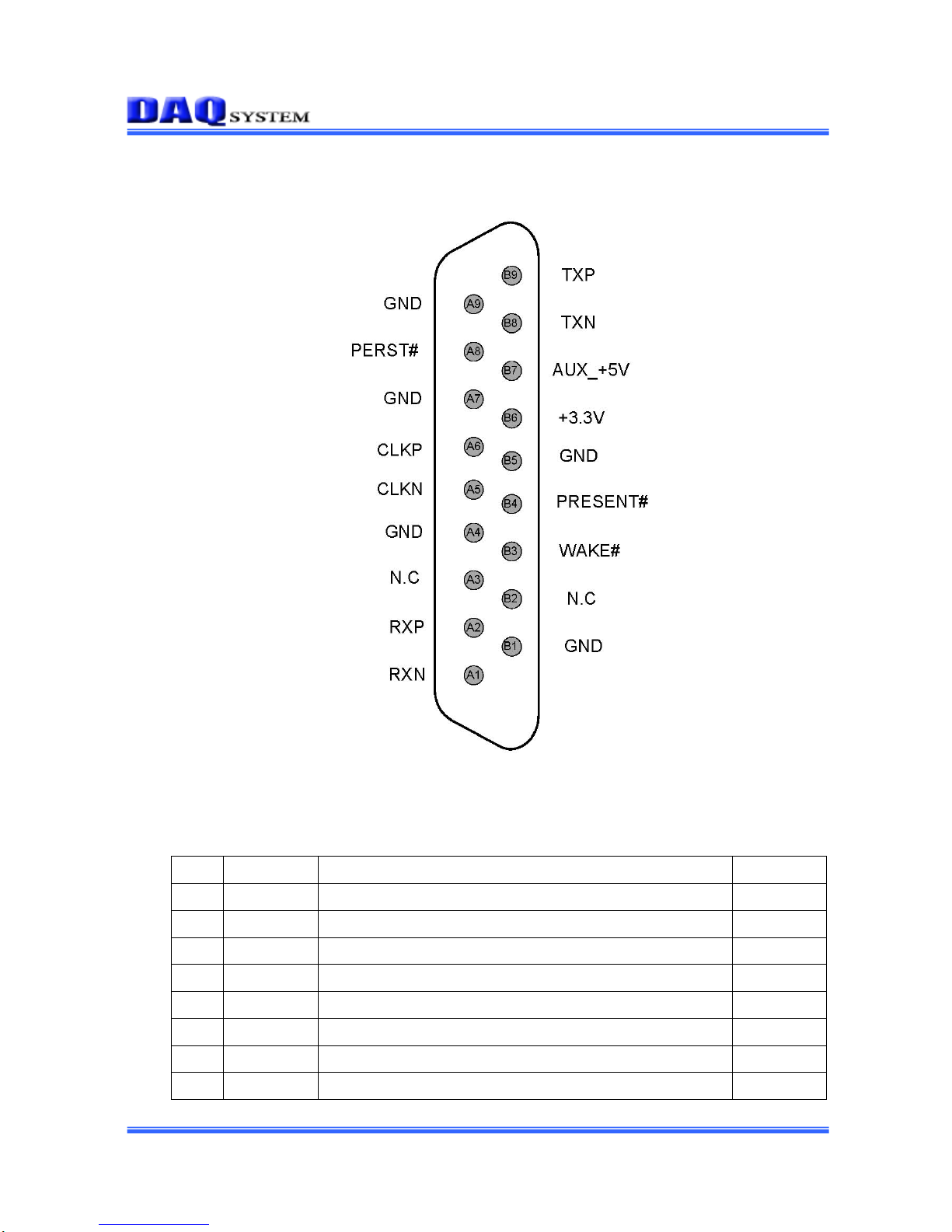

[Figure 2-3. cPCI-LK03 J2 Connector Pin-out]
[Table 2. J2 Connecter Description]
No. Name Description Remark
A1
RXN
Negative Receiver
A2
RXP
Positive Receiver
A3
N.C
No Connection
A4
GND
Ground
A5
CLKN
Negative Reference Clock
A6
CLKP
Positive Reference Clock
A7
GND
Ground
A8
PERST#
Power Stable Signal
cPCI-LK03 user’s Manual (Rev 1.0)
-
8- http://www.daqsystem.com
A9
GND
Ground
B1
GND
Ground
B2
N.C
No Connection
B3
WAKE#
Wake-Up System
B4
PRESENT#
Add-in Card Presence Detect
B5
GND
Ground
B6
+3.3V
+3.3V Power
B7
AUX_+5V
When the power use +5V through PCI Express cable
B8
TXP
Positive Transceiver
B9
TXN
Negative Transceiver
Appendix
A.1 cPCI-LK03 Dimension
The board size is as follows the Standard Universal (5V/3.3V) PCI 32b it for m -factor.
(160mm x 100mm, 3U).
J2
160
100
CJ1
CJ2
JP3
