DAQ PCI-DSP01 Reference Manual
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
PCI-DSP01
Reference Manual
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the
trademarks or service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.
Copyrights 2005 DAQ system, All rights reserved.
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
Contents
1. TMS320C6205 Memory map
2. EMIF CE0 (I/O Bus)
3. EMIF CE1 (BOOT ROM)
4. EMIF CE2 (SDRAM, 16Mbyte)
5. EMIF CE3 (SDRAM, 16Mbyte)

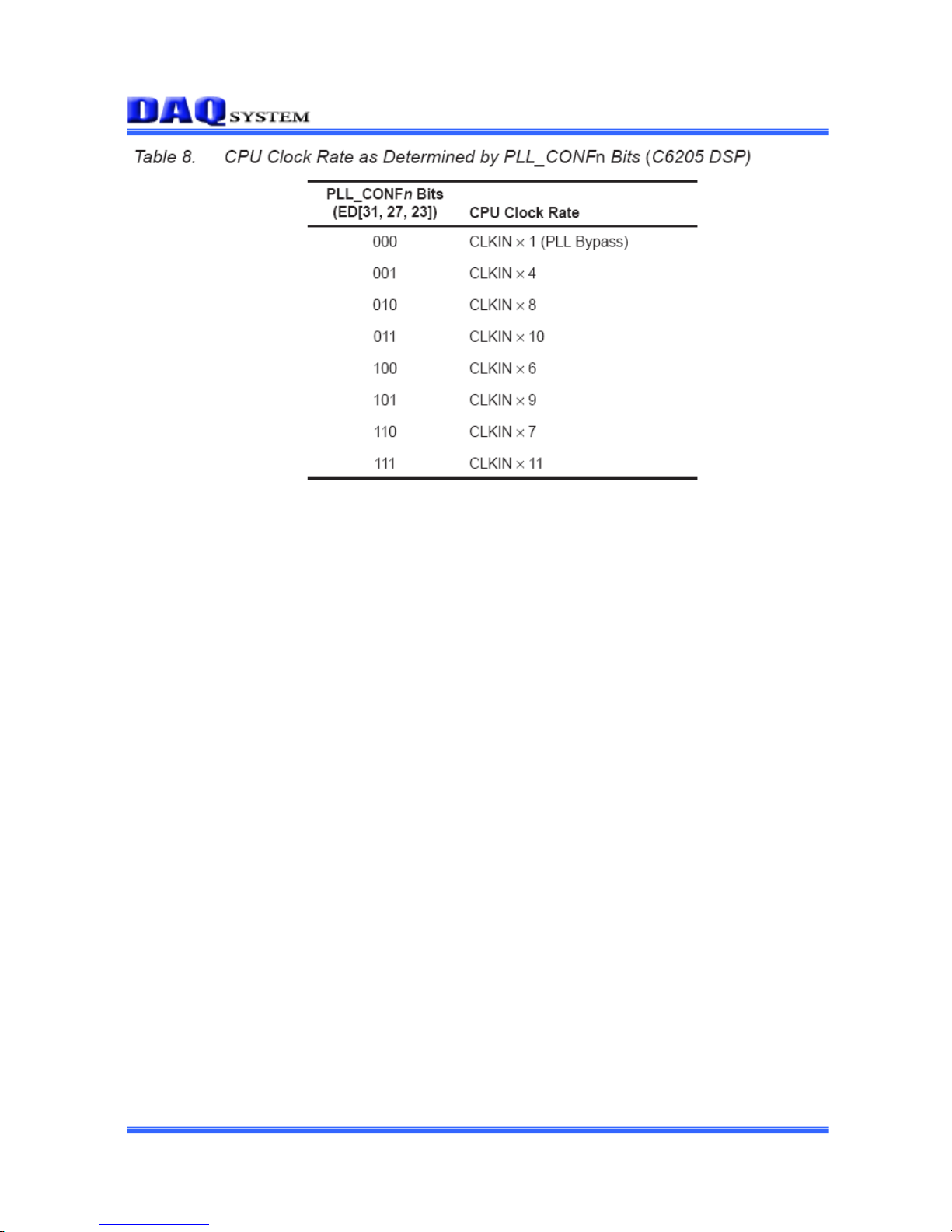

6. TMS320C6205-BOOT MODE

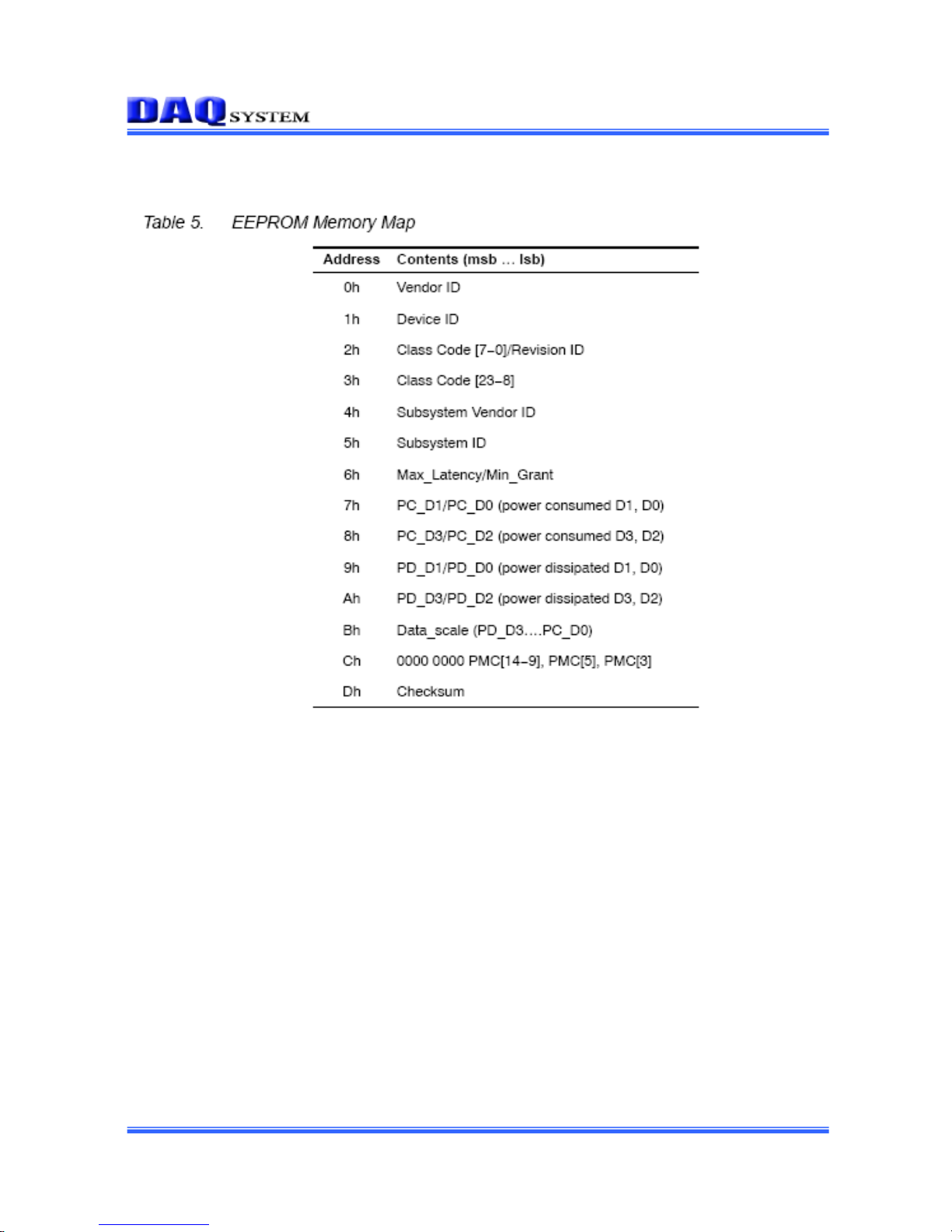

7. EEPROM contents

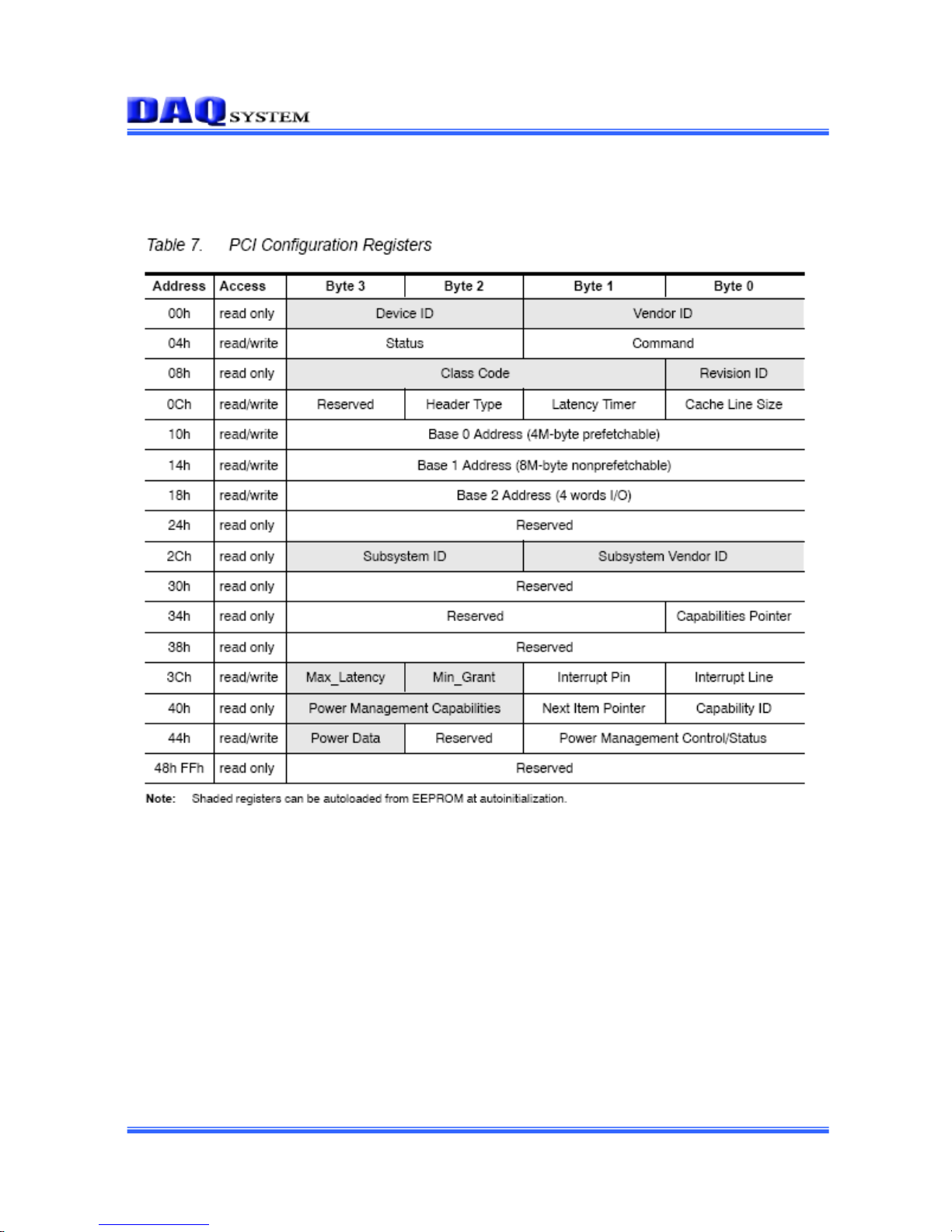

8. PCI Configuration Registers
9. PCI Memory Map
10. PCI I/O Map

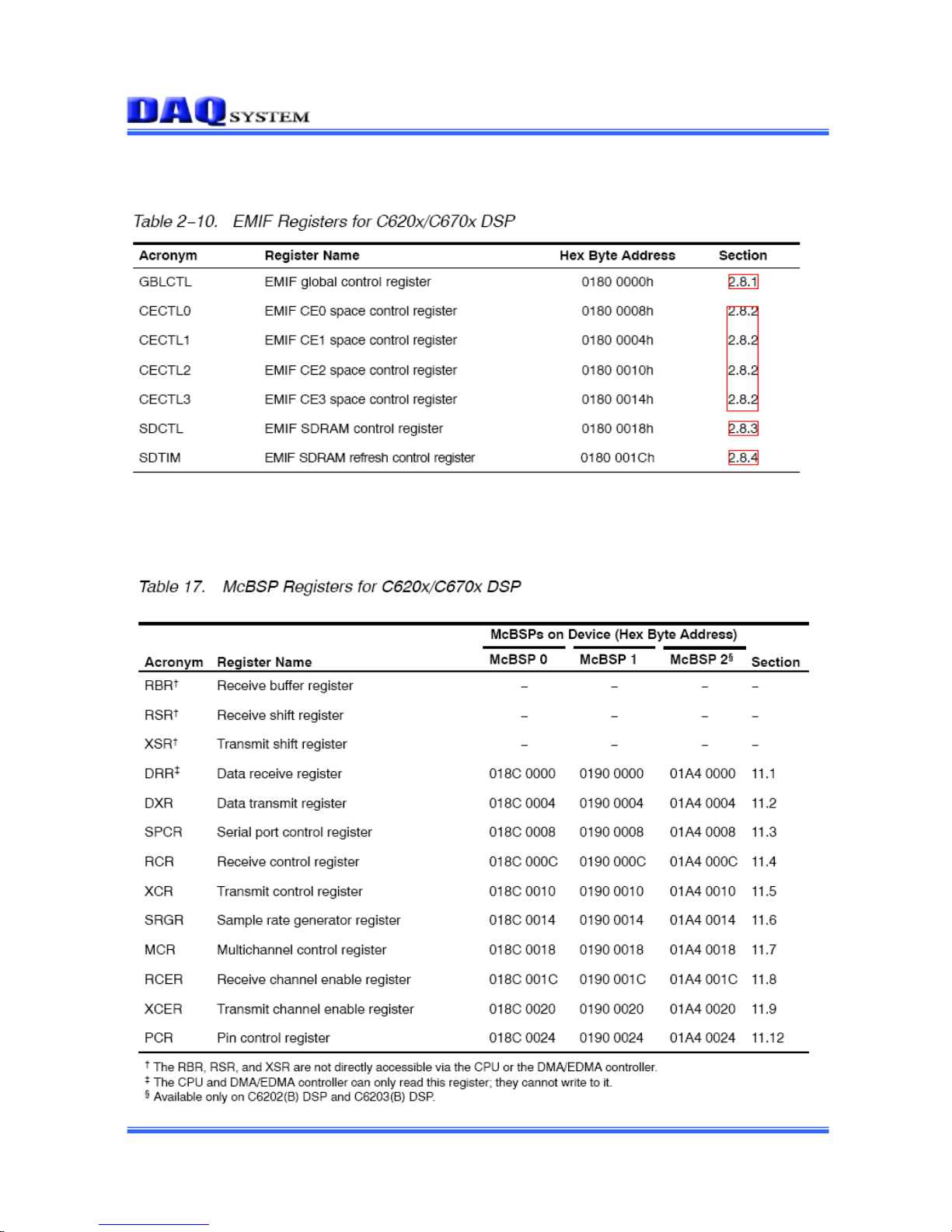

11. External Memory Interface Registers
12. McBSP Registers

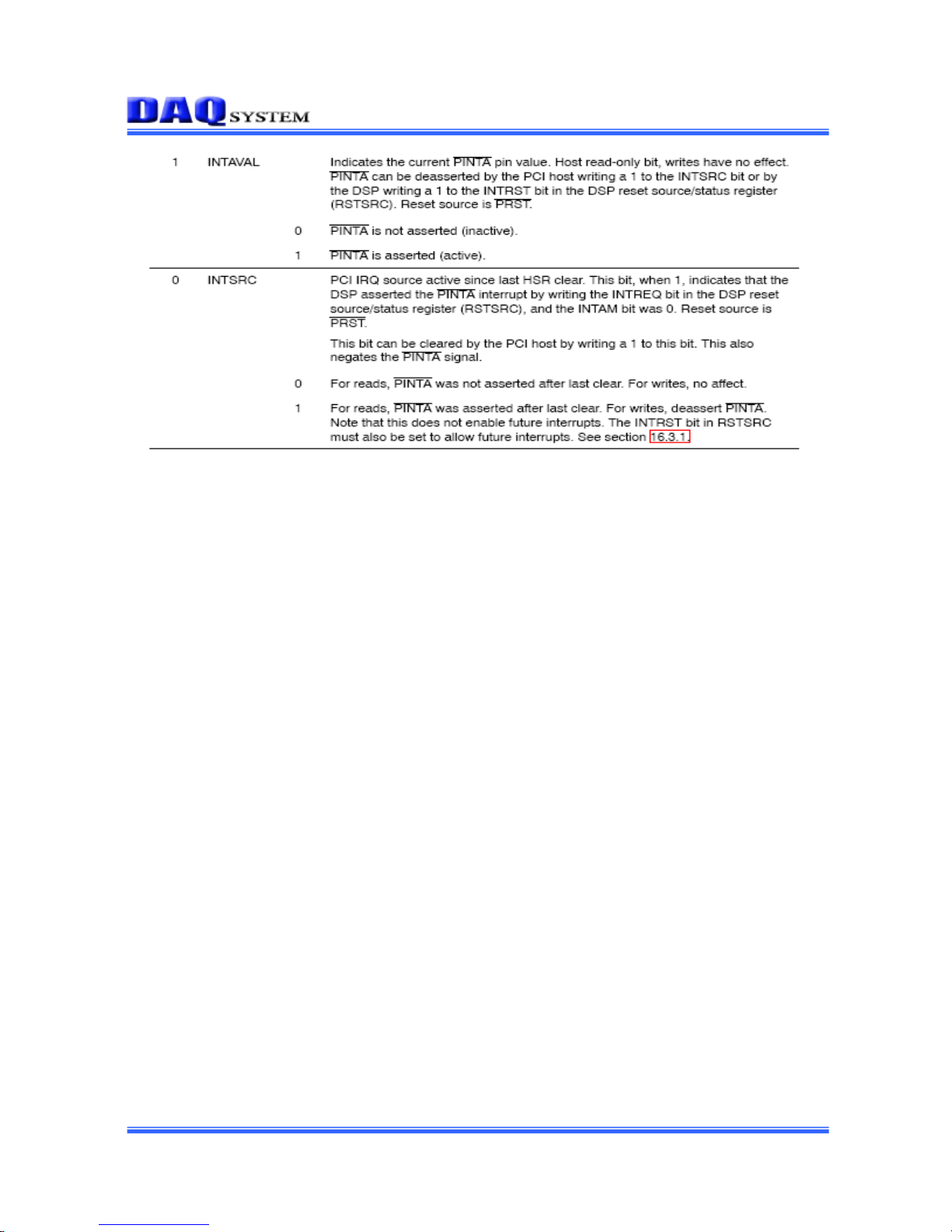

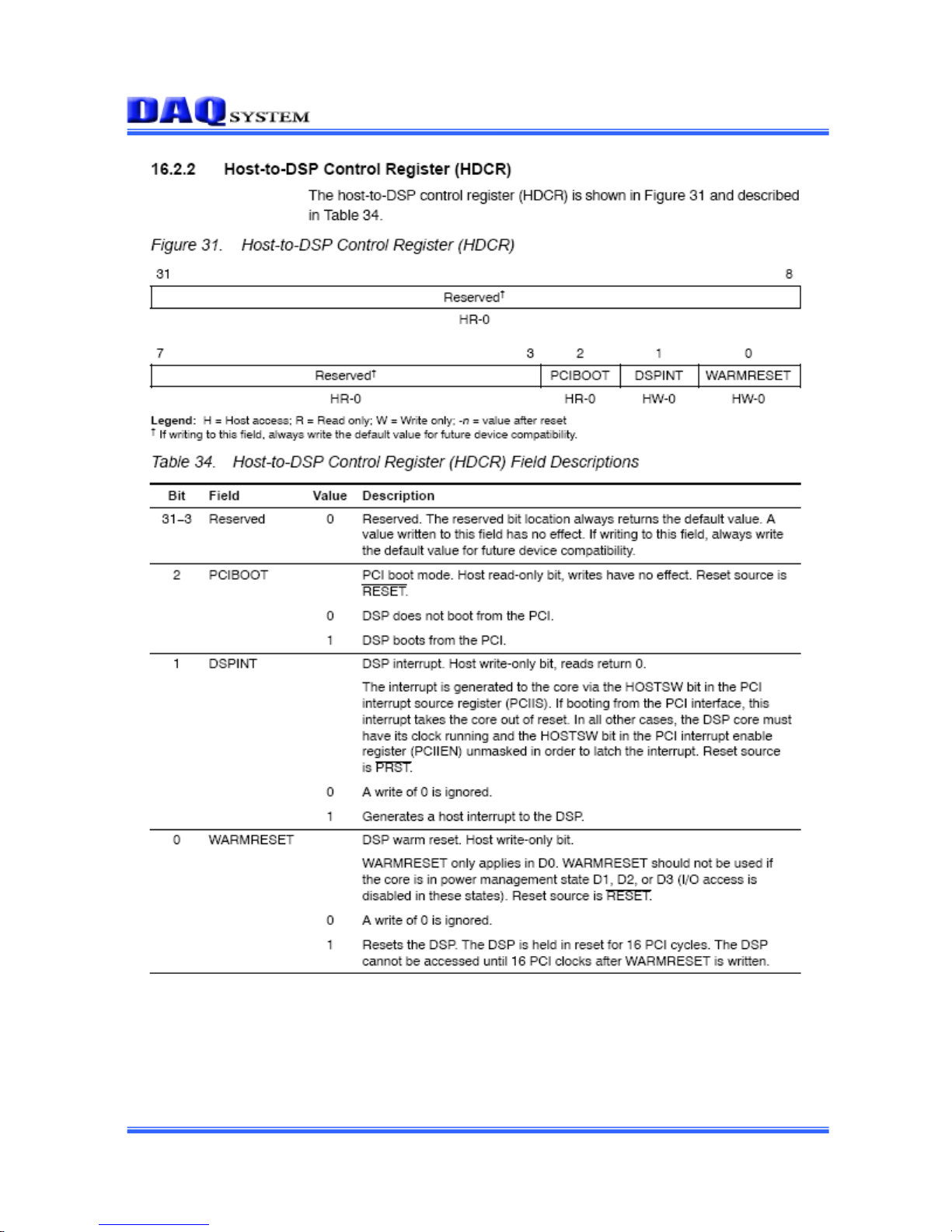

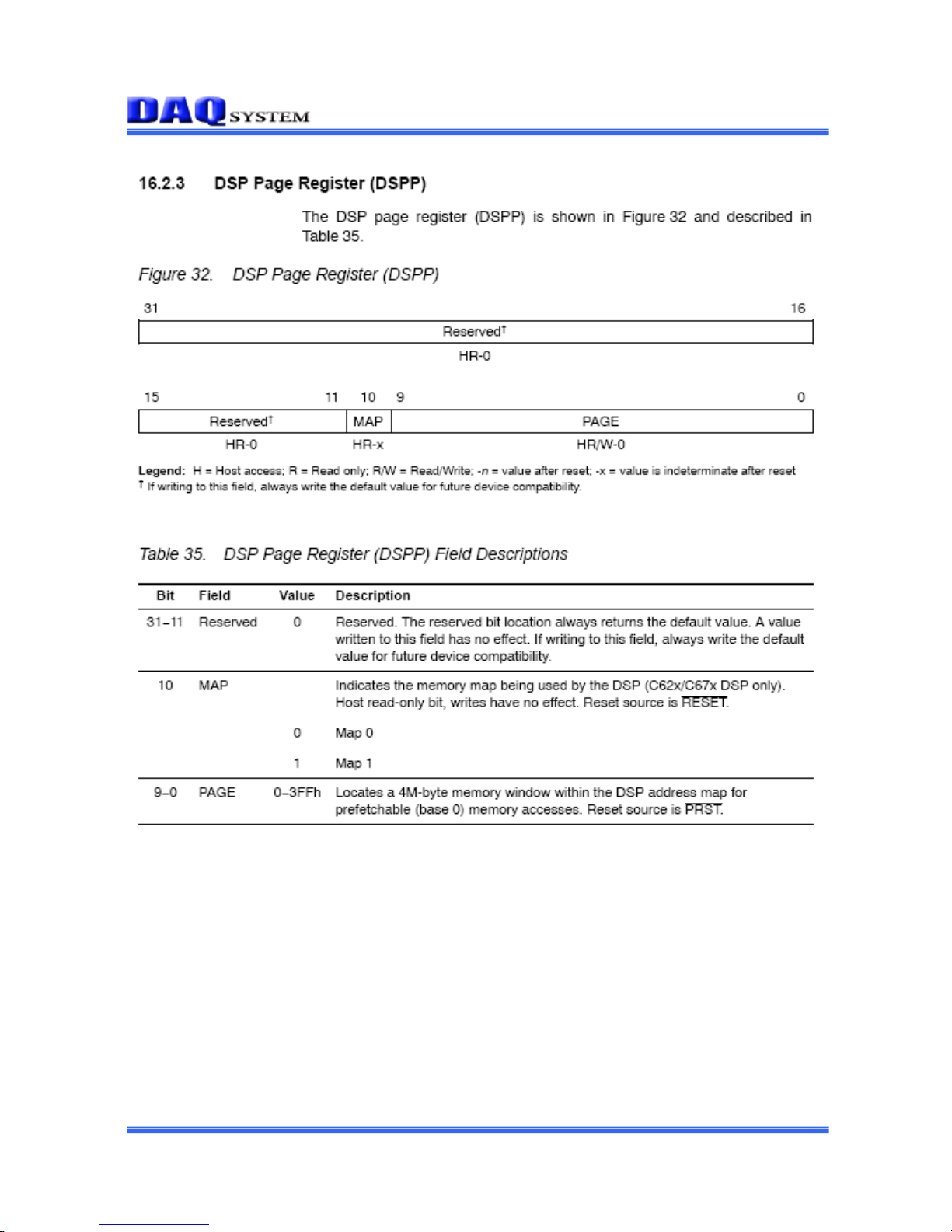

13. PCI Memory-Mapped Registers
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
1. TMS320C6205 Memory map
<Map summary >
(Note 1) Default memory map is MAP1(Factory setting)
PCI-DSP01 Memory MAP
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
2. EMIF CE0 (I/O Bus)
Un-used
0x0040 0000
I/O Bus 128Byte
0x013f FFFF
0x0040 007F
0x0040 0080
External I/O Bus
3. EMIF CE1 (BOOT ROM)
Unused
BOOT ROM
512KByte
(64Kbyte used)
29LV512
BOOT ROM
0x0140 0000
0x017F FFFF
0x0140 FFFF
0x0141 0000
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
4. EMIF CE2 (SDRAM, 16Mbyte)
SDRAM
0x0200 0000
0x02FF FFFF
K4S641632(64Mbit) x2
16Mbyte
5. EMIF CE3 (SDRAM, 16Mbyte)
SDRAM
0x0300 0000
0x03FF FFFF
K4S641632(64Mbit) x2
16Mbyte
(Default Unused)
PCI-DSP01 Reference Manual
2006 DAQ system, all rights reserved. http://www.daqsystem.com
6. TMS320C6205-BOOT MODE
