DAP

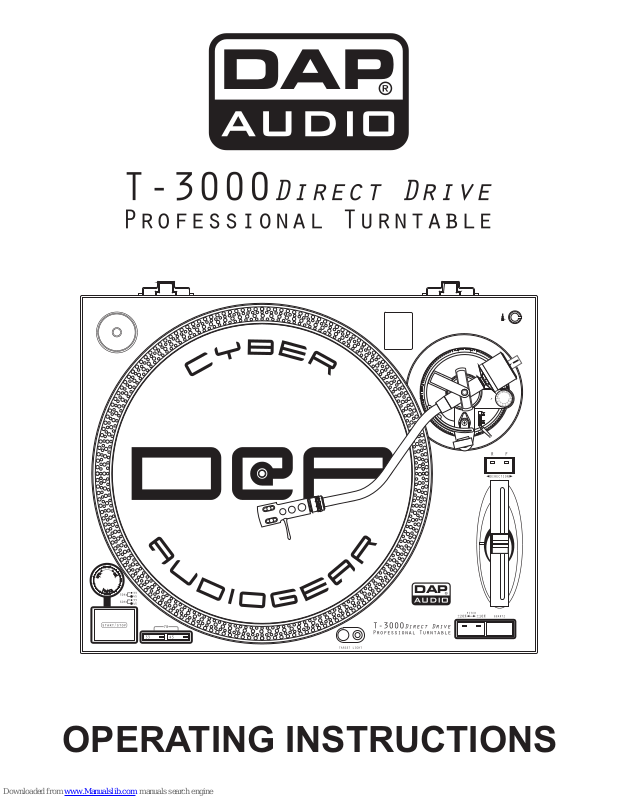

OPERATING INSTRUCTIONS
DAP
+/-10% OR +/-20% PITCH ADJUSTMENT
ALL METAL TONE ARM
HIGH TORQUE PLATTER MOTOR
START / STOP BUTTON
HIGH TORQUE BRAKING
33/45/78 RPM SPEEDS
FORWARD AND REVERSE PLATTER DIRECTION
POP-UP STYLUS TARGET LIGHT
S-SHAPED TONE ARM ASSEMBLY WITH
COUNTERWEIGHT
HEIGHT ADJUSTMENT
SKATING ADJUSTMENT
HEIGHT LOCK
LEVER LIFT WITH HEIGHT ADJUSTMENT
TONE ARM HOLDER WITH LOCKING MECHANISM
QUARTZ LOCK OF 0% SPEED POSITION
45 RPM ADAPTER AND HOLDER
EXTRA STYLUS HOLDER
OUTPUT FOR:
AUDIO (LEFT RIGHT & GROUND)
PLATTER SPEED - TO BE USED WITH EXTERNAL PROCESS DEVICES
EXTERNAL START / STOP CONTROL
ADJUSTABLE FEET FOR LEVELING
EASILY REMOVABLE SMOKED PLASTIC LID
F E A T U R E S
1
1.Power Dial
On - Rotate Right
Off - Rotate Left
2.START/STOP - Pressing once engages high torque motor; pressing again engages brake.
3.Platter Revolution Speed Buttons
33 rpm - Press 33
45 rpm - Press 45
78 rpm - Press 33 and 45
4.
5.Strobe Dots -
6.Platter - Place this on the center Spindle.
7.Center Spindle - Keeps platter and records centered. Place the supplied slipmat on the
Center Spindle now.
8.45-rpm Adapter - Place on Center Spindle for playing 7" records with large center holes.
Pitch Button - Press then button to switch 10% and 20% pitch.
M A I N F E A T U R E S A N D I N T R O D U C T I O N
50Hz
33
45
60Hz
33
45
2
8
3 15
4
14
10
5
7
6
1
2
12
11
9
13
00
33
..
55
00
..
55
DAP
9.Direction Buttons - Determine the direction the platter will spin.
10.Lid Hinge Holder - Place the bottom tabs of your lid hinges in here after you finish
assembly.
11.Extra Stylus Holder - Place an extra headshell here.
12.Tone Arm Assembly - Explained in tonearm section
13.Pitch Adjust - Use this to change the speed of the platter when quartz lock is inactive.
14.Quartz Lock
On - will hold the revolution speed to 0%
Off - will allow use of the Pitch Adjust
15.Target Light - Press the button to the right and a light will pop up directed at the
stylus position.
M A I N F E A T U R E S A N D I N T R O D U C T I O N
B E F O R E U S E
*Check that the following parts
are included in the package
with the main unit:
Turntable platter
Slip mat
Dust cover
45-rpm adapter
Counterweight
Head shell
Operating instructions
Cartridge
S P E C I F I C A T I O N
Power supply: 230V, 50Hz
Power consumption: 13Watts
Dimension: 450(W) x 352(D) x 157(H)
Weight: 10.6 kgs
3
26
25
24
22
23
20
21
19
18
18.Headshell - Install cartridge here. When
installing a cartridge, refer to the installation
instructions supplied by the manufacturer of
that cartridge. During installation, attach the
stylus protector to guard the stylus tip from
damage.
Attach wires as follows:
White (L+) Left channel+
Blue (L-) Left channel Red (R+) Right channel+
Green (R-) Right channel-
19.Headshell Locking Nut - Attach headshell by
inserting into the front end of the tonearm,
then turn the locking nut clockwise with the
head shell firmly held horizontally.
20.S-Shaped Tone Arm
21.Tone Arm Clamp and Rest - Use this rest for
the tone arm and clamp it in position during
transportation.
22.Tone Arm Lift - This elevates the tone arm above the record surface.
23.Tone Arm Lift Adjust Screw - Controls the amount of lift.
24.Tone Arm Lever - Controls the up and down action of the tone arm lift.
25.Anti-Skate Control - This applies inward force to the tonearm so it doesn't skip
outward across the record due to the centrifugal force of the record spinning.
Cartridge manufacturers usually specify the proper setting of this.
26.Counterweight - Adjustment creates the proper downward pressure of the stylus to
the record. Attach now by sliding the counterweight onto the rear of the tonearm.
Twist it lightly and it will screw onto the rear shaft of the tonearm.
T O N E A R M A S S E M B L Y
4
O P E R A T I N G
1. Turn the power dial to turn on and the speed indicator and the strobe-illuminator
will light up.
2. Turn on and raise the target light for illumination the stylus tip by pushing the
target light button.
3. Place a record on the turntable mat. When playing a 45rpm record with a large
center hole; place the 45-rpm adapter on the center spindle.
4. Set the rotation speed (33/45/78) to match the record.
5. Release the arm clamp.
6. Set the cueing lever to the up position.
7. Press the Start/Stop button and the turntable platter will start to rotate.
8. Move the tonearm over the desired groove.
9. Set the cueing lever to the down position, the tonearm will descend slowly onto
the record and play begins.
10. Set the desired pitch adjust range by depressing the QUARTZ button until the
desired pitch is reached.
Options are +/-10% or +/-20%.
11. Adjust the pitch to a desirable speed. During play, observe the strobe dots. If the
strobe dots appear to the right, the pitch is slower than the rated speed. If they
flow to the left, the rated speed.
If the strobe dots appear stationary, which means the platter is in normal
turntable speed, move the pitch control slider up or down to adjust the speed.
12. To suspend play, lift tone arm with cueing lever.
13. When play is finished, raise the cueing lever, move the tonearm to the armrest
and secure the tonearm with the arm clamp.
14. Turn the target light off by pushing the light back down.
15. Press the Start/Stop button to stop the platter rotating.
16. Turn the power dial to turn off the power.
