Core Kontrol D2 V.1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: D1261
MANUAL
ENGLISH
Ordercode: D1261
Core Kontrol D2
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ............................................................................................................................................. 2
Safety Instructions ...................................................................................................................................................... 2
Operating Determinations ....................................................................................................................................... 3
Return Procedure ...................................................................................................................................................... 4
Claims .......................................................................................................................................................................... 4
Description of the device ................................................................................................................................................. 5
Overview ..................................................................................................................................................................... 5
Deck A/B ...................................................................................................................................................................... 6
Mixer ............................................................................................................................................................................. 7
Frontside....................................................................................................................................................................... 8
Backside....................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 8
Set Up and Operation ....................................................................................................................................................... 8
Names and Functions ....................................................................................................................................................... 9
Deck Functions .......................................................................................................................................................... 9
Mixer Functions ........................................................................................................................................................11
Front Functions .........................................................................................................................................................12
Back Functions .........................................................................................................................................................12
Operations ........................................................................................................................................................................13
Selecting Folders ......................................................................................................................................................13
Selecting tracks using the track select encoder ...............................................................................................13
Starting Playback .....................................................................................................................................................13
Stop Playback ..........................................................................................................................................................13
Pausing .......................................................................................................................................................................13
Setting a Cue Point ..................................................................................................................................................13
Setting a hot cue point in pause mode ..............................................................................................................13
Setting a hot cue point in play mode ..................................................................................................................14
Deleting a hot cue point ........................................................................................................................................14
Cueing .......................................................................................................................................................................14
Frame search ............................................................................................................................................................14
Scanning (fast forward/fast backward) ..............................................................................................................14
Changing pitch of a song ......................................................................................................................................14
Loop play ...................................................................................................................................................................15
Smart loop play ........................................................................................................................................................15
Reloop ........................................................................................................................................................................15
Recording a sample ................................................................................................................................................15
Sample playback.....................................................................................................................................................15
Software Installation ........................................................................................................................................................16
Running the setup program. .................................................................................................................................17
Running the Virtual DJ-software for the first time .......................................................................................................20
Interface zones .........................................................................................................................................................22
Browser panels ..........................................................................................................................................................22
Maintenance ....................................................................................................................................................................23
Troubleshooting................................................................................................................................................................23
Product Specification .....................................................................................................................................................24
Appendix 1: Midi Implementation ...............................................................................................................................26
Notes ..................................................................................................................................................................................29
1
Ordercode: D1261
Core Kontrol D2
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• DAP Kontrol D2
• USB cable (1,75 m)
• CD with Virtual DJ LE software
• User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
• be qualified
• follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
2
Ordercode: D1261
Core Kontrol D2
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
Never remove warning or informative labels from the unit.
Never leave any cables lying around.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Make sure you don’t use the wrong kind of cables or defective cables.
When using a power adapter, make sure that the available voltage is not higher than stated on the
rear panel.
Please turn off the power switch, when changing the power adapter or signal cable.
Extreme frequency boosts in connection with a high input signal level may lead to overdriving your
equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT
control.
To emphasize a frequency range, you don’t necessarily have to move its respective control upward;
try lowering surrounding frequency ranges instead. This way, you avoid causing the next piece of
equipment in your sound path to overdrive. You also preserve valuable dynamic reserve
(“headroom”)
Avoid ground loops! Always be sure to connect the power amps and the mixing console to the
same electrical circuit to ensure the same phase!
If system is dropped or struck, disconnect the power supply or USB cable immediately. Have a
qualified engineer inspect for safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious injuries and damage of property !
3
Ordercode: D1261
Core Kontrol D2
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
4
Ordercode: D1261
Core Kontrol D2
Overview
Fig. 01
Deck A
Mixer
Deck B
Description of the device
Features
The Kontrol D2 is a DAP audio Core series Midi controller with a built-in 4 channel soundcard.
• Pro quality jogwheel
• Needle drop control
• Seamless loop control
• Smart loop buttons
• Loop multiplier and divider
• Hot cue buttons
• 3 band EQ with kill function
• USB interface
• Plug & Play functionality
• Includes Virtual DJ LE software
• Headphones output
• Microphone input
• 2 built-in soundcards
5
Ordercode: D1261
Core Kontrol D2
Deck A/B
Fig. 02
Cue 1 button
Needle drop sensor
Cue 2 button
Pitch button
Cue 3 button
Pitch range indicator
Shift button
Key lock button
Smart loop 2 button
Pitch control fader
Reverse button
Sample /rec button
Loop in button
Loop length indicator
Sync button
Pitch bend + button
Cue button
Pitch bend - button
Set cue button
x½/x2 switch
Play/pause Button
Scratch button
Effect select button
Smart loop 4 button
Parameter 1/filter Control
Loop out button
Effects on/off button
Smart loop 8 button
Parameter 2/key control
Reloop button
Sampler volume control
Jogwheel
6
Ordercode: D1261
Core Kontrol D2

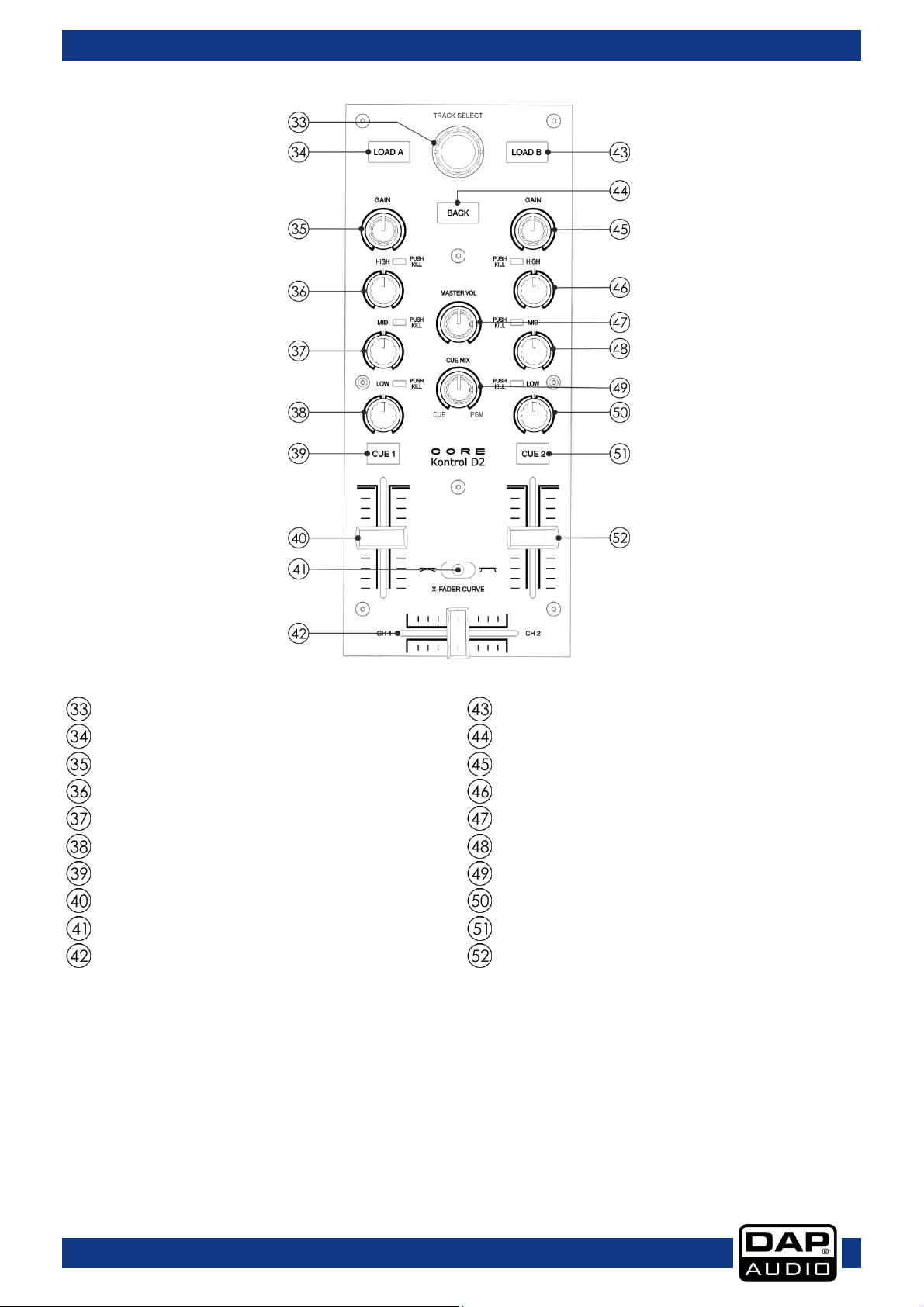

Mixer
Fig. 03
Track select encoder
Load B button
Load A button
Back button
Channel 1 gain control
Channel 2 gain control
Channel 1 high control + kill LED
Channel 2 high control + kill LED
Channel 1 mid control + kill LED
Master control
Channel 1 low control + kill LED
Channel 2 Mid Control + kill LED
Cue 1 button
Cue mix control
Channel 1 fader
Channel 2 Low Control + kill LED
Cross fader slope switch
Cue 2 button
Cross fader
Channel 2 Fader
7
Ordercode: D1261
Core Kontrol D2
Frontside
Fig. 04
53) Mic input jack (6,3 mm)
55) Headphones volume control
54) Mic volume control
56) Headphones output jack (6,3 mm)
Backside
Fig. 05
57) DC In 5V 500mA
60) RCA/XLR select switch
58) USB B connector
61) Master output balanced XLR
59) Master output unbalanced RCA
Installation
Remove all packing materials from the Kontrol D2. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. The power supply is printed on the back of the device.
You can power the Kontrol D2 either by the USB connector or by an optional DC5V/1A adapter in case
your computer’s USB interface is not able to provide sufficient power.
Connection:
01) Make sure your computer’s USB interface can provide 500mA, otherwise use the optional D1262
power adapter.
02) Connect the Kontrol D2 to your mixer/amplifier using the proper cables.
CAUTION: Be sure that the mixer/amplifier’s power is off, when connecting the cables.
8
Ordercode: D1261
Core Kontrol D2
Fig. 06
Names and Functions
Below is a description of the functions of the controls.
Deck Functions
01) Cue 1 Button
The Kontrol D2 allows you to store up to three hot cue points per deck. See pages 13/14: ”7. Setting a
hot cue point in pause mode” and “2. Setting a hot cue point in play mode”.
02) Cue 2 Button
The Kontrol D2 allows you to store up to three hot cue points per deck. See pages 13/14: “7. Setting a
hot cue point in pause mode” and “2. Setting a hot cue point in play mode”.
03) Cue 3 Button
The Kontrol D2 allows you to store up to three hot cue points per deck. See pages 13/14: “7. Setting a
hot cue point in pause mode” and “2. Setting a hot cue point in play mode”.
04) Shift button
Pushing and holding this button gives you access to the secondary functions of the: parameter
1/filter (13) encoder, parameter 2/key (15) encoder, sample /rec (22) button and
reverse/bleep (06) button
05) Smart loop 2 button
Tapping this button starts a 2 beat loop.
06) Reverse button
Use this button to toggle the reverse mode on or off. In reverse mode, current track will be played
backwards.
07) Loop in
This button allows you to set the start point of a loop.
08) Sync button
Automatically matches the corresponding deck’s tempo with the other deck’s tempo.
09) Cue button
Push the cue button during playback to return to the position at which playback started.
10) Set cue button
This button will set the cue at the desired position. It will also return the audio to the last set cue
position. Holding this button will also allow the user to preview the cue point until the button is
released.
11) Play/pause button
This button allows you to toggle between pause mode and playback mode.
12) Effects select button
Tapping this button allows you to select between the available effects. The included Virtual DJ LE
software gives you access to the seven effects as shown below.
13) Parameter 1/filter control
The Parameter 1 and 2 controls allow you to adjust effect parameters. Not all the effects require two
parameter controls. Push and hold the shift (04) button to adjust the filter frequency.
14) Effect on/filter on button
This button toggles the effect processor on or off, while pushing and holding the shift (04) button.
The effect on allows you to toggle the filter function on or off.
15) Parameter 2/key control
The Parameter 1 and 2 controls allow you to adjust effect parameters. Note that not all the effects
require two parameter controls, while pushing and holding the shift (04) button.
It allows to change the key of a song while the tempo remains unchanged.
16) Sampler volume control/select button
Allows you to adjust the sampler volume level.
9
Loading...
