Danze STC-HFS User Manual
BEL-HFS / COL-HFS / RIV-HFS
SON-HFS /SBH-HFS / STC-HFS

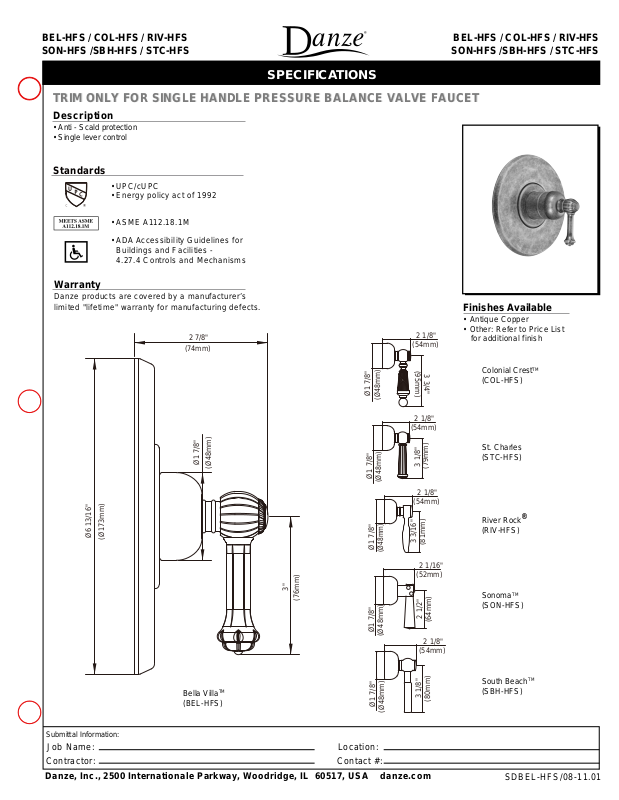

SPECIFICATIONS
TRIM ONLY FOR SINGLE HANDLE PRESSURE BALANCE VALVE FAUCET
TRIM ONLY FOR SINGLE HANDLE PRESSURE BALANCE VALVE FAUCET
Description
• Anti - Scald protection
• Single lever control
Standards
• UPC/cUPC
• Energy policy act of 1992
• ASME A112.18.1M
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
2 7/8"
(74mm)
2 1/8"
(54mm)
BEL-HFS / COL-HFS / RIV-HFS
SON-HFS /SBH-HFS / STC-HFS
Finishes Available
• Antique Copper
• Other: Refer to Price List
for additional finish
Ø6 13/16"
(Ø173mm)
Ø1 7/8"
(Ø48mm)
3"
(76mm)
Ø1 7/8"
(Ø48mm)
Ø1 7/8"
(Ø48mm)
Ø1 7/8"
(Ø48mm)
Ø1 7/8"
(Ø48mm)
(95mm)
3 3/4"
2 1/8"
(54mm)
3 1/8"
(79mm)
2 1/8"
(54mm)
3 3/16"
(81mm)
2 1/16"
(52mm)
2 1/2"
2 1/8"
(54mm)
(64mm)
Colonial Crest
(COL-HFS)
St. Charles
(STC-HFS)
River Rock
®
(RIV-HFS)
TM
Sonoma
(SON-HFS)
TM
Bella Villa
(BEL-HFS)
Submittal Information:
TM
Ø1 7/8"
(Ø48mm)
3 1/8"
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
(80mm)
South Beach
TM
(SBH-HFS)
SDBEL-HFS/08-11.01
