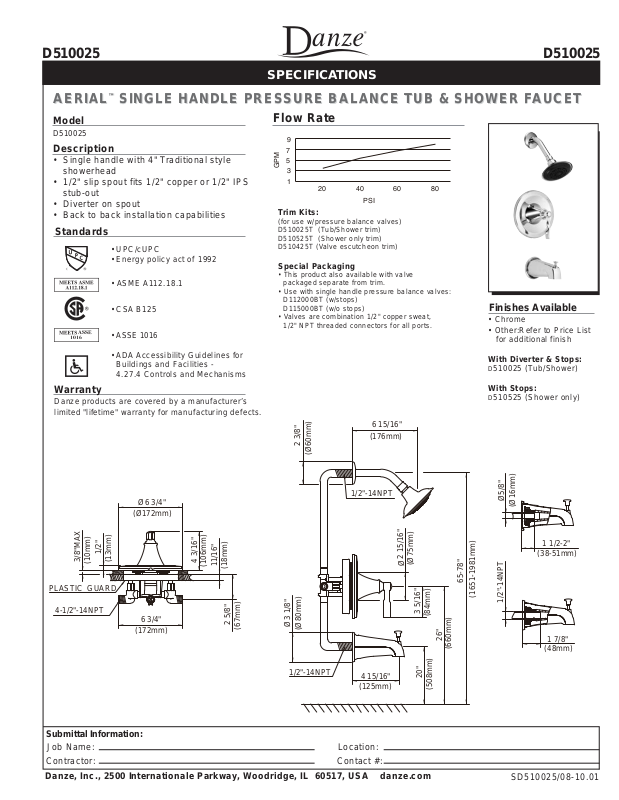

AERIAL™ SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Model
D510025
Description
• Single handle with 4" Traditional style
showerhead
• 1/2" slip spout fits 1/2" copper or 1/2" IPS
stub-out
• Diverter on spout
• Back to back installation capabilities
Standards
• UPC/cUPC
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
1016
ASSE
• ASSE 1016
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
9
7
5
GPM
3
1
Trim Kits:
(for use w/pressure balance valves)
D510025T (Tub/Shower trim)
D510525T (Shower only trim)
D510425T (Valve escutcheon trim)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Use with single handle pressure balance valves:
D112000BT (w/stops)
D115000BT (w/o stops)
• Valves are combination 1/2" copper sweat,
1/2" NPT threaded connectors for all ports.
20 40 60 80
PSI
6 15/16"
2 3/8"
(Ø60mm)
(176mm)
Finishes Available
• Chrome
• Other:Refer to Price List
for additional finish
With Diverter & Stops:
D510025 (Tub/Shower)
With Stops:
D510525 (Shower only)
1/2"-14NPT
4 15/16"
(125mm)
2 15/16"
(Ø75mm)
Ø
3 5/16"
20"
1/2"
3/8"MAX
(10mm)
PLASTIC GUARD
4-1/2"-14NPT
(13mm)
Ø6 3/4"
(Ø172mm)
6 3/4"
(172mm)
4 3/16"
(106mm)
11/16"
(18mm)
2 5/8"
(67mm)
Ø3 1/8"
(Ø80mm)
1/2"-14NPT
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
(84mm)
26"
(660mm)
(508mm)
65-78"
(1651-1981mm)
Ø5/8"
(Ø16mm)
1 1/2-2"
(38-51mm)
1/2"-14NPT
1 7/8"
(48mm)
SD510025/08-10.01
D510025 D510025
SPECIFICATIONS
™
AERIAL
AERIAL™ SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Critical Dimensions : Rough-in valve D112000BT (w/stops) & D113000BT (w/diverter & stops)
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
ø5/8"
(ø16mm)
PLASTIC GUARD
26"
(660mm)
W/SCREWDRIVER STOPS
4 1/4"
(108mm)
1 1/16"
(27mm)
(43mm)
1 11/16"
6 3/4"
(172mm)
1 9/16"
(39mm)
3 11/16"
(93mm)
1/2"-14NPT
3 1/16"
(77mm)
11/16"
(18mm)
3/8"Max
(10mm)
ø6"
(ø152mm)
2 3/4"
(70mm)
W/O STOPS
ø5/8"
(ø16mm)
PLASTIC GUARD
26"
(660mm)
1 1/16"
(27mm)
13/16"
(21mm)
(92mm)
3 5/8"
1 9/16"
(39mm)
3 9/16"
(91mm)
1/2"-14NPT
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
3 1/16"
(77mm)
11/16"
(18mm)
3/8"Max
(10mm)
ø6"
(ø152mm)
2 3/4"
(70mm)
SD510025/08-10.01
