Danze D502057 Spec Sheets
D502057 D502057

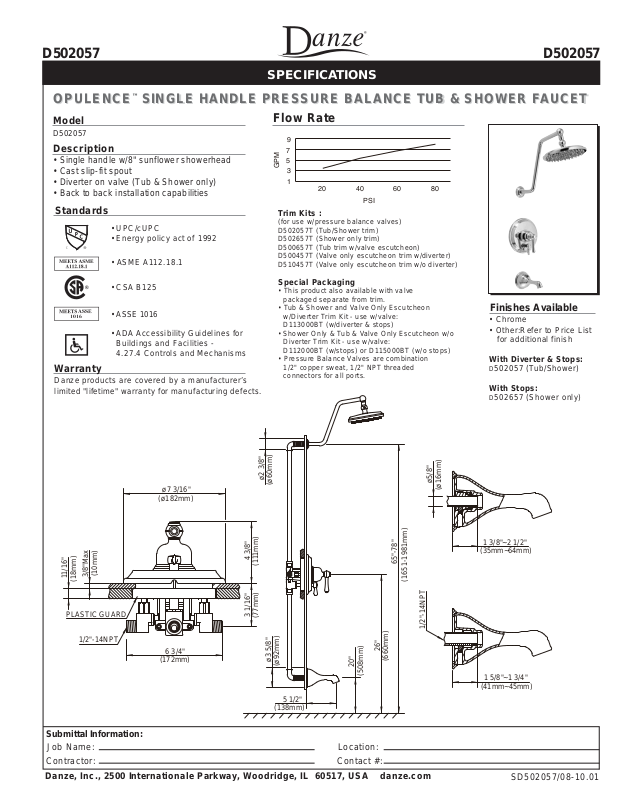

SPECIFICATIONS
™
OPULENCE
OPULENCE™ SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Model
D502057
Description
•
Single handle w/8" sunflower showerhead
•
Cast slip-fit spout
•
Diverter on valve (Tub & Shower only)
•
Back to back installation capabilities
Standards
• UPC/cUPC
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
1016
ASSE
• ASSE 1016
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
9
7
5
GPM
3
1
Trim Kits :
(for use w/pressure balance valves)
D502057T (Tub/Shower trim)
D502657T (Shower only trim)
D500657T (Tub trim w/valve escutcheon)
D500457T (Valve only escutcheon trim w/diverter)
D510457T (Valve only escutcheon trim w/o diverter)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Tub & Shower and Valve Only Escutcheon
w/Diverter Trim Kit - use w/valve:
D113000BT (w/diverter & stops)
• Shower Only & Tub & Valve Only Escutcheon w/o
Diverter Trim Kit - use w/valve:
D112000BT (w/stops) or D115000BT (w/o stops)
• Pressure Balance Valves are combination
1/2" copper sweat, 1/2" NPT threaded
connectors for all ports.
20 40 60 80
PSI
Finishes Available
• Chrome
• Other:Refer to Price List
for additional finish
With Diverter & Stops:
D502057 (Tub/Shower)
With Stops:
D502657 (Shower only)
ø2 3/8"
4 3/8"
(111mm)
3 1/16"
(77mm)
(ø60mm)
ø3 5/8"
(ø92mm)
5 1/2"
(138mm)
20"
(508mm)
65"-78"
(1651-1981mm)
26"
(660mm)
(10mm)
3/8"Max
11/16"
(18mm)
PLASTIC GUARD
1/2"-14NPT
ø7 3/16"
(ø182mm)
6 3/4"
(172mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
ø5/8"
(ø16mm)
1/2"-14NPT
1 3/8"~2 1/2"
(35mm~64mm)
1 5/8"~1 3/4"
(41mm~45mm)
SD502057/08-10.01
D502057 D502057
SPECIFICATIONS
™
OPULENCE
OPULENCE™ SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Critical Dimensions : Rough-in valve D112000BT (w/stops) & D115000BT (w/o stops)
ø5/8"
(ø16mm)
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
W/SCREWDRIVER STOPS
11/16"
(18mm)
3/8"Max
(10mm)
PLASTIC GUARD
1 1/16"
(27mm)
4 1/4"
(108mm)
1 9/16"
(39mm)
3 11/16"
(93mm)
1/2"-14NPT
ø6"
(ø152mm)
ø5/8"
(ø16mm)
26"
PLASTIC GUARD
(660mm)
26"
(660mm)
(43mm)
1 11/16"
6 3/4"
(172mm)
W/DIVERTER & STOPS
1 9/16"
(39mm)
1 1/16"
(27mm)
13/16"
(21mm)
3 5/8"
(92mm)
3 9/16"
(91mm)
1/2"-14NPT
3 1/16"
(77mm)
2 3/4"
(70mm)
11/16"
(18mm)
3/8"Max
(10mm)
ø6"
(ø152mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
3 1/16"
(77mm)
2 3/4"
(70mm)
SD502057/08-10.01
