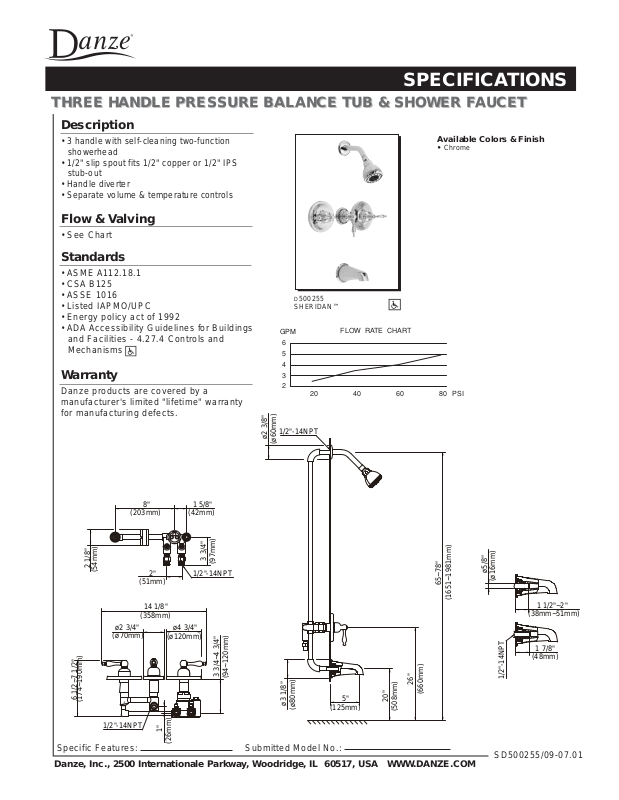

SPECIFICATIONS
THREE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
THREE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Description
•
3 handle with self-cleaning two-function
showerhead
•
1/2" slip spout fits 1/2" copper or 1/2" IPS
stub-out
• Handle diverter
• Separate volume & temperature controls
Available Colors & Finish
• Chrome
Flow & Valving
• See Chart
Standards
•
ASME A1 12.18.1
•
CSA B125
•
ASSE 1016
•
Listed IAPMO/UPC
•
Energy policy act of 1992
•
ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
8"
(203mm)
1 5/8"
(42mm)
GPM
6
5
4
3
2
1/2"-14NPT
ø2 3/8"
(ø60mm)
D500255
SHERIDAN™
FLOW RATE CHART
20 40 60 80
PSI
3 3/4"
2 1/8"
(54mm)
ø2 3/4"
(ø70mm)
6 1/2~7 1/2"
(174~190mm)
1/2"-14NPT
Specific Features: Submitted Model No.:
2"
(51mm)
14 1/8"
(358mm)
ø4 3/4"
(ø120mm)
1"
(26mm)
(97mm)
1/2"-14NPT
3 3/4~4 3/4"
(94~120mm)
ø3 1/8"
(ø80mm)
5"
(125mm)
20"
(508mm)
65~78"
(1651~1981mm)
26"
(660mm)
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
ø5/8"
(ø16mm)
1 1/2"~2"
(38mm~51mm)
1 7/8"
(48mm)
1/2"-14NPT
SD500255/09-07.01
