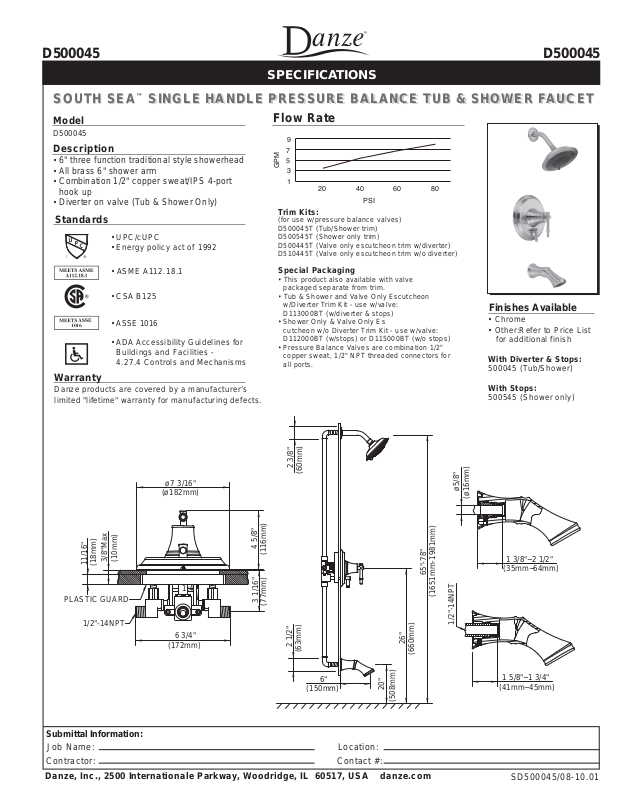

Danze D500045 Spec Sheets
D500045 D500045
SPECIFICATIONS
™
SOUTH SEA
SOUTH SEA
™
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
Model
D500045
Description
•
6" three function traditional style showerhead
•
All brass 6" shower arm
•
Combination 1/2" copper sweat/IPS 4-port
hook up
•
Diverter on valve (Tub & Shower Only)
Standards
• UPC/cUPC
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
1016
ASSE
• ASSE 1016
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
9
7
5
GPM
3
1
Trim Kits:
(for use w/pressure balance valves)
D500045T (Tub/Shower trim)
D500545T (Shower only trim)
D500445T (Valve only escutcheon trim w/diverter)
D510445T (Valve only escutcheon trim w/o diverter)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Tub & Shower and Valve Only Escutcheon
w/Diverter Trim Kit - use w/valve:
D113000BT (w/diverter & stops)
• Shower Only & Valve Only Es
cutcheon w/o Diverter Trim Kit - use w/valve:
D112000BT (w/stops) or D115000BT (w/o stops)
• Pressure Balance Valves are combination 1/2"
copper sweat, 1/2" NPT threaded connectors for
all ports.
20 40 60 80
PSI
Finishes Available
• Chrome
• Other:Refer to Price List
for additional finish
With Diverter & Stops:
500045 (Tub/Shower)
With Stops:
500545 (Shower only)
2 3/8"
(60mm)
ø7 3/16"
(ø182mm)
4 5/8"
(10mm)
3/8"Max
11/16"
(18mm)
PLASTIC GUARD
1/2"-14NPT
1:4
6 3/4"
(172mm)
(116mm)
3 1/16"
(77mm)
2 1/2"
(63mm)
6"
(150mm)
26"
(660mm)
20"
(508mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
ø5/8"
(ø16mm)
65"-78"
(1651mm-1981mm)
1/2"-14NPT
1 3/8"~2 1/2"
(35mm~64mm)
1 5/8"~1 3/4"
(41mm~45mm)
SD500045/08-10.01
D500045 D500045
SPECIFICATIONS
™
SOUTH SEA
SOUTH SEA
Critical Dimensions : Rough-in valve D112000BT (w/stops) & D115000BT (w/o stops)
™
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
SINGLE HANDLE PRESSURE BALANCE TUB & SHOWER FAUCET
ø5/8"
(ø16mm)
PLASTIC GUARD
26"
(660mm)
W/SCREWDRIVER STOPS
4 1/4"
(108mm)
1 1/16"
(27mm)
(43mm)
1 11/16"
6 3/4"
(172mm)
1 9/16"
(39mm)
3 11/16"
(93mm)
1/2"-14NPT
3 1/16"
(77mm)
11/16"
(18mm)
3/8"Max
(10mm)
ø6"
(ø152mm)
2 3/4"
(70mm)
W/O STOPS
ø5/8"
(ø16mm)
PLASTIC GUARD
26"
(660mm)
1 1/16"
(27mm)
13/16"
(21mm)
3 5/8"
(92mm)
1 9/16"
(39mm)
3 9/16"
(91mm)
1/2"-14NPT
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
3 1/16"
(77mm)
11/16"
(18mm)
3/8"Max
(10mm)
ø6"
(ø152mm)
2 3/4"
(70mm)
SD500045/08-10.01
