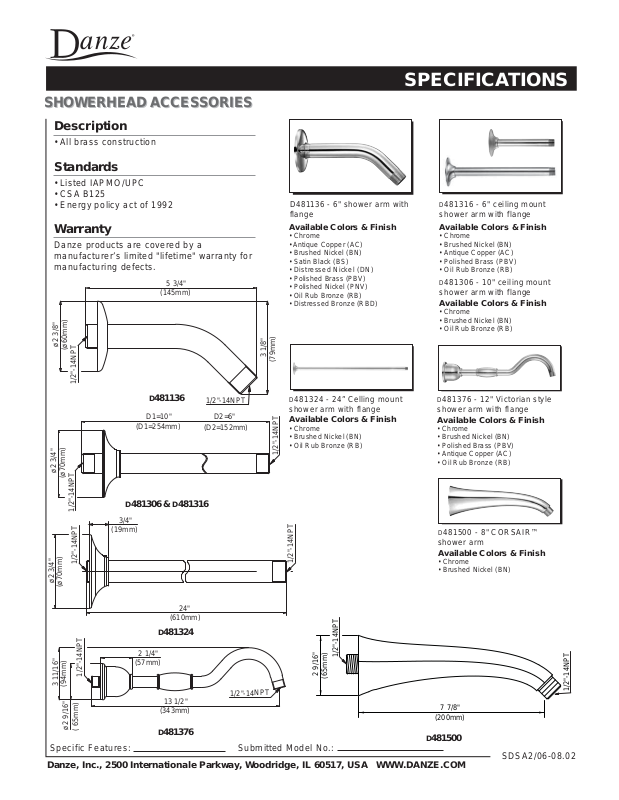

Danze D481500 User Manual

SHOWERHEAD ACCESSORIES

Description

• All brass construction

Standards

• Listed IAPMO/UPC

• CSA B125

• Energy policy act of 1992

Warranty

Danze products are covered by a manufacturer’s limited "lifetime" warranty for manufacturing defects.

5 3/4"

(145mm)

ø2 3/8"

(ø60mm)

D481136 - 6" shower arm with flange

Available Colors & Finish

• Chrome

• Antique Copper (AC)

• Brushed Nickel (BN)

• Satin Black (BS)

• Distressed Nickel (DN)

• Polished Brass (PBV)

• Polished Nickel (PNV)

• Oil Rub Bronze (RB)

• Distressed Bronze (RBD)

3 1/8"

(79mm)

SPECIFICATIONS

D481316 - 6" ceiling mount

shower arm with flange

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Antique Copper (AC)

• Polished Brass (PBV)

• Oil Rub Bronze (RB)

D481306 - 10" ceiling mount

shower arm with flange

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Oil Rub Bronze (RB)

1/2"-14NPT

ø2 3/4"

(ø70mm)

1/2"-14NPT

D481136

D1=10"

(D1=254mm)

D481306 & D481316

3/4"

(19mm)

1/2"-14NPT

D2=6"

(D2=152mm)

D481324 - 24” Celling mount

shower arm with flange

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Oil Rub Bronze (RB)

1/2"-14NPT

D481376 - 12" Victorian style

shower arm with flange

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Polished Brass (PBV)

• Antique Copper (AC)

• Oil Rub Bronze (RB)

D481500 - 8" CORSAIR™

shower arm

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

7 7/8"

(200mm)

D481500

ø2 3/4"

(ø70mm)

3 11/16"

(94mm)

ø2 9/16"

1/2"-14NPT

( 65mm)

2 1/4"

(57mm)

24"

(610mm)

D481324

13 1/2"

(343mm)

D481376

1/2"-14NPT

2 9/16"

1/2"-14NPT

(65mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

1/2"-14NPT

SDSA2/06-08.02
