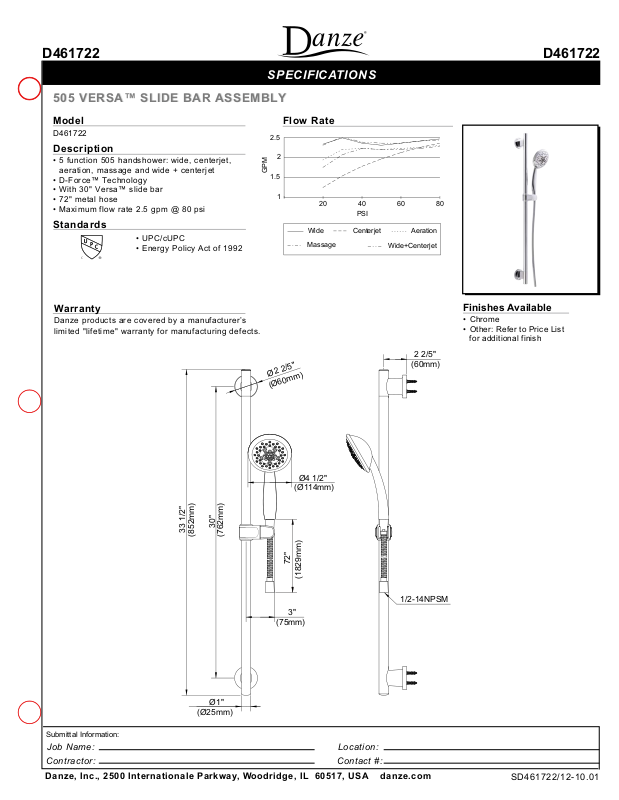

SPECIFICATIONS

505 VERSA™ SLIDE BAR ASSEMBLY

505 VERSA™ SLIDE BAR ASSEMBLY

227164D227164D

Model

D461722

Description

• 5 function 505 handshower: wide, centerjet,
aeration, massage and wide + centerjet

• D-Force™ Technology

• With 30" Versa™ slide bar

• 72" metal hose

• Maximum flow rate 2.5 gpm @ 80 psi

Standards

• UPC/ cUPC

• Energy Policy Act of 1992

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufa cturing defects.

Flow Rate

2.5

2

GPM

1.5

1

Ø 2 2/5"

(Ø60mm)

20 40 60 80

Wide

Massage

PSI

Centerjet

Aeration

Wide+Centerjet

(60mm)

Finishes Available

• Chrome

• Other: Refer to Price List

for additional finish

2 2/5"

Ø4 1/2"

(Ø114mm)

30"

33 1/2"

(852mm)

(762mm)

72"

(1829mm)

1/2-14NPSM

3"

(75mm)

Ø1"

(Ø25mm)

Submittal Information:

Job Name: Locat ion:

Contract or: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

SD461722/12-10.01
