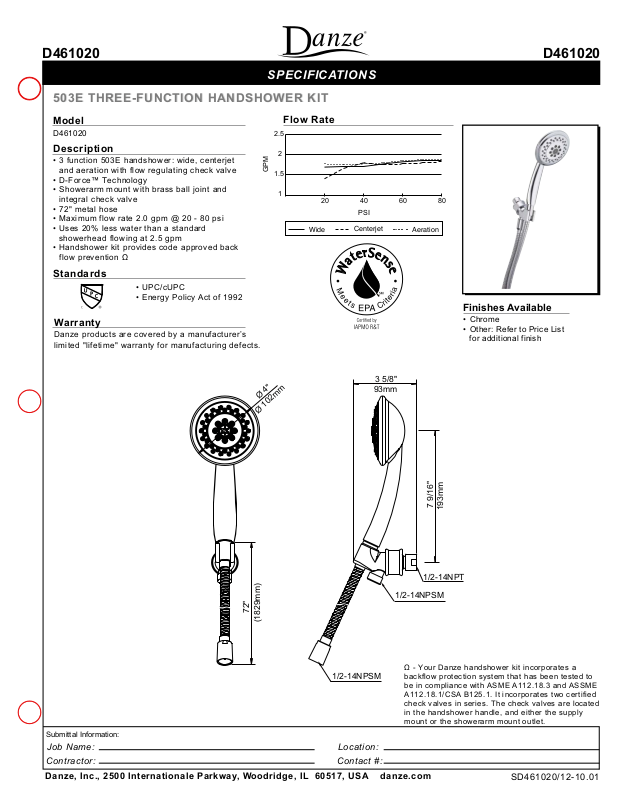

SPECIFICATIONS

503E THREE-FUNCTION HANDSHOWER KIT

503E THREE-FUNCTION HANDSHOWER KIT

020164D020164D

Model

D461020

Description

• 3 function 503E handshower: wide, centerjet
and aeration with flow regulating check valve

• D-Force™ Technology

• Showerarm mount with brass ball joint and

integral check valve

• 72" metal hose

• Maximum flow rate 2.0 gpm @ 20 - 80 psi

• Uses 20% less water than a standard

showerhead flowing at 2.5 gpm

• Handshower kit provides code approved back
flow prevention Ω

Standards

• UPC/ cUPC

• Energy Policy Act of 1992

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufa cturing defects.

Flow Rate

2.5

2

GPM

1.5

1

Ø 4"

Ø 102mm

20 40 60 80

PSI

Wide

Centerjet

Aeration

3 5/8"

93mm

Finishes Available

• Chrome

• Other: Refer to Price List

for additional finish

1/2-14NPSM

72"

(1829mm)

Ω - Your Danze handshower kit incorporates a

1/2-14NPSM

Submittal Information:

backflow protection system that has been tested to
be in compliance with ASME A112.18.3 and ASSME
A112.18.1/CSA B125.1. It incorporates two certified
check valves in series. The check valves are located
in the handshower handle, and either the supply
mount or the showerarm mount outlet.

Job Name: Locat ion:

Contract or: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

7 9/16"

193mm

1/2-14NPT

SD461020/12-10.01
