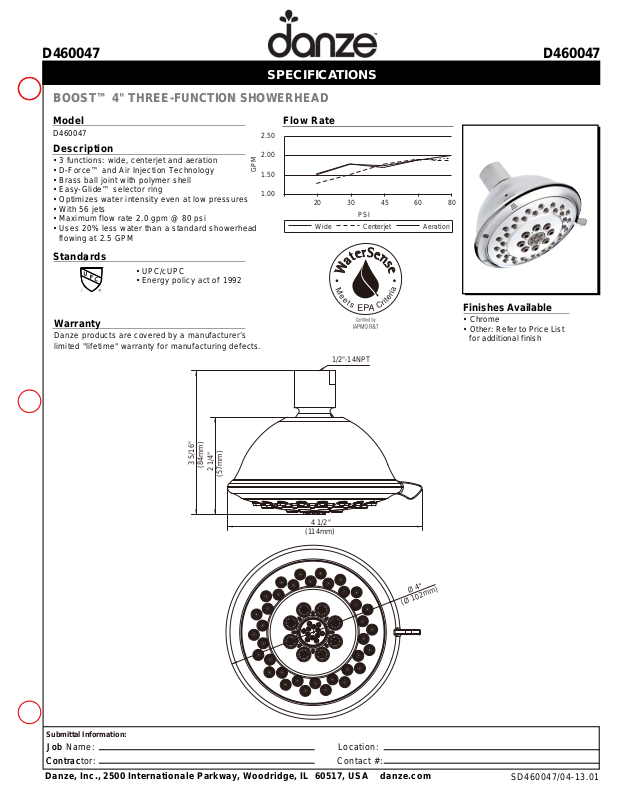

Danze D460047 User Manual

BOOST™ 4" THREE-FUNCTION SHOWERHEAD

BOOST™ 4" THREE-FUNCTION SHOWERHEAD

SPECIFICATIONS

470064D470064D

Model

D460047

Description

• 3 functions: wide, centerjet and aeration

• D-Force™ and Air Injection Technology

• Brass ball joint with polymer shell

• Easy-Glide™ selector ring

• Optimizes water intensity even at low pressures

• With 56 jets

• Maximum flow rate 2.0 gpm @ 80 psi

• Uses 20% less water than a standard showerhead
flowing at 2.5 GPM

Standards

• UPC/cUPC

• Energy policy act of 1992

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.

2.50

2.00

GPM

1.50

1.00

Flow Rate

20 30 45 60 80

PSI

Wide Centerjet Aeration

Finishes Available

• Chrome

• Other: Refer to Price List
for additional finish

1/2"-14NPT

3 5/16"

(84mm)

2 1/4"

(57mm)

4 1/2"

(114mm)

Ø 4"

(Ø 102mm)

Submittal Information:

Job

Job Name: Location:

Contrac

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

SD460047/04-13.01
