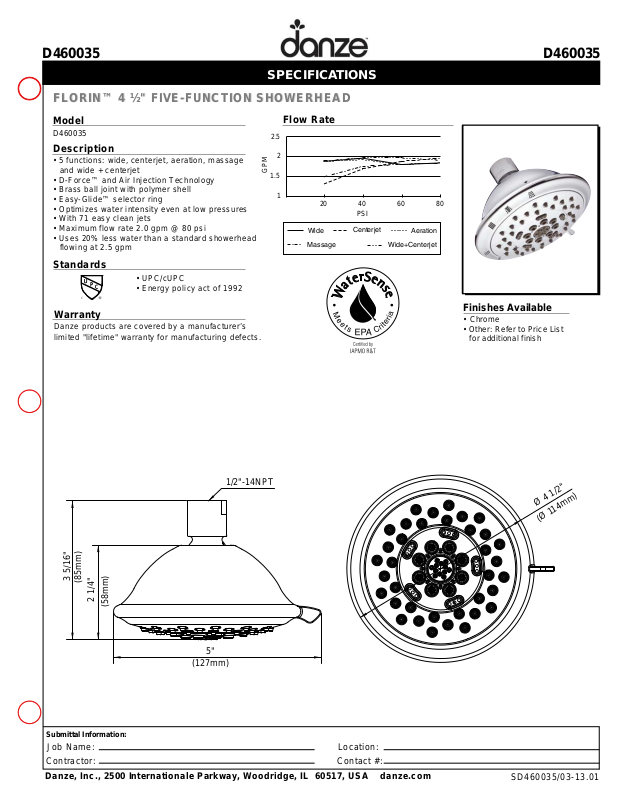

Danze D460035 User Manual

D460035 D460035

SPECIFICATIONS

FLORIN™ 4 ½" FIVE-FUNCTION SHOWERHEAD

Model

D460035

Description

• 5 functions: wide, centerjet, aeration, massage and wide + centerjet

• D-Force™ and Air Injection Technology

• Brass ball joint with polymer shell

• Easy-Glide™ selector ring

• Optimizes water intensity even at low pressures

• With 71 easy clean jets

• Maximum flow rate 2.0 gpm @ 80 psi

• Uses 20% less water than a standard showerhead flowing at 2.5 gpm

Standards

• UPC/cUPC

• Energy policy act of 1992

Warranty

Danze products are covered by a manufacturer’s limited "lifetime" warranty for manufacturing defects.

Flow Rate

2.5

GPM

1.5

20 40 60 80

Wide

Massage

PSI

Centerjet

Aeration

Wide+Centerjet

Finishes Available

• Chrome

• Other: Refer to Price List for additional finish

1/2"-14NPT

3 5/16"

(85mm)

2 1/4"

(58mm)

(127mm)

Submittal Information:

Job Name: Location:

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

Ø 4 1/2"

(Ø 114mm)

SD460035/03-13.01
