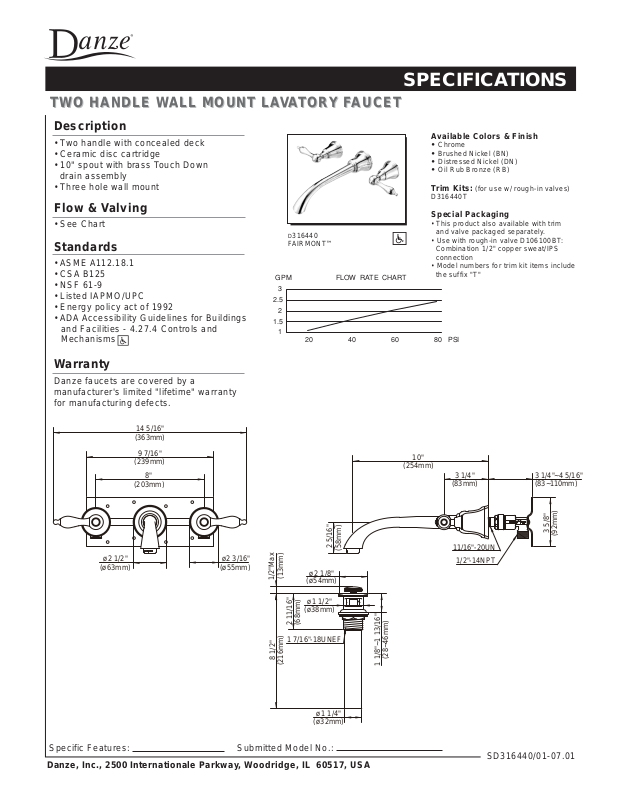

Danze D316440 Spec Sheets

TWO HANDLE WALL MOUNT LAVAT ORY F AUCET

TWO HANDLE WALL MOUNT LAVATORY FAUCET

SPECIFICATIONS

Description

• Two handle with concealed deck

• Ceramic disc cartridge

• 10" spout with brass Touch Down
drain assembly

• Three hole wall mount

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze faucets are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

D316440

FAIRMONT™

GPM FLOW RATE CHART

3

2.5

2

1.5

1

20 40 60 80

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Distressed Nickel (DN)

• Oil Rub Bronze (RB)

Trim Kits: (for use w/ rough-in valves)

D316440T

Special Packaging

• This product also available with trim
and valve packaged separately.

• Use with rough-in valve D106100BT:
Combination 1/2" copper sweat/IPS
connection

• Model numbers for trim kit items include
the suffix "T"

PSI

ø2 1/2"

(ø63mm)

14 5/16"

(363mm)

9 7/16"

(239mm)

8"

(203mm)

ø2 3/16"

(ø55mm)

(13mm)

1/2"Max

8 1/2"

(ø54mm)

(ø38mm)

2 11/16"

(68mm)

1 7/16"-18UNEF

(216mm)

ø2 1/8"

ø1 1/2"

ø1 1/4"

(ø32mm)

2 5/16"

(58mm)

10"

(254mm)

(28~46mm)

1 1/8"~1 13/16"

3 1/4"

(83mm)

11/16"-20UN

1/2"-14NPT

3 1/4"~4 5/16"
(83~110mm)

3 5/8"

(92mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

SD316440/01-07.01
