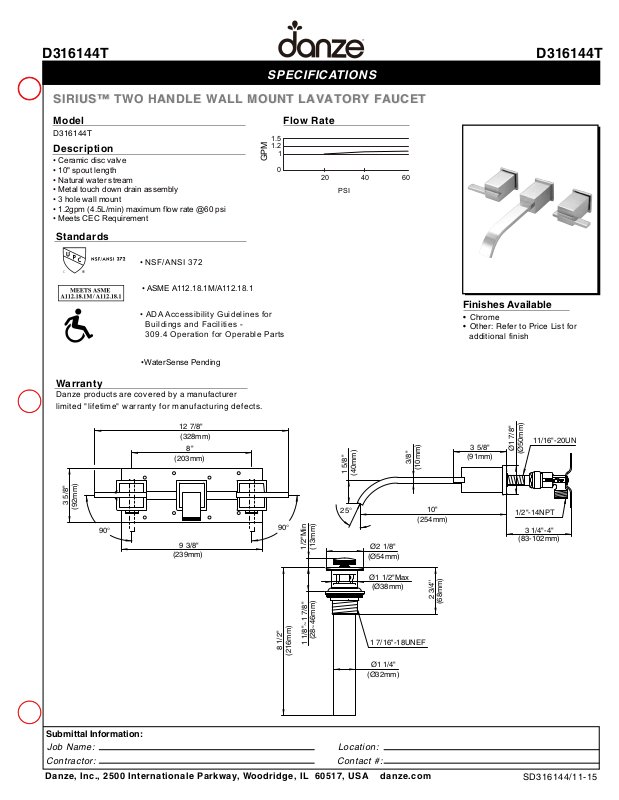

SPECIFICATIONS
SIRIUS™ TWO HANDLE WALL MOUNT LAVATORY FAUCET
SIRIUS™ TWO HANDLE WALL MOUNT LAVATORY FAUCET
4T41613D4T41613D
Model
D316144T
Description
• Ceramic disc valve
• 10" spout length
• Natural water stream
• Metal touch down drain assembly
• 3 hole wall mount
• 1.2gpm (4.5L/min) maximum flow rate @60 psi
• Meets CEC Requirement
Standards
• NSF/ANSI 372
• ASME A112.18.1M/A112.18.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
309.4 Operation for Operable Parts
WaterSense Pending
•
Warranty
anze products are covered by a manufacturer
D
limited "lifetime" warranty for manufactur ing defects.
Flow Rate
1.5
1.2
1
GPM
0
20 40 60
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
3 5/8"
(92mm)
90°
12 7/8"
(328mm)
8"
(203mm)
9 3/8"
(239mm)
90°
8 1/2"
1/2"Min
1 1/8"~1 7/8"
(216mm)
25°
(13mm)
(28~46mm)
1 5/8"
(40mm)
Ø2 1/8"
(Ø54mm)
Ø1 1/2"Max
1 7/16''-18UNEF
Ø1 1/4"
(Ø32mm)
(Ø38mm)
3/8"
(10mm)
10"
(254mm)
2 3/4''
(68mm)
3 5/8"
(91mm)
11/16"-20UN
Ø1 7/8"
(Ø50mm)
1/2"-14NPT
3 1/4"-4"
(83-102mm)
Submittal Information:
Job Name: Location:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
SD316144/11-15
