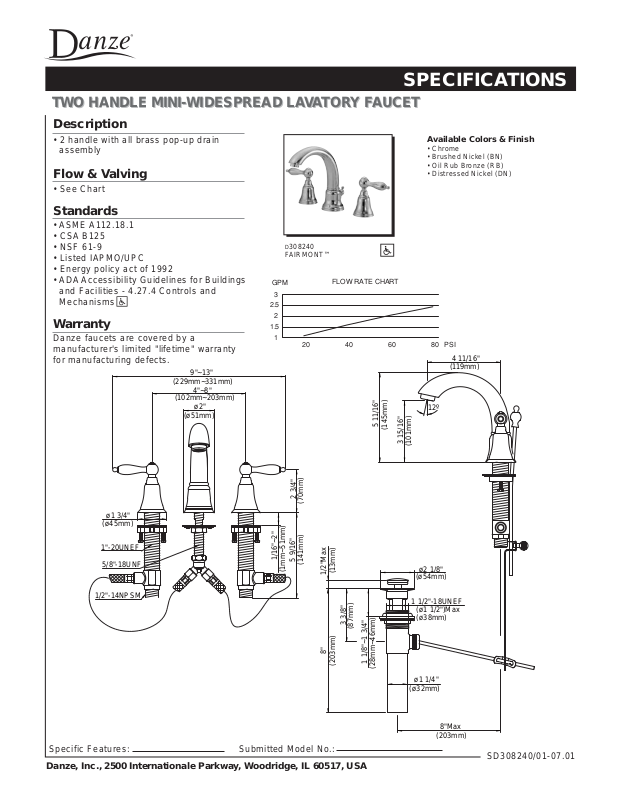

SPECIFICATIONS

TWO HANDLE MINI-WIDESPREAD LAVAT O R Y FAUCET

TWO HANDLE MINI-WIDESPREAD LAVAT O R Y FAU CET

Description

• 2 handle with all brass pop-up drain
assembly

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze faucets are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

(229mm~331mm)

9"~13"

4"~8"

(102mm~203mm)

ø2"

(ø51mm)

D308240

FAIRMONT™

GPM

3

2.5

2

1.5

1

FLOW RATE CHART

20 40 60 80

5 11/16"

(145mm)

3 15/16"

(101mm)

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Oil Rub Bronze (RB)

• Distressed Nickel (DN)

PSI

4 11/16"

(119mm)

12º

2 3/4"

(70mm)

ø1 3/4"

(ø45mm)

1"-20UNEF

1/16"~2"

5 9/16"

5/8"-18UNF

1/2"-14NPSM

(141mm)

(1mm~51mm)

(13mm)

1/2"Max

3 3/8"

8"

(203mm)

(87mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

1 1/8"~1 3/4"

(28mm~46mm)

ø2 1/8"

(ø54mm)

1 1/2"-18UNEF

(ø1 1/2")Max
(ø38mm)

ø1 1/4"

(ø32mm)

8"Max

(203mm)

SD308240/01-07.01
