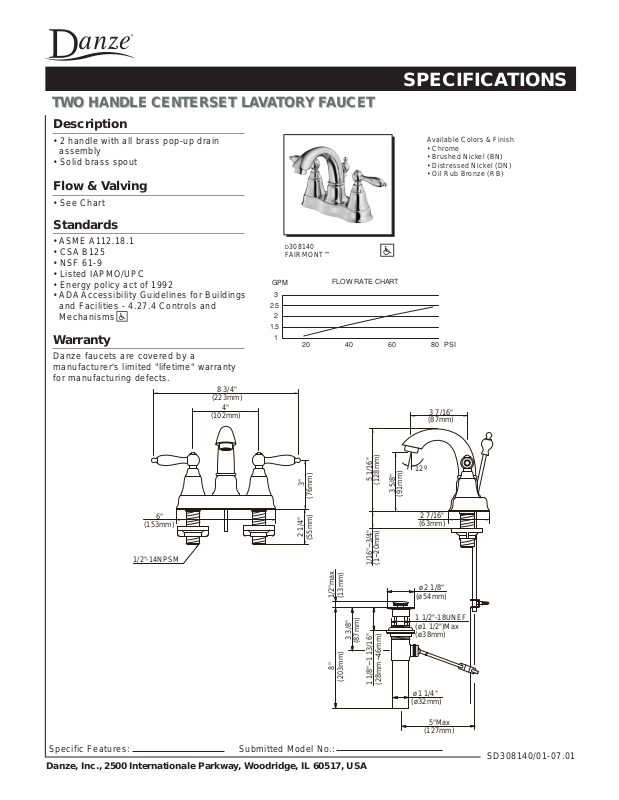

Danze D308140 Spec Sheets

TWO HANDLE CENTERSET LAVAT O R Y FAUCET

TWO HANDLE CENTERSET LAVAT O R Y FAU CET

Description

• 2 handle with all brass pop-up drain
assembly

• Solid brass spout

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze faucets are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

8 3/4"

(223mm)

4"

(102mm)

D308140

FAIRMONT™

GPM

3

2.5

2

1.5

1

FLOW RATE CHART

20 40 60 80

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Distressed Nickel (DN)

• Oil Rub Bronze (RB)

PSI

3 7/16"

(87mm)

3"

(76mm)

6"

(153mm)

1/2"-14NPSM

2 1/4"

(55mm)

1/2"max

(13mm)

3 3/8"

8"

(203mm)

(87mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

5 1/16"

(128mm)

3 5/8"

(91mm)

1/16"~3/4"

(1~20mm)

(28mm~46mm)

1 1/8"~1 13/16"

ø1 1/4"

(ø32mm)

12º

2 7/16"

(63mm)

ø2 1/8"

(ø54mm)

1 1/2"-18UNEF
(ø1 1/2")Max
(ø38mm)

5"Max

(127mm)

SD308140/01-07.01
