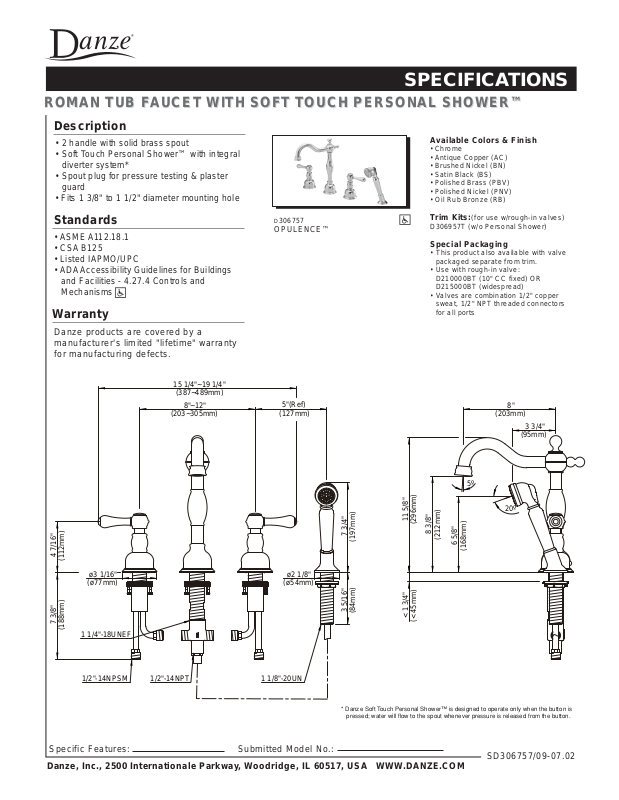

SPECIFICATIONS
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
Description
•
2 handle with solid brass spout
•
Soft Touch Personal Shower™ with integral
diverter system*
•
Spout plug for pressure testing & plaster
guard
• Fits 1 3/8" to 1 1/2" diameter mounting hole
Available Colors & Finish
• Chrome
• Antique Copper (AC)
• Brushed Nickel (BN)
• Satin Black (BS)
• Polished Brass (PBV)
• Polished Nickel (PNV)
• Oil Rub Bronze (RB)
Standards
• ASME A1 12.18.1
• CSA B125
• Listed IAPMO/UPC
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
15 1/4"~19 1/4"
(387~489mm)
8"~12"
(203~305mm)
4 7/16"
(112mm)
ø3 1/16"
(ø77mm)
D306757
OPULENCE™
5"(Ref)
(127mm)
ø2 1/8"
(ø54mm)
7 3/4"
(197mm)
Trim Kits:(for use w/rough-in valves)
D306957T (w/o Personal Shower)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Use with rough-in valve:
D210000BT (10" CC fixed) OR
D215000BT (widespread)
• Valves are combination 1/2" copper
sweat, 1/2" NPT threaded connectors
for all ports
8"
(203mm)
5º
11 5/8"
(296mm)
8 3/8"
(212mm)
6 5/8"
(168mm)
20º
3 3/4"
(95mm)
3 5/16"
7 3/8"
(188mm)
1 1/4"-18UNEF
1/2"-14NPSM 1/2"-14NPT 1 1/8"-20UN
(84mm)
* Danze Soft Touch Personal Shower™ is designed to operate only when the button is
pressed; water will flow to the spout whenever pressure is released from the button.
< 1 3/4"
(< 45mm)
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD306757/09-07.02
SPECIFICATIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
Rough-in valve D215000BT (widespread)
8"~12"
(203~305mm)
2"
(51mm)
1 5/8"
(42mm)
7 3/8"
(188mm)
ø1 7/8"
(ø47mm)
1 1/4"-18UNEF
1/2"-14NPT
ø1 15/16"
(ø49mm)
1/2"-14NPT
< 1 3/4"
(< 45mm)
* Installation method shown is for deck thickness of less than 1-3/4".
If the installation is for deck thickness between 1-3/4" and 3-1/2", the sleeve nut needs
to be reversed.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD306757/09-07.02
