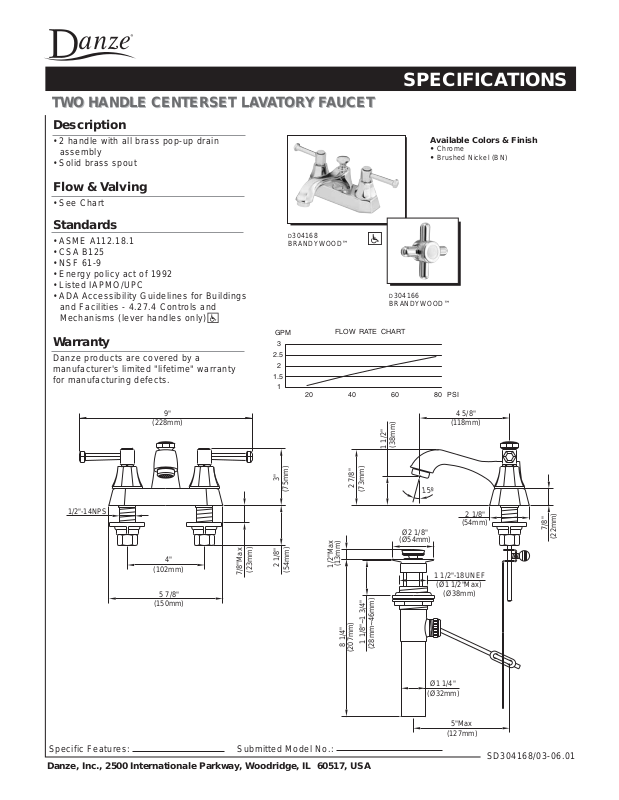

Danze D304168 Spec Sheets

TWO HANDLE CENTERSET LAVATORY FAUCET

TWO HANDLE CENTERSET LAVATORY FAUCET

Description

• 2 handle with all brass pop-up drain
assembly

• Solid brass spout

Flow & Valving

• See Chart

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

Standards

• ASME A112.18.1

• CSA B125

• NSF 61-9

• Energy policy act of 1992

• Listed IAPMO/UPC

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms (lever handles only)

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

9"

(228mm)

1/2"-14NPS

D304168

BRANDYWOOD™

GPM

3

2.5

2

1.5

1

20 40 60 80

3"

(75mm)

D304166

BRANDYWOOD™

FLOW RATE CHART

(38mm)

1 1/2"

2 7/8"

(73mm)

1

Ø2 1/8"

(Ø54mm)

PSI

4 5/8"

(118mm)

5º

2 1/8"

(54mm)

7/8"

(22mm)

4"

(102mm)

5 7/8"

(150mm)

(23mm)

7/8"Max

2 1/8"

(54mm)

(13mm)

1/2"Max

8 1/4"

(207mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

1 1/8"~1 3/4"

(28mm~46mm)

1 1/2"-18UNEF

(Ø1 1/2"Max)

(Ø38mm)

Ø1 1/4"

(Ø32mm)

5"Max

(127mm)

SD304168/03-06.01
