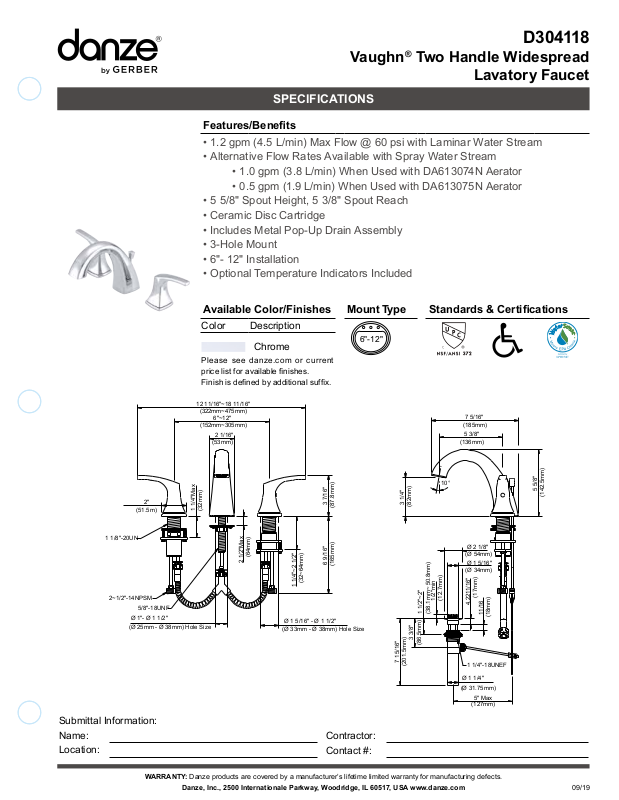

D304118

Vaughn® Two Handle Widespread

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613074N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613075N Aerator

• 5 5/8" Spout Height, 5 3/8" Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Pop-Up Drain Assembly

• 3-Hole Mount

• 6"- 12" Installation

• Optional Temperatur

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

e Indicators Included

6"-12"

(51.5m)

1 1/8"-20UN

2~1/2"-14NPSM

Ø

(Ø

12 11/16"~18 11/16"

(322mm~475mm)

(152mm~305mm)

2"

5/8"-18UNF

1"- Ø 1 1/2"

25mm - Ø 38mm) Hole Size

1 1/4"Max

(32mm)

6"~12"

2 1/16"

(53mm)

7 5/16"

(185mm)

5 3/8"

(136mm)

10

°

3 7/16"

(87.8mm)

(64mm)

2 1/2"Max

1 1/4"~2 1/2"

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

6 9/16"

(165mm)

(32~64mm)

3 1/4"

(82mm)

Ø

2 1/8"

(Ø

54mm)

Ø

1 5/16"

(Ø

34mm)

11/16"

1/2"min

(12.7mm)

1 1/2"~2"

(38.1mm~ 50.8mm)

3 3/8"

(86.5mm)

7 15/16"

(201.5mm)

(17mm)

4.22

11/16

1 1/4"-18UNEF

Ø 1 1/4"

(Ø 31.75mm)

5" Max

(127mm)

(18mm)

5 5/8"

(142.5mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

09/19
