Danze D304115BN Specs

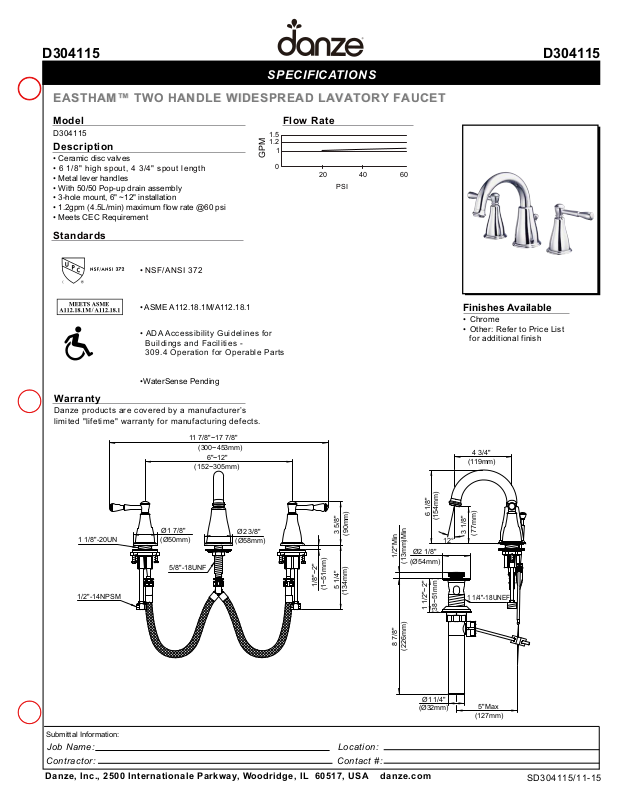

SPECIFIC ATIONS
EASTHAM™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
EASTHAM™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
511403D511403D
Model
D304115
Description
• Ceramic disc valves
• 6 1/8" high spout, 4 3/4" spout length
• Metal lever handles
• With 50/50 Pop-up drain assembly
• 3-hole mount, 6" ~12" installation
• 1.2gpm (4.5L/min) maximum flow rate @60 psi
• Meets CEC Requirement
Standards
• NSF/ANSI 372
• ASME A112.18.1M/A112.18.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
309.4 Operation for Operable Parts
•WaterSense Pending
Warranty
Danze products are covered by a manufact urer’s
limit ed "lifet ime" wa rranty for manufac turing defe cts.
11 7/8"~17 7/8"
(300~453mm)
6"~12"
(152~305mm)
Flow Rate
1.5
1.2
1
GPM
0
20 40 60
PSI
Finishes Available
• Chrome
• Other: Refer to Price List
for additional finish
4 3/4"
(119mm)
1 1/8"-20UN
1/2"-14NPSM
Submittal Information:
Ø1 7/8"
(Ø50mm)
5/8"-18UNF
Ø2 3/8"
(Ø58mm)
1/8"~2"
(1~51mm)
3 5/8"
(90mm)
5 1/4"
(134mm)
Ø2 1/8"
1/2"Min
(Ø54mm)
(13mm)Min
8 7/8"
(226mm)
Ø1 1/4"
(Ø32mm)
Jo b Name: Loca tion :
Cont ract or : Cont ac t #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
6 1/8"
"2~"2/1 1
(154mm)
12°
5~83( )mm1
3 1/8"
(77mm)
1 1/4"-18UNEF
5"Max
(127mm)
SD304115/11-15
