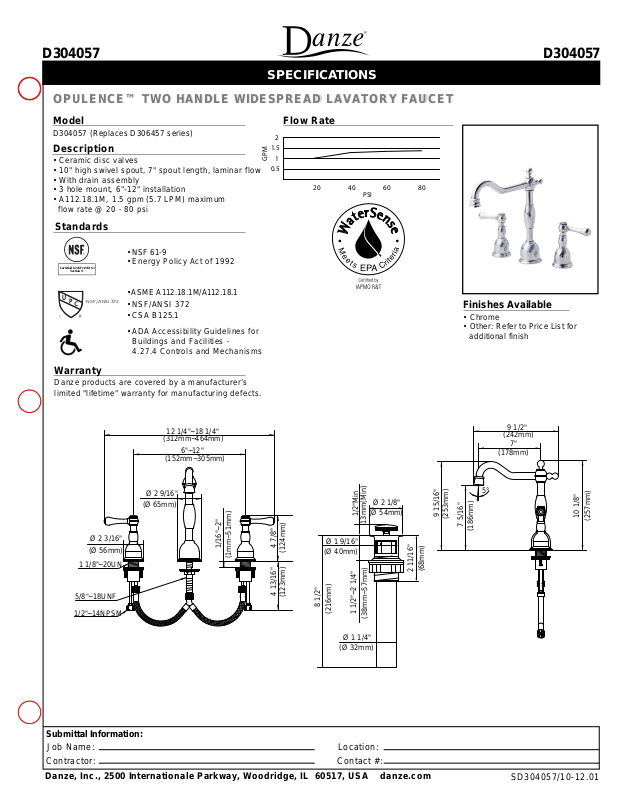

SPECIFICATIONS
OPULENCE™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
OPULENCE™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
Model
D304057 (Replaces D306457 series)
Description
• Ceramic disc valves
• 10" high swivel spout, 7" spout length, laminar flow
• With drain assembly
• 3 hole mount, 6"-12" installation
• A112.18.1M, 1.5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B125. 1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
Ø 2 3/16"
(Ø 56mm)
1 1/8"~20UN
5/8"~18UNF
1/2"~14NPSM
12 1/4"~18 1/4"
(312mm~464mm)
(152mm~305mm)
Ø 2 9/16"
(Ø 65mm)
6"~12"
1/16"~2"
(1mm~51mm)
4 7/8"
(124mm)
4 13/16"
(123mm)
Ø 1 9/16"
(Ø 40mm)
8 1/2"
(216mm)
(Ø 32mm)
1/2"Min
1 1/2"~2 1/4"
Ø 1 1/4"
Ø 2 1/8"
(Ø 54mm)
13mm(Min)
(38mm~57mm)
2 11/16"
9 15/16"
(68mm)
(253mm)
7 5/16"
5°
(186mm)
9 1/2"
(242mm)
7"
(178mm)
10 1/8"
(257mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
SD304057/10-12.01
