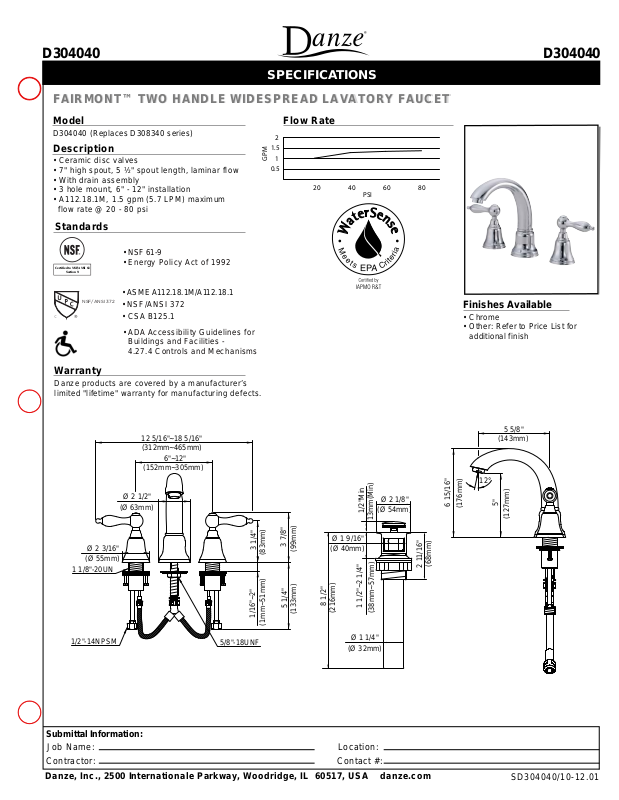

SPECIFICATIONS
FAIRMONT™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
FAIRMONT™ TWO HANDLE WIDESPREAD LAVATORY FAUCET
Model
D304040 (Replaces D308340 series)
Description
• Ceramic disc valves
• 7" high spout, 5 ½" spout length, laminar flow
• With drain assembly
• 3 hole mount, 6" - 12" installation
• A112.18.1M, 1.5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B125. 1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
Ø 2 3/16"
(Ø 55mm)
1 1/8"-20UN
1/2"-14NPSM
12 5/16"~18 5/16"
(312mm~465mm)
(152mm~305mm)
Ø 2 1/2"
(Ø 63mm)
6"~12"
5/8"-18UNF
3 1/4"
(83mm)
1/16"~2"
(1mm~51mm)
3 7/8"
(99mm)
5 1/4"
(133mm)
Ø 1 9/16"
(Ø 40mm)
8 1/2"
(216mm)
1/2"Min
13mm(Min)
1 1/2"~2 1/4"
(38mm~57mm)
Ø 1 1/4"
(Ø 32mm)
Ø 2 1/8"
(Ø 54mm)
2 11/16"
(68mm)
6 15/16"
(176mm)
5 5/8"
(143mm)
12°
5"
(127mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
SD304040/10-12.01
