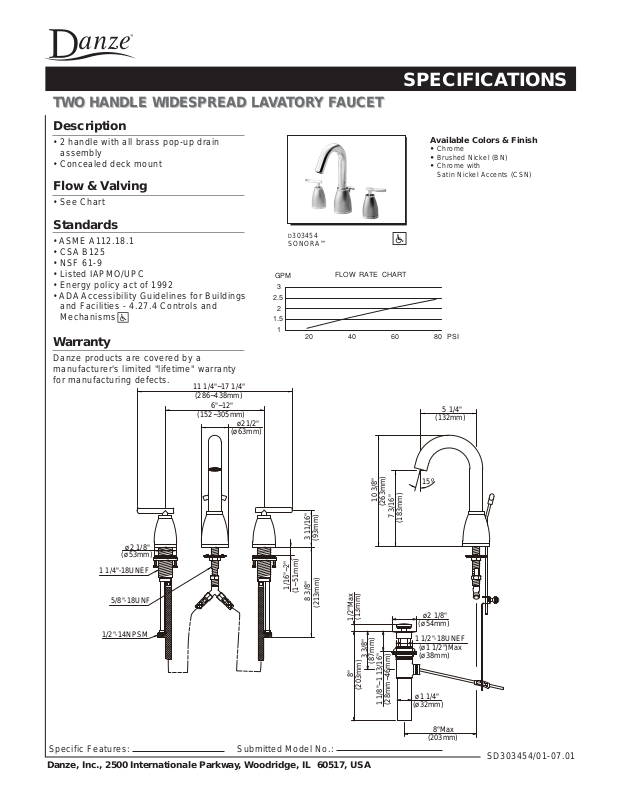

TWO HANDLE WIDESPREAD LAVAT O R Y FAUCET

TWO HANDLE WIDESPREAD LAVATORY FAUCET

Description

• 2 handle with all brass pop-up drain
assembly

• Concealed deck mount

Flow & Valving

• See Chart

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Chrome with

Satin Nickel Accents (CSN)

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

ø2 1/8"

(ø53mm)

1 1/4"-18UNEF

5/8"-18UNF

1/2"-14NPSM

11 1/4"~17 1/4"

(286~438mm)

6"~12"

(152~305mm)

(ø63mm)

ø21/2"

D303454

SONORA™

GPM

3

2.5

2

1.5

1

1/16"~2"

FLOW RATE CHART

20 40 60 80

10 3/8"

(263mm)

7 3/16"

(183mm)

3 11/16"

(93mm)

(1~51mm)

8 3/8"

(213mm)

(13mm)

1/2"Max

1 1/2"-18UNEF

3 3/8"

(87mm)

8"

(203mm)

1 1/8"~1 13/16"

ø1 1/4"

(28mm~46mm)

(ø32mm)

PSI

5 1/4"

(132mm)

15º

ø2 1/8"

(ø54mm)

(ø1 1/2")Max
(ø38mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

8"Max

(203mm)

SD303454/01-07.01
