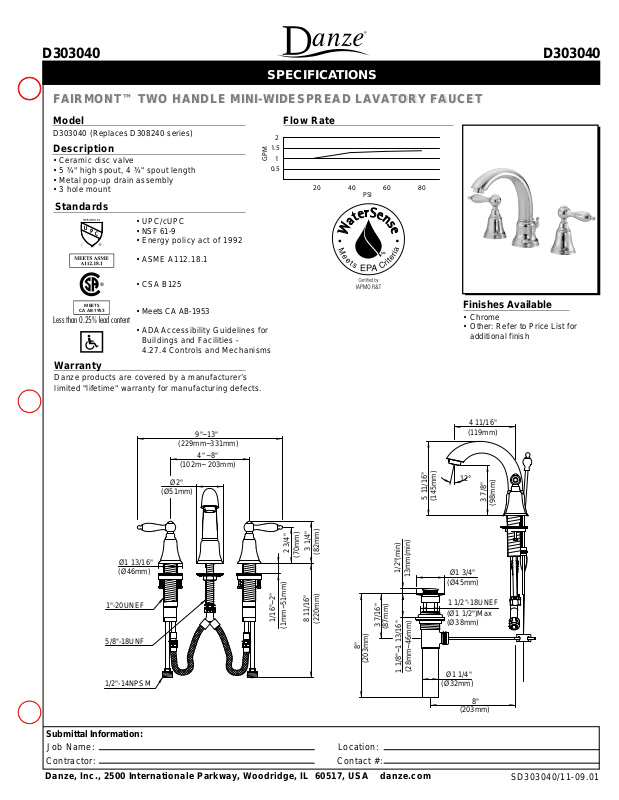

SPECIFICATIONS
FAIRMONT™ TWO HANDLE MINI-WIDESPREAD LAVATORY FAUCET
FAIRMONT™ TWO HANDLE MINI-WIDESPREAD LAVATORY FAUCET
Model
D303040 (Replaces D308240 series)
Description
• Ceramic disc valve
• 5 ¾" high spout, 4 ¾" spout length
• Metal pop-up drain assembly
• 3 hole mount
Standards
• UPC/cUPC
• NSF 61-9
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
MEETS
CA AB-1953
• Meets CA AB-1953
Less than 0.25% lead content
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
Ø1 13/16"
(Ø46mm)
1"-20UNEF
5/8"-18UNF
1/2"-14NPSM
9"~13"
(229mm~331mm)
(102m~ 203mm)
Ø2"
(Ø51mm)
4" ~8"
2 3/4"
(70mm)
1/16"~2"
(1mm~51mm)
3 1/4"
(82mm)
8 11/16"
(220mm)
8"
(203mm)
1/2"(min)
3 7/16"
(87mm)
1 1/8"~1 13/16"
5 11/16"
(145mm)
13mm(min)
(28mm~46mm)
Ø1 3/4"
(Ø45mm)
1 1/2"-18UNEF
(Ø1 1/2")Max
(Ø38mm)
Ø1 1/4"
(Ø32mm)
4 11/16"
(119mm)
12°
8"
(203mm)
3 7/8"
(98mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
SD303040/11-09.01
